Overview

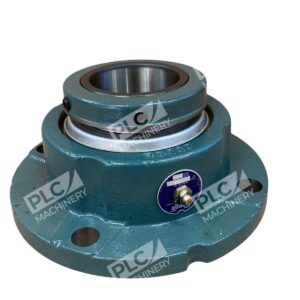

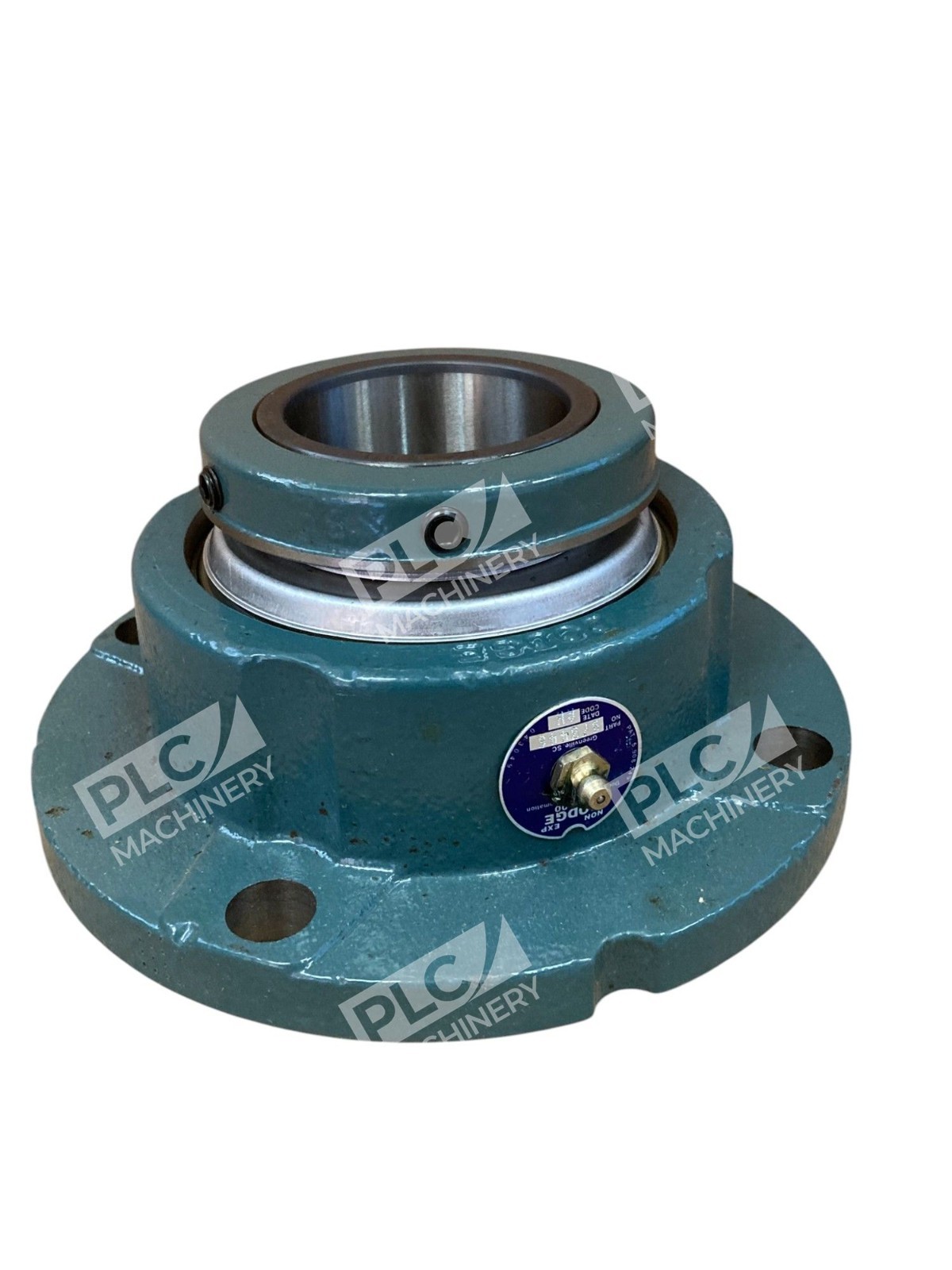

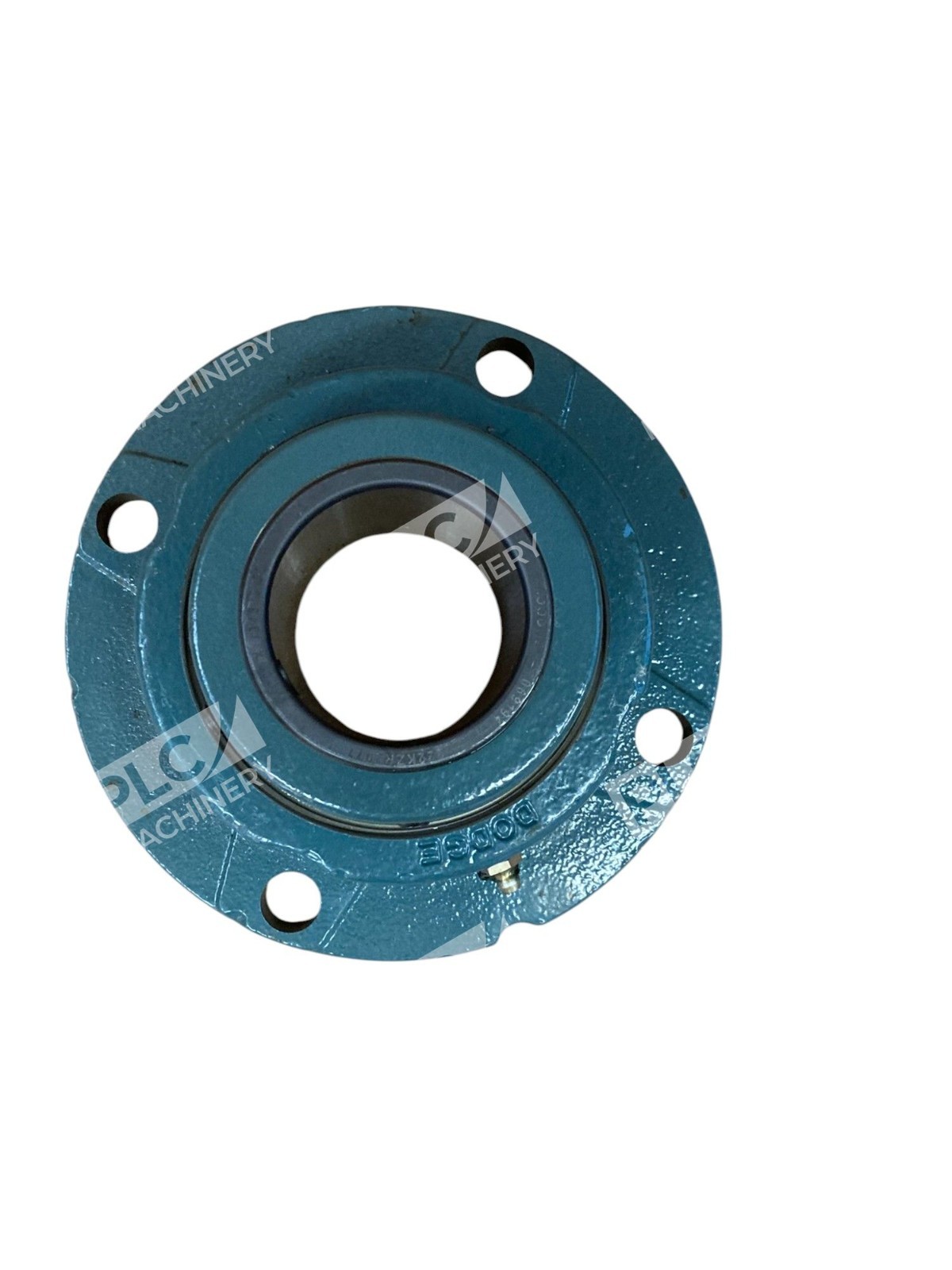

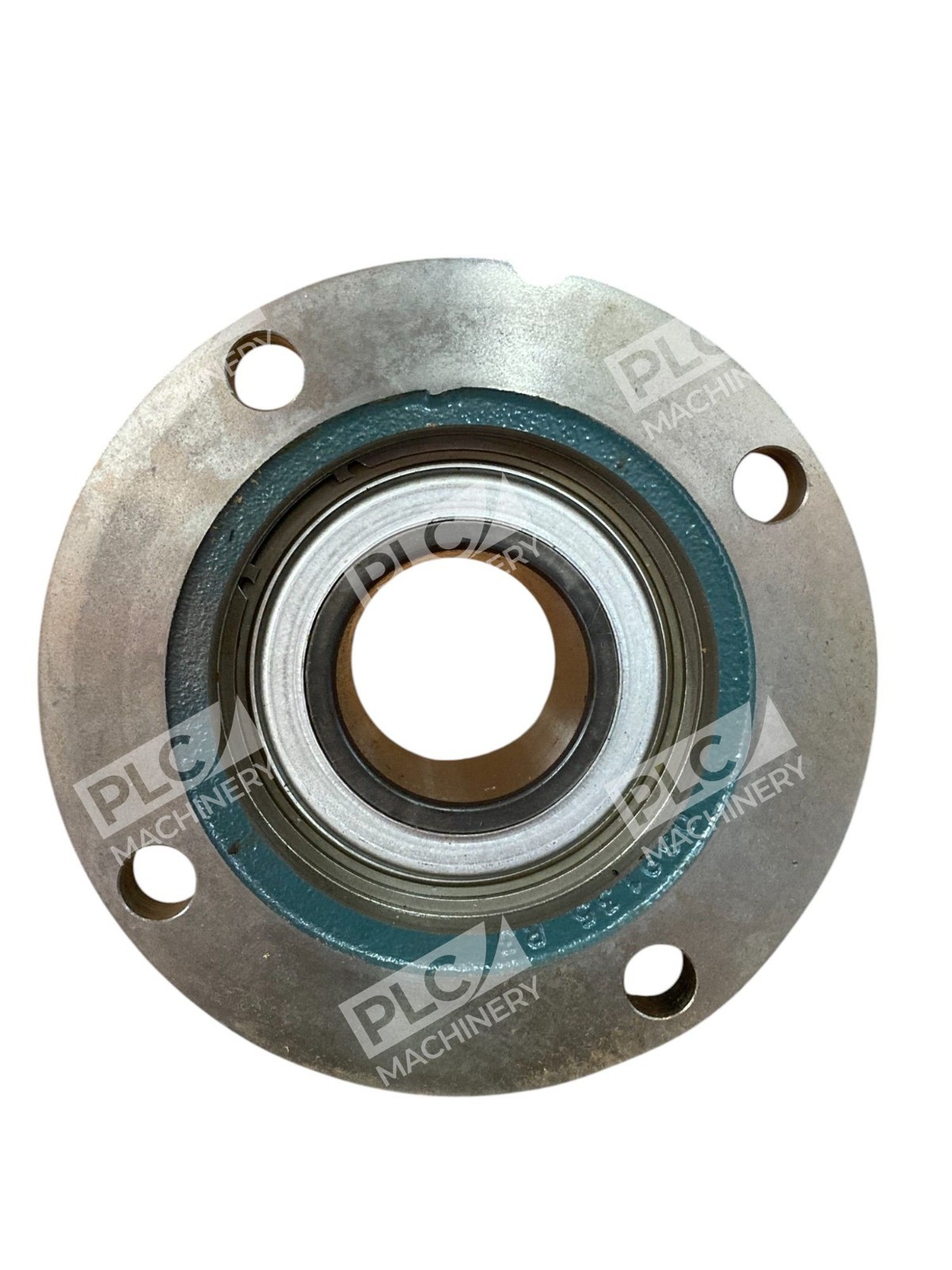

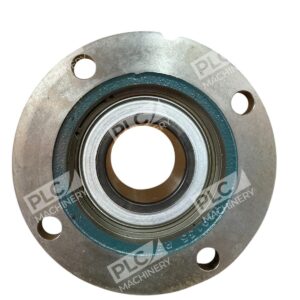

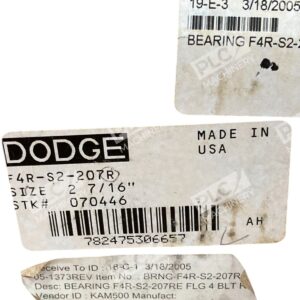

The Dodge F4R-S2-207R bearing (part number 070446) is a non-expansion, 4-bolt flange-mount spherical roller bearing unit designed for heavy-duty industrial applications. This bearing features a 2-7/16″ bore diameter with a cast iron housing and round flange mounting configuration, making it a reliable drop-in replacement for many machinery and power transmission systems.
Key Features
- Spherical Roller Design: Accommodates shaft misalignment up to 1.5°, reducing stress on machinery and extending service life
- 4-Bolt Round Flange Mount: Secure, symmetrical mounting with 6.75″ bolt circle diameter and 4.766″ bolt center-to-center spacing
- Set Screw Locking Device: 65° locking mechanism ensures the bearing stays fixed during operation and prevents slippage
- Triple-Lip Contact Seal: Advanced sealing with Trident triple-lip design protects against contamination and extends bearing life
- Grease-Lubricated: Pre-filled with MobilGrease XHP222 for consistent performance; ideal for minimal-maintenance applications
- Non-Expansion (Fixed) Bearing: Rigid design suitable for applications requiring precision shaft positioning
Technical Specifications
Below are the complete technical details for the Dodge F4R-S2-207R:
Typical Applications
The Dodge F4R-S2-207R bearing is widely used in:
- Industrial conveyor systems and power transmission equipment
- Large-frame electric motors and gearboxes
- Heavy machinery requiring shaft support with load capacity up to 47500 lbf static
- Equipment operating at moderate speeds (up to 1740 rpm) in manufacturing and material handling
- OEM replacement applications for Baldor-Dodge installations
Compatibility & Replacements
Compatible With
- Baldor-Dodge mounted bearing systems and OEM assemblies
- Standard industrial motor frames with 4-bolt flange mounting patterns
- Power transmission and conveyor equipment designed for S-2000 series bearings
- Machinery requiring 2-7/16″ bore spherical roller bearing units
Replaces / Drop-In Replacement For
- Dodge 070551 (F4S-S2-207R) — square-type equivalent with different bolt spacing
- Alternative bearing models in the Dodge S-2000 flange series for 2-7/16″ bore applications
- OEM Baldor-Dodge flange bearings with matching 4-bolt round configuration
Works With
- Cast iron pillow blocks and flange-mount housings rated for 2-7/16″ bore inserts
- Standard set-screw shaft locking systems and adapter sleeves
- MobilGrease XHP222 and compatible lithium complex greases
- Trident seal and triple-lip contact seal systems
