Overview

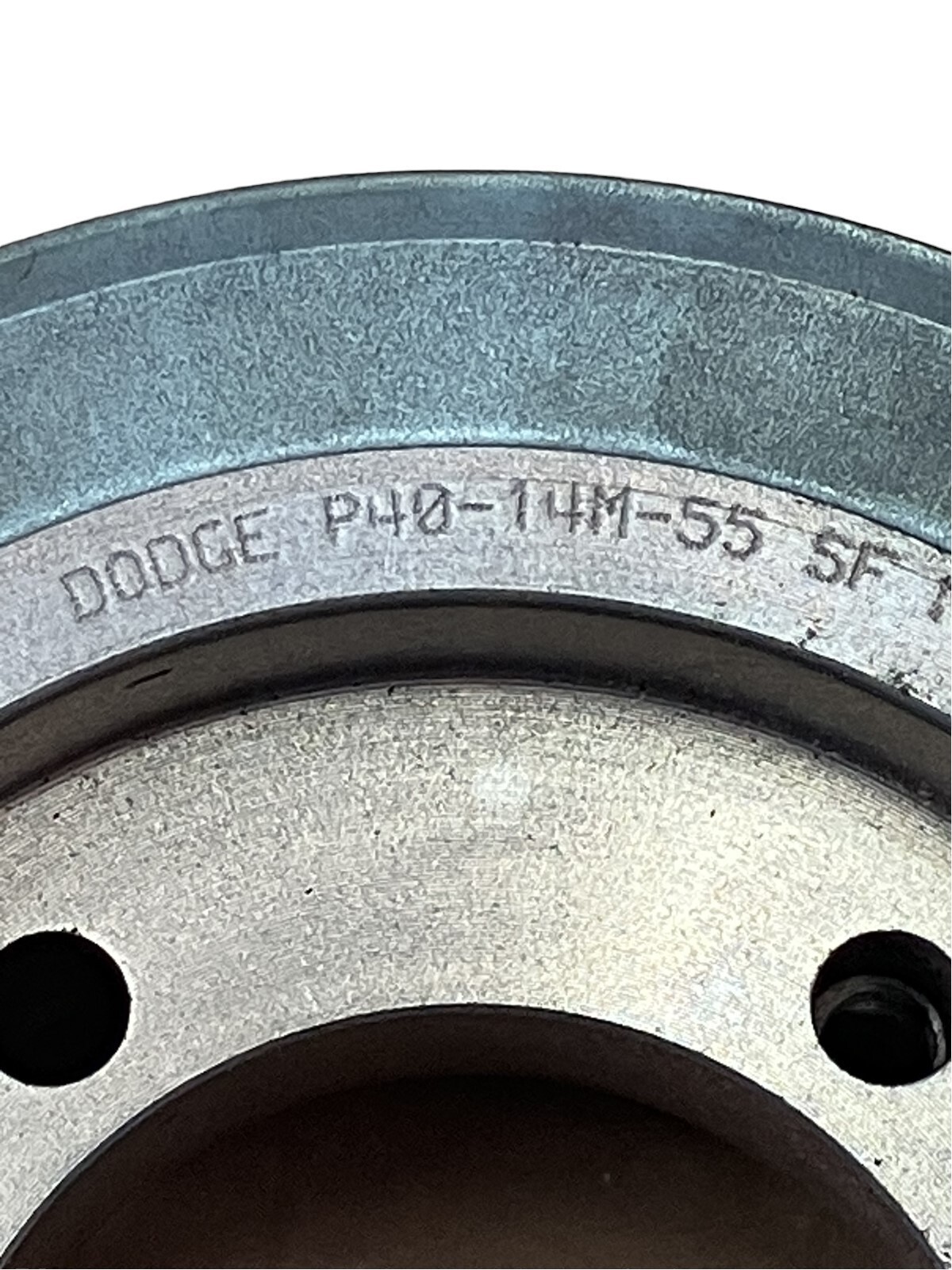

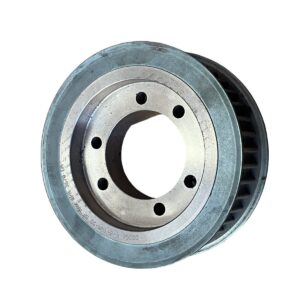

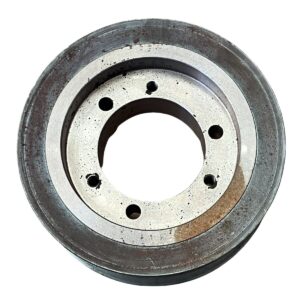

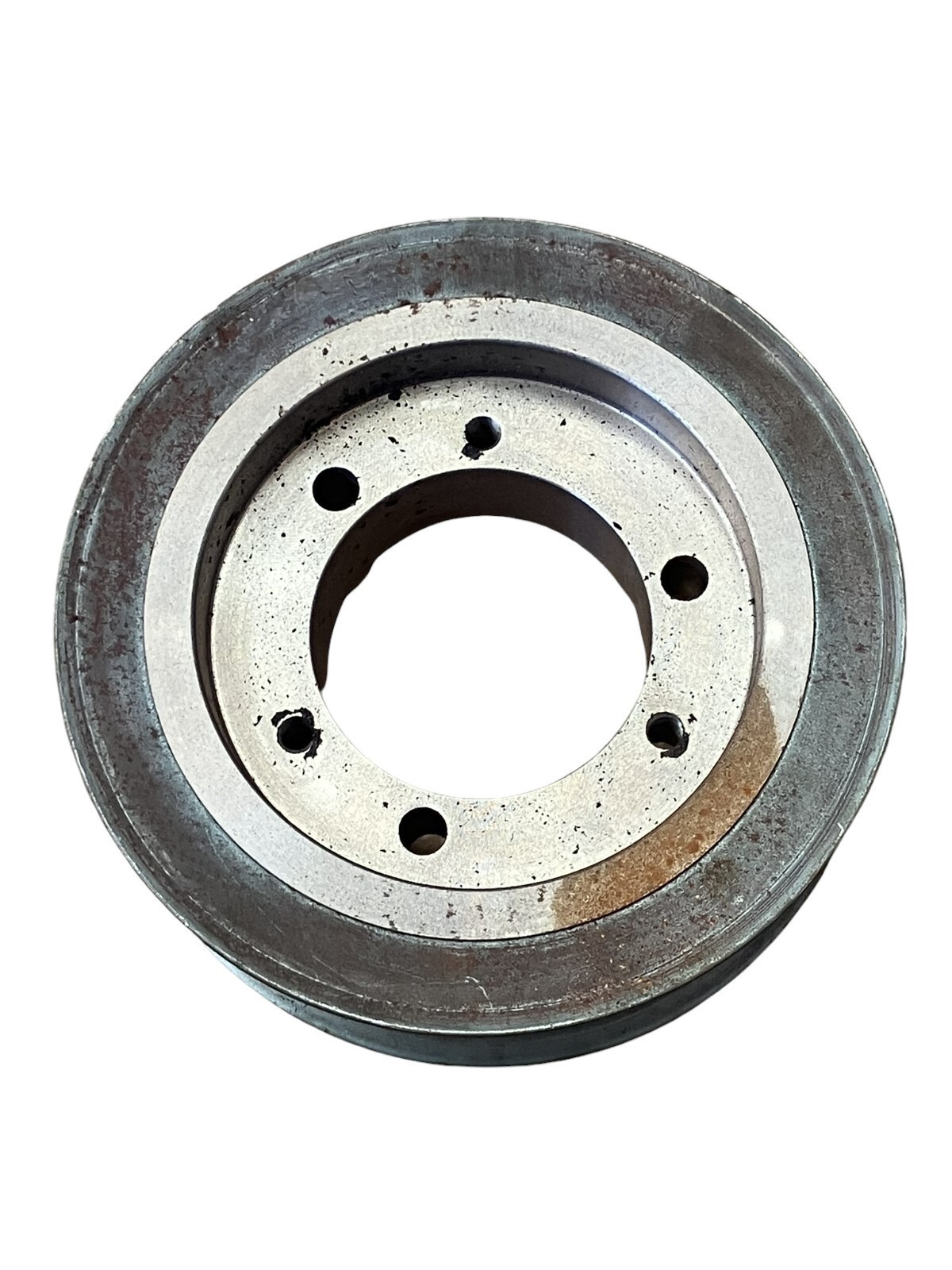

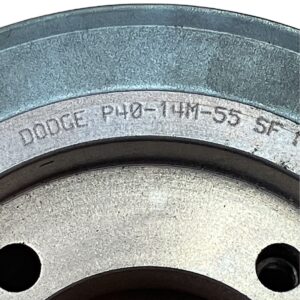

The Dodge P40-14M-55-SF is a precision-engineered HTD (High Torque Drive) belt sprocket designed for synchronous belt power transmission in industrial automation and motion control systems. As a Type D1F model with QD (Quick-Disconnect) bore, this sprocket delivers positive, non-slip engagement ideal for demanding PLC-controlled machinery, conveyor systems, and precision drive applications.
Key Features
- HTD 14 mm pitch with 40 grooves for optimal belt meshing and torque transmission
- Type D1F QD bore accepts 1/2 to 2-15/16 inch bore sizes for maximum shaft compatibility
- Non-slip positive drive — eliminates belt slippage under load
- Zero lubrication required — sealed, maintenance-free operation
- Corrosion and abrasion resistant — suitable for harsh industrial environments
- 2-3/4 inch face width accommodates standard HTD belt widths
Technical Specifications

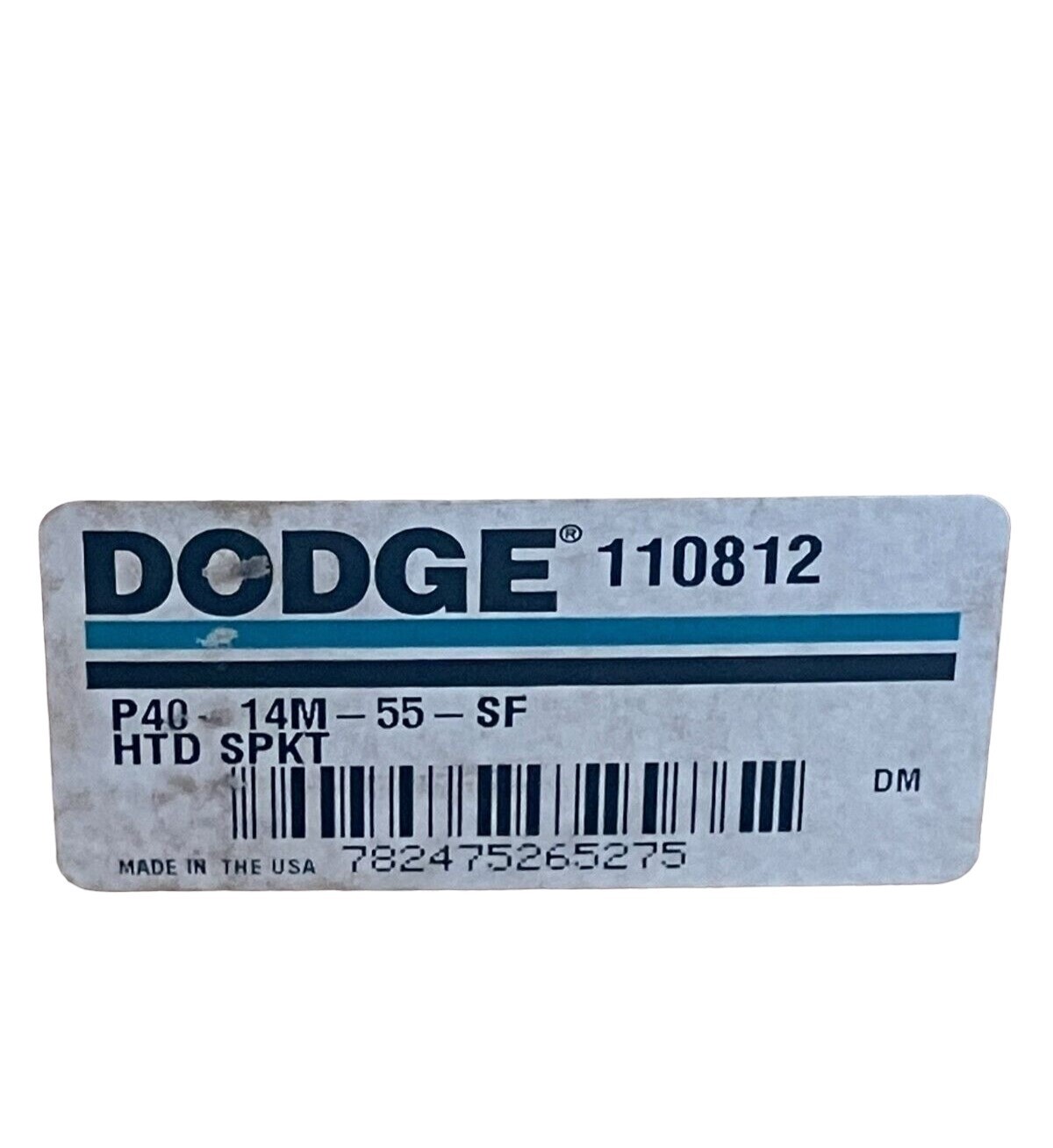

- Part Number: P40-14M-55-SF
- Manufacturer: Dodge (Baldor subsidiary)
- MPN: 110812
- Sprocket Type: Type D1F HTD Belt Sprocket
- Bore Type: Quick-Disconnect (QD)
- Bore Size Range: 1/2 to 2-15/16 inch

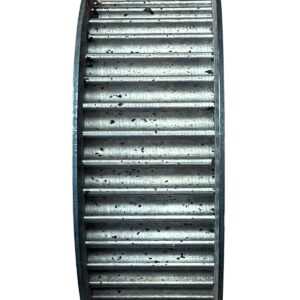

- Number of Grooves: 40
- Belt Pitch: 14 mm HTD
- Outside Diameter: 6.909 inch
- Pitch Diameter: 7.018 inch
- Face Width: 2-3/4 inch
- Flange Diameter: 7.518 inch
- Bushing Type: SF (Quick-Set bushing)
- Material: Ductile iron
- UPC: 782475265275
Typical Applications
The Dodge P40-14M-55-SF is widely used in:
- Automated conveyor and material handling systems
- Precision indexing and positioning drives
- Industrial automation and robotics
- Packaging machinery and production lines
- CNC and multi-axis motion control systems
- Power transmission in synchronous belt drive systems
Compatibility & Replacements
Compatible With
- HTD 14 mm pitch synchronous belt systems
- 55 mm belt width HTD drives
- Quick-disconnect shaft coupling systems
- QD bushed bore applications from 1/2 to 2-15/16 inch shaft diameters
- Industrial automation control systems requiring positive drive
Replaces / Drop-In Replacement For
- Directly compatible with original equipment calls for P40-14M-55-SF HTD belt sprockets
- Verify compatibility with your system integrator before ordering for exact OEM specifications
Works With
- HTD 14 mm pitch synchronous belts (55 mm wide)
- Quick-disconnect (QD) bushing systems
- Standard industrial shaft couplings and motor mounts
- Motion control software and PLC automation platforms
