Overview

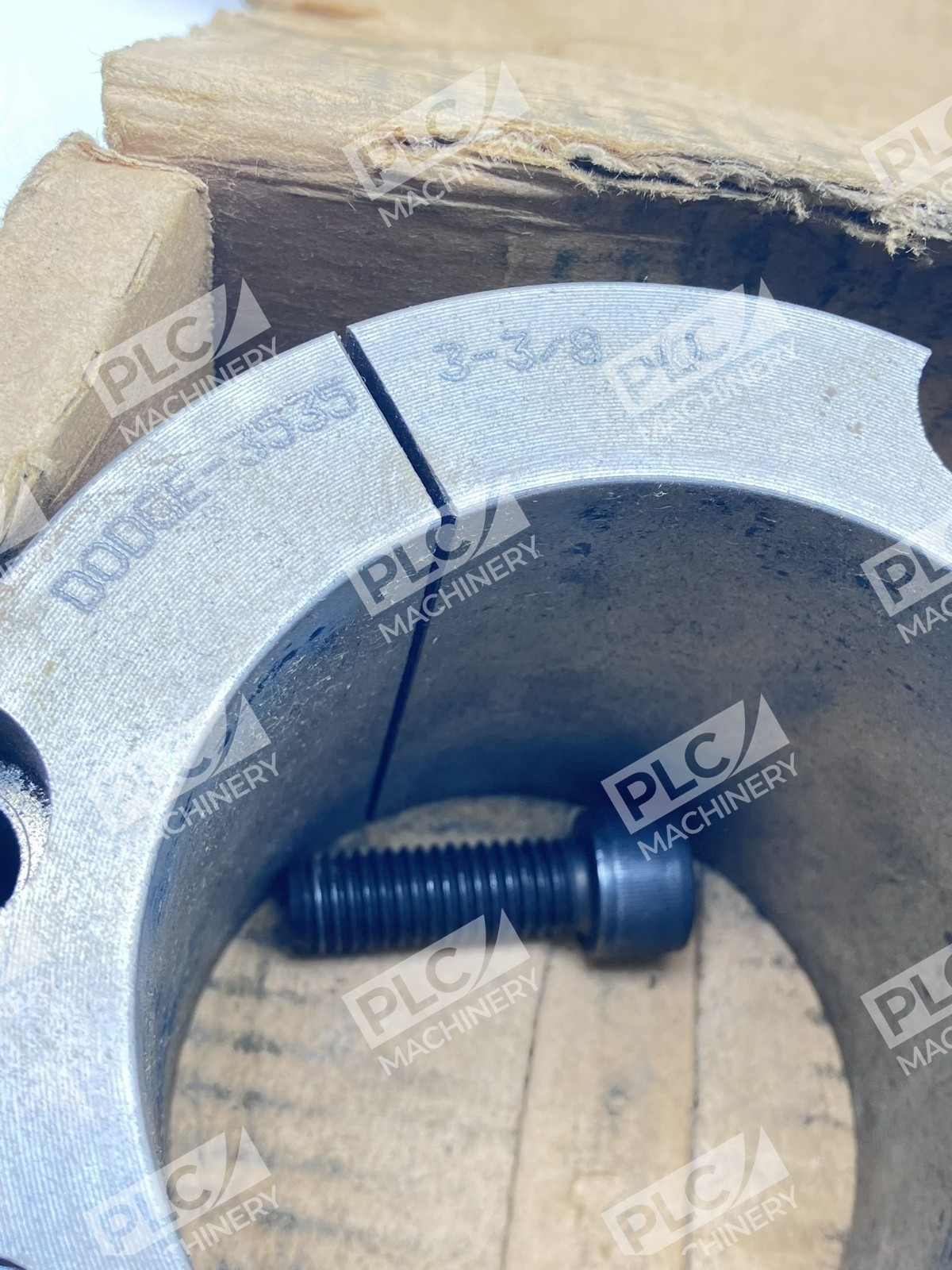

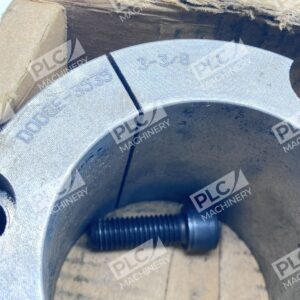

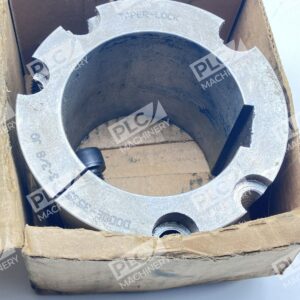

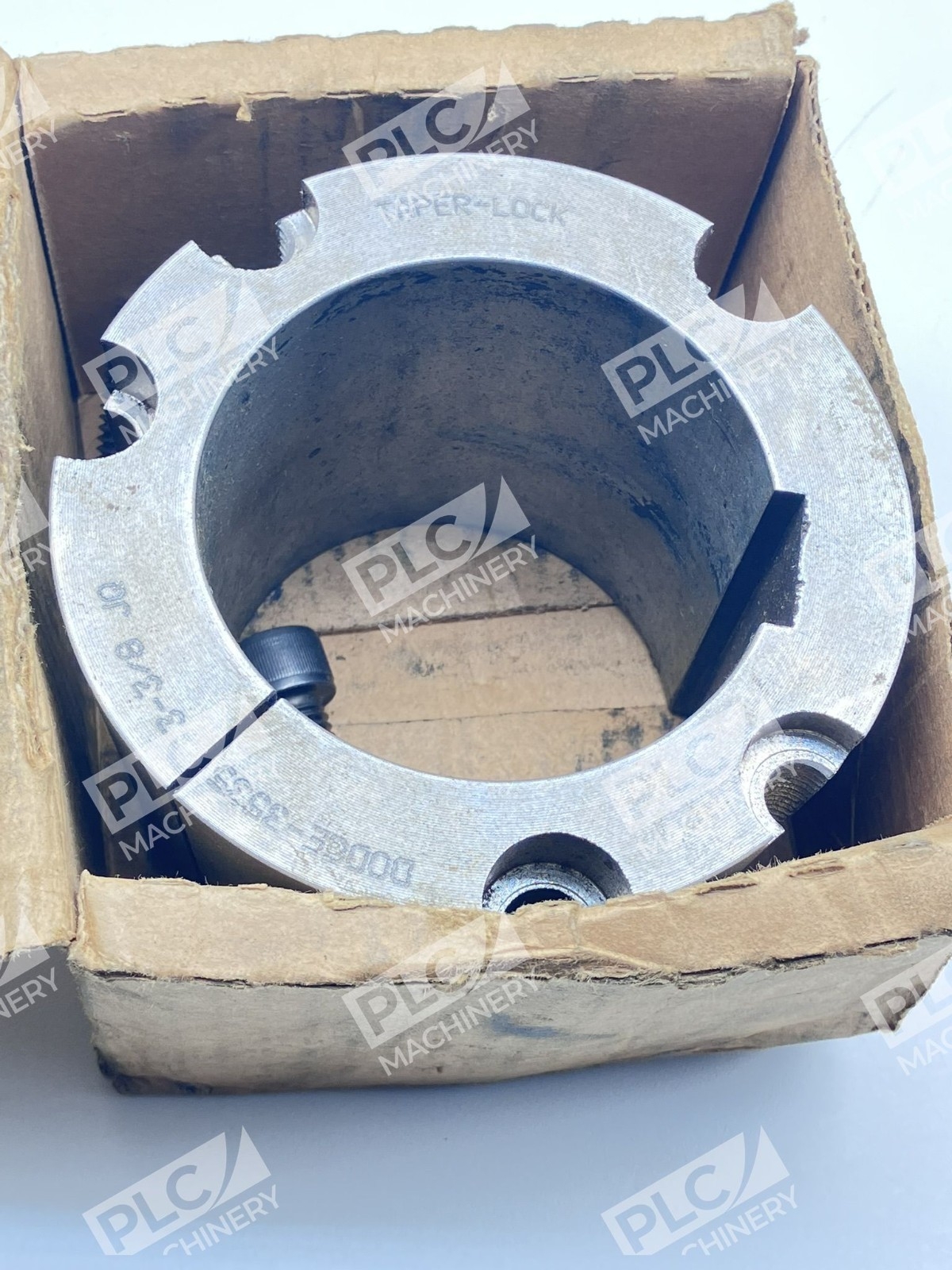

The Dodge 3535X3-3/8 Taper-Lock Bushing (part number 117233) is an industry-standard split bushing engineered for secure shaft locking in power transmission systems. This flangeless design provides a clean, compact installation without protruding parts, making it ideal for mounting pulleys, sheaves, and sprockets onto motor shafts or transmission lines. The 8-degree tapered bore combined with screw-driven clamping delivers a powerful grip that eliminates wobble and ensures true, centered rotation under load.
Key Features
- Flangeless design for clean, compact mounting with no protruding parts
- 8-degree taper grips tight with screw-driven clamping mechanism for secure locking
- Split bushing allows easy installation and removal without shaft disassembly
- Flush-mounted profile provides efficient power transmission without excess mass
- Rated for 44,800 in-lb torque capacity on standard applications
- Sintered steel or iron construction for durability in industrial environments
Technical Specifications
The Dodge 3535X3-3/8 delivers precise dimensions and robust load capacity for demanding power transmission duty:
- Bore Diameter: 3-3/8 inches (stock bore)
- Barrel Diameter: 5 inches
- Hub Diameter: 7 inches
- Overall Length: 3-1/2 inches
- Tapered Design: 8-degree taper
- Keyway Size: 7/8 × 1/4 inch
- Bolt Circle Diameter: 4.83 inches
- Number of Bolt Holes: 3
- Screw Specification: 1/2 × 1-1/2 inch
- Torque Capacity: 44,800 in-lb
- Material: Iron or Ductile Iron
- Wrench Torque: 1,000 in-lb
- Weight: Approximately 9.68 lbs

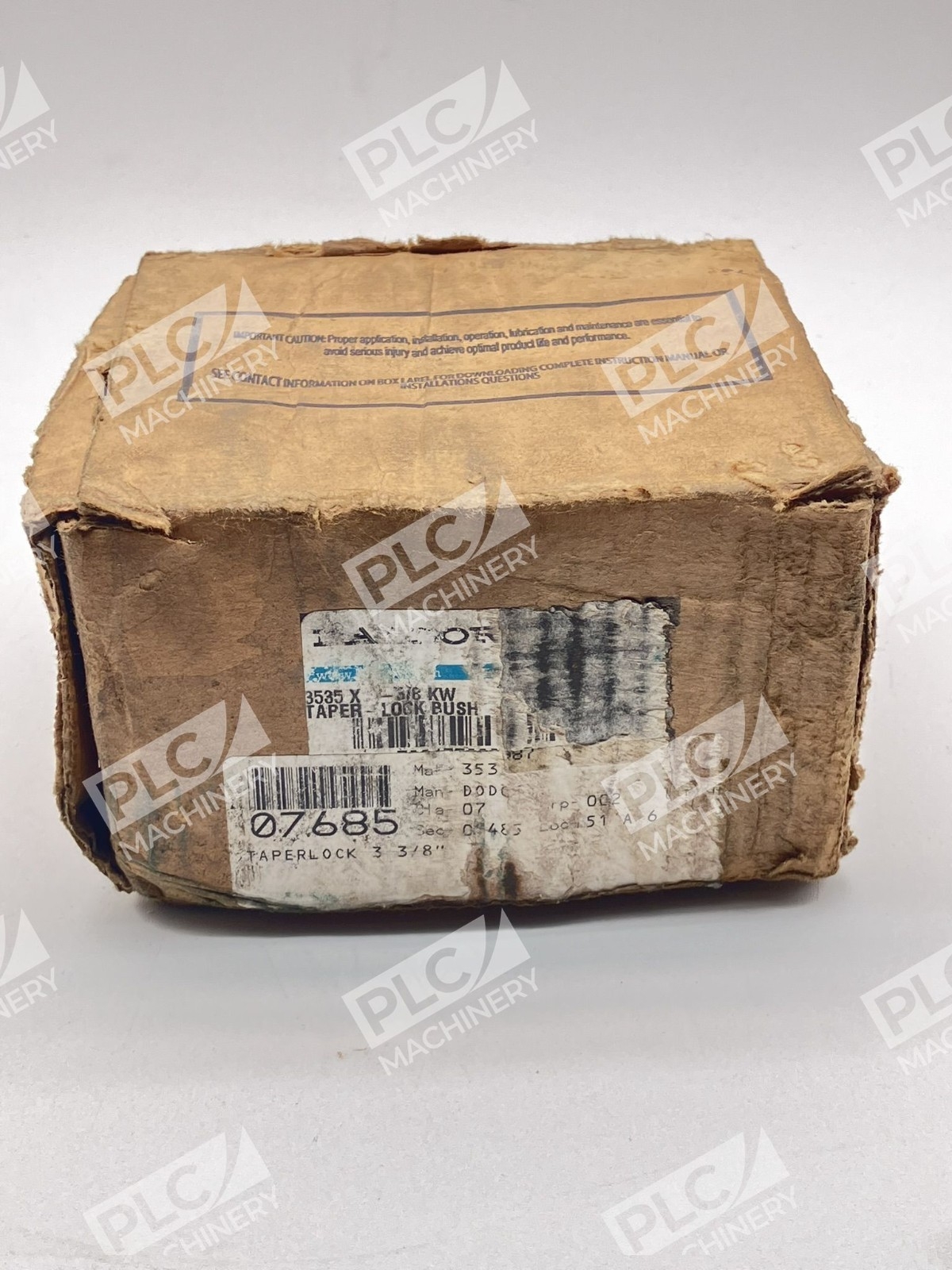

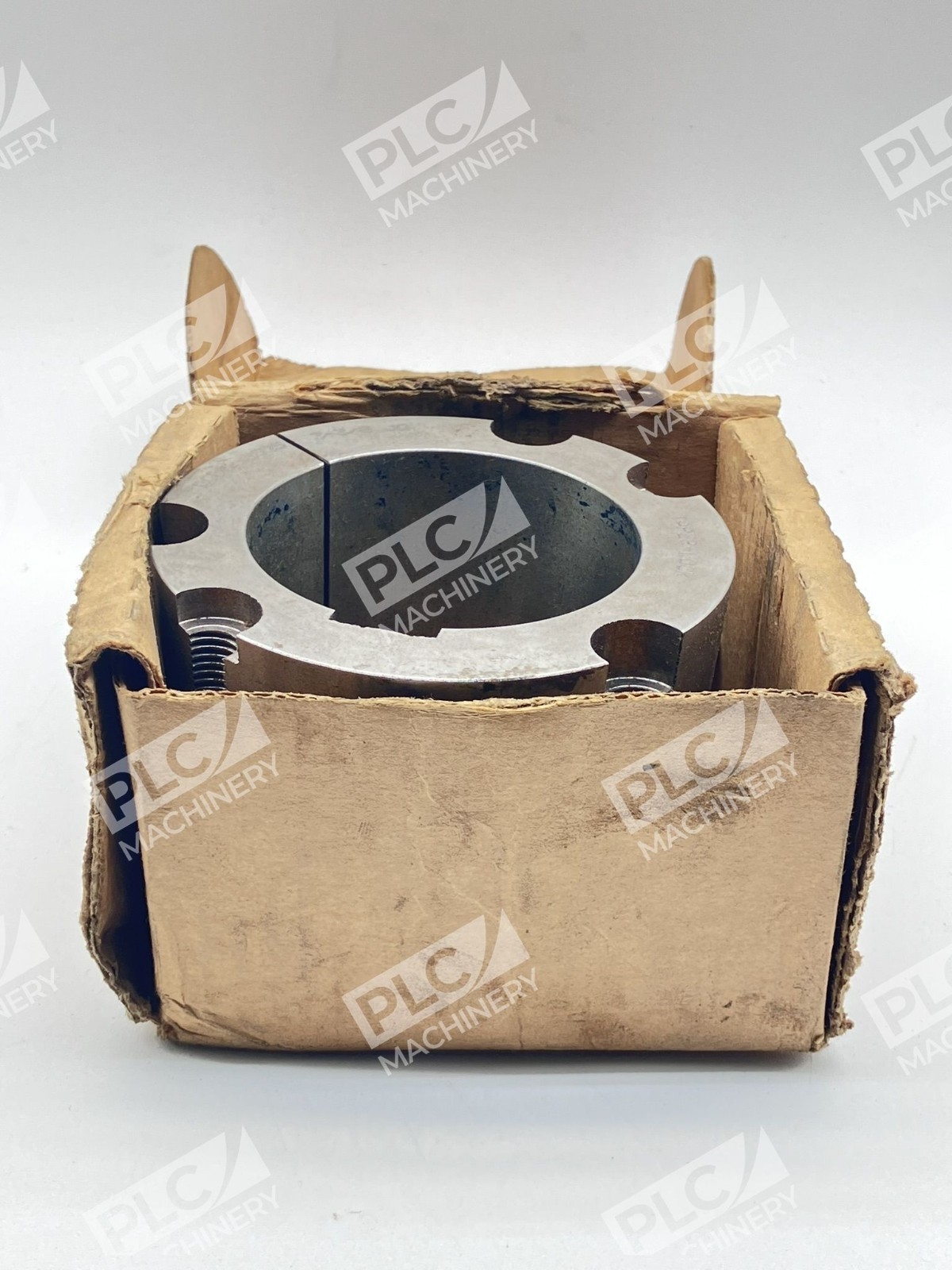

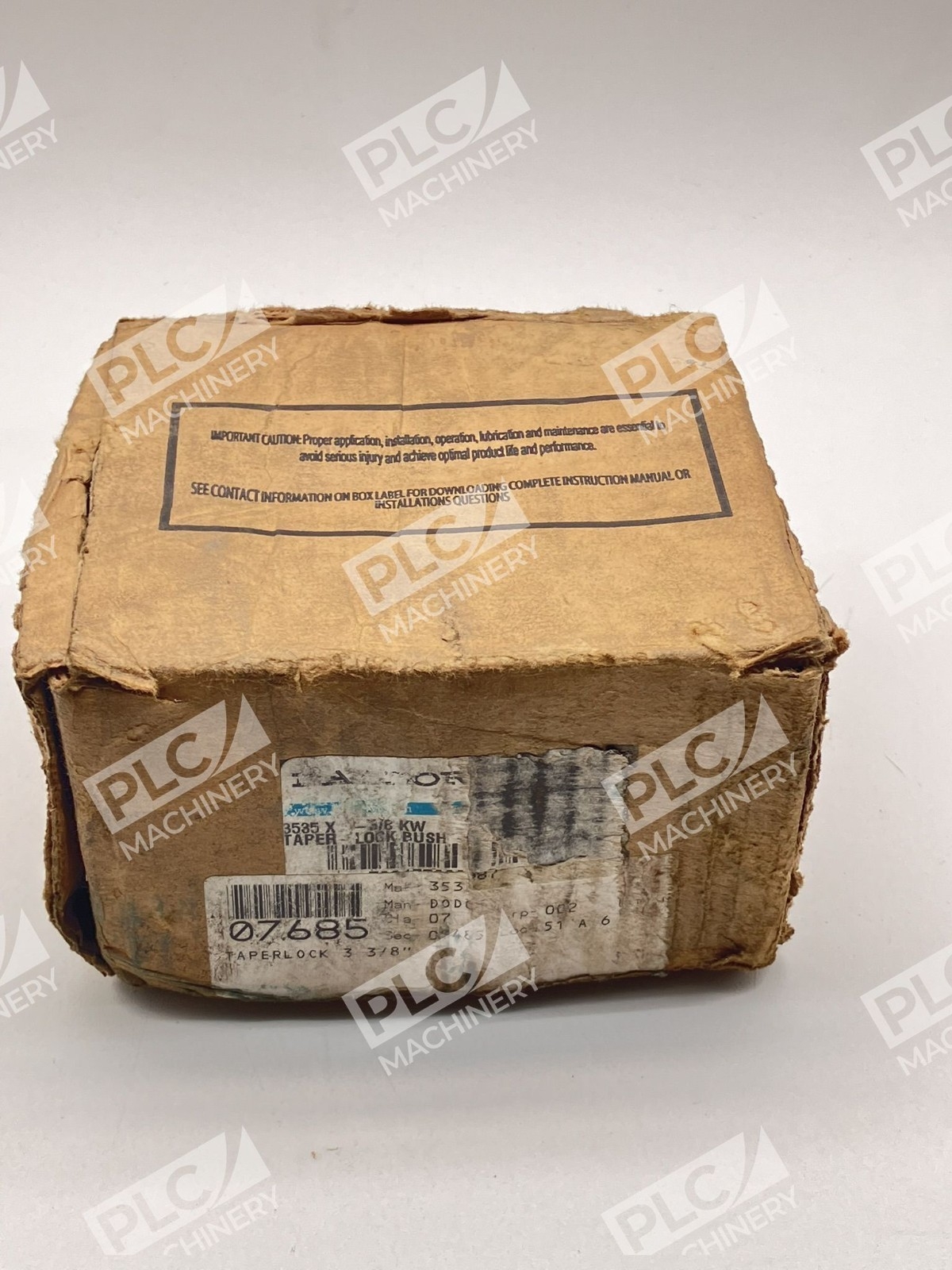

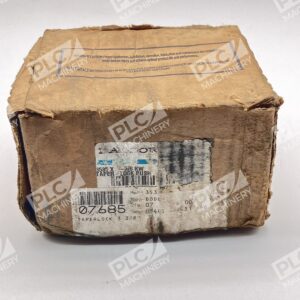

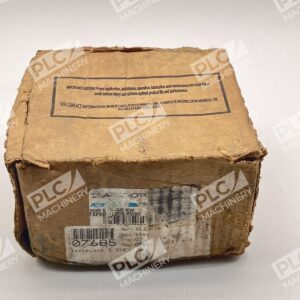

- Condition: New in Box
Typical Applications
The Dodge 3535X3-3/8 Taper-Lock Bushing is widely used in industrial power transmission and motion control systems, including:
- Motor-driven pulley and sheave assemblies
- Sprocket mounting on conveyor and drive systems
- Fan and blower coupling installations
- Heavy-duty industrial machinery requiring solid shaft locking
- HVAC and manufacturing equipment
- Material handling and automation systems
Compatibility & Replacements
Compatible With
- 3-3/8″ shaft diameter power transmission equipment
- Standard flat-belt and V-belt drive systems
- Chain drive sprocket assemblies
- Pulley and sheave hubs with 7-inch bore seating
- Industrial motor coupling applications
Replaces / Drop-In Replacement For
- Dodge 3535X3-3/8 (direct equivalent)
- Older split bushing designs with equivalent 3-3/8″ bore and 7″ hub diameter
- Standard shaft-locking bushings in the 3535 series family
Works With
- Any equipment designed for 3535 series taper-lock bushing mounting
- Standard power transmission hubs and pulleys
- Industrial motors rated for taper-lock bushing coupling
- Conveyor, automation, and machinery drive trains
