Overview

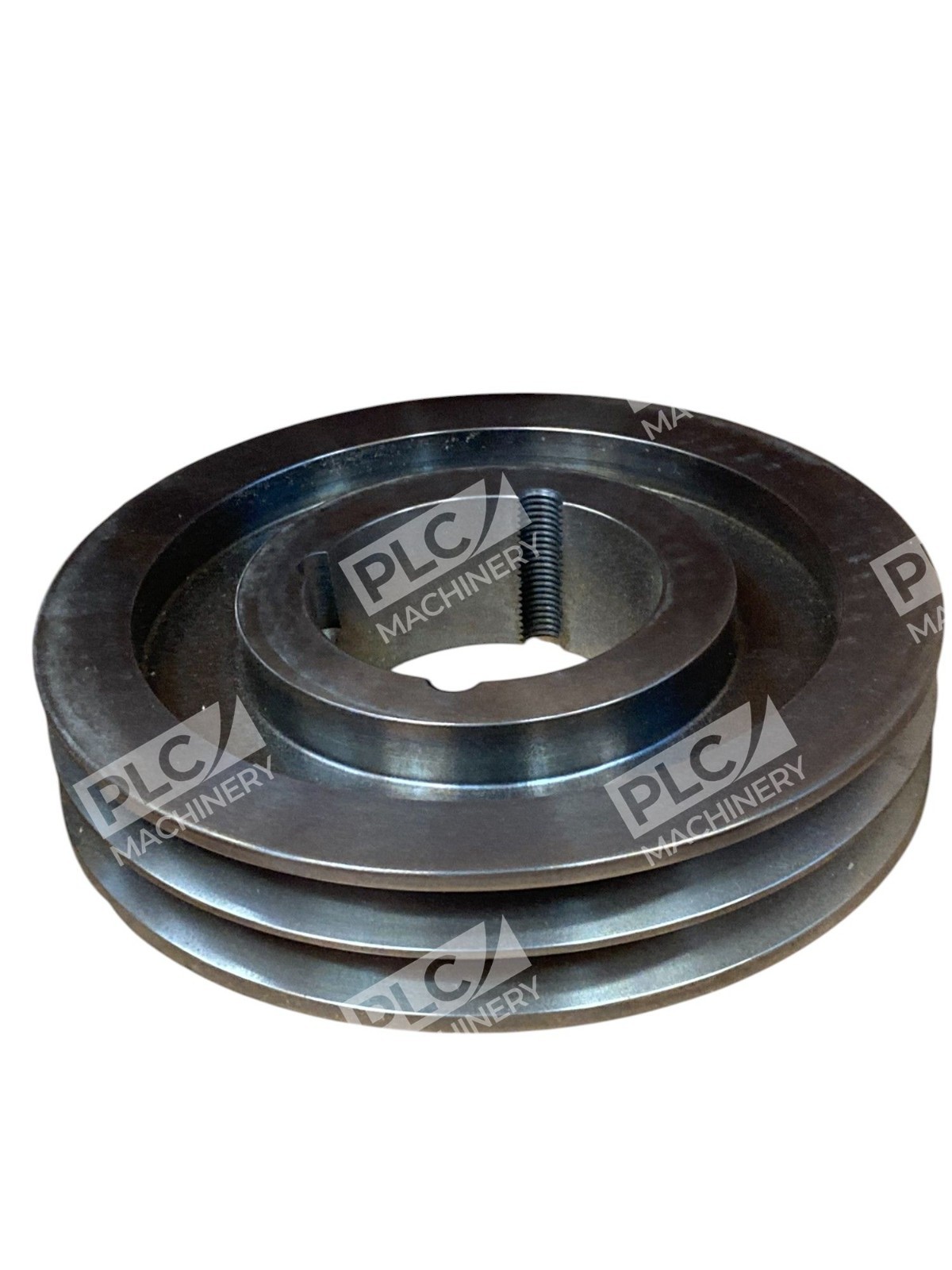

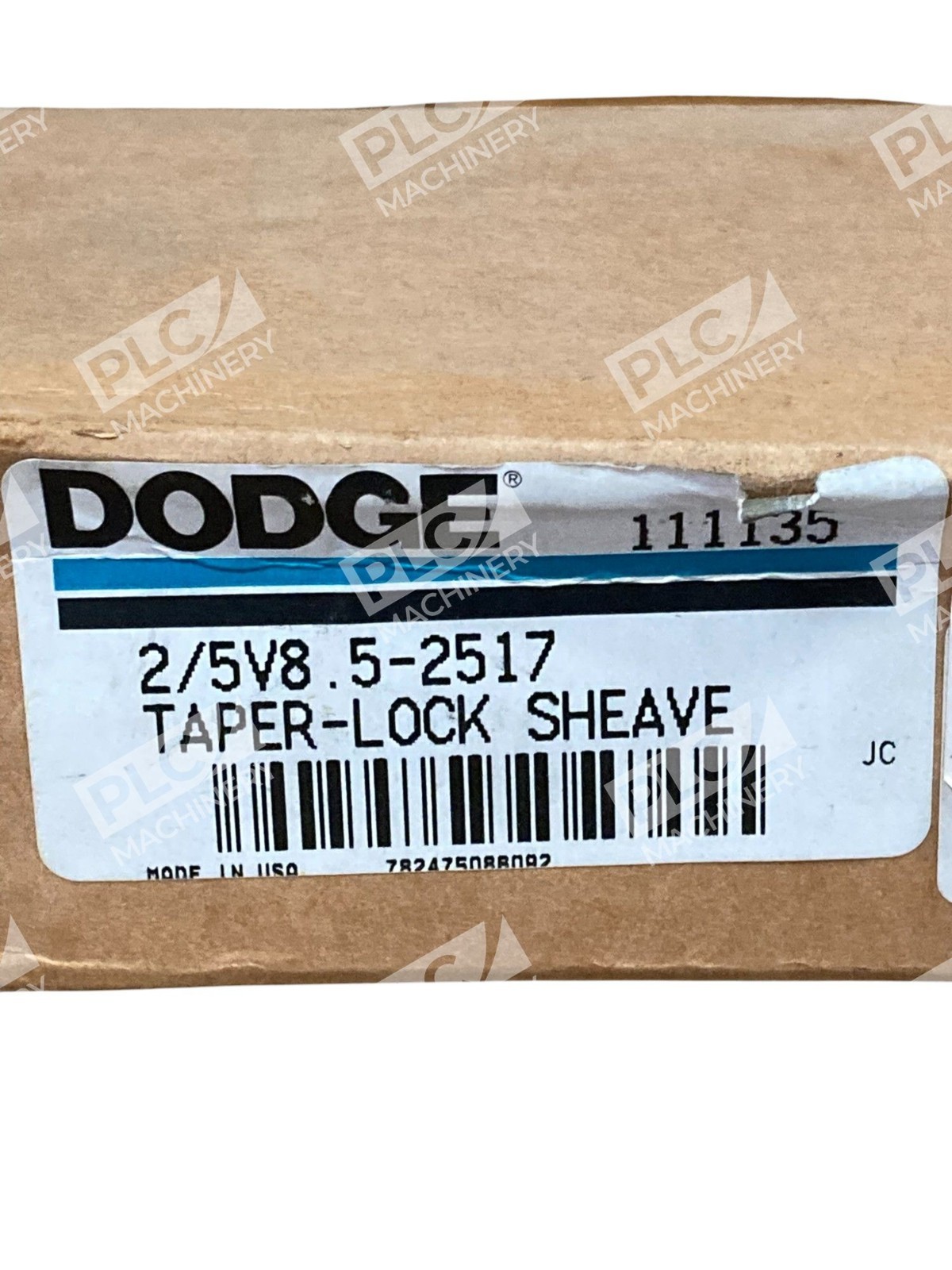

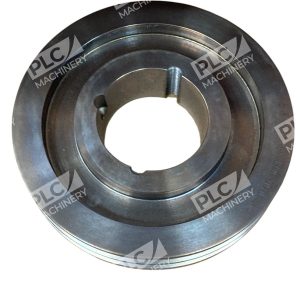

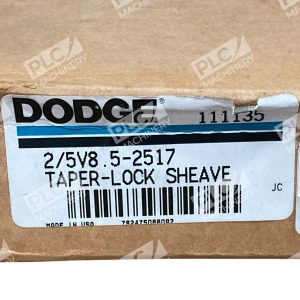

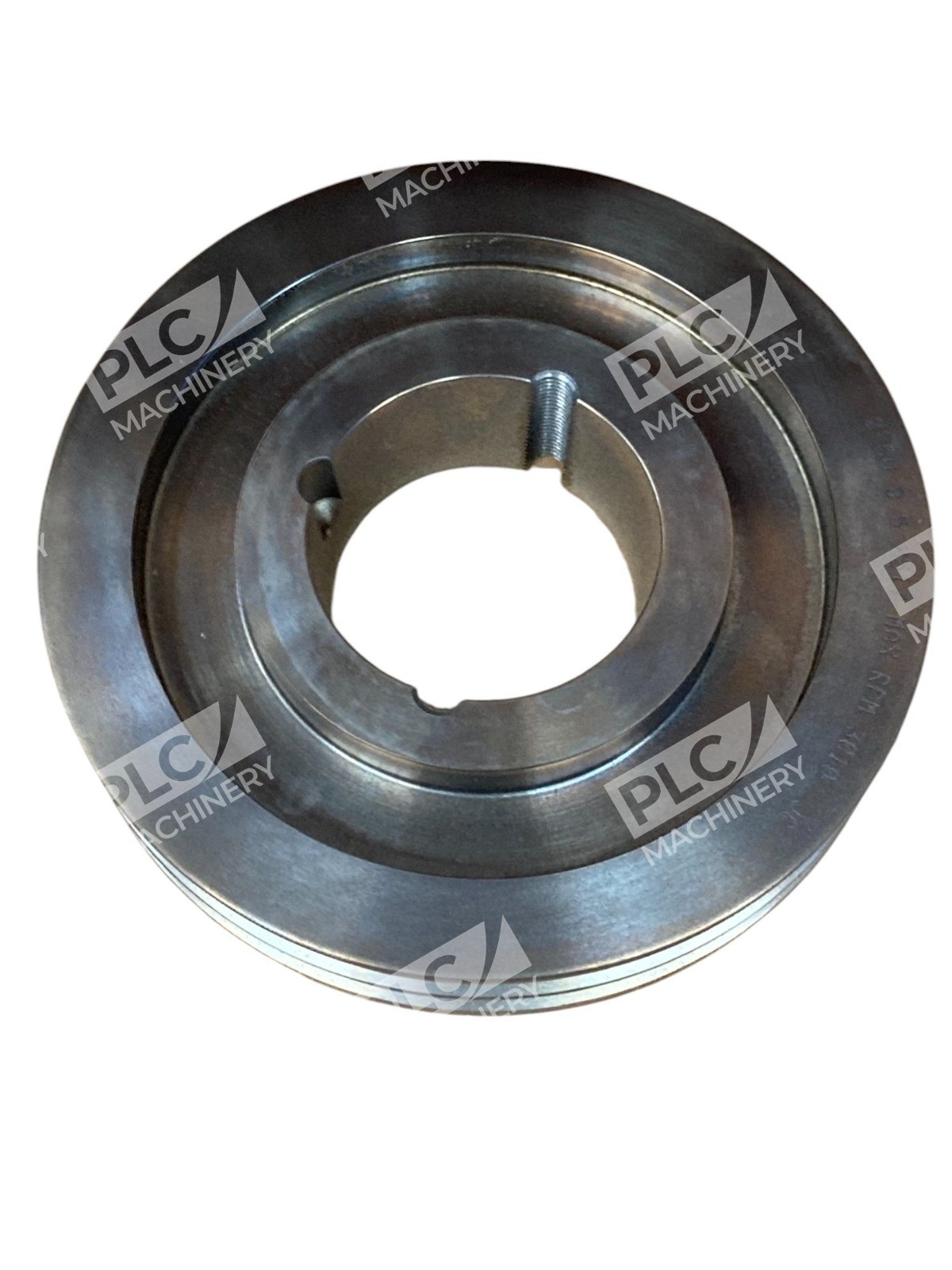

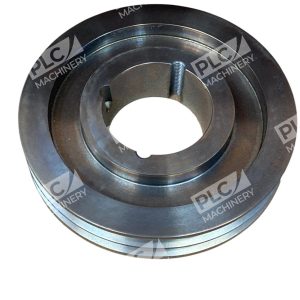

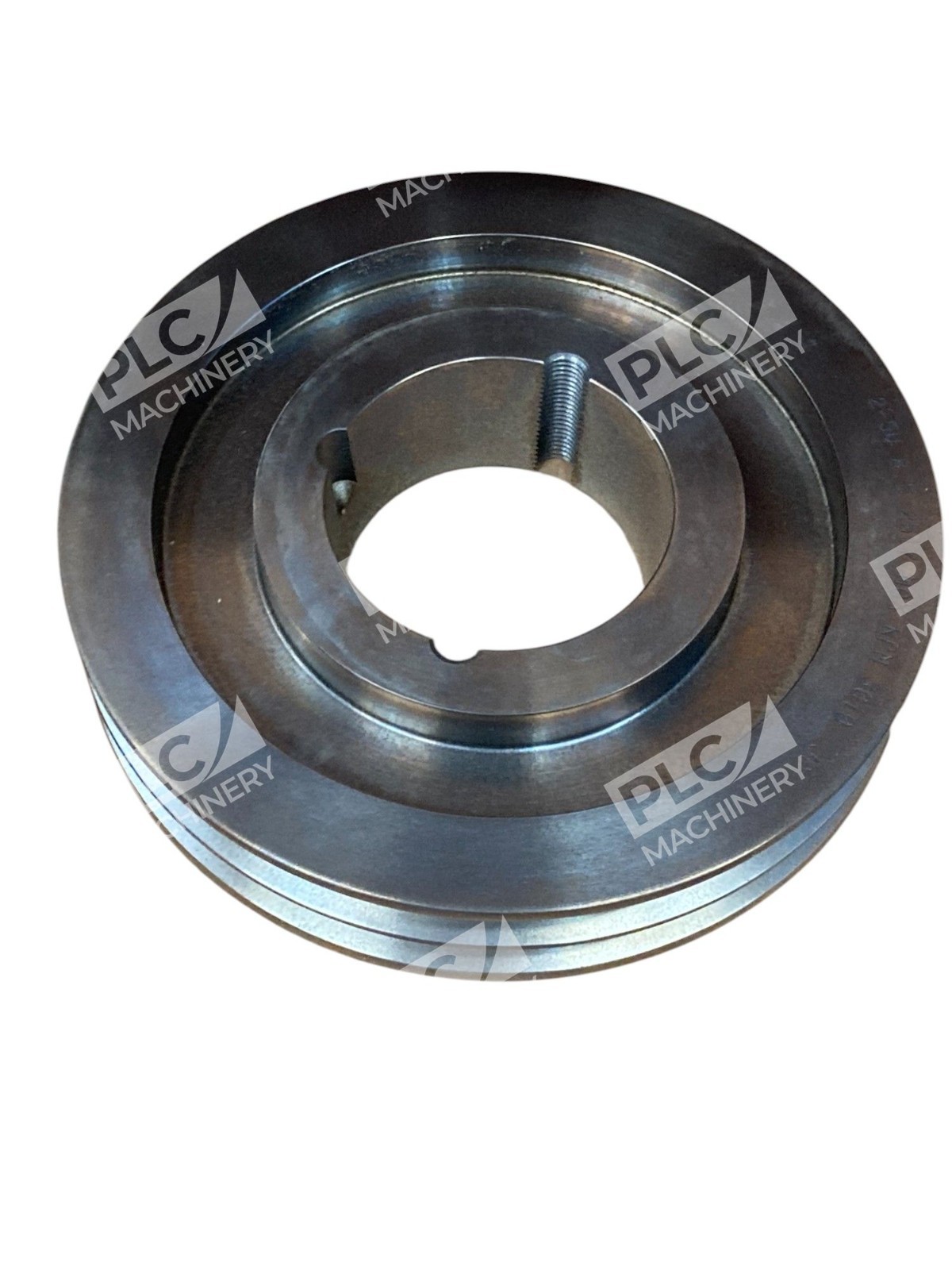

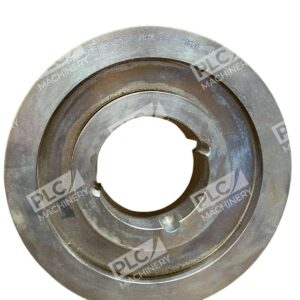

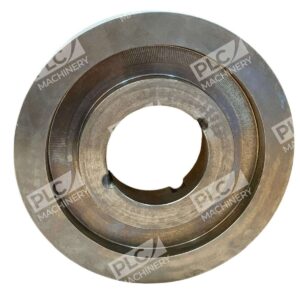

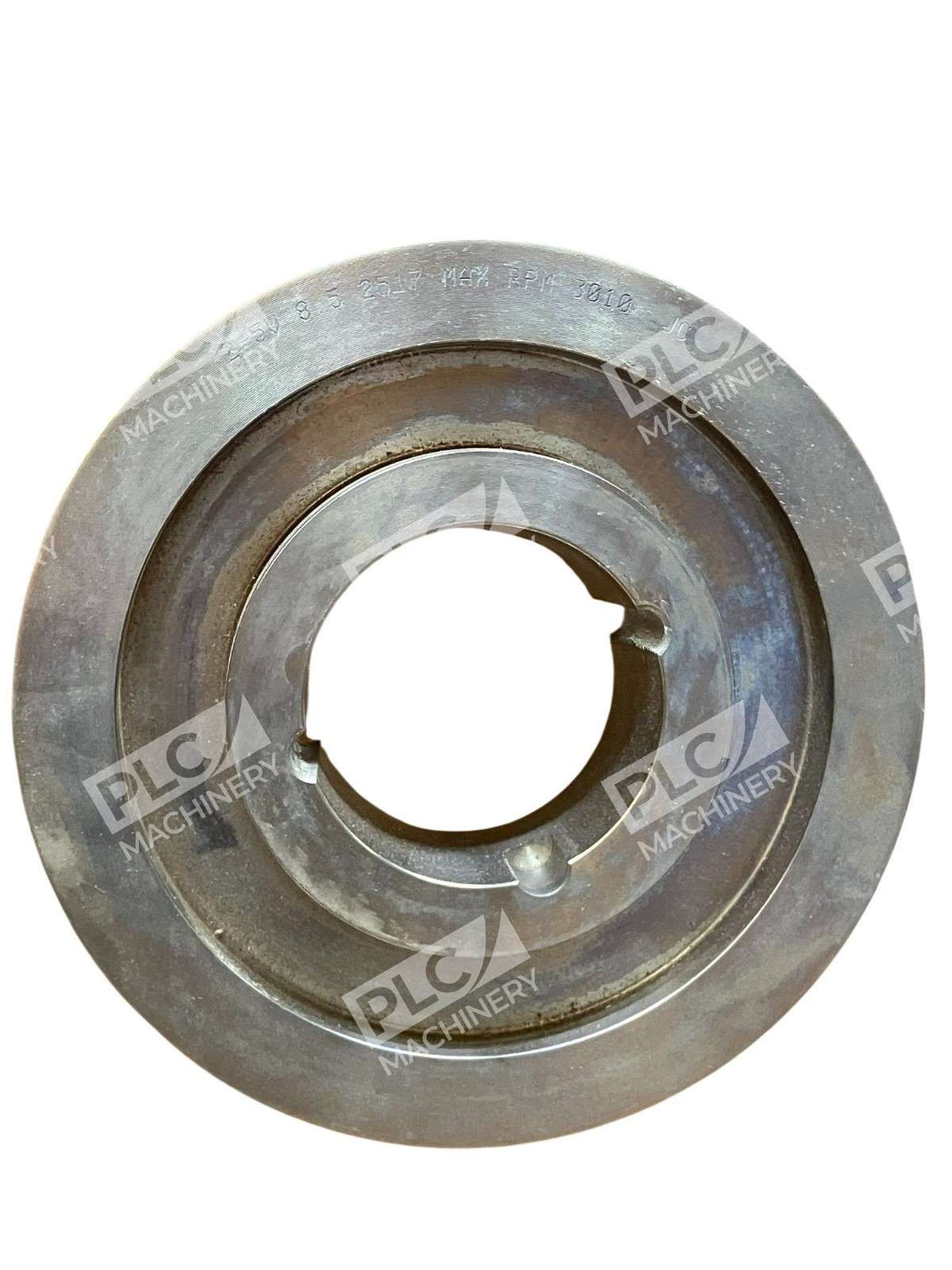

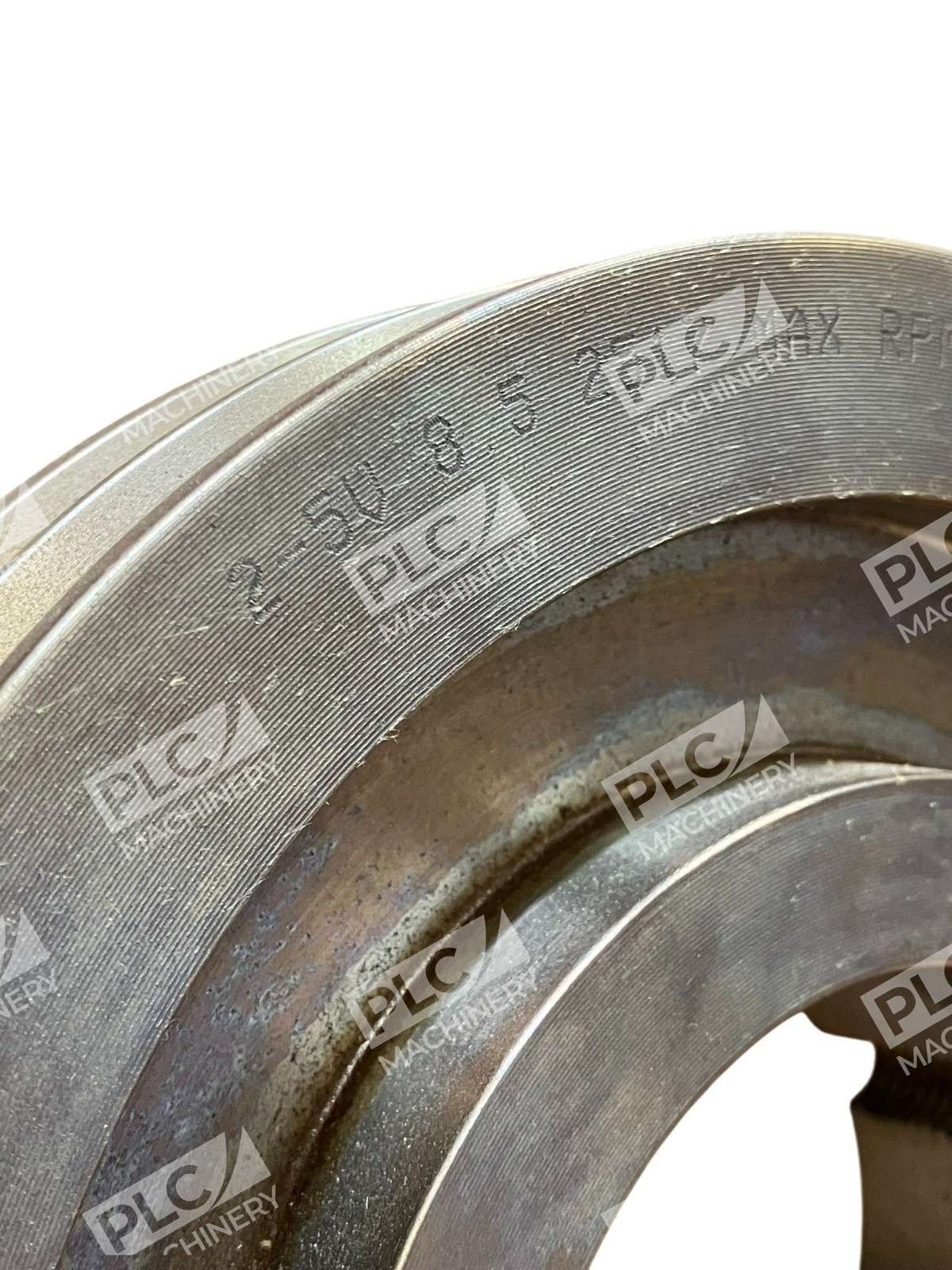

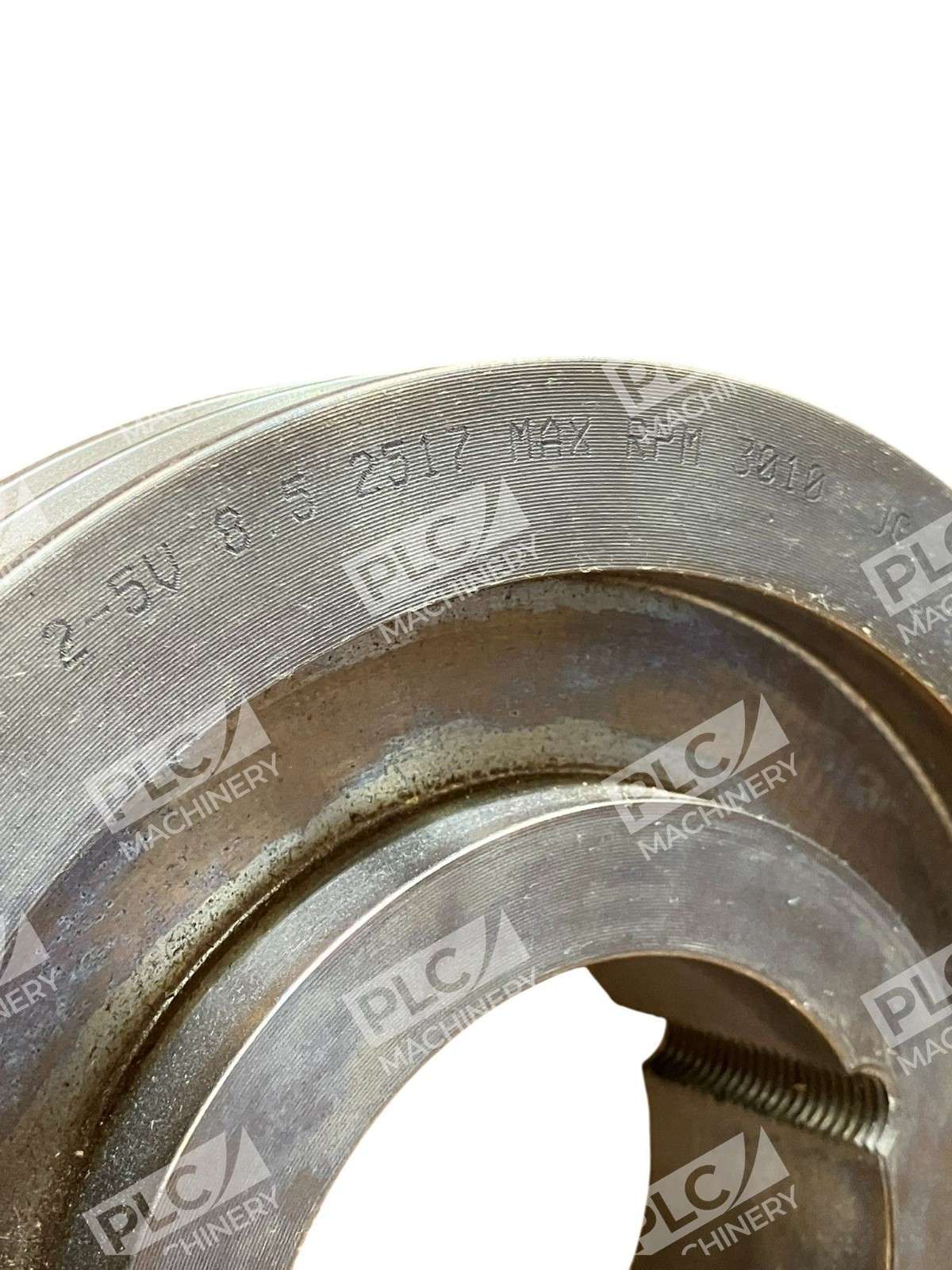

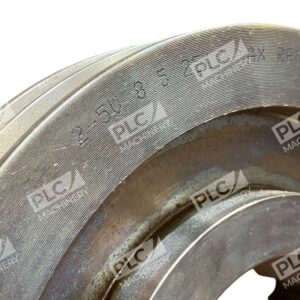

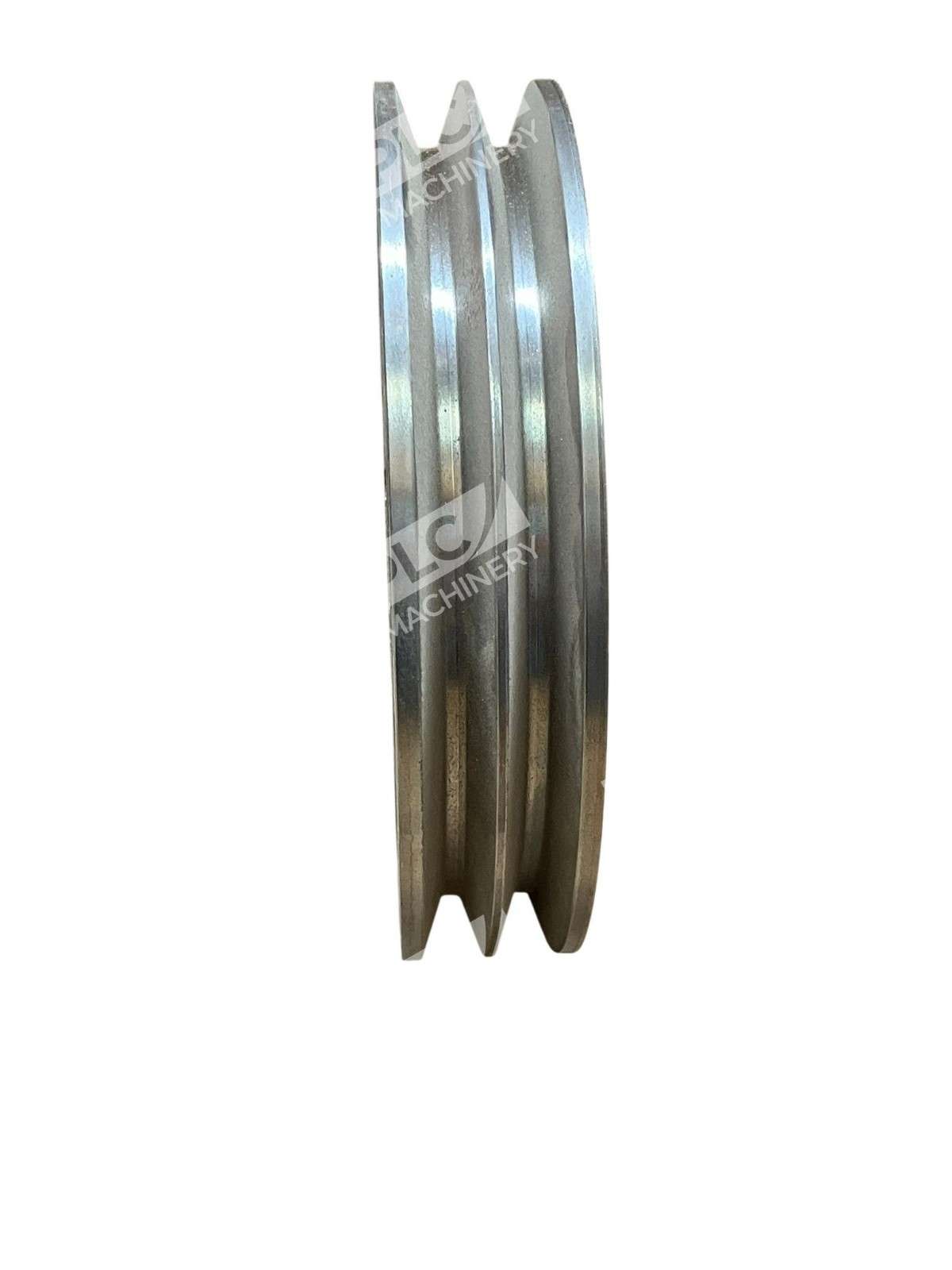

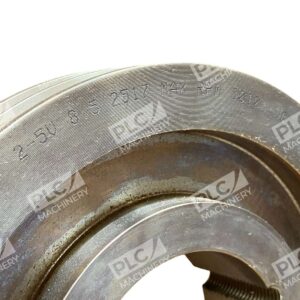

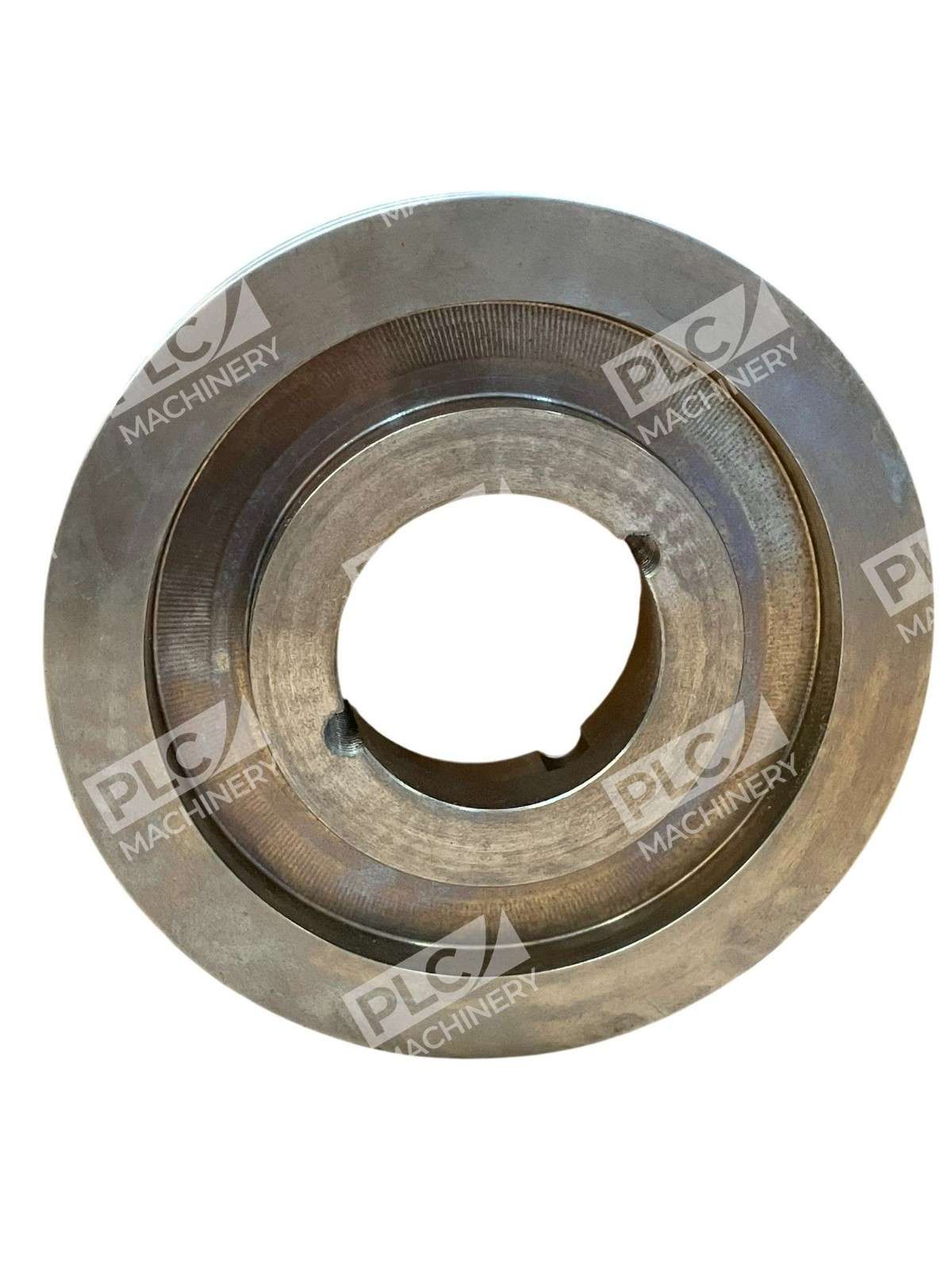

The Dodge 111135 (2/5V8.5-2517) is a Type C2 taper-lock sheave engineered for industrial power transmission systems. This cast-iron pulley accommodates 5V cross-section V-belts and features a 2517 taper-lock bushing for secure, torque-efficient installation. The part number designation breaks down as: 2 grooves, 5V belt profile, 8.5-inch outside diameter, and 2517 bushing series.
Key Features
- Taper-Lock Design: Pound-for-pound carries more torque than QD systems; eliminates slip and reduces maintenance.
- Precision Machining: ISO 9002 certified manufacturing ensures extended belt life and consistent performance.
- Cast Iron Construction: Gray cast iron provides durability and stability in high-load industrial environments.
- Variable Bore Range: Accommodates shafts from 1/2 to 2-11/16 inches with 2517 bushing adapter.
- Web Construction: Lightweight yet rigid design optimizes pulley response and reduces vibration.
Technical Specifications
The Dodge 111135 delivers precise dimensions and proven reliability for OEM and retrofit applications:
Typical Applications
This sheave is commonly deployed in:
- Industrial motor-driven conveyor systems
- HVAC equipment and fan drive systems
- Machine tool spindle drives
- General industrial power transmission and coupling
- Pulp, paper, and chemical processing equipment
Compatibility & Replacements
Compatible With
- 5V cross-section V-belts
- 2517 series taper-lock bushings
- Shafts 1/2 to 2-11/16 inch bore diameter
- Standard industrial motor couplings and drive assemblies
Replaces / Drop-In Replacement For
The Dodge 111135 directly replaces earlier Dodge Type C2 sheaves (model 111135) in 2-groove, 5V configuration. For exact interchangeability with competitor products, verify bore type and bushing series with your system integrator.
Works With
- V-belt drive systems and pulley trains
- Taper-lock bushed bore mounting platforms
- Standard shaft couplings and motor mounting brackets
- Industrial gearbox input sheaves
