Overview

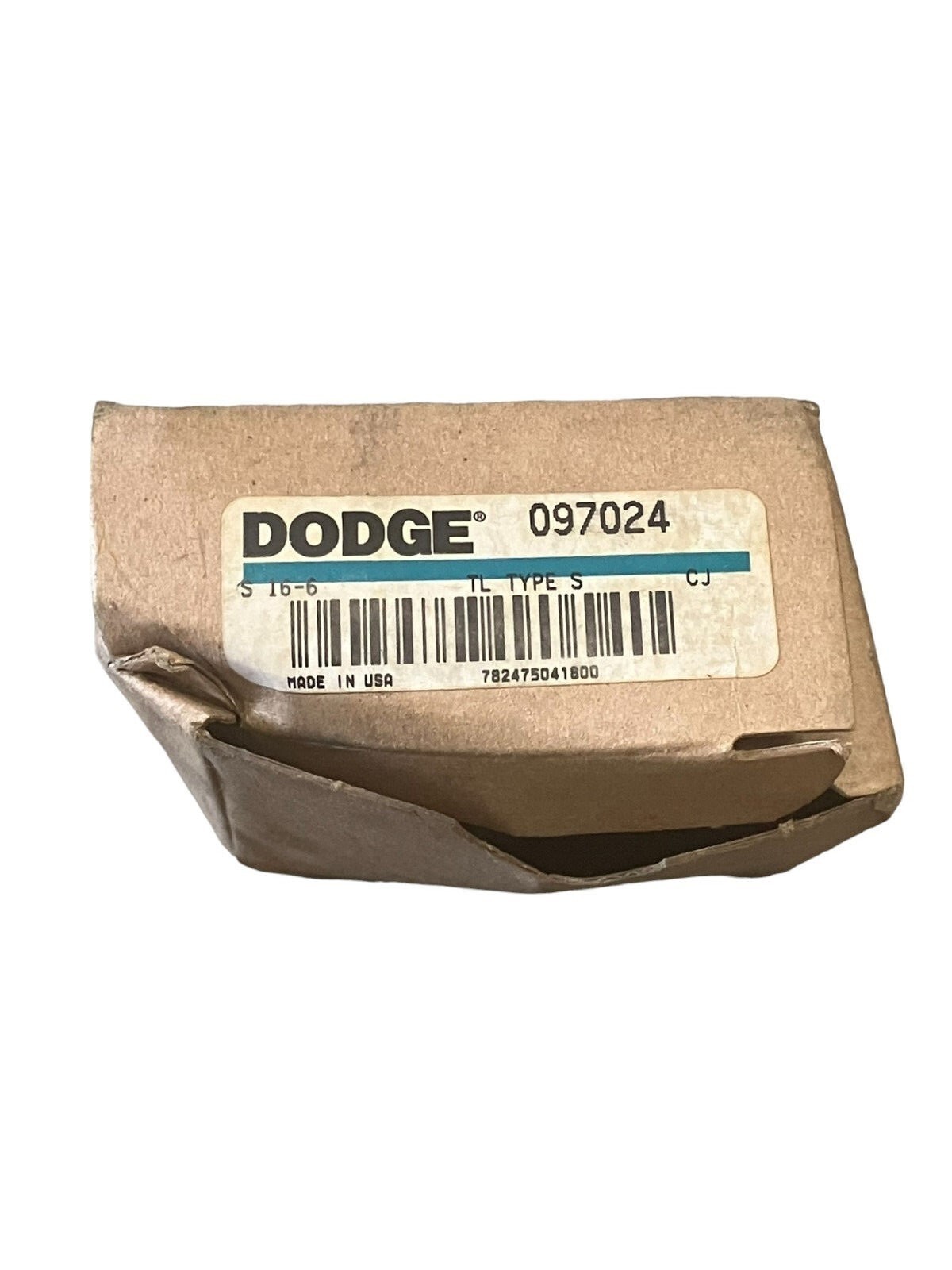

The Dodge 097024 is a Taper-Lock Type S weld-on hub designed for permanent installation in rotating equipment. Built from 1015–1025 steel and taper-bored for taper-lock bushing acceptance, this hub enables secure, repeatable mounting of shafts in sprockets, pulleys, fan rotors, and similar components that require firm, non-adjustable fastening.
Key Features
- Type S Taper-Lock design—originally engineered for smaller sprockets; versatile for lighter-duty power transmission applications
- 1015–1025 steel construction for durability and weldability
- Drilled, tapped, and taper-bored for direct taper-lock bushing insertion
- Weld-on design—permanently mounted to rotating components
- Pre-drilled bolt hole pattern for rapid assembly
Technical Specifications
- Bore Diameter: 2-1/4 inch
- Outside Diameter: 3 inch
- Pilot Diameter: 2-7/8 inch
- Bolt Circle Diameter: 2.13 inch
- Overall Length: 1 inch
- Material: Steel (1015–1025)
- Hub Type: Taper-Lock Type S, Weld-On
- Bolt Holes: 2 holes
Typical Applications
The Dodge 097024 hub is suited for:
- Fan rotor assembly and mounting
- Pulley drives (belt and chain)
- Plate sprocket attachment
- Light-duty power transmission systems
- Equipment requiring permanent shaft mounting and minimal slippage
Compatibility & Replacements
Compatible With
- Taper-Lock Type S bushings and sleeves
- Standard shaft sizes up to 2-1/4 inch bore
- Dodge and third-party taper-lock coupling elements
Replaces / Drop-In Replacement For
This is an OEM Dodge product. Verify compatibility with your original equipment manufacturer or system integrator before substituting with equivalent models from competing suppliers.
Works With
- Dodge Taper-Lock bushings (Type S, Type H)
- Flexible coupling elements (Para-Flex, D-Flex)
- Standard industrial shafting (clearance fit, interference fit, or keyway designs)
