Overview

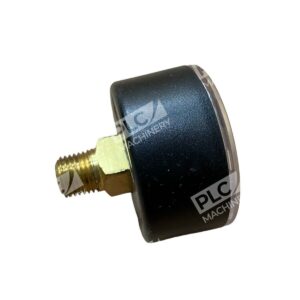

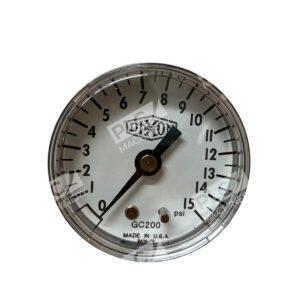

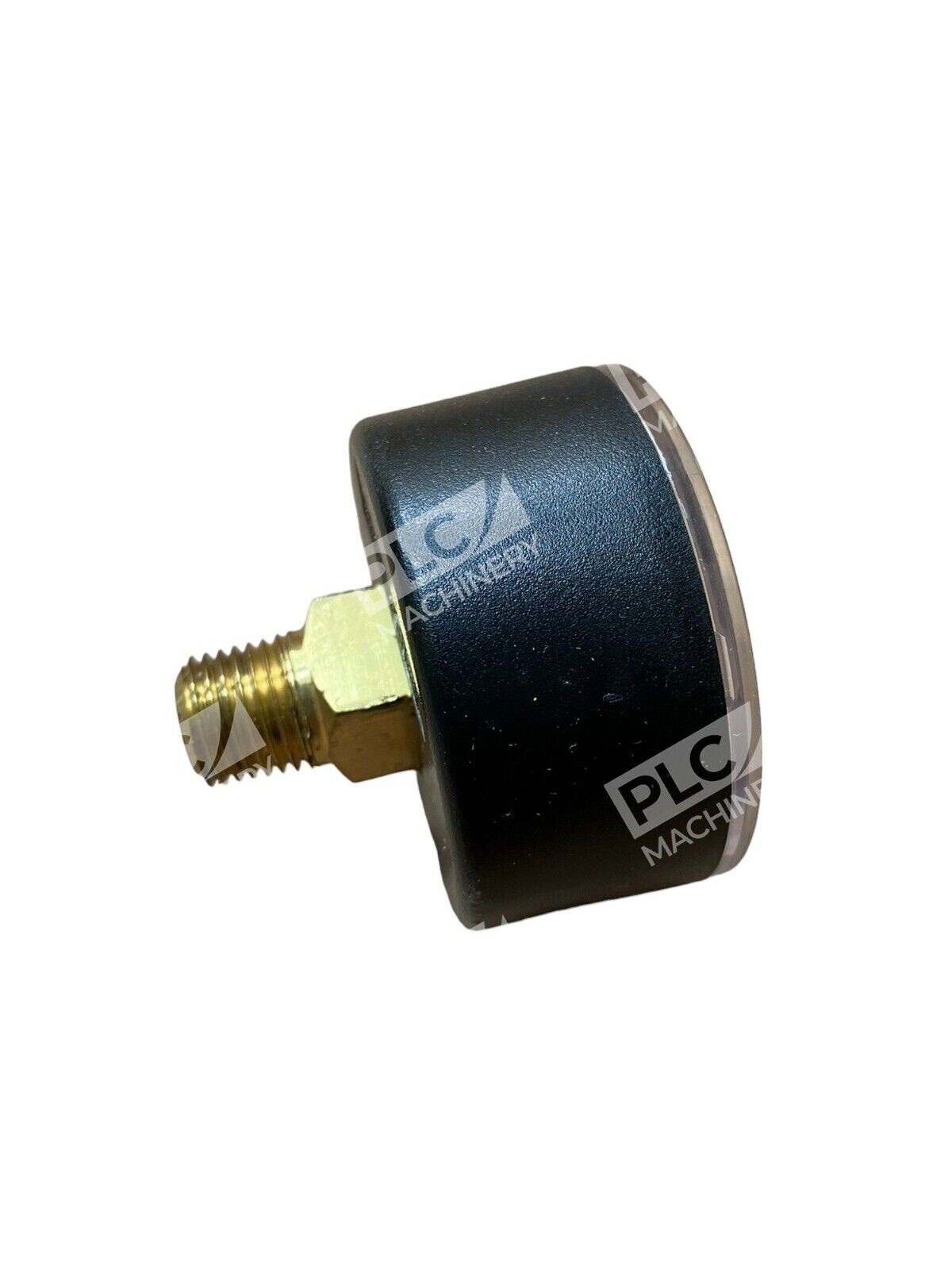

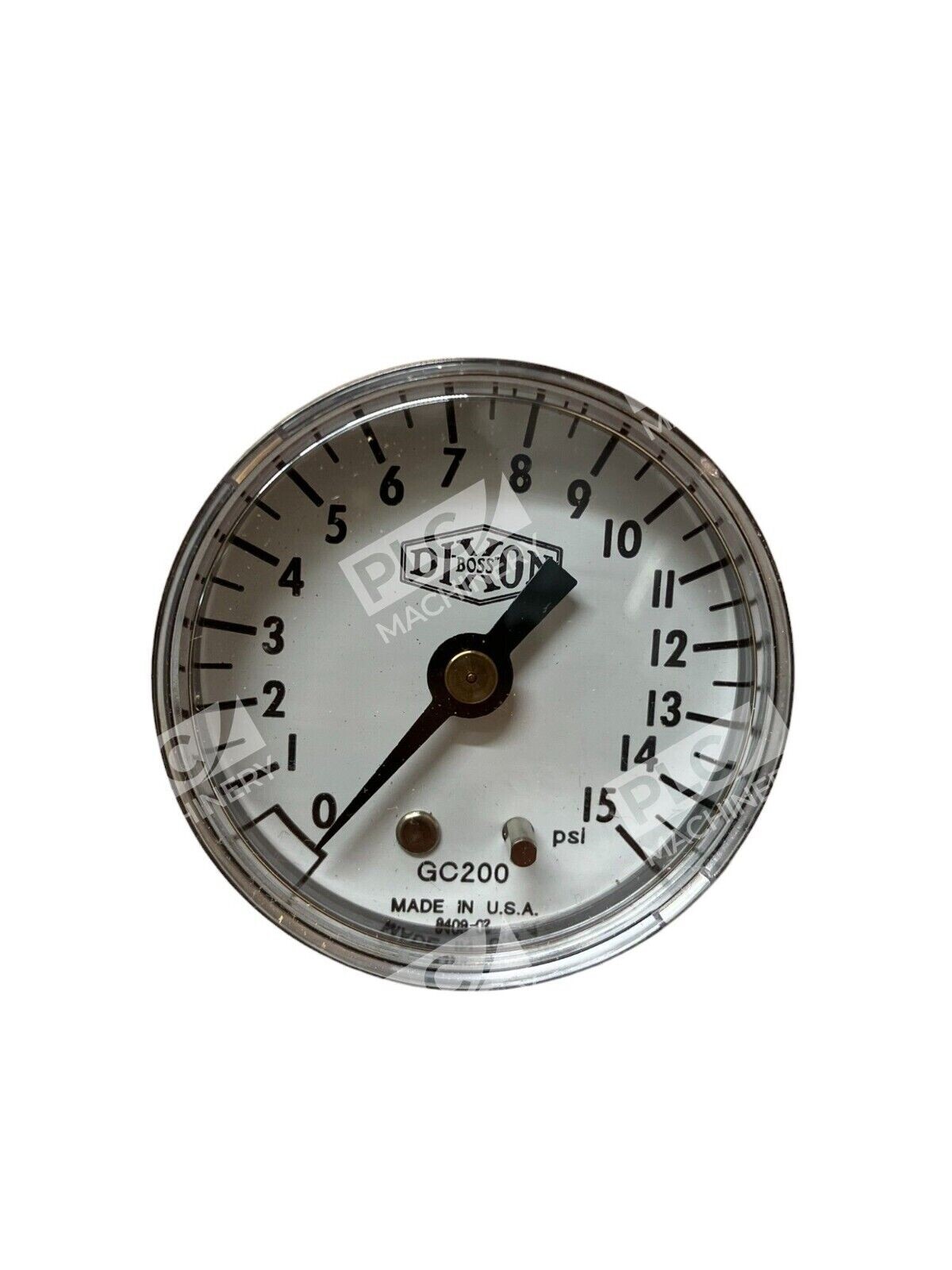

The Dixon GC200 0/15 PSI standard dry gauge delivers accurate, durable pressure measurement for industrial applications. Built with an ABS plastic case and corrosion-resistant bronze bourdon tube, this gauge is engineered to withstand shock, vibration, and pulsation in demanding environments. The 2-inch dial and center back mount (1/4″ NPT connection) make it a versatile choice for equipment monitoring across pneumatic, hydraulic, pump, and compressor systems.
Key Features
- PowerFlex movement with polyester segment — resists shock, vibration, and pulsation for extended service life
- ABS plastic case — corrosion-resistant construction for harsh operating conditions
- Polycarbonate window — durable, scratch-resistant lens for clear pressure reading visibility
- Bronze C-shaped bourdon tube — non-corrosive movement for reliability in diverse fluid media
- Center back mount 1/4″ NPT connection — standard industrial thread for straightforward installation
- Aluminum pointer — precision indicator for accurate dial reading
Technical Specifications
Verify exact specifications with technical documentation before system integration.
Typical Applications
The Dixon GC200 is suited for pumps, hydraulic and pneumatic systems, compressors, machine tools, and many other installations where a gauge with non-corrosive movement is necessary. Common use cases include:
- Pneumatic tool pressure monitoring
- Hydraulic system diagnostics
- Pump discharge and inlet pressure verification
- Compressor output measurement
- Machine tool auxiliary air systems
- Plumbing and water line pressure checks
Compatibility & Replacements
Compatible With
- 1/4″ NPT threaded ports (standard industrial connection)
- Pneumatic systems (0–15 PSI range)
- Hydraulic systems (0–15 PSI range)
- Pump discharge lines
- Compressor outlet lines
- Air and water systems up to 150°F
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. If you are replacing an existing gauge, ensure the pressure range (0–15 PSI), connection size (1/4″ NPT), and mounting style (center back) match your application.
Works With
- Standard 1/4″ NPT adapter fittings and manifolds
- Pneumatic control panel assemblies
- Hydraulic test stands and mobile equipment
- Pump station monitoring systems
- Compressor and air receiver gauging
