Overview

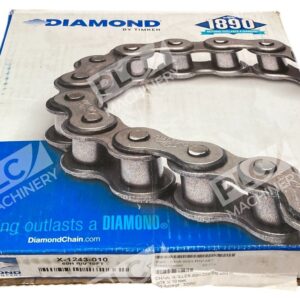

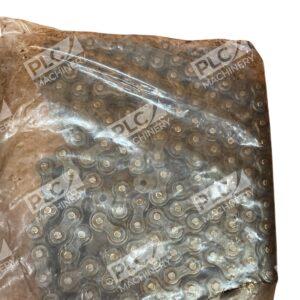

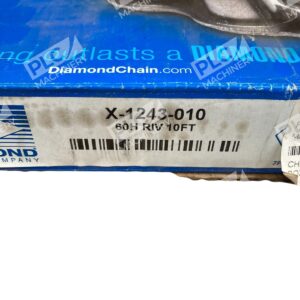

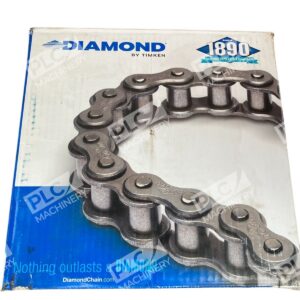

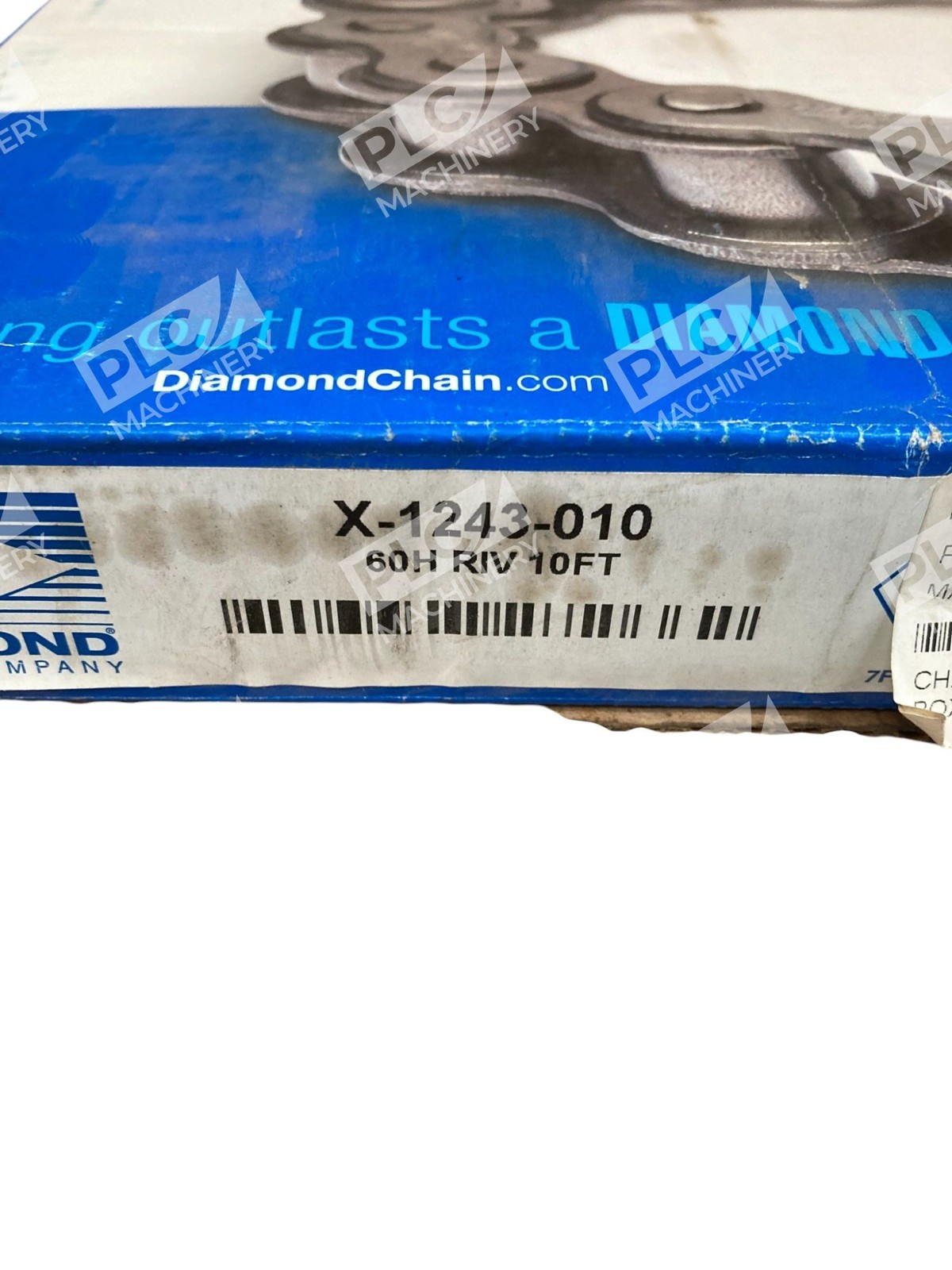

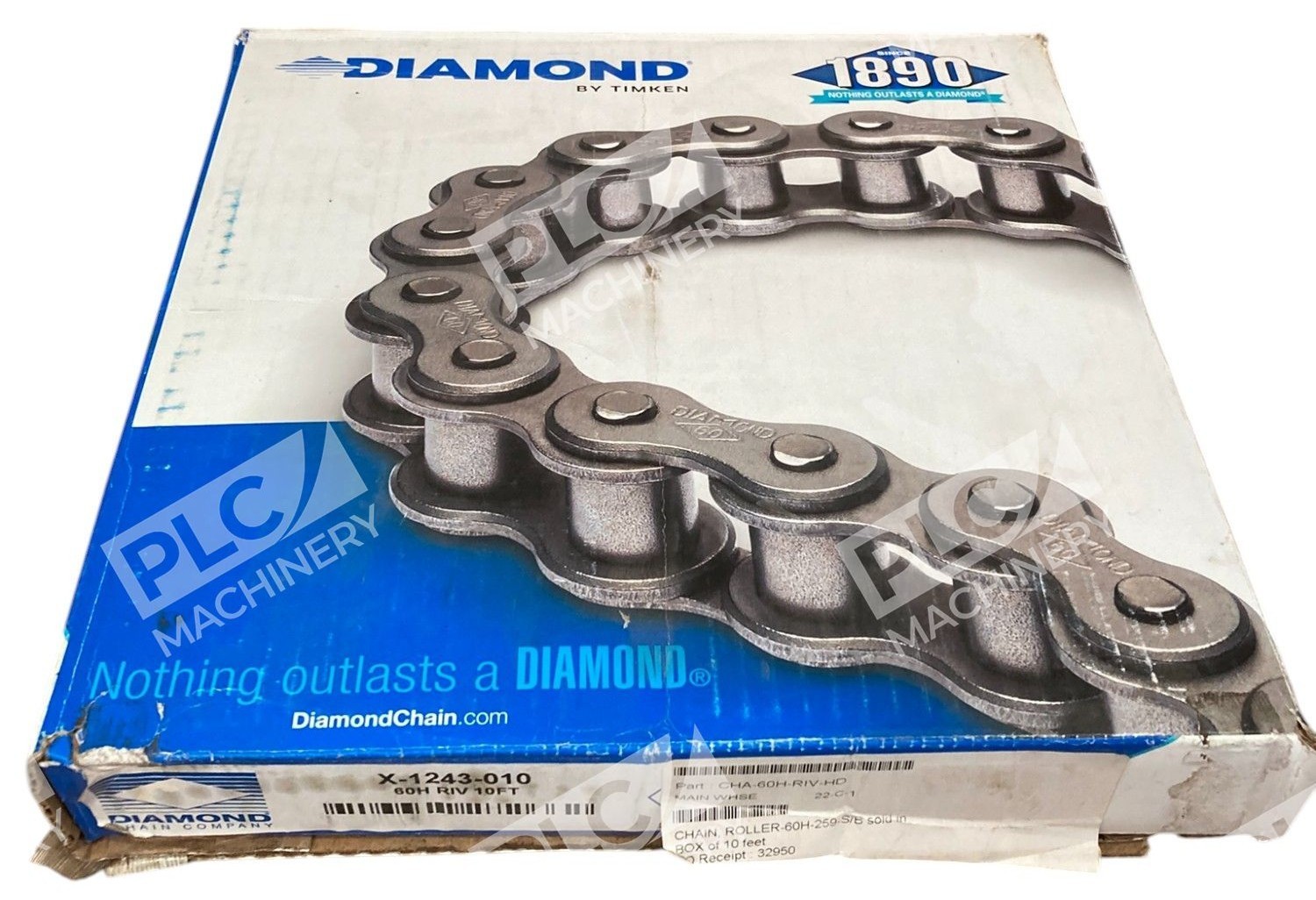

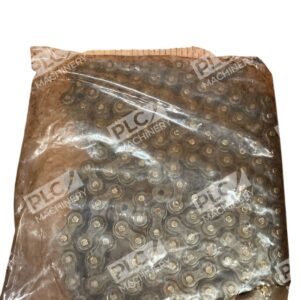

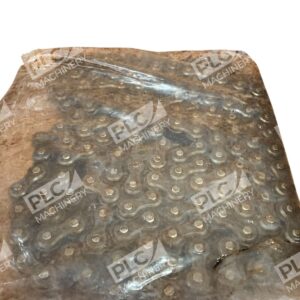

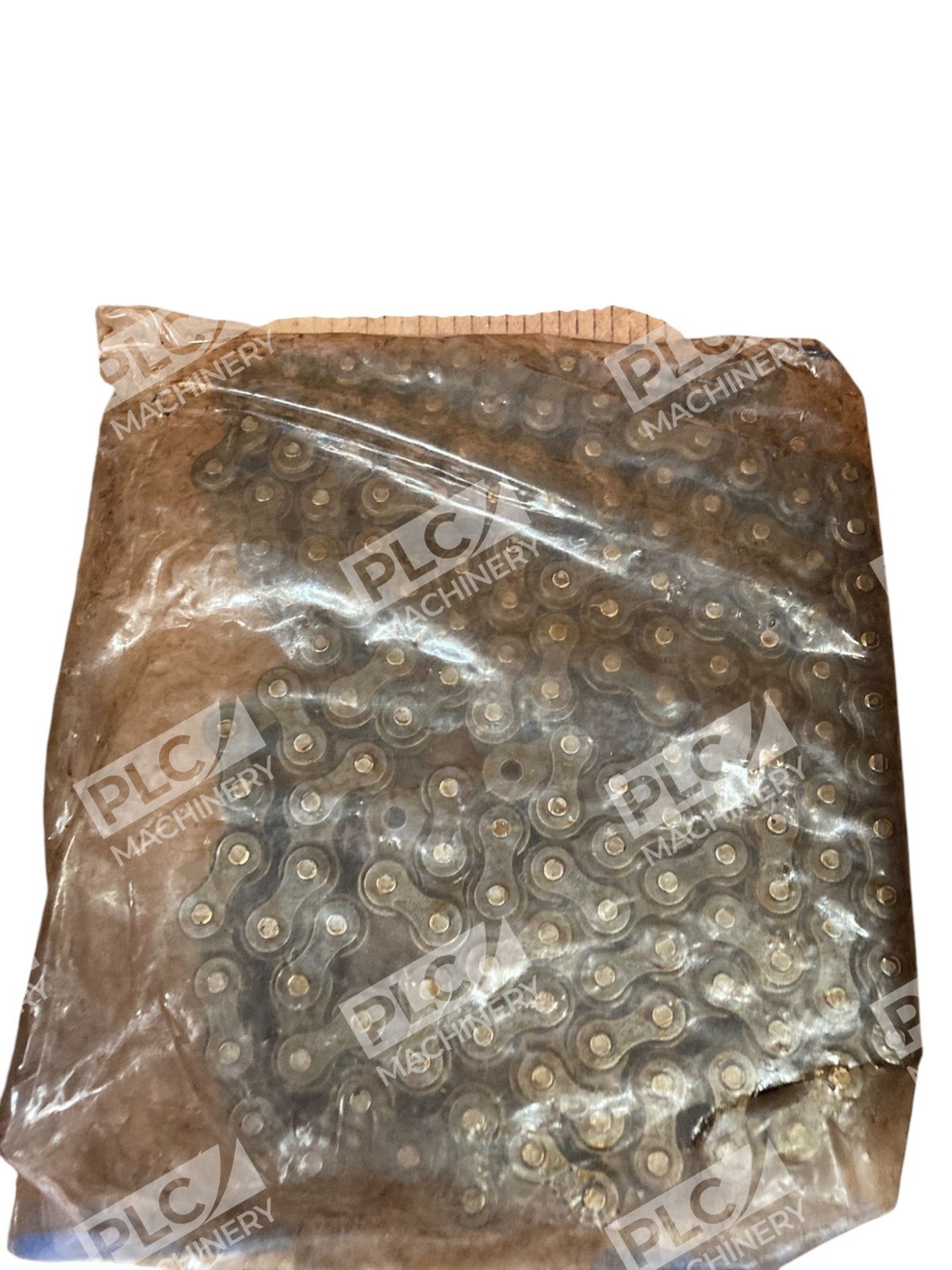

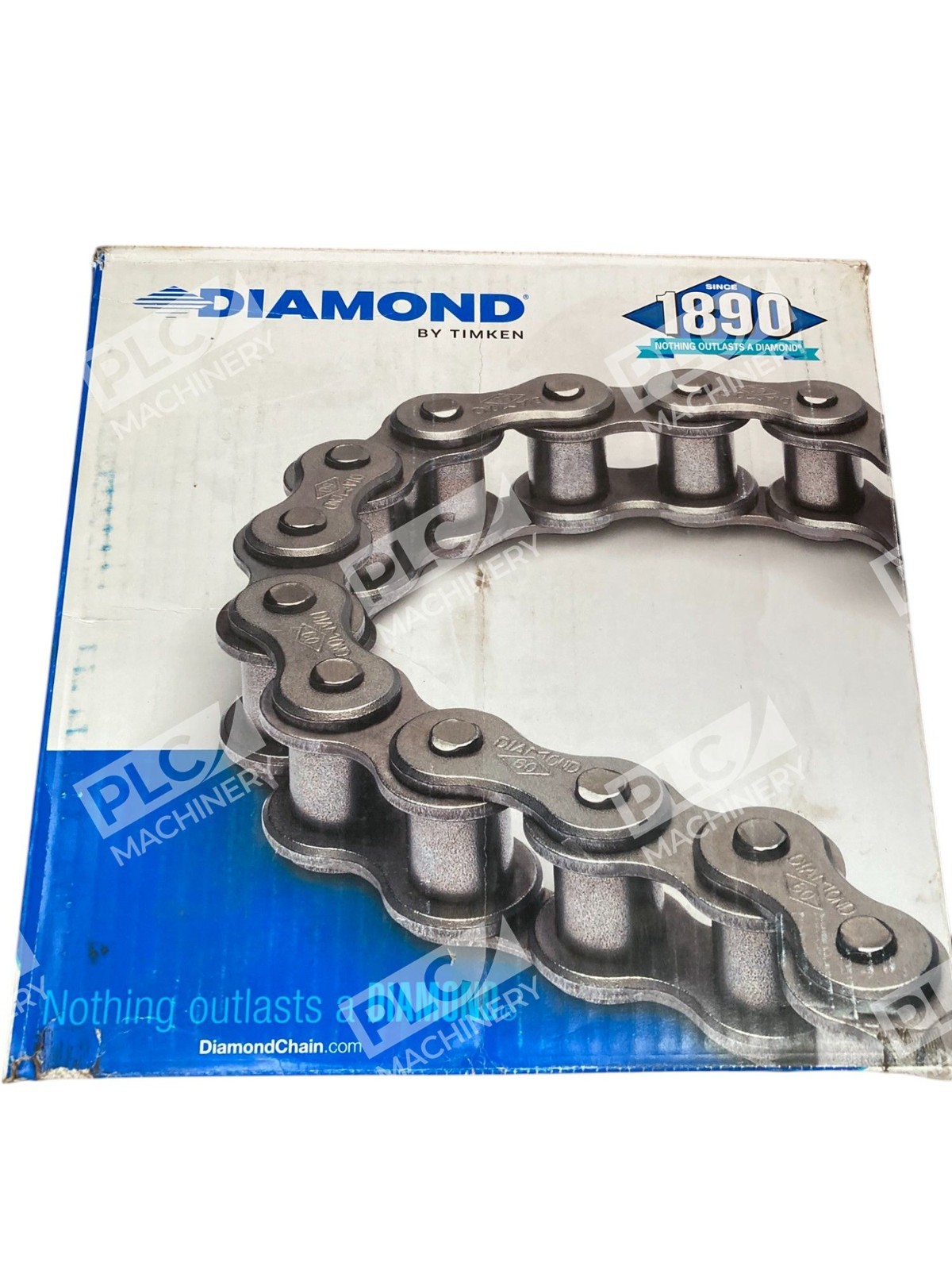

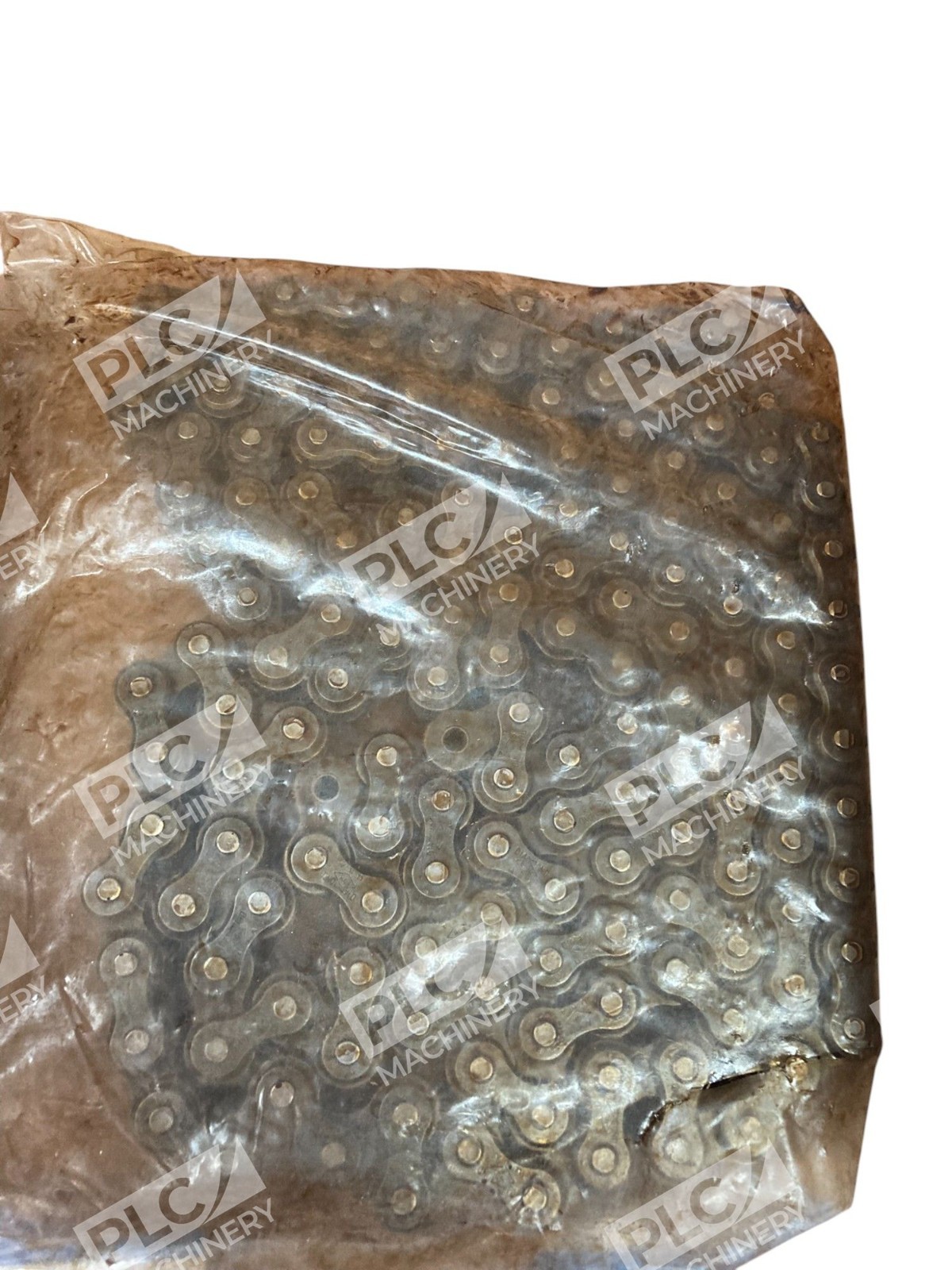

The Diamond X-1243-010 60H roller chain is a single-strand ANSI-standard rivet chain manufactured by Diamond Chain Company, a Timken subsidiary. Built for industrial power transmission, this 10-foot length chain delivers 8500 lbs of tensile strength and complies with ANSI B29.1 standards. Diamond Chain is known for producing US-made roller chains that withstand demanding machinery and automation environments.
Key Features
- Single-strand rivet construction for cost-effective power transmission
- ANSI B29.1 compliant with 3/4″ pitch (60 chain number)
- 8500 lbs tensile strength rated for industrial duty
- Carbon steel construction resists wear and extends service life
- Pre-assembled 10-foot length, ready to install
- 0.47″ roller diameter for precise sprocket engagement
Technical Specifications
This chain is engineered for reliable operation in conveyor systems, machinery drives, and automation equipment:
- Chain Pitch: 3/4″ (ANSI 60)
- Number of Strands: 1 (single-strand)
- Overall Length: 10 feet
- Construction Type: Rivet pin
- Material: Carbon steel
- Roller Diameter: 0.47″
- Pin Diameter: 0.234″
- Inside Width: 0.5″
- Chain Overall Width: 1.24″
- Link Plate Thickness: 0.13″
- Tensile Strength: 8500 lbs
- Weight: 1.17 lbs
- Standards Met: ANSI B29.1
Typical Applications
The Diamond X-1243-010 is commonly used in:
- Conveyor drive systems in manufacturing and material handling
- Industrial machinery power transmission
- Automation equipment requiring reliable chain drives
- Agricultural and equipment drivelines
- Replacement for worn or damaged single-strand chains in existing installations
Compatibility & Replacements
Compatible With
- Any ANSI 60 (3/4″ pitch) sprocket
- Single-strand chain drive systems
- Industrial machinery and conveyors requiring ANSI-standard chain
- Both left-hand and right-hand rotation applications
Replaces / Drop-In Replacement For
- OEM single-strand ANSI 60 chains in equivalent wear condition
- Diamond part numbers using the same 60H rivet specification
- Generic 3/4″ pitch, single-strand rivet chains in industrial duty applications
Works With
- ANSI B29.1-compliant sprockets (any manufacturer)
- Standard chain tensioners and guides
- Industrial drive shafts and mounting systems
- Predictive maintenance monitoring systems for chain wear and stretch
