Overview

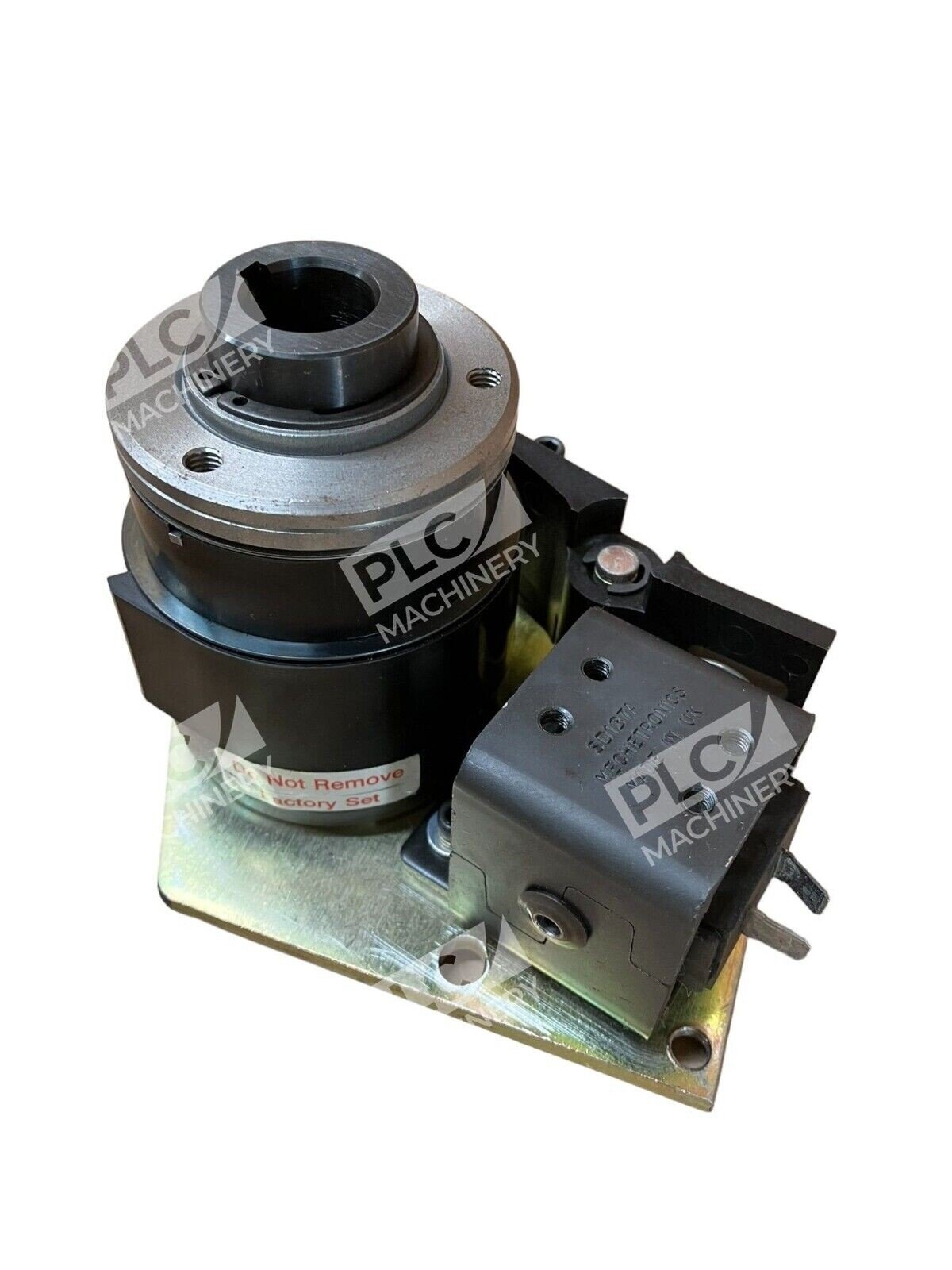

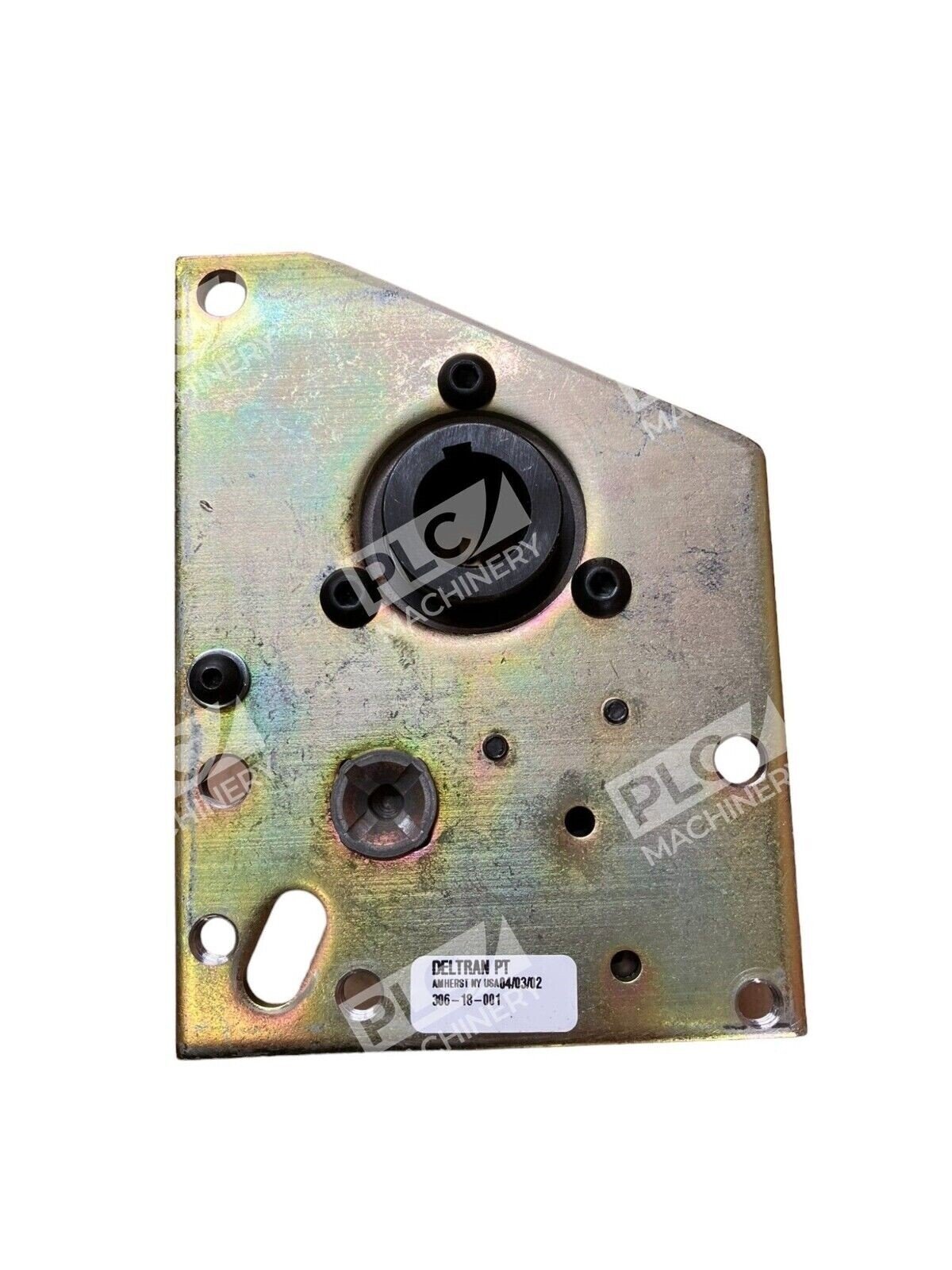

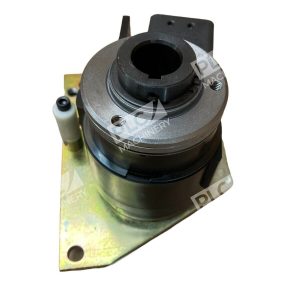

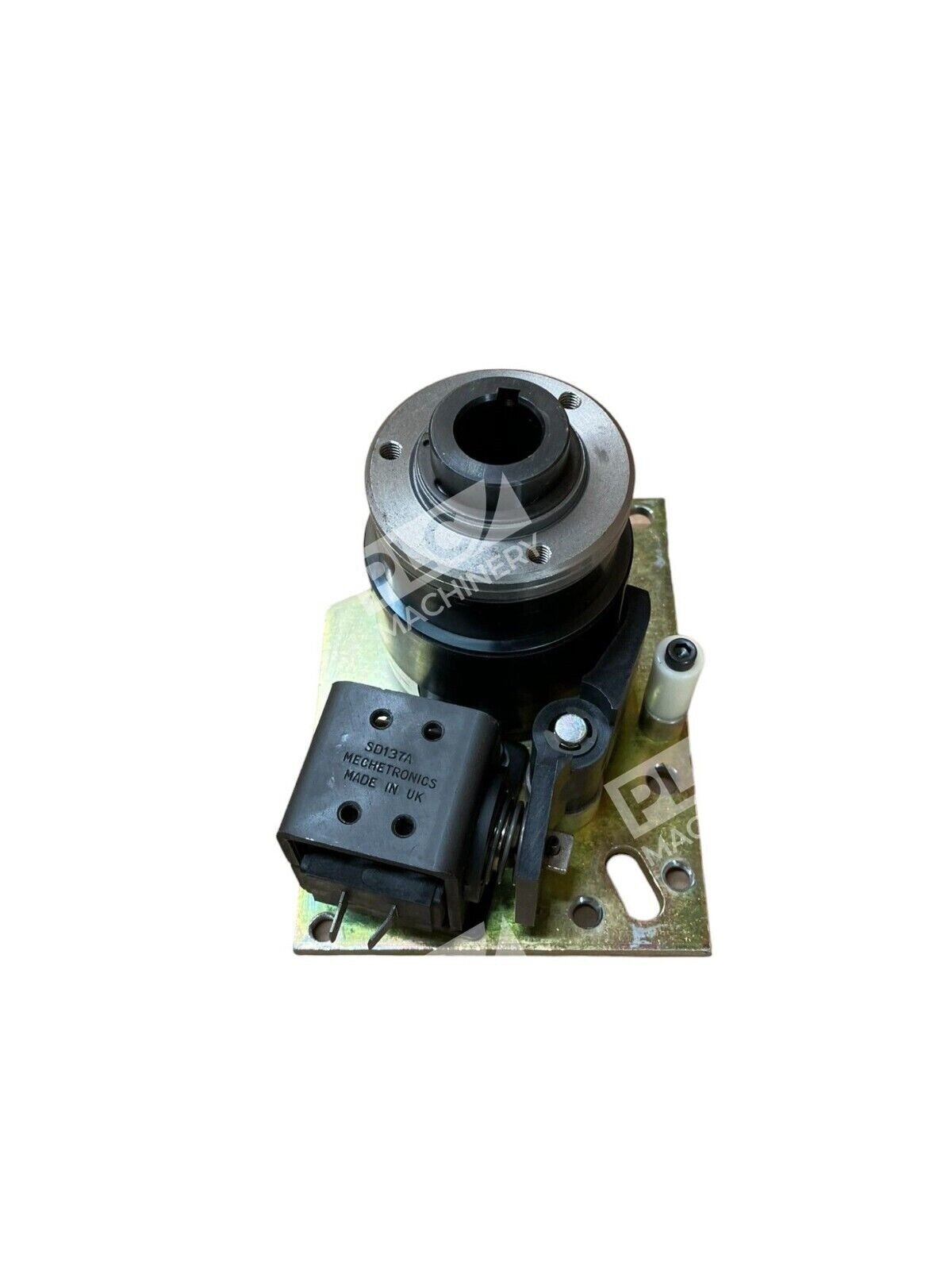

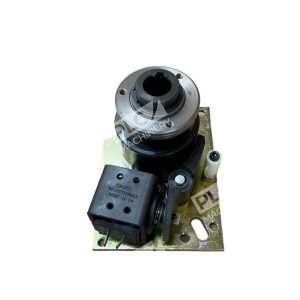

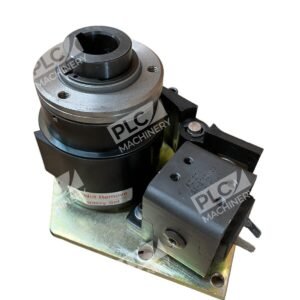

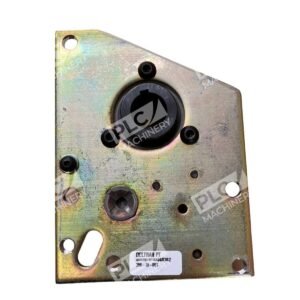

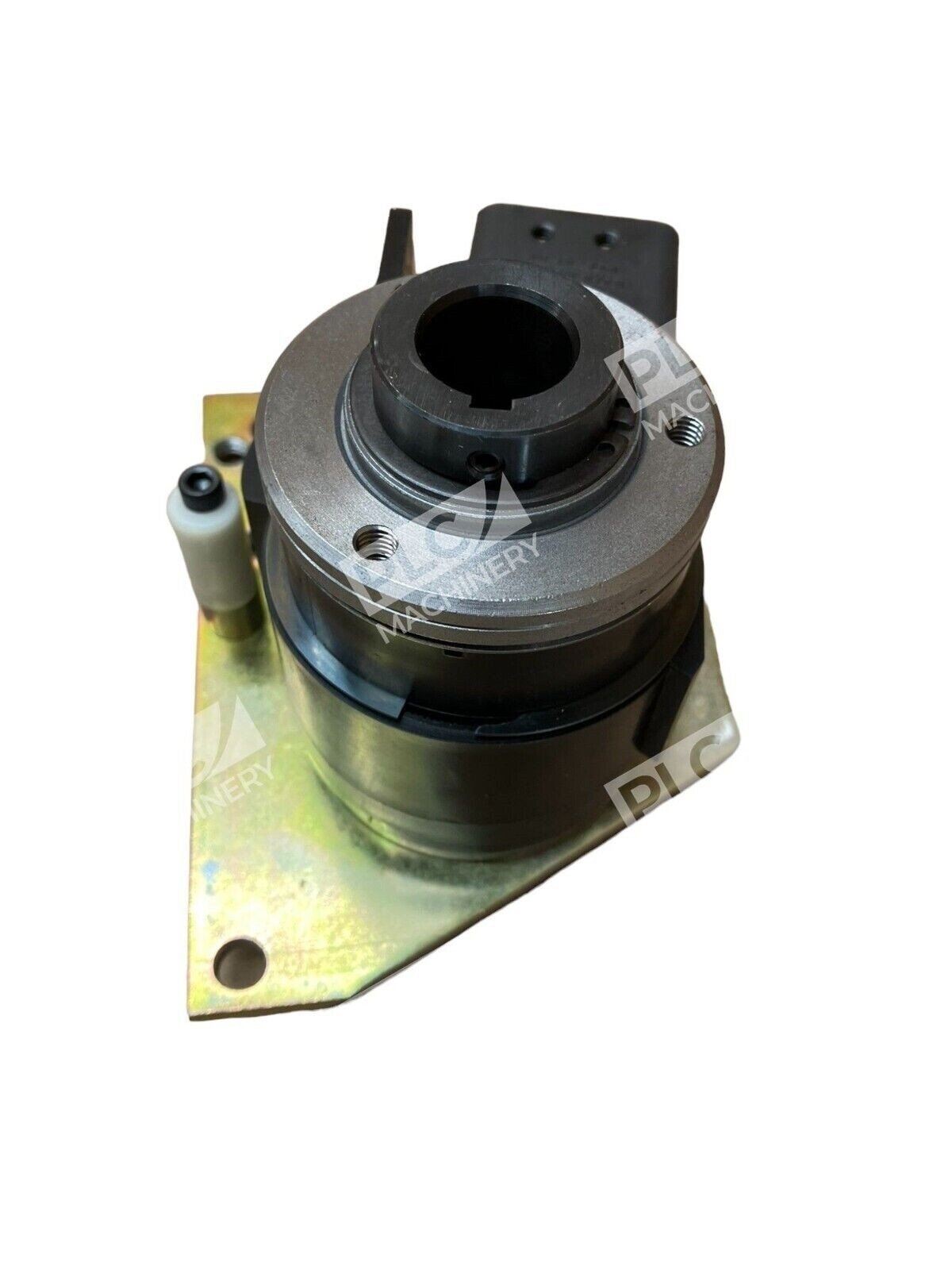

The Deltran 306-18-001 is a Wrap Springâ„¢ Standard CB solenoid-operated clutch and brake combination unit engineered for demanding industrial motion control applications. CB series combination clutches and brakes accurately start and stop loads driven by a continuously rotating power source. This pre-engineered and pre-assembled unit simplifies installation while delivering reliable, repeatable performance.
Key Features

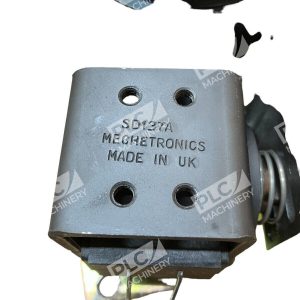

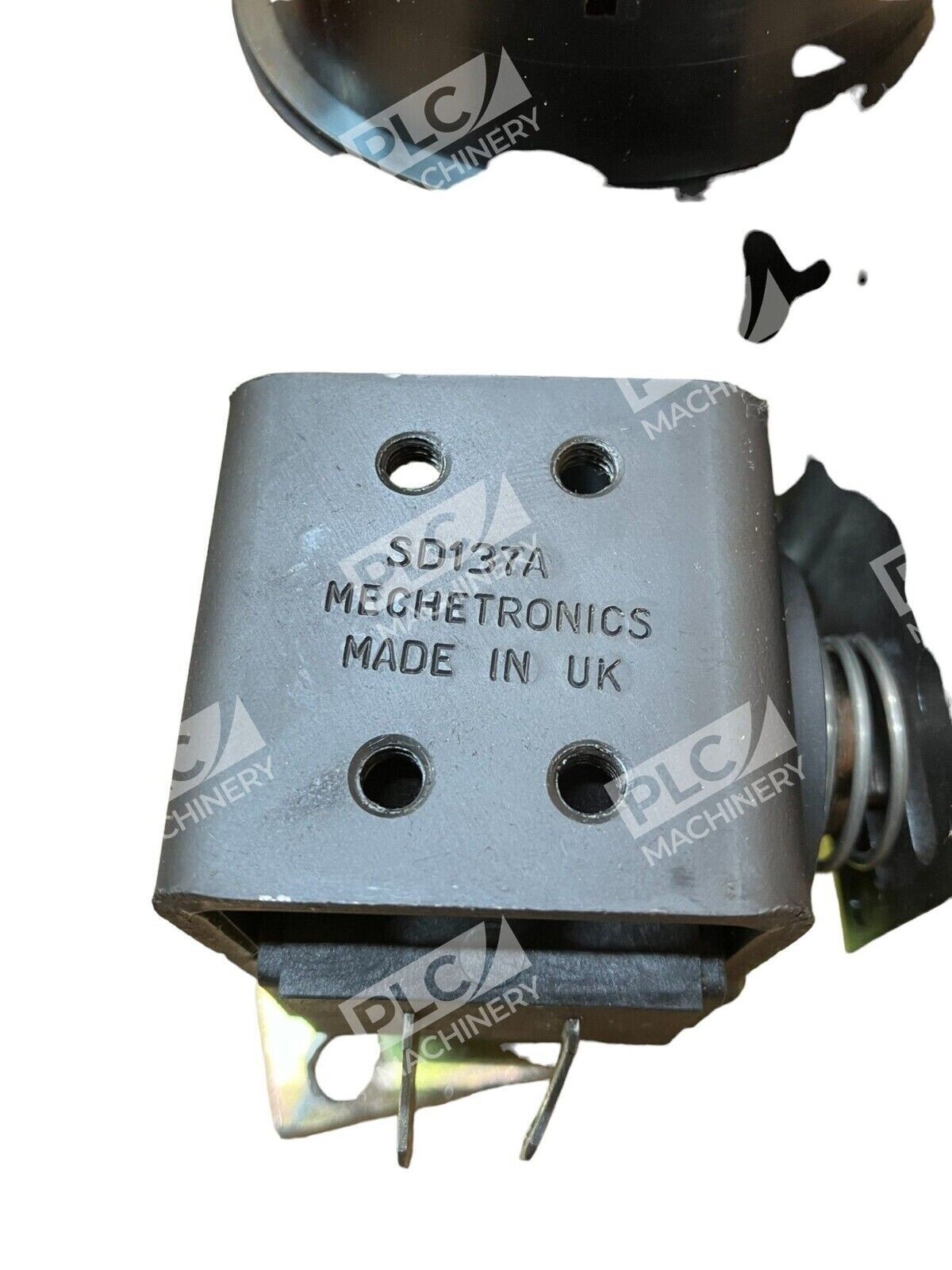

- Solenoid actuation — operates from a single AC or DC pulse for fast, controlled engagement
- Accurate positioning — stops load within ±1/2° noncumulative at speeds up to 1800 rpm
- Pre-assembled design — ready for immediate installation with no field adjustments required
- Adjustable control collars — enables easy and precise output stop position setting
- Permanently lubricated — never requires maintenance or wear adjustment
- Wrap spring technology — proven durability in indexing, conveyor, and assembly equipment
Technical Specifications
The Deltran 306-18-001 delivers reliable performance across industrial automation requirements:
Typical Applications
- Rotary indexing tables — single-revolution or multi-station positioning
- Conveyor systems — accumulating, diverting, and sorting operations
- Assembly equipment — accurate start/stop with minimal backlash
- Printing and labeling — precision synchronization of rotating elements
- Packaging machinery — repeatable load engagement and release
- Material handling — lifting and rotating load control
Compatibility & Replacements
Compatible With
- 12 VDC control circuits and PLC solenoid outputs
- Industrial motion control systems and automation controllers
- Continuously rotating input shafts up to 1800 rpm
- Horizontal shaft-mounted installations
- Standard mechanical coupling and bushing systems
Replaces / Drop-In Replacement For
- Earlier versions of Deltran Standard CB units with identical bore and voltage ratings
- Thomson Industries equivalent models (Deltran is part of Danaher Motion)
- Verify exact compatibility with system integrator before ordering
Works With
- Solenoid control — 12 VDC DC pulse actuation
- Mechanical coupling — standard hub input and bushing bore configurations
- Manual adjustment — adjustable control collars for stop position setting
- Wrap spring engagement — self-locking when de-energized for load holding
