Overview

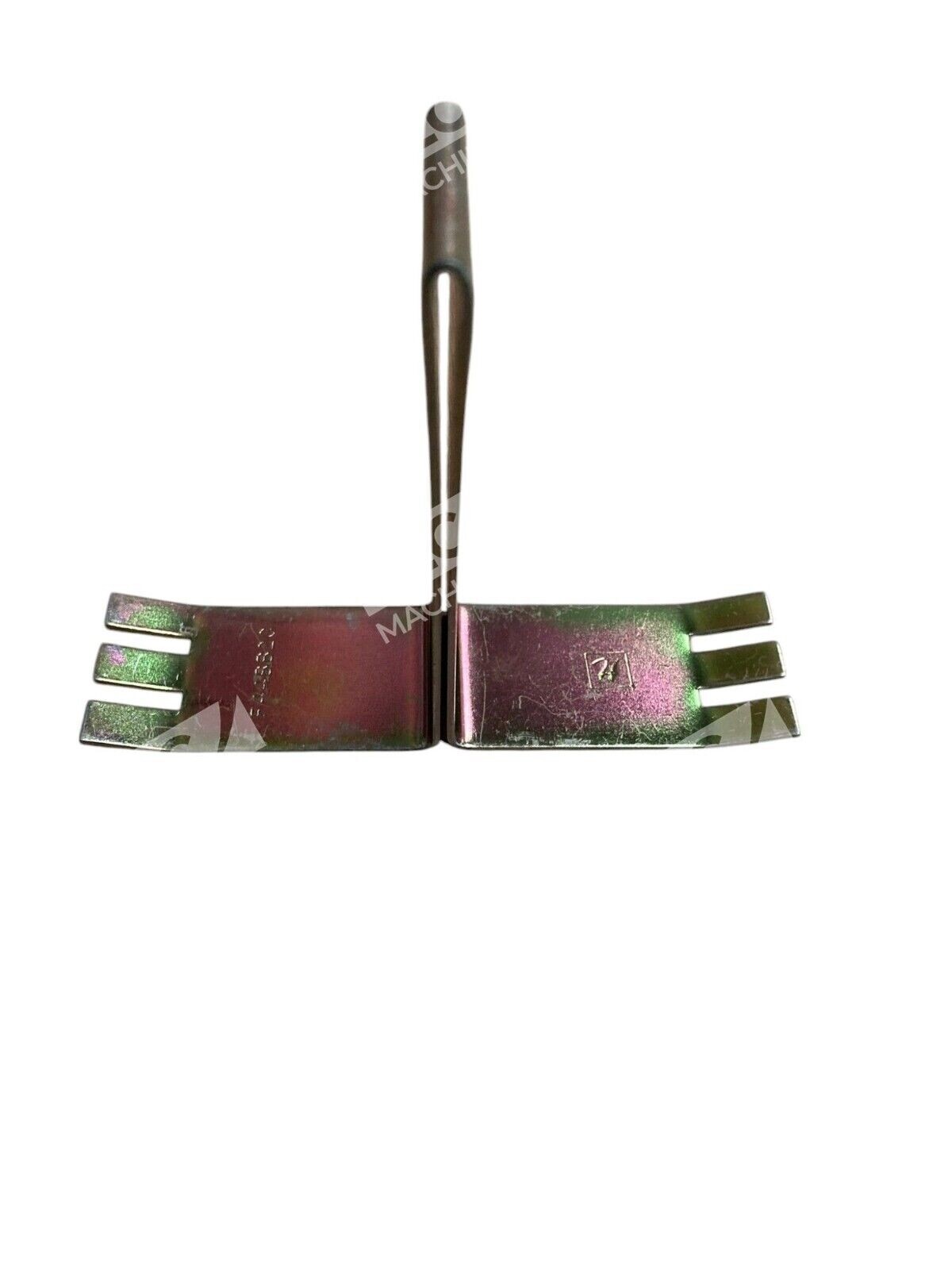

Hoffman F44BB2C barrier brackets provide a proven method for organizing and compartmentalizing power distribution and cable management within Type 12 lay-in wireway systems. This box of 5 plated spring steel brackets installs quickly using friction-fit mounting, eliminating the need for tools or fasteners during installation. The F10 series brackets are engineered to divide 4.00″ × 4.00″ wireway into two or three separate compartments, enabling cleaner cable routing, easier troubleshooting, and improved maintenance access in industrial control cabinets and electrical enclosures.
Key Features
- Friction-fit design — spring steel construction holds barriers securely without fasteners
- Box of 5 units — sufficient quantity for typical compartmentalization projects
- Plated spring steel — corrosion-resistant finish for industrial environments
- NEMA Type 12 rated — suitable for dust-tight, drip-proof applications
- 3-foot spacing increments — recommended installation pattern for optimal structural performance
Technical Specifications

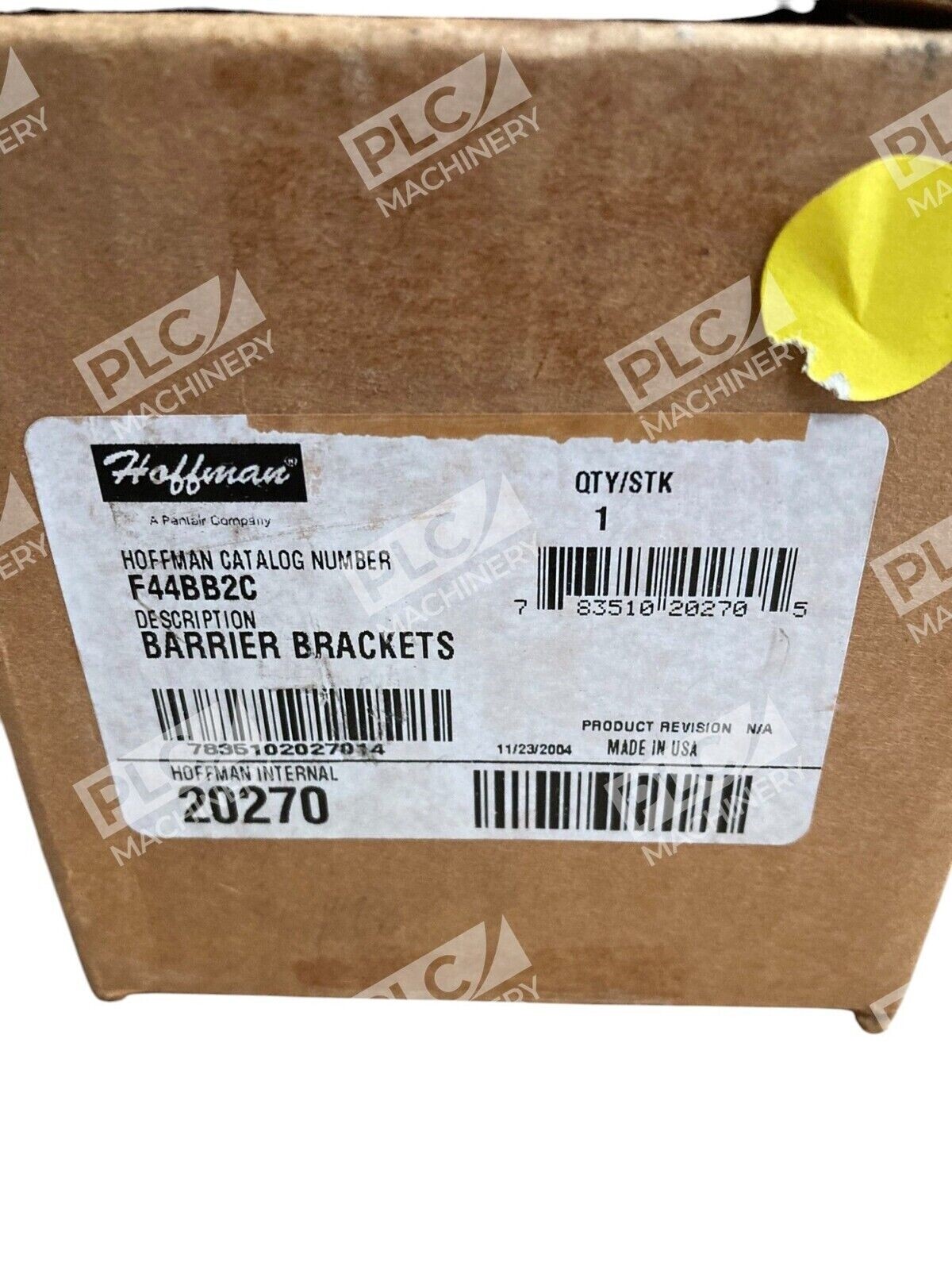

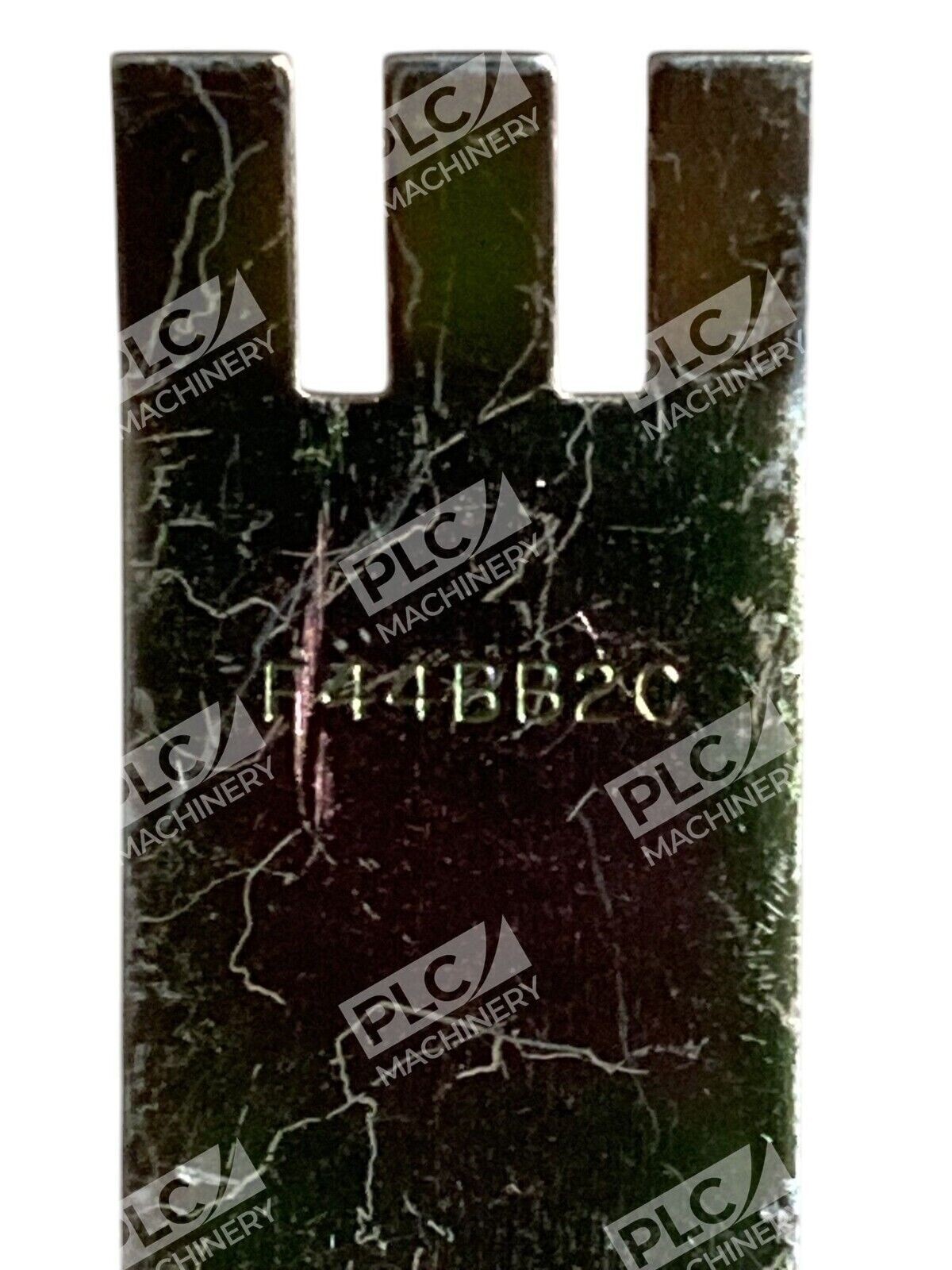

- Catalog Number: F44BB2C
- Manufacturer: nVent Hoffman
- Series: F10
- Material: Mild steel with plated finish
- Color: Gray
- Width: 4.00 inches (102 mm)
- Height: 4.00 inches (102 mm)
- Depth: 1 inch (25 mm)
- Wireway Compatibility: Type 12 lay-in wireway, 4.00″ × 4.00″

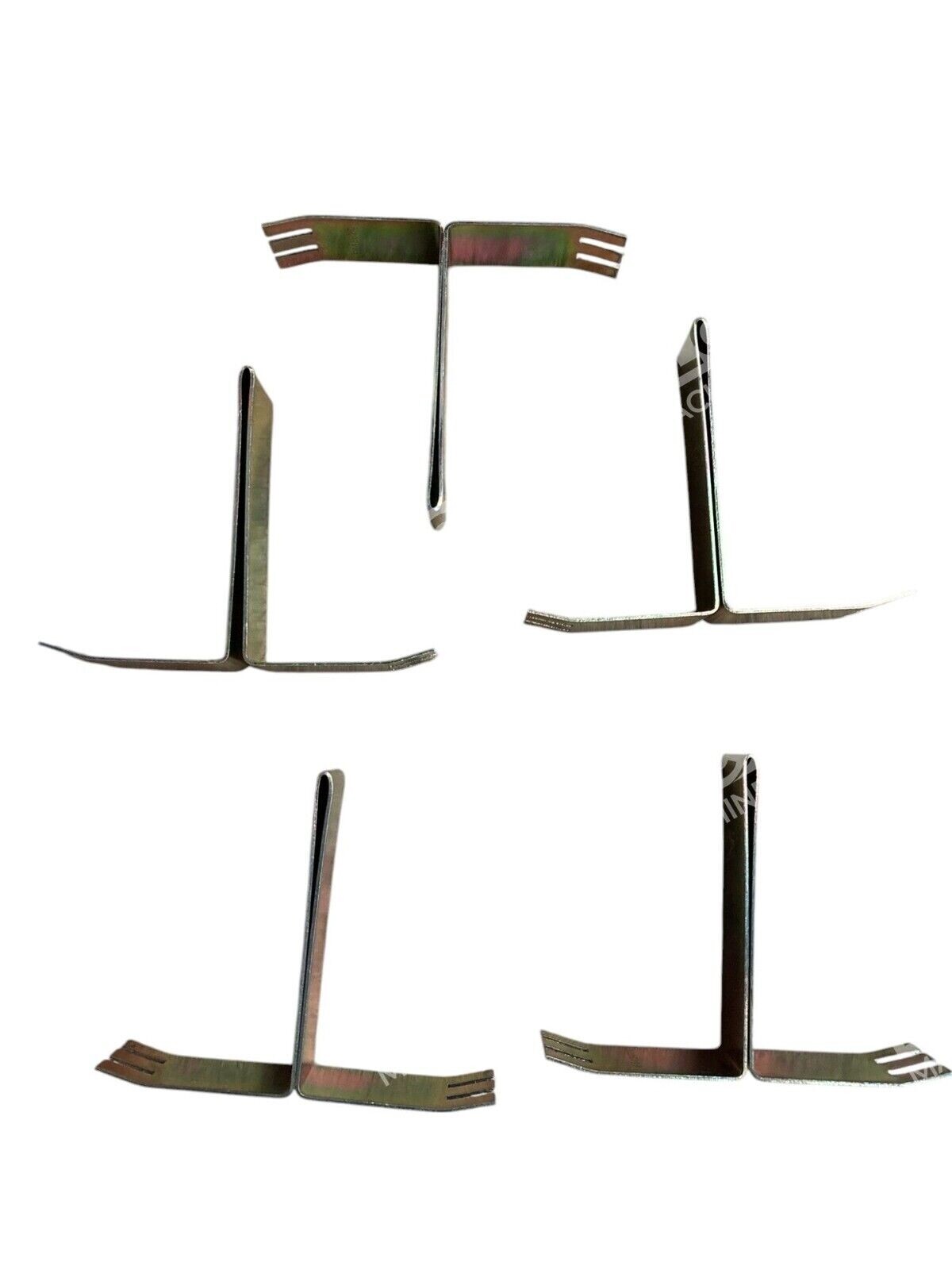

- Quantity per Box: 5 brackets
- Barrier Length: 60 inches per barrier
- Protection Rating: NEMA Type 12
- UPC Code: 783510202705
- Weight: 0.7 lbs per unit (approx.)
Typical Applications
- Power distribution and cable separation in electrical control rooms
- Industrial automation cabinet organization and compartmentalization
- Separating low-voltage control circuits from high-voltage power distribution
- Organizing PLC I/O wiring, servo drives, and motor control circuits
- Building cleanly segregated cable trays in NEMA 3R and NEMA 12 enclosures
- OEM machine builder integration for standardized electrical layouts
Compatibility & Replacements
Compatible With
- 4.00″ × 4.00″ Type 12 lay-in wireway (Hoffman brand and equivalent)
- 4.00″ × 4.00″ NEMA 3R feed-through wireway
- Hoffman barrier kits and compartment barriers (ordered separately)
- Industrial control panel and electrical enclosure installations
- Standard 19-inch and custom DIN rail-mounted electrical cabinets
Replaces / Drop-In Replacement For
- Previous generation Hoffman barrier bracket kits with identical 4.00″ × 4.00″ footprint
- Industry-standard 2-compartment wireway dividers from equivalent manufacturers
- Verify exact compatibility with your system integrator or distributor before ordering.
Works With
- Hoffman and nVent wireway product lines (Type 12, lay-in, and feed-through designs)
- Barrier accessories sold separately — confirm barrier dimensions and material compatibility
- Standard mechanical fastening systems and DIN-rail enclosure layouts
- Any Type 12 NEMA-rated electrical distribution infrastructure
