Overview

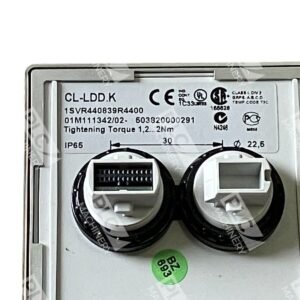

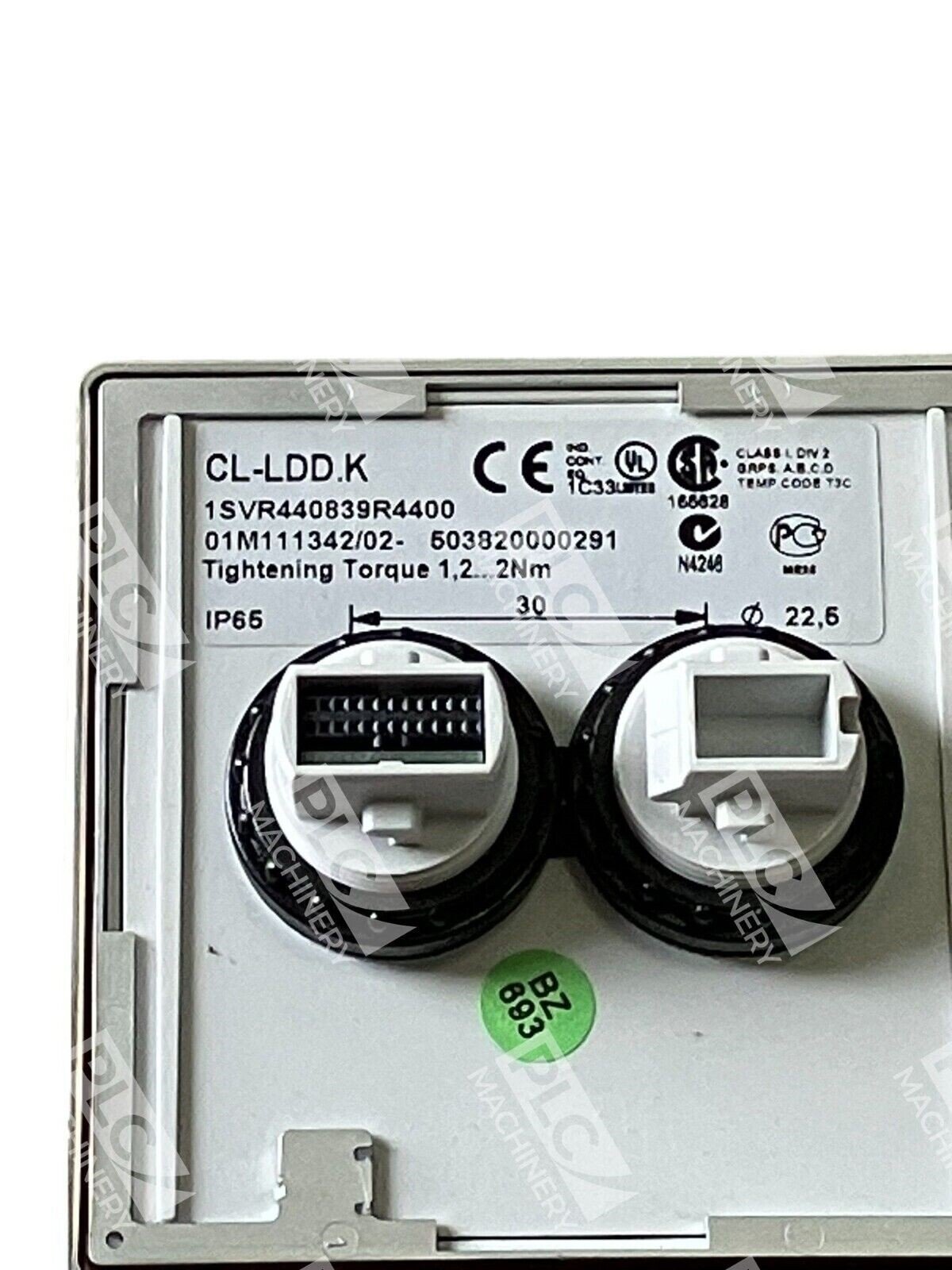

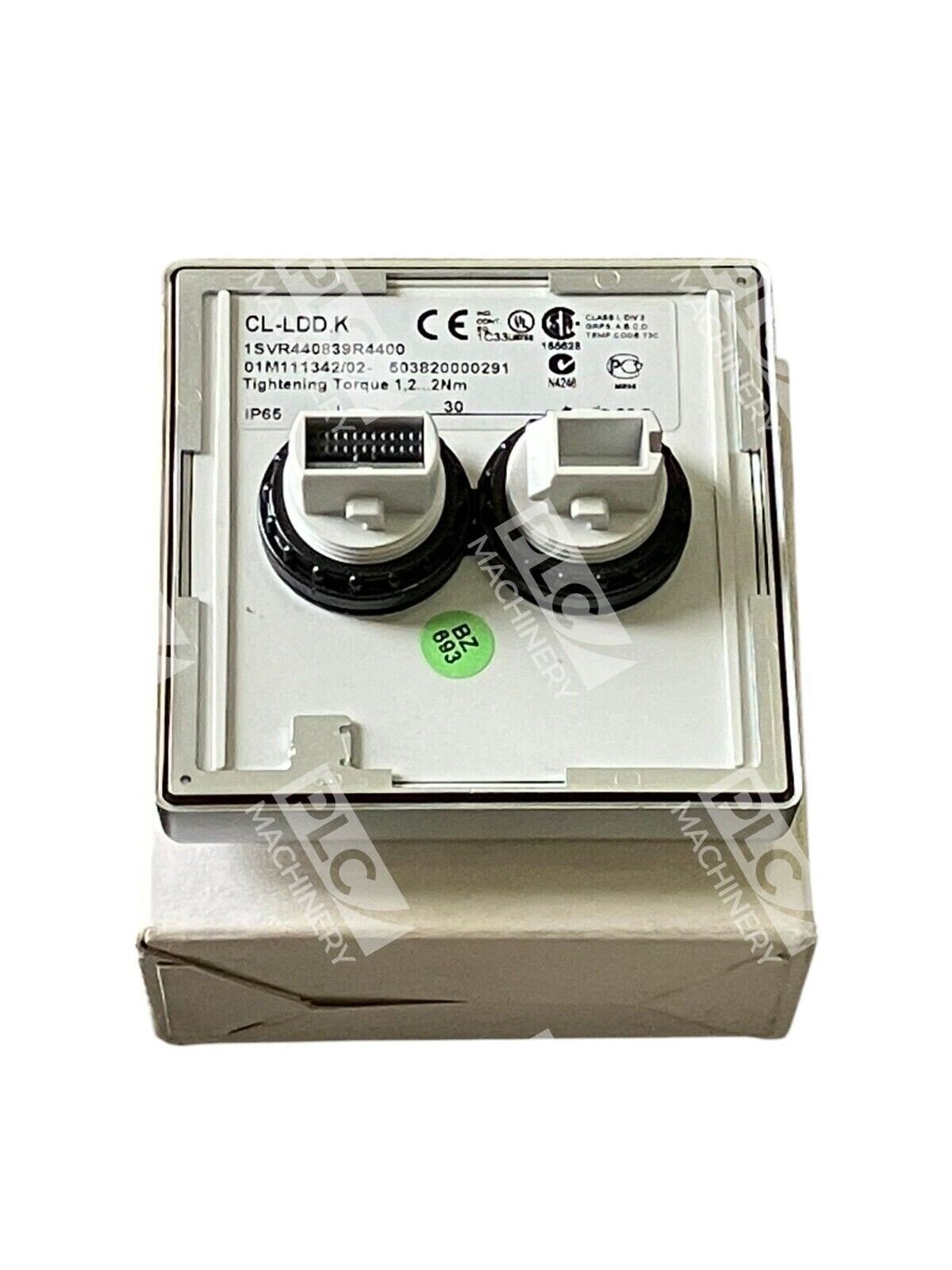

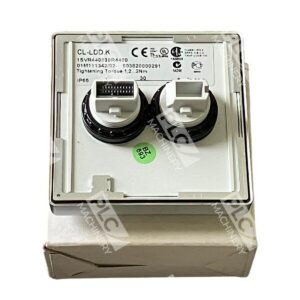

The ABB CL-LDD.K Display 1SVR440839R4400 is a display module from the ABB CL range, engineered to provide remote status indication and control capability for ABB logic relay systems. This compact graphic display module integrates a backlit screen with a mechanical keypad, enabling operators to monitor and interact with programmed logic relay functions from a distance using a flexible connecting cable.
Key Features
- Backlit 132 × 64 pixel graphic display for clear visibility in industrial settings
- Integrated mechanical keypad for direct operator control and navigation
- IP65 degree of protection for dusty and wash-down environments
- Compact form factor: 86.5 mm width × 86.5 mm height × 21.5 mm depth
- 24 V DC power supply compatible with CL-series logic relays
- Includes connecting cable CL-LAD.TK007 (5 m, length adaptable)
Technical Specifications
- Display Type: Backlit graphic LCD, 132 × 64 pixels
- Power Supply: 24 V DC
- Weight: 0.13 kg (0.29 lb)
- Mounting: Flush mounting capability
- Operating Temperature: −25 °C to +55 °C
- Degree of Protection (Enclosure Rating): IP65
- Pollution Degree: 3
- RoHS Compliance: EU Directive 2011/65/EU
- EAN Code: 4013614389849
- Certification: CSA Certificate (CSA_1875990), CE Declaration of Conformity
- Standards Compliance: IEC61000-6-1, IEC61000-6-2, IEC61000-6-3, IEC61000-6-4, IEC60068-2-6, IEC60068-2-27
Typical Applications
The CL-LDD.K display module is typically deployed in manufacturing control systems, process automation, HVAC systems, and building automation where remote monitoring of logic relay outputs and inputs is required. It serves as a cost-effective alternative to standalone HMI panels when integrated with ABB CL-series logic relays, providing real-time feedback and manual override capabilities on the factory floor or in remote locations.
Compatibility & Replacements
This display module is designed as an accessory for ABB CL-series logic relays, including CL-LS and CL-LM models. The module connects via the included CL-LAD.TK007 connecting cable (standard 5 m length, field-adjustable). It is compatible only with systems designed for 24 V DC power supply. Always verify CL-series compatibility with your existing control system before ordering. For remote display applications requiring AC power, consult ABB documentation for alternative display modules such as the CL-LDC series.
