Overview

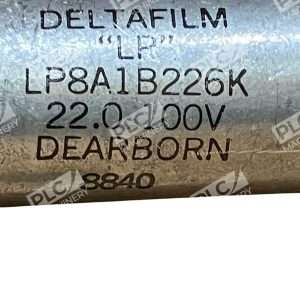

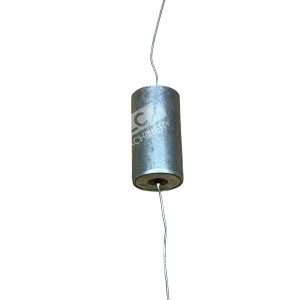

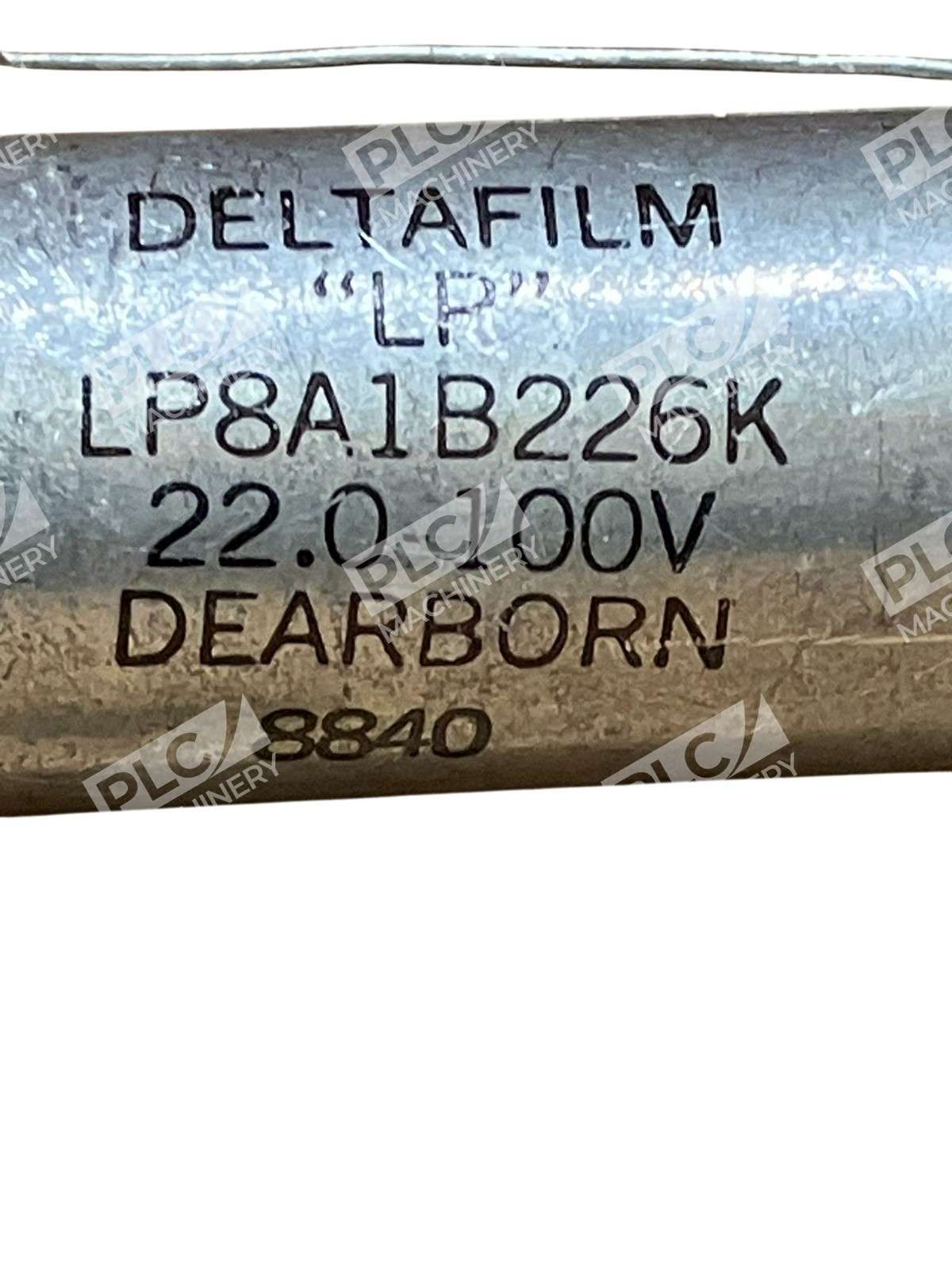

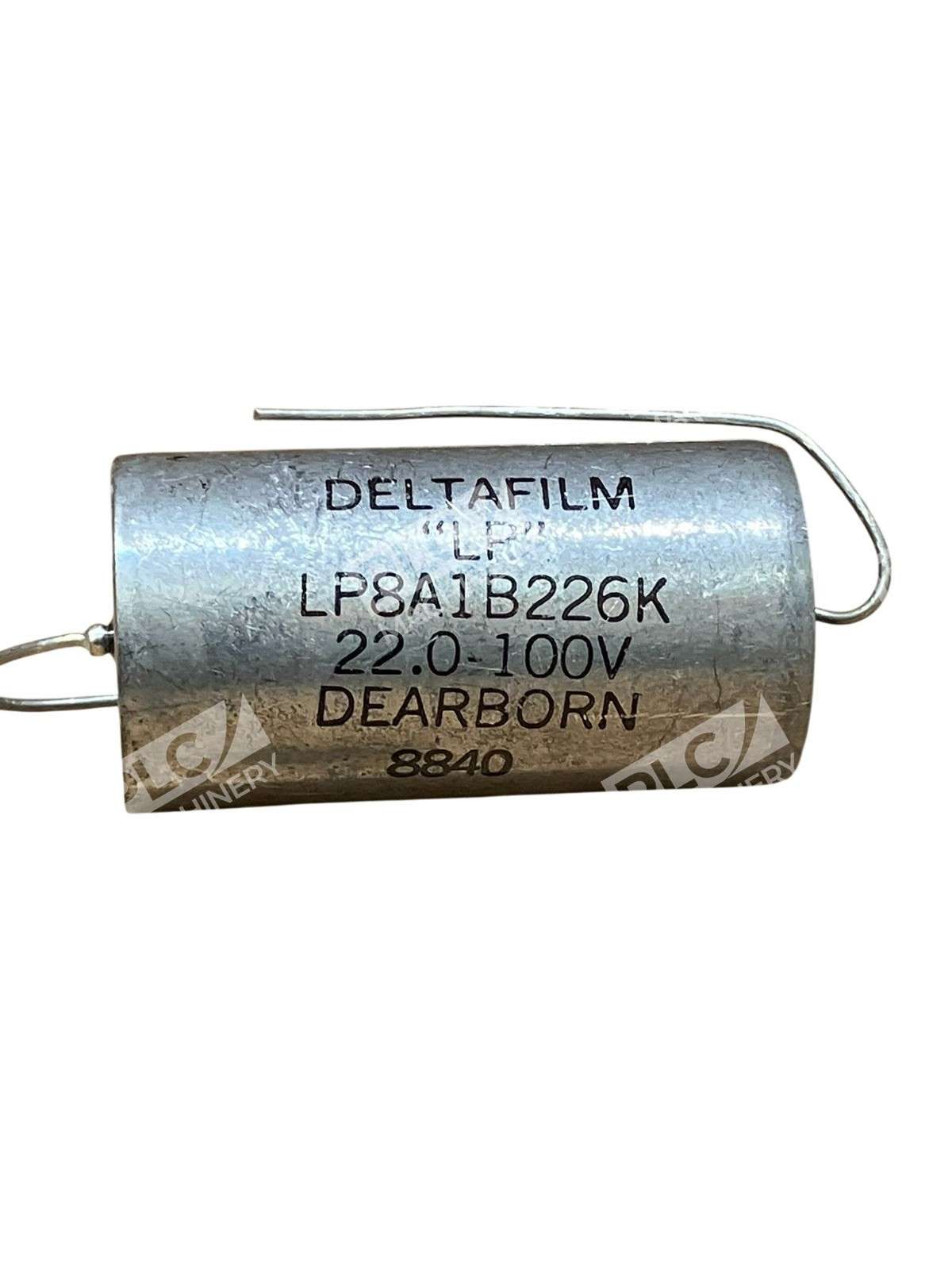

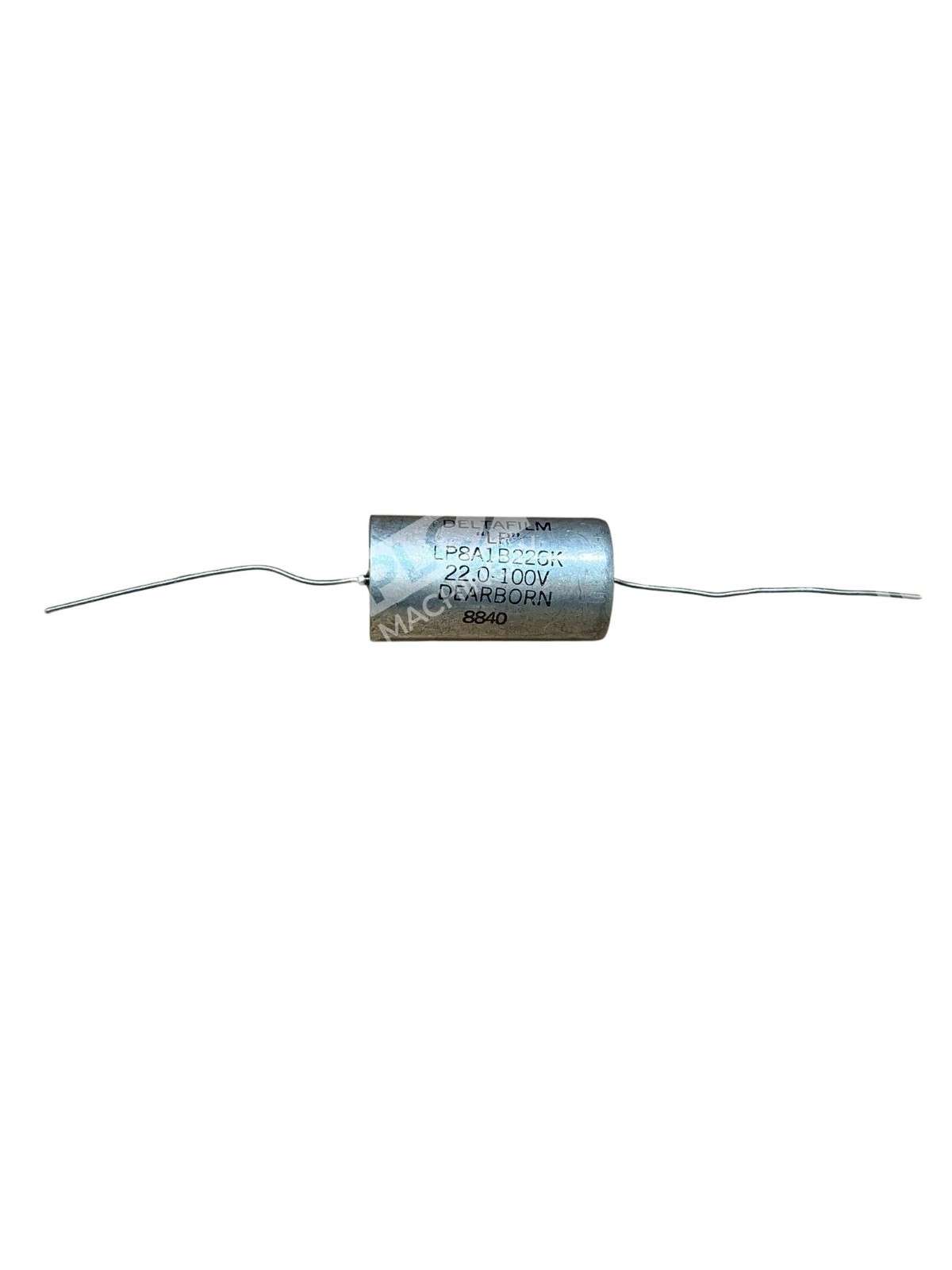

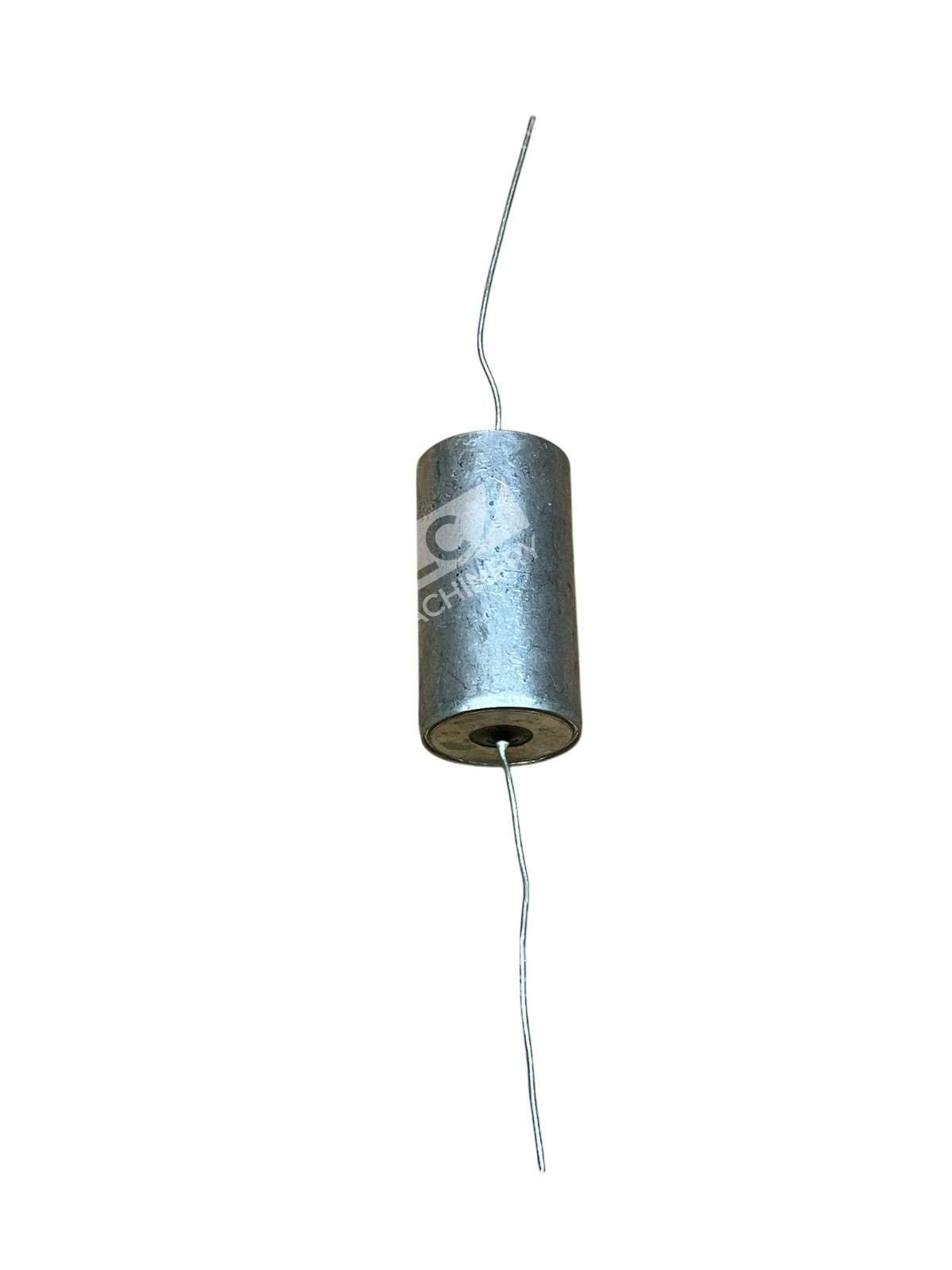

The Dearborn LP8A1B226K is a 22µF 100V axial metal film capacitor from the Deltafilm series. Built with proven film and metal construction, this capacitor is a staple in vintage audio equipment, crossovers, and general electronic applications. Its axial lead configuration allows straightforward through-hole mounting on PCBs, making it a drop-in replacement for original installations requiring this exact rating.
Key Features
- 22µF capacitance with 100V DC rating
- Axial lead termination for standard through-hole assembly
- Metal film construction for stable, reliable performance
- Vintage Deltafilm design trusted in audio and electronic circuits
- Compact form factor suitable for tight board layouts
Technical Specifications
- Capacitance: 22µF
- Voltage Rating: 100V DC
- Termination Style: Axial leads
- Dielectric Material: Metal film
- Manufacturer: Dearborn Electronics
- Series: Deltafilm (LP8A)
- Package Type: Through-hole axial
Typical Applications
- Audio equipment and vintage amplifier restoration
- Speaker crossover networks
- Power supply filtering and smoothing
- Electronic circuit coupling and bypass roles
- Musical instrument amplifiers and effects circuits
Compatibility & Replacements
Compatible With
- Vintage audio amplifier circuits rated for 100V DC
- Standard PCB through-hole designs with 0.4″ lead spacing
- General-purpose electronic applications requiring 22µF at 100V
- Crossover networks and audio filtering applications
Replaces / Drop-In Replacement For
- Original Dearborn Deltafilm LP8A1B226K units
- Equivalent 22µF 100V axial film capacitors from vintage electronics
Works With
- Standard PCB assembly and hand-soldering techniques
- Legacy audio equipment and professional repair workflows
- Through-hole component insertion in classic audio circuits
