Overview

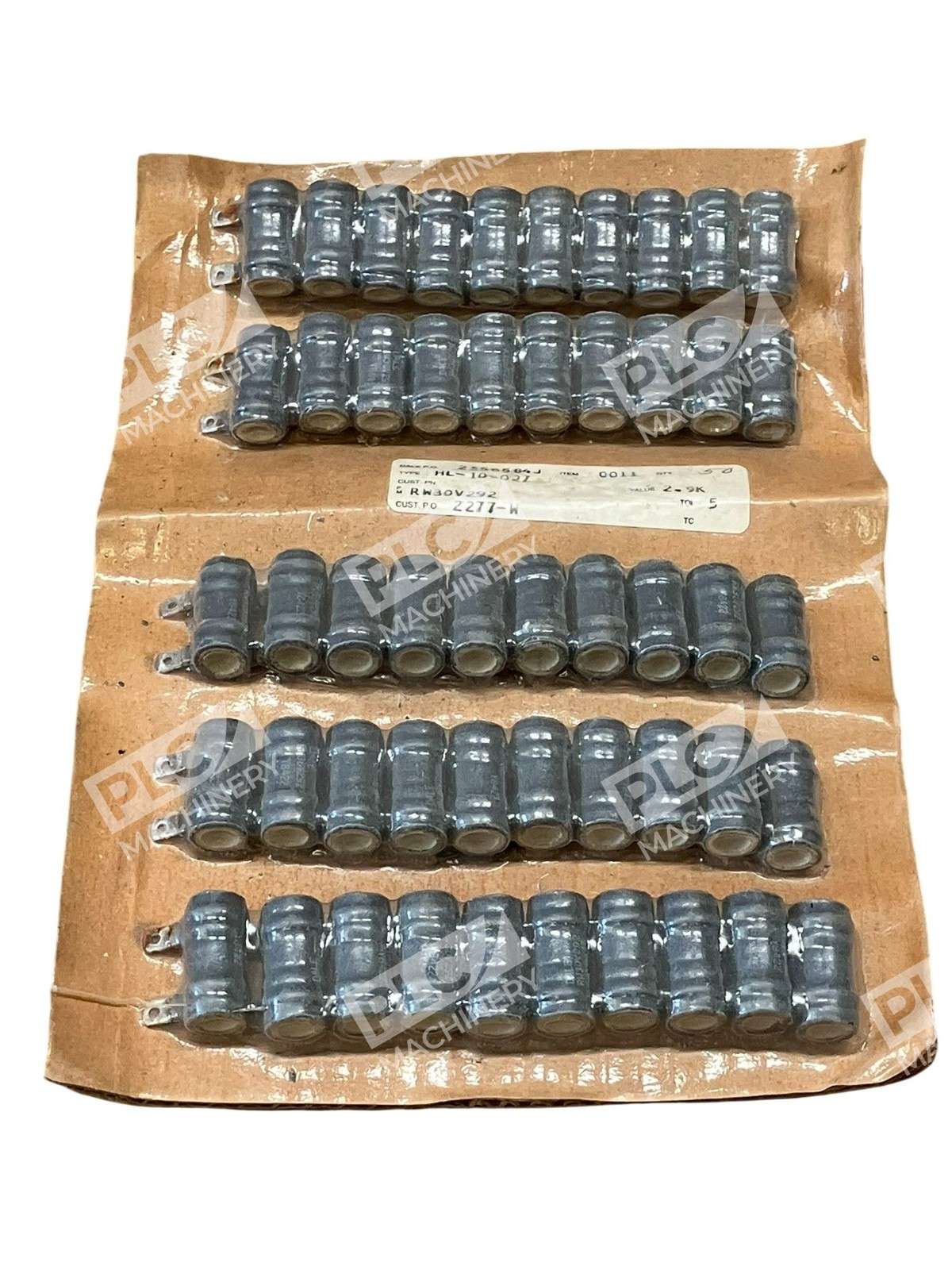

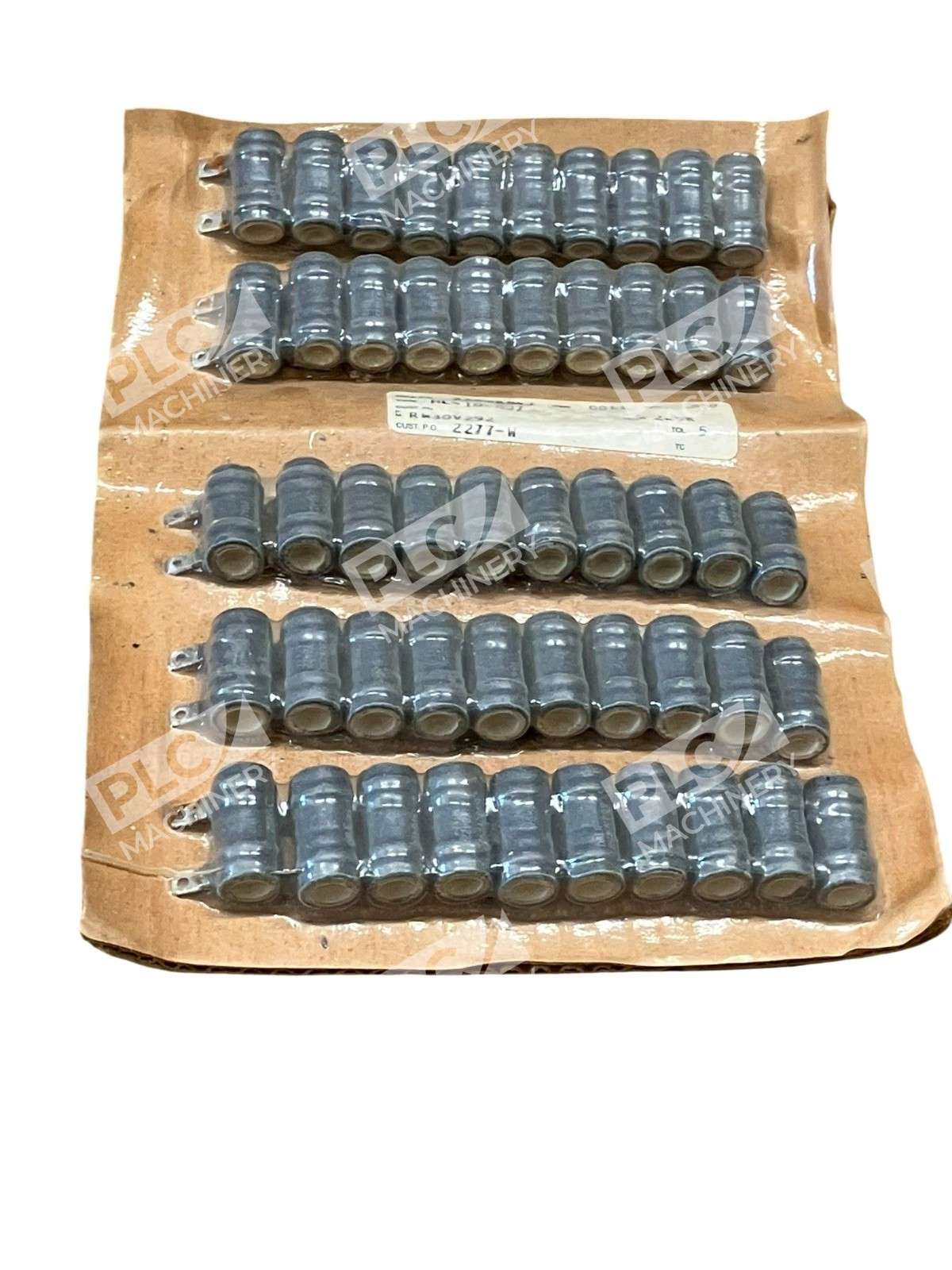

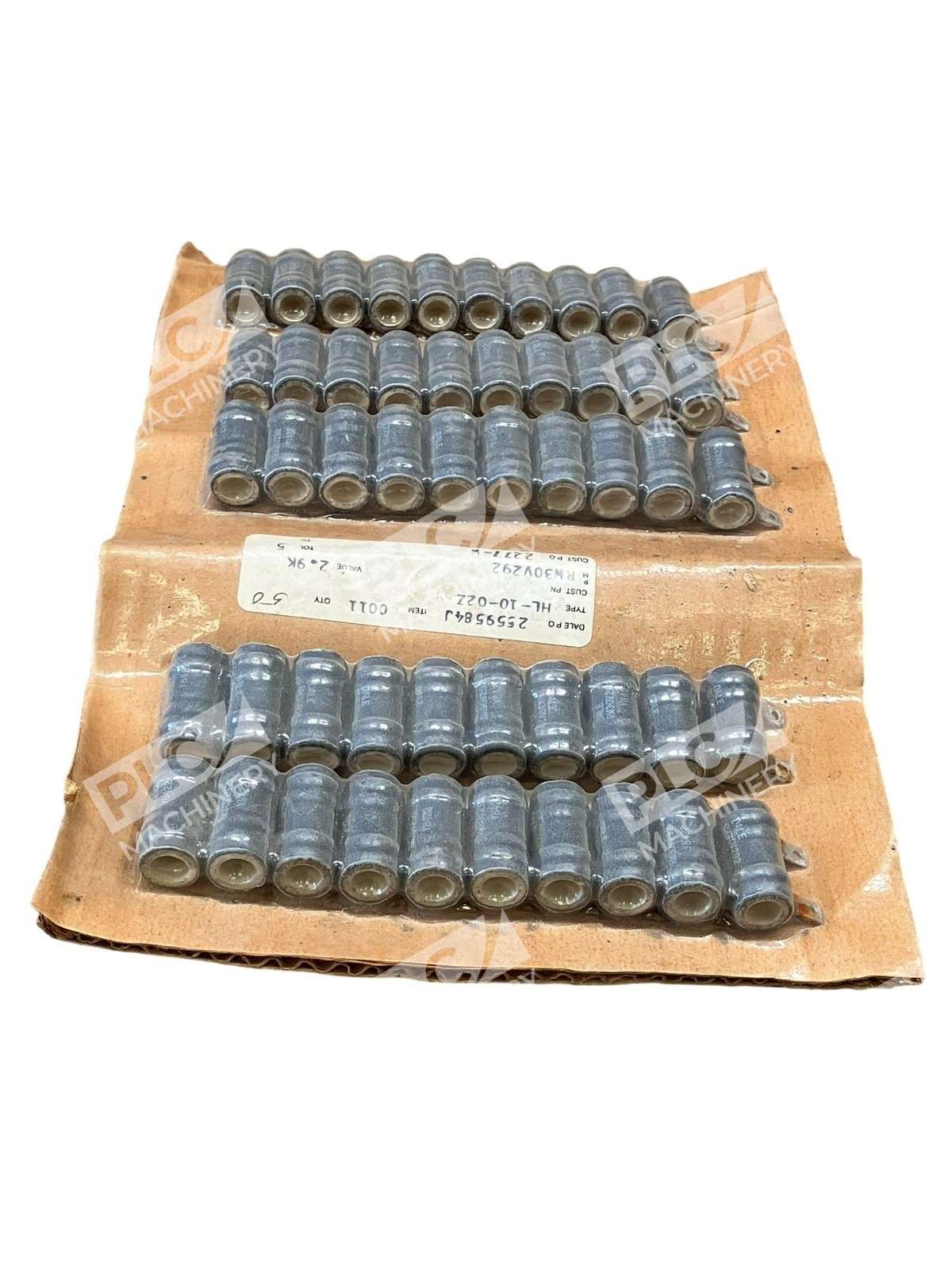

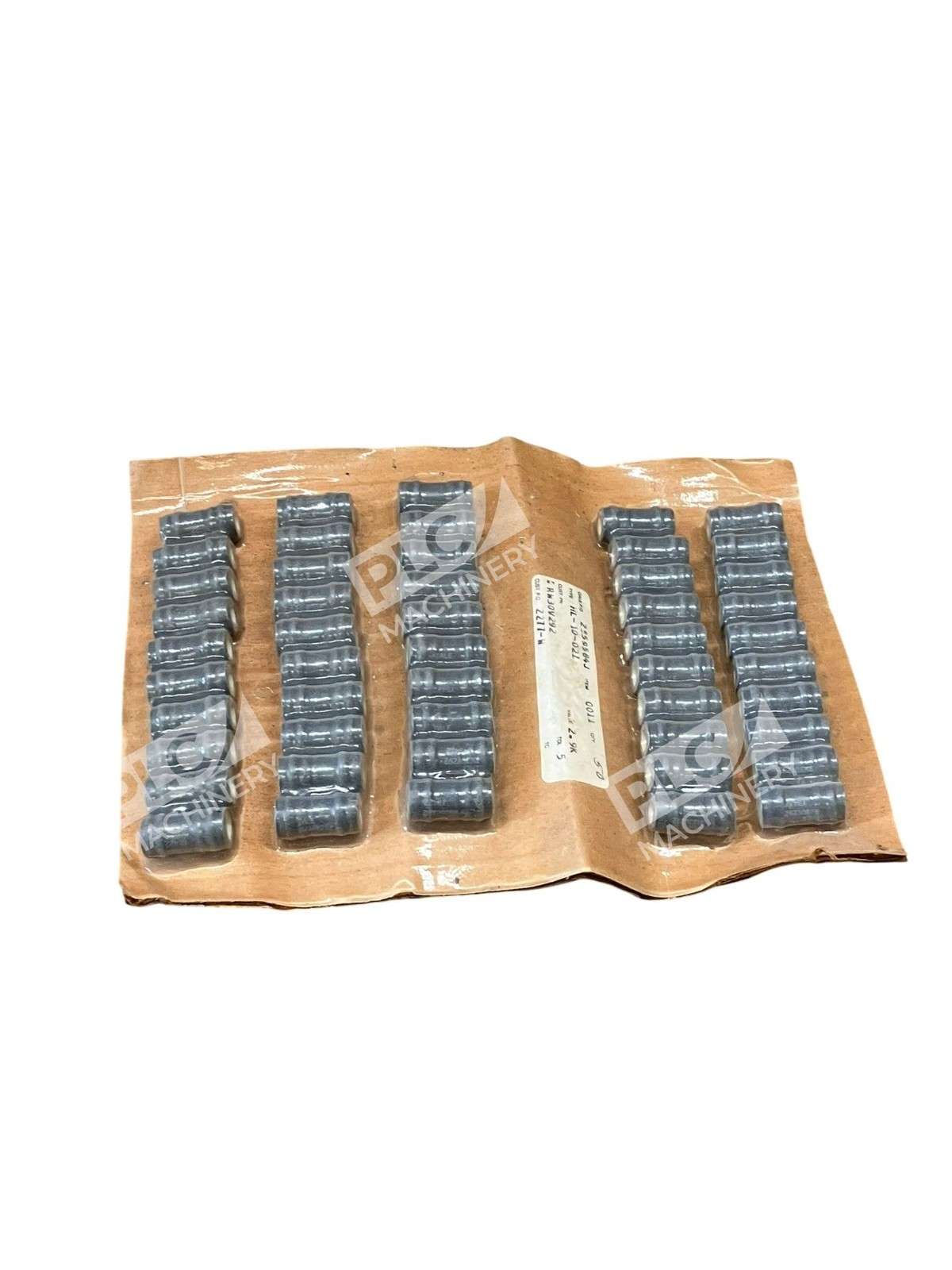

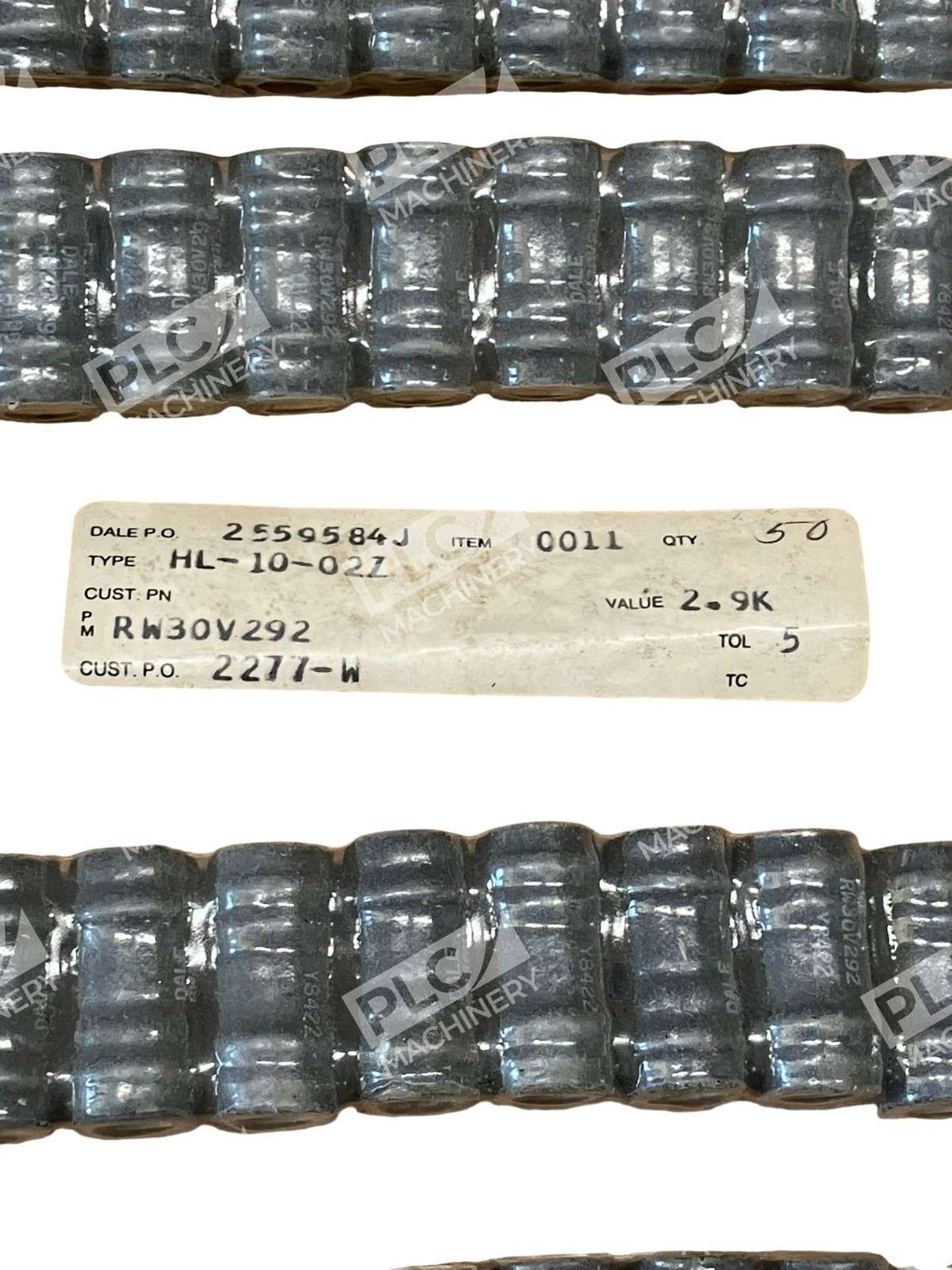

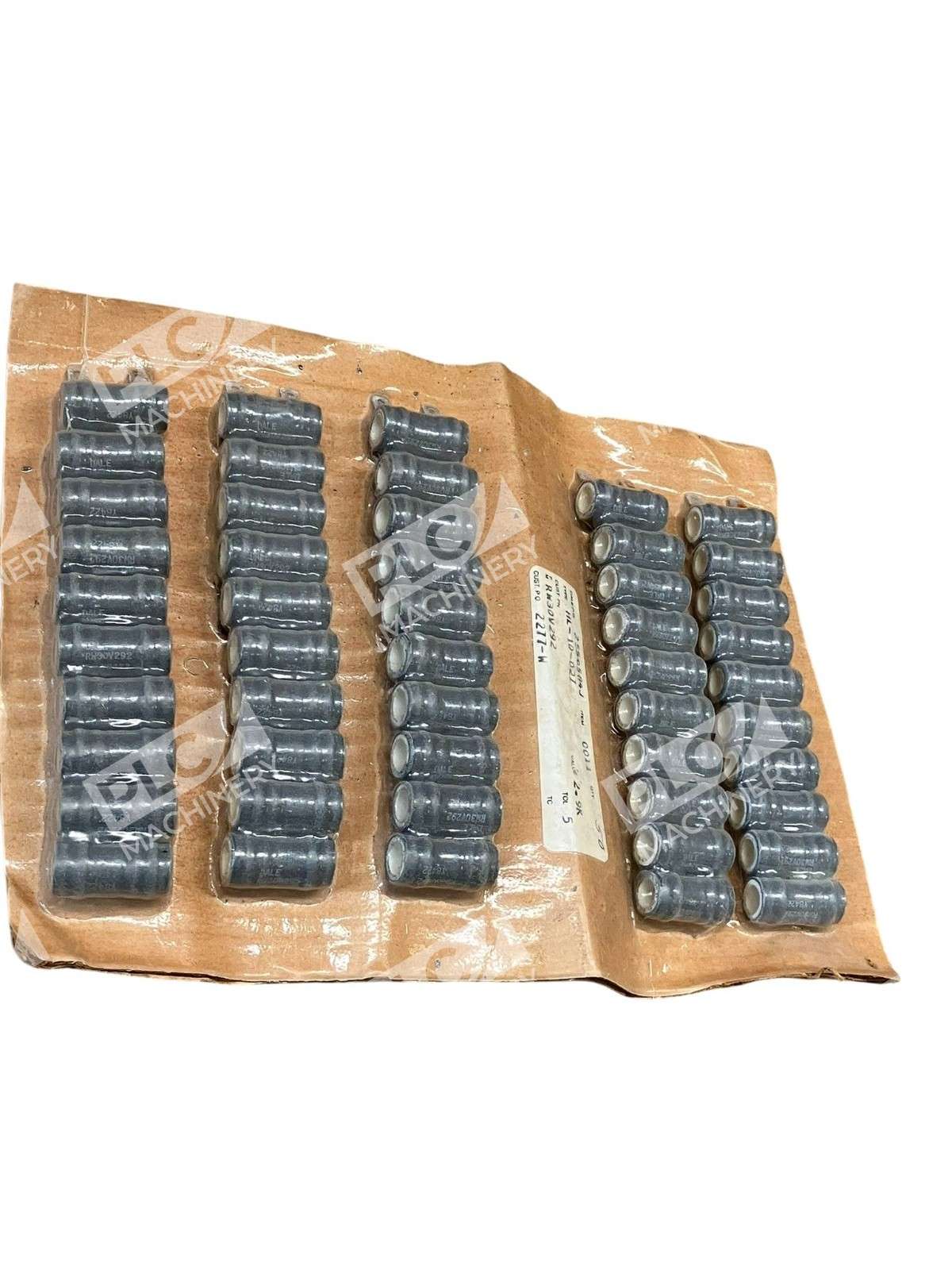

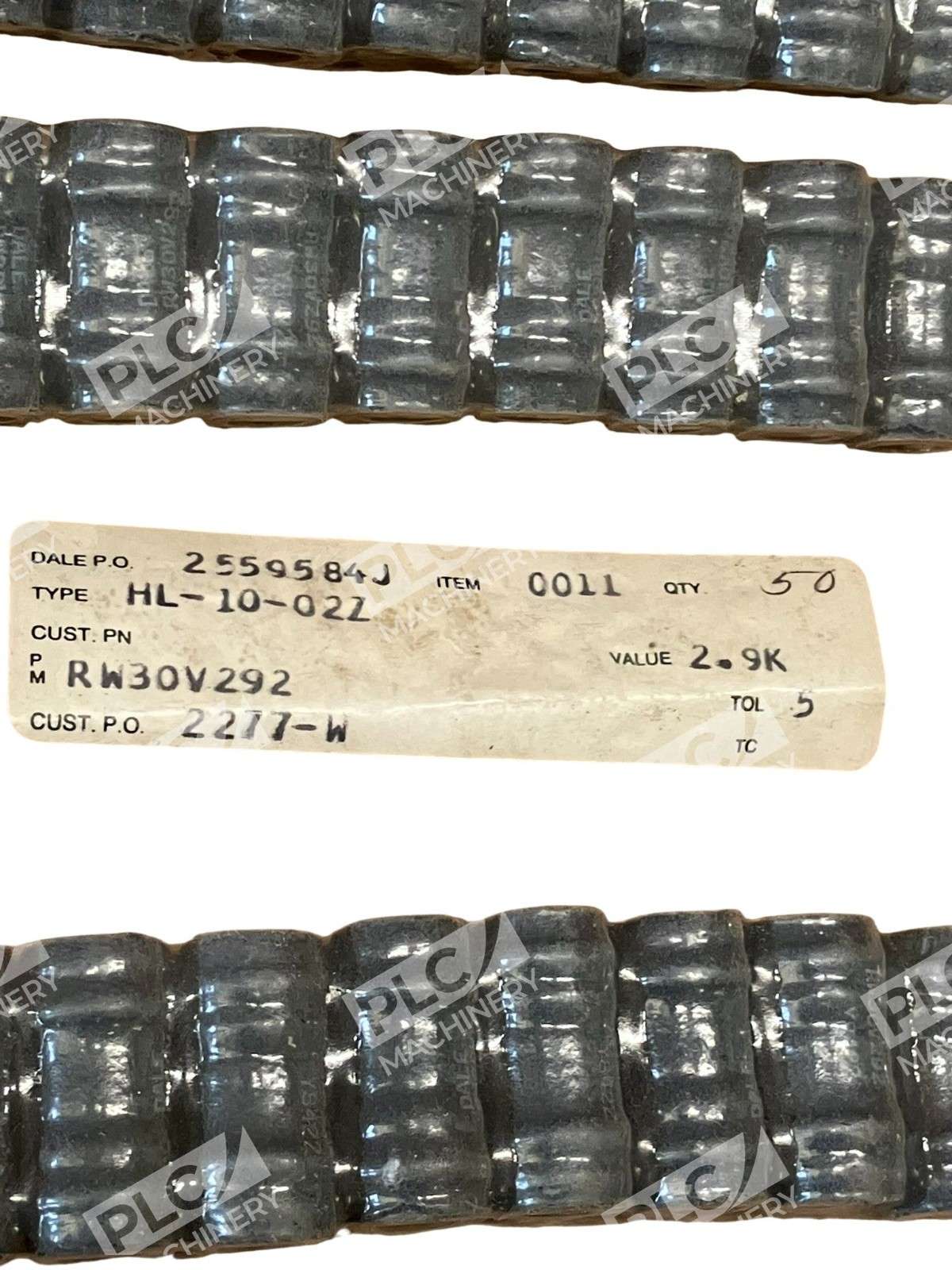

The Dale HL-10-02Z power wirewound resistor is a professional-grade component manufactured by Vishay Dale for industrial and commercial applications. This specific unit delivers 2.9K ohm resistance with ±5% tolerance and is rated for 10W power dissipation. The RW30V292 designation identifies this resistor within Dale’s extensive wirewound catalog. Pack quantity of 50 units ensures adequate inventory for prototyping, repair, and production runs.
Key Features
- 10W power rating supports demanding thermal requirements
- ±5% tolerance ensures stable and predictable performance
- High-temperature silicon coating for environmental protection
- Complete welded construction for reliability and longevity
- Edgewound design minimizes parasitic inductance
- Solderable lugs for secure electrical connection
Technical Specifications
| Resistance Value | 2.9K ohm |
| Tolerance | ±5% |
| Power Rating | 10W |
| Wirewound Type | Edgewound, tubular |
| Construction | Welded, high-temperature silicon coating |
| Terminals | Solderable lugs |
| Series | HL, Industrial Power |
| Manufacturer | Vishay Dale |
| Part Number | RW30V292 |
| Unit Quantity | Pack of 50 |
Typical Applications
- Power supply load resistors and current limiting circuits
- High-power electronic equipment and industrial machinery
- Test and measurement equipment requiring stable dissipation
- Audio amplifiers and RF power applications
- Thermal load banks and precision component testing
- Retrofit and replacement service in legacy equipment
Compatibility & Replacements
Compatible With
- Universal solderable lug termination compatible with standard PCB and chassis mounting
- Suitable for 115V and 230V AC/DC power systems
- Applicable in circuits designed for MIL-PRF-18546 qualified wirewound resistor specifications
- Compatible with both through-hole and component lead solder connections
Replaces / Drop-In Replacement For
- Verify compatibility with your system integrator or equipment documentation before ordering to ensure identical resistance and power rating requirements.
Works With
- Industrial power distribution and conditioning circuits
- Equipment requiring MIL-PRF-18546 compliant components
- Standard PCB assembly processes and manual soldering applications
- Thermal management systems requiring precision load resistors
