Overview

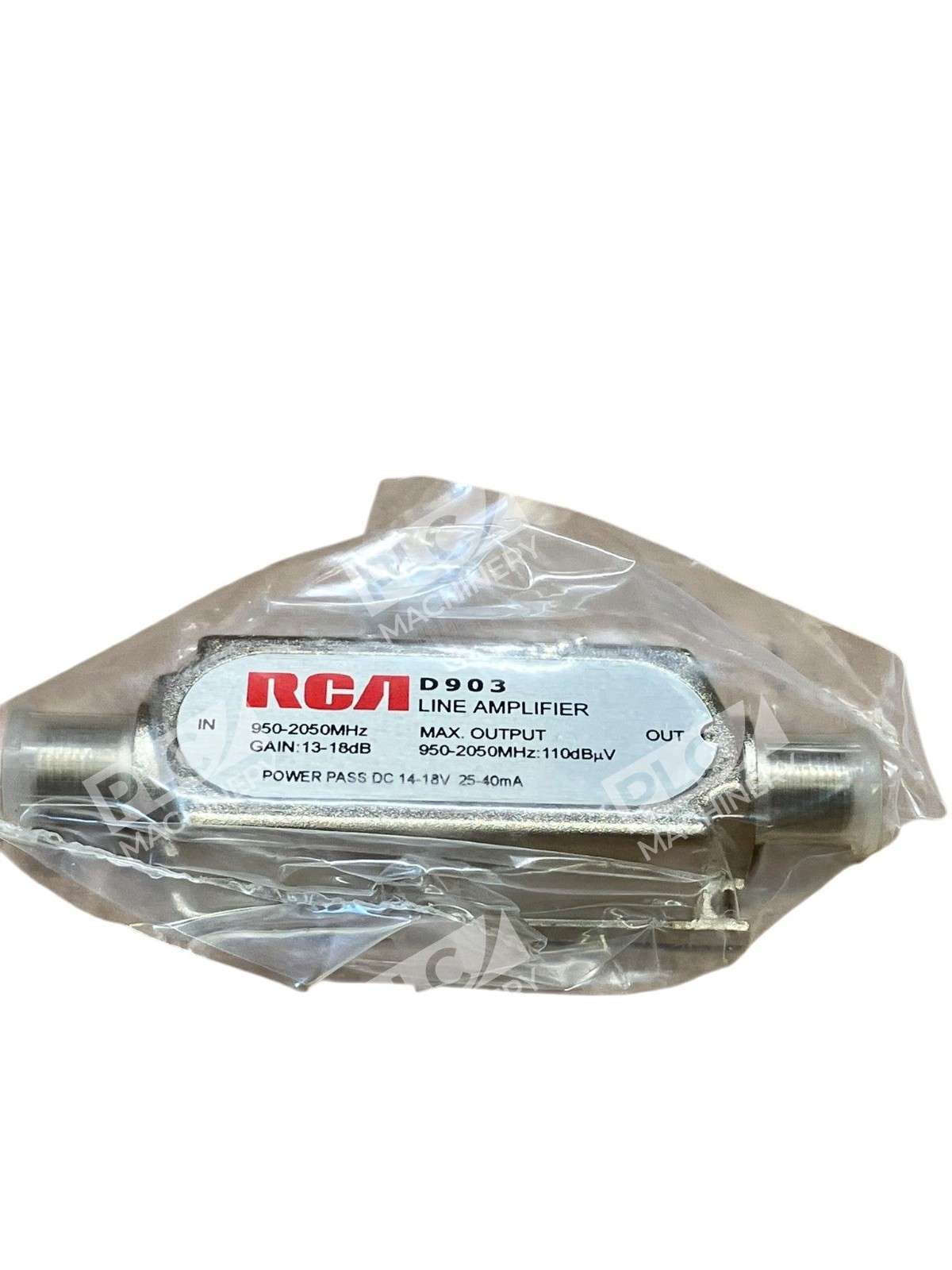

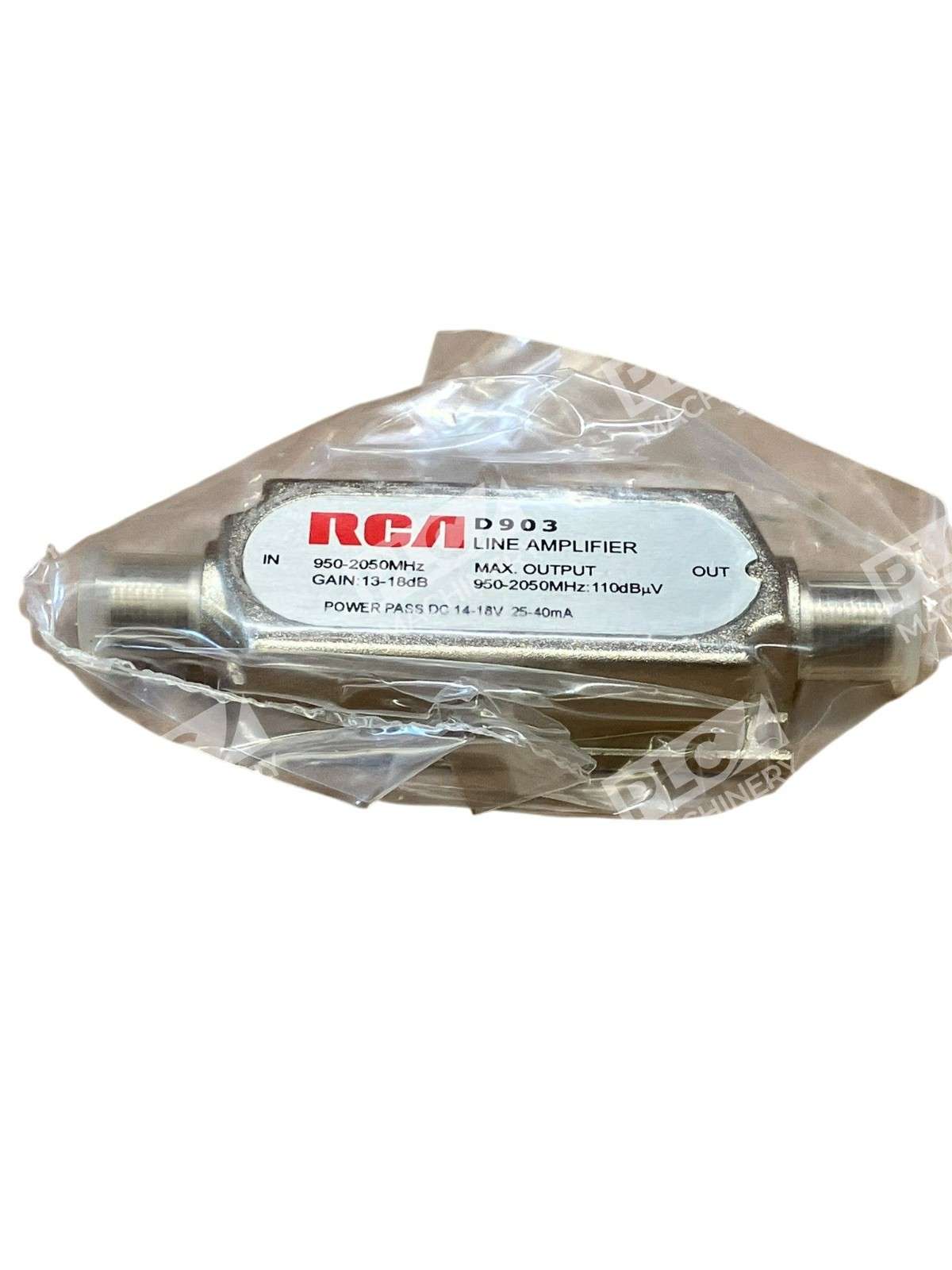

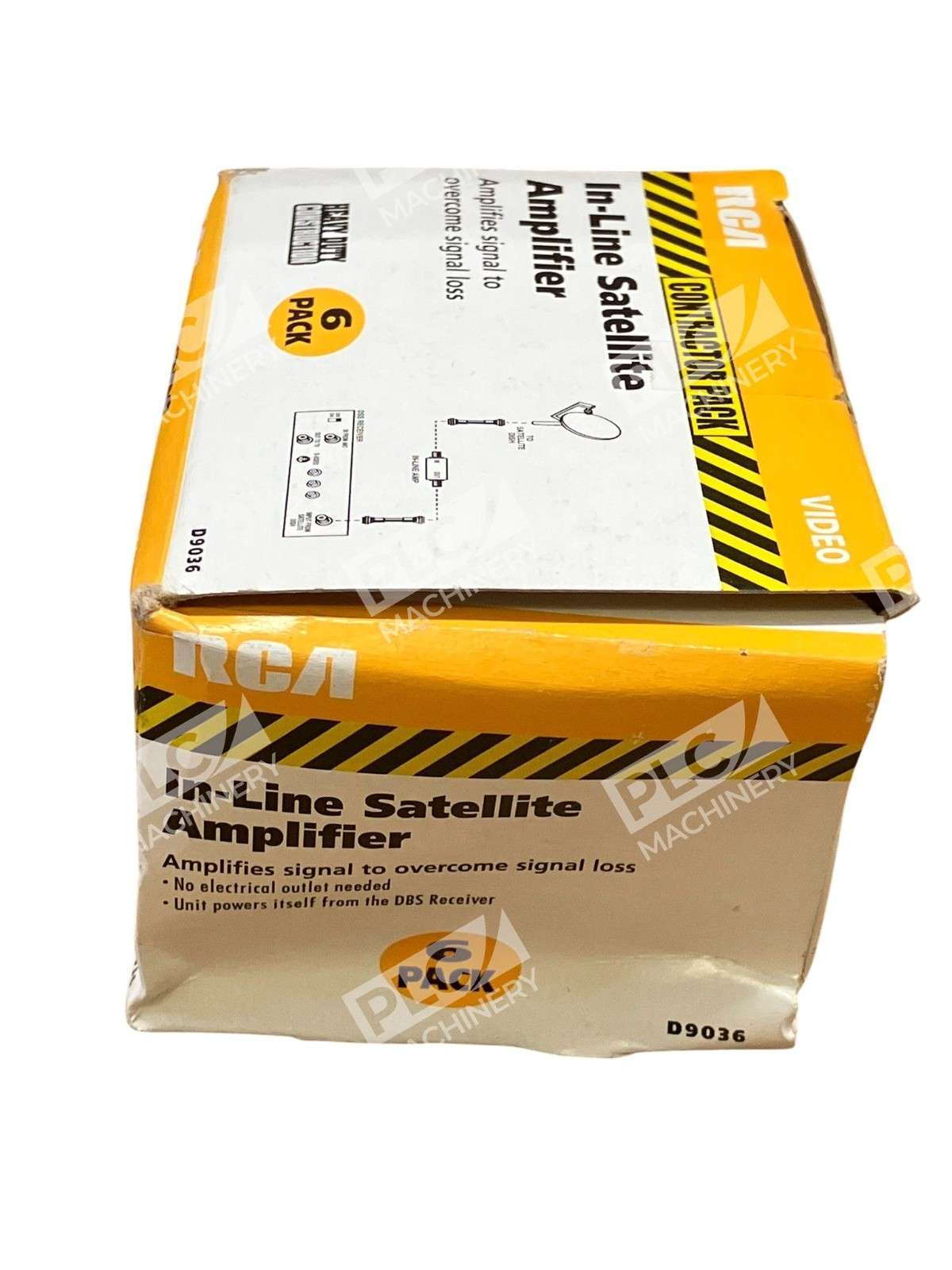

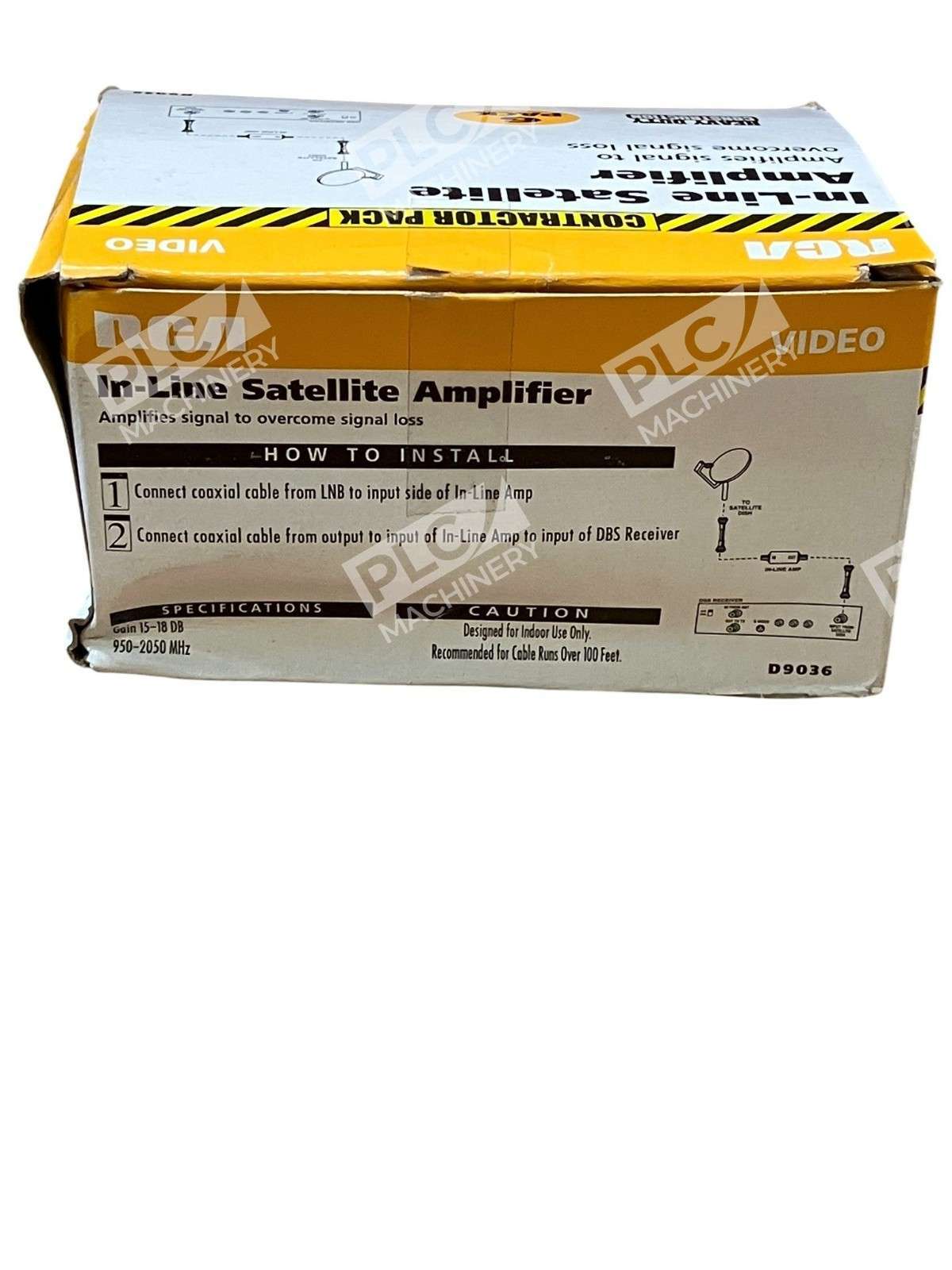

The RCA D903 in-line satellite amplifier is designed to amplify weak satellite and cable TV signals in the 950–2050 MHz frequency band. This amplifier is designed for in-line boosting of weak satellite signals and amplifies the signal to get the best picture quality when an installation requires long cable runs. The unit delivers a gain range of 13–18 dB with a maximum output of 110 dBµV across the 950–2050 MHz band. The D903 is a legacy satellite (DBS) component suitable for systems requiring signal conditioning over extended coaxial cable distances.
Key Features
- Frequency range: 950–2050 MHz (legacy DBS/legacy satellite downconverted band)
- Gain: 13–18 dB with maximum output 110 dBµV
- Low noise figure for clean signal amplification
- Compact, in-line design for easy installation between LNB and receiver
- Powers itself through the 13/18 volt supply from the DBS receiver — no external power required
- Ideal for long coaxial cable runs (typically >200 feet)
Technical Specifications
- Frequency Range: 950–2050 MHz
- Gain: 13–18 dB
- Maximum Output Level: 110 dBµV (950–2050 MHz)
- Noise Figure: 0.11 dB
- Input Impedance: 75 Ω
- Output Impedance: 75 Ω
- Power Supply: Via DBS receiver (13/18 V)
- Connector Type: F-type (standard coaxial)

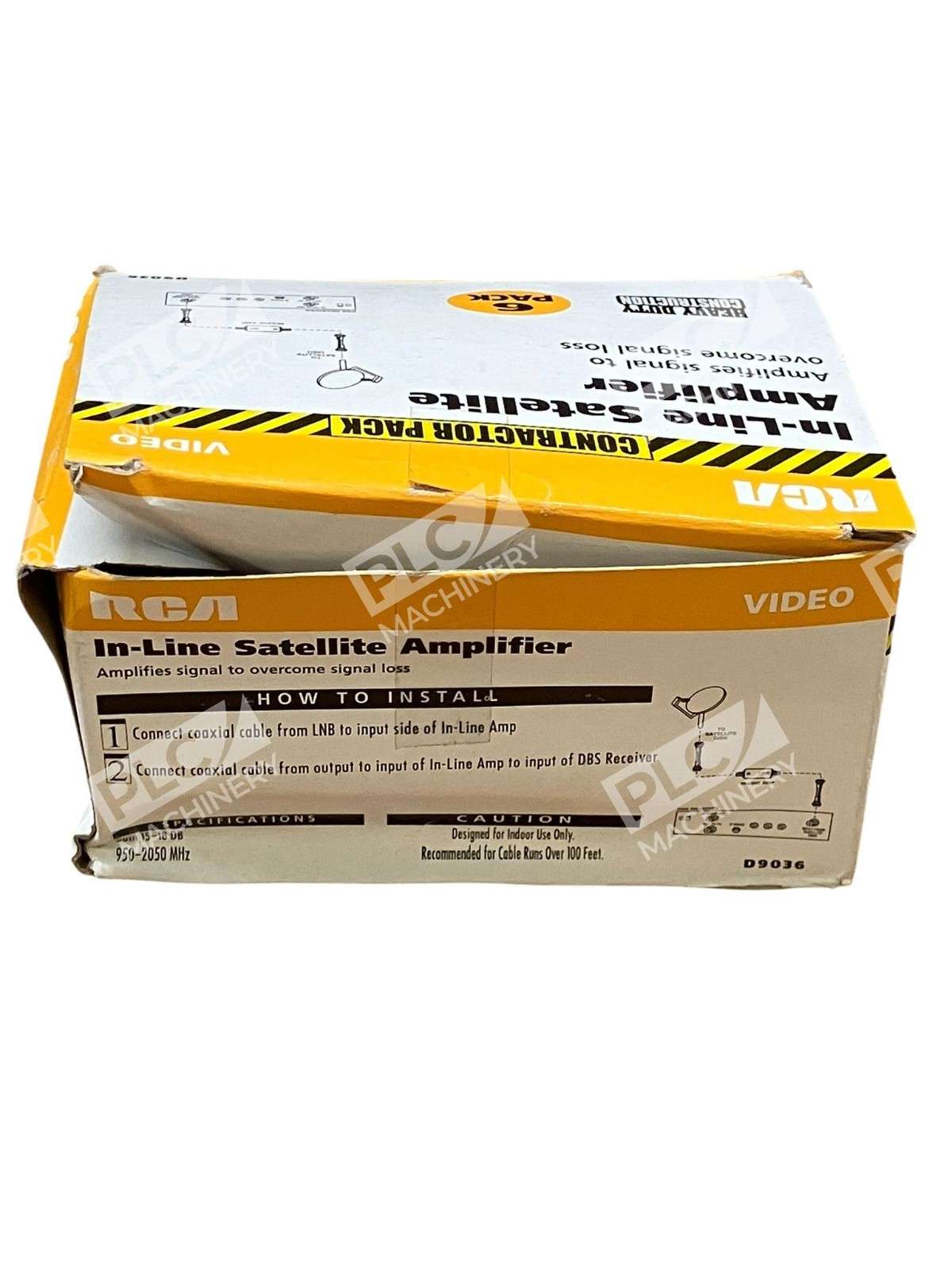

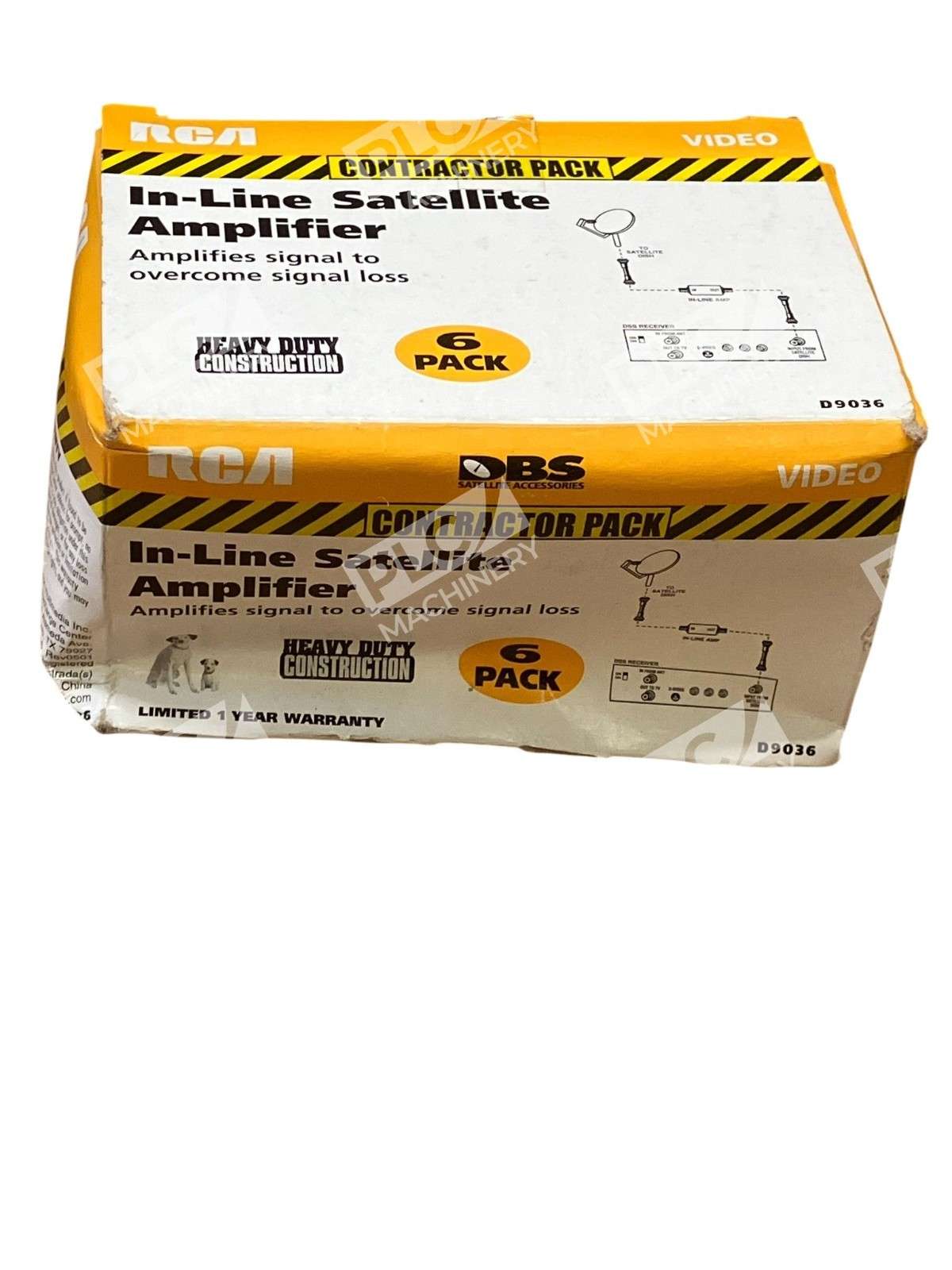

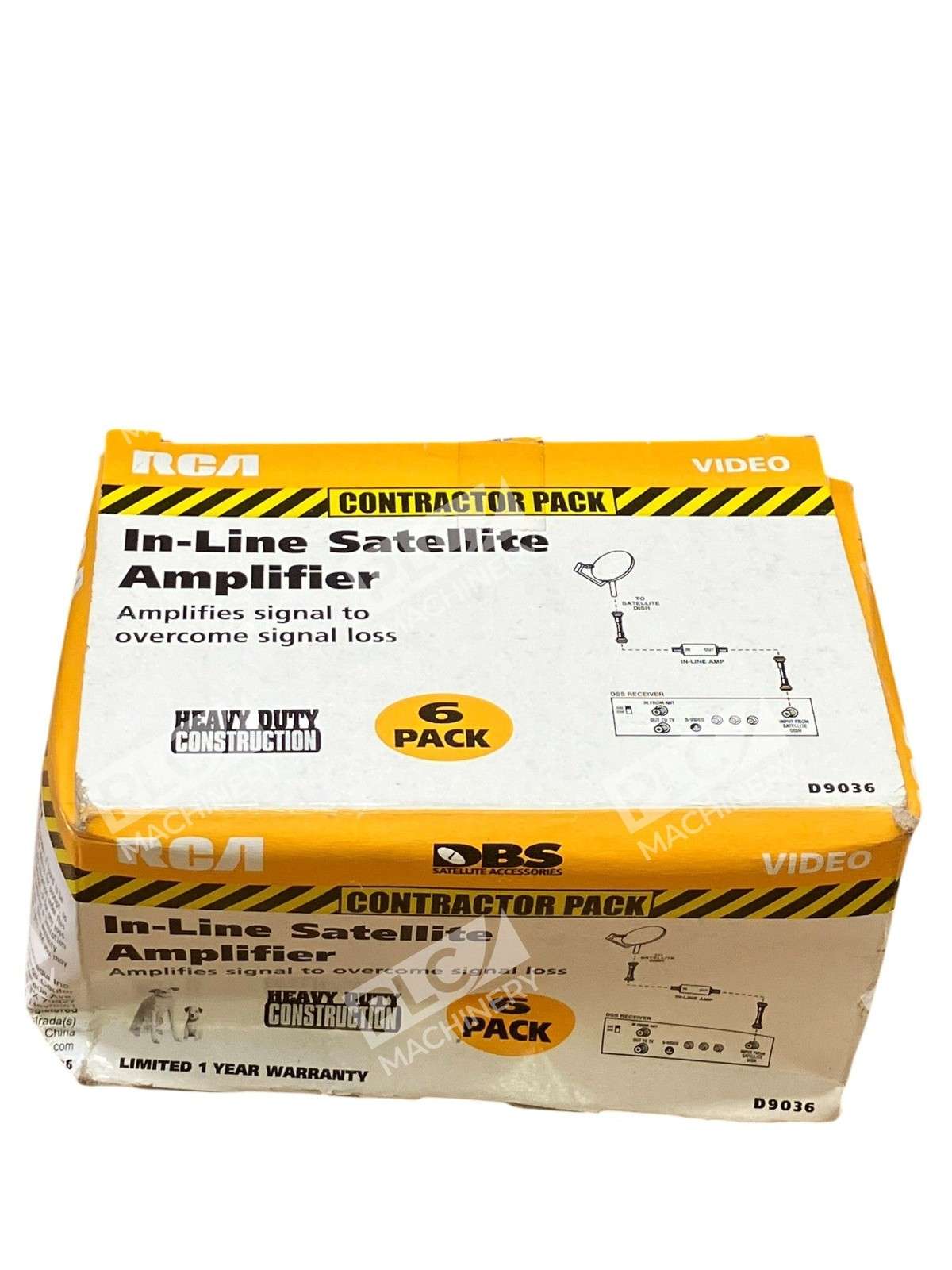

- Quantity: Box of 6 units
- Condition: New in box
Typical Applications
The RCA D903 is used in satellite and cable TV installations where signal quality degrades over long cable runs. Common applications include:
- Extended cable runs from satellite dish to multiple receivers
- Signal conditioning for weak incoming satellite signals
- Legacy DBS (Direct Broadcast Satellite) system upgrades
- Residential satellite TV distribution systems
- Applications requiring 13–18 dB signal gain in the 950–2050 MHz band
Compatibility & Replacements
Compatible With
- RCA DBS satellite receivers and systems
- Any DBS/satellite receiver supplying 13/18 volt power on the coaxial line
- Legacy satellite and cable downconverted signal paths (950–2050 MHz)
- Standard 75 Ω coaxial cable systems
- F-type connector installations
Replaces / Drop-In Replacement For
- Legacy RCA in-line satellite amplifiers in the same frequency band
- Other 950–2050 MHz passive-powered in-line amplifiers with F-type connectors
- Note: Verify connector type and power supply compatibility before substitution
Works With
- DBS receiver systems with standard coaxial cable infrastructure
- Legacy satellite downconverted signal frequencies (950–2050 MHz)
- Systems using F-type connectors and 75 Ω impedance matching
- RF signal distribution networks requiring mid-line amplification
