Overview

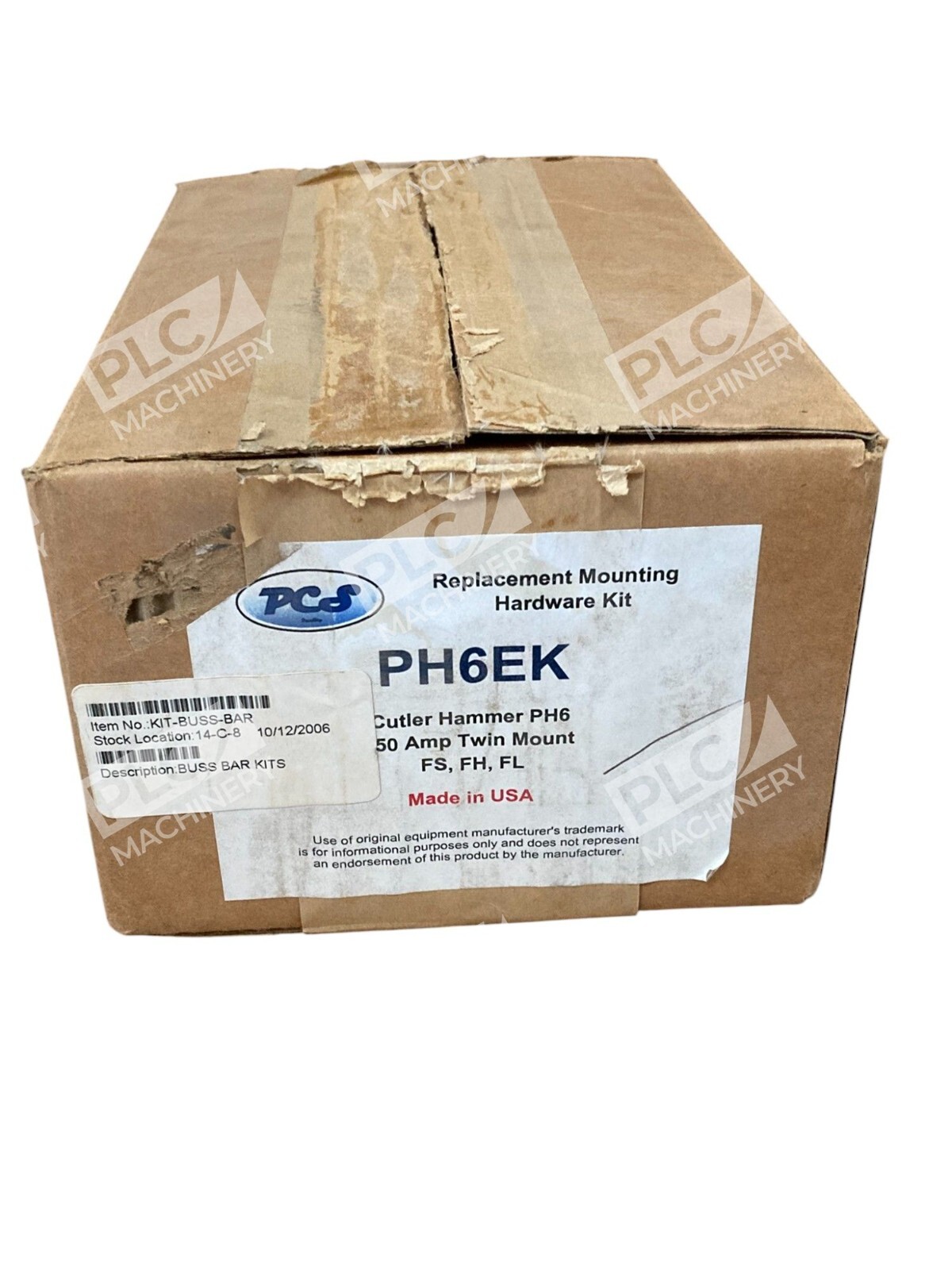

The Eaton Cutler-Hammer PH6EK mounting hardware kit provides complete twin mounting capability for dual FS/FH frame circuit breakers in industrial and commercial panelboards. This replacement kit includes all components needed for proper installation and secure mechanical mounting without additional hardware sourcing.
Key Features
- Twin mount configuration for two FS or FH frame breakers
- Includes all necessary mounting brackets and fastening hardware
- Deadfront cover plate included for code compliance
- Direct replacement for OEM PH6E3
- Detailed installation instructions provided
- Suitable for industrial and commercial electrical applications
Technical Specifications
- Current Rating: 150A maximum
- Voltage Rating: 240V
- Mounting Type: Twin (dual breaker)
- Compatible Frame Series: FS, FH

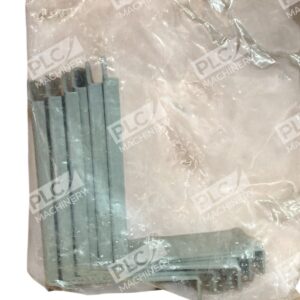

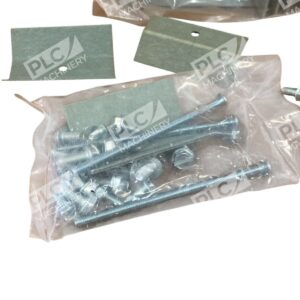

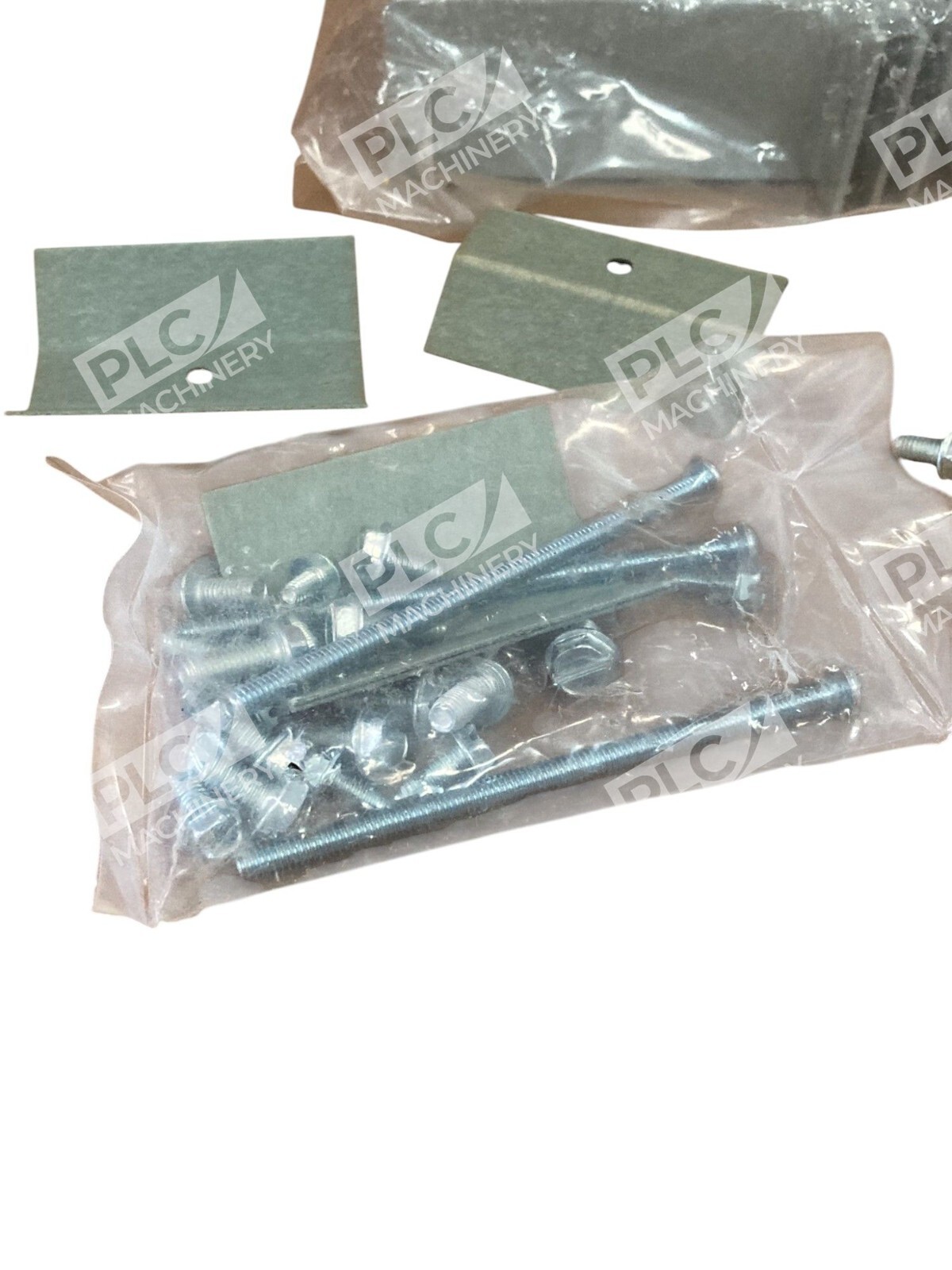

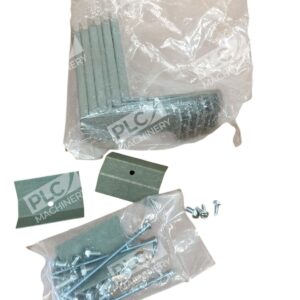

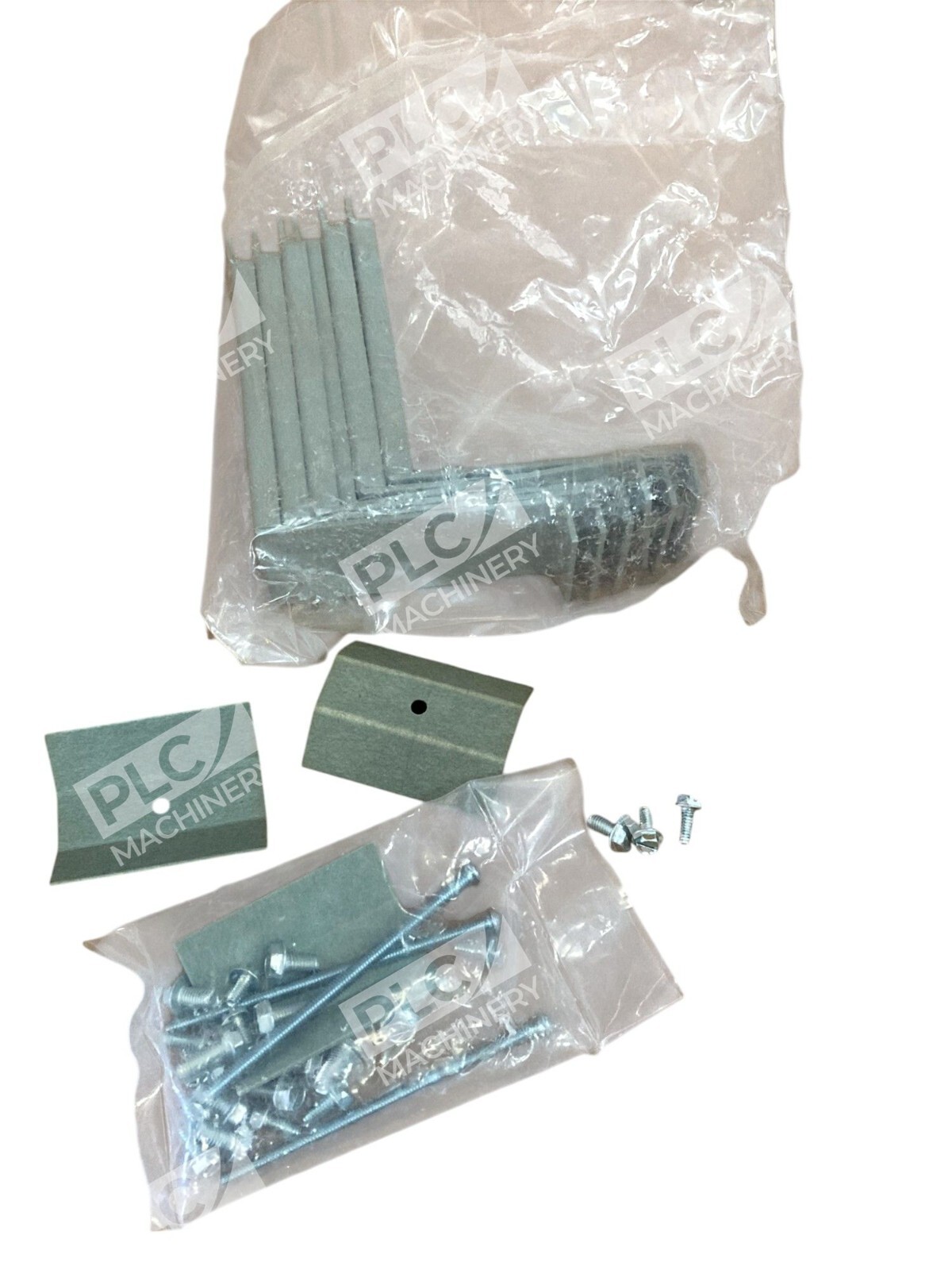

- Kit Contents: Mounting straps, brackets, fasteners, deadfront plate
- Standards: UL listed for electrical safety
Typical Applications
The PH6EK mounting kit is used in industrial control panels, commercial electrical distributions, and facility upgrades where dual circuit breaker mounting is required. Common applications include motor control centers, power distribution panels, and industrial machinery branch circuit protection installations.
Compatibility & Replacements
Compatible With
- Eaton/Cutler-Hammer FS frame circuit breakers (single, dual, and triple pole)
- Eaton/Cutler-Hammer FH frame circuit breakers
- Industrial panelboards rated 240V to 600V systems
- Cutler-Hammer panel enclosures designed for PH series mounting
Replaces / Drop-In Replacement For
- PH6E3 (direct OEM replacement)
Works With
- Eaton/Cutler-Hammer branch circuit breakers (EHD, FS, FH, FL series)
- Standard electrical panel enclosures with provisions for PH-series hardware
- Industrial control systems requiring dual-breaker mounting
