Overview

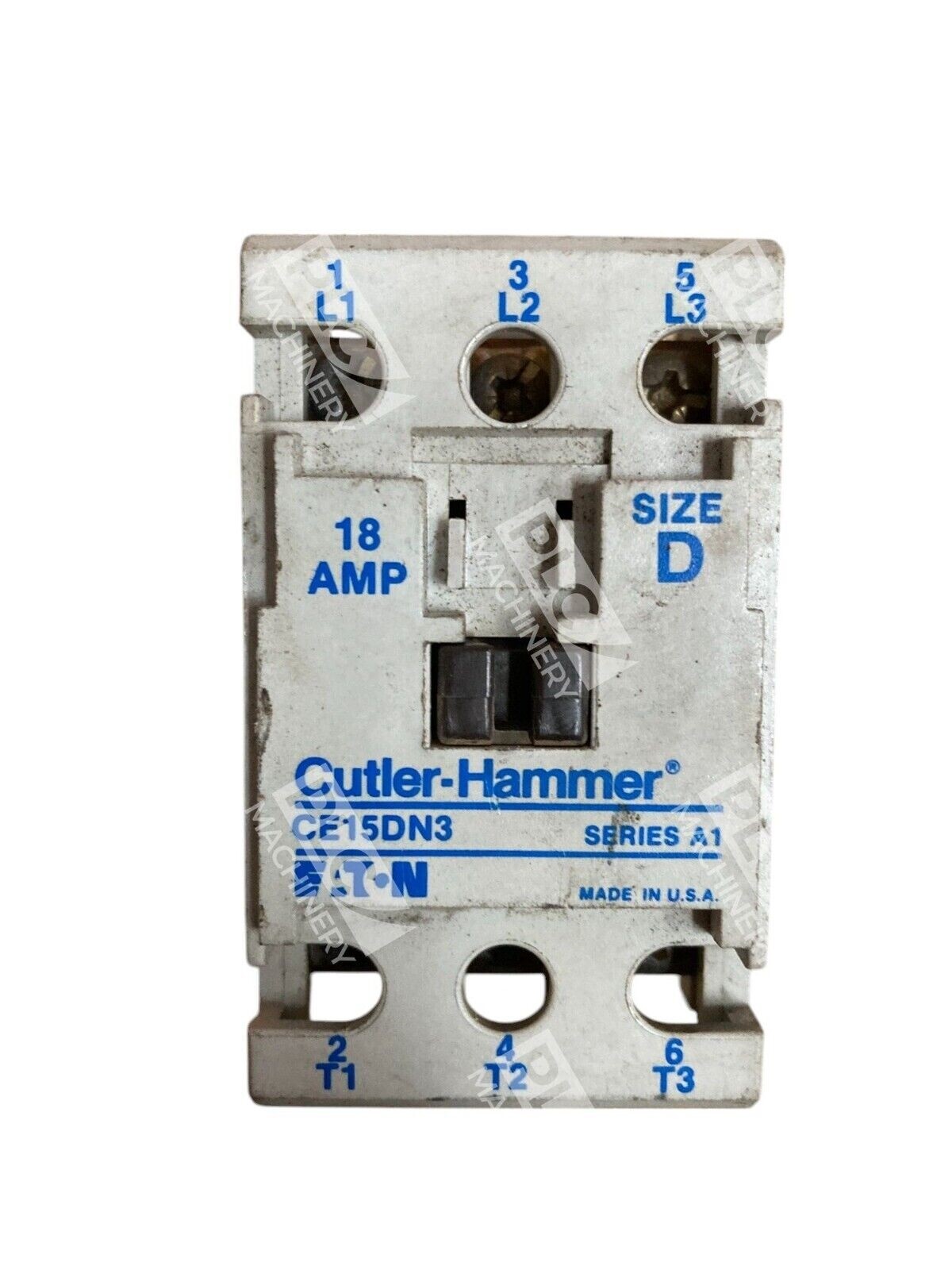

The Cutler-Hammer CE15DN3 /A1 is a Size D industrial contactor designed for motor control and circuit switching applications in commercial and industrial automation. This 3-pole unit operates from a 110-120V AC coil (50/60 Hz) and is rated for 18A switching capacity at 600V maximum operating voltage. The CE15DN3 combines proven IEC design with durable screw-terminal construction, making it suitable for integration into motor starters, control panels, and automation assemblies.
Key Features
- 18A UL AC3 Rating — handles medium-duty motor and load switching applications reliably
- 110-120V AC Coil — standard control voltage for North American industrial panels
- 3-Pole Configuration — switches all three phases simultaneously for balanced motor control
- 600V Maximum Operating Voltage — rated for high-voltage AC circuit environments

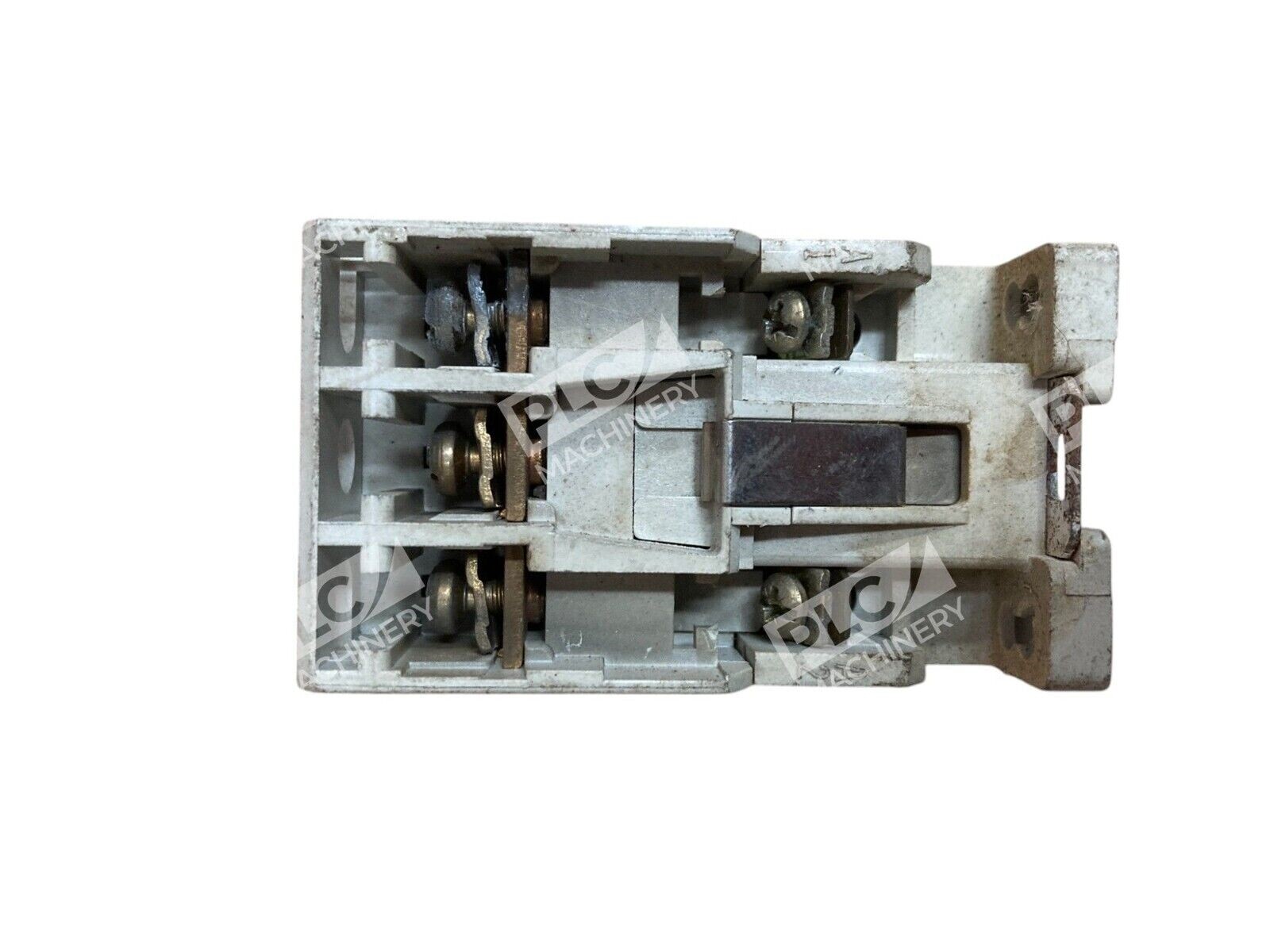

- Screw Terminal Connections — secure field wiring without ferrules or specialized tools

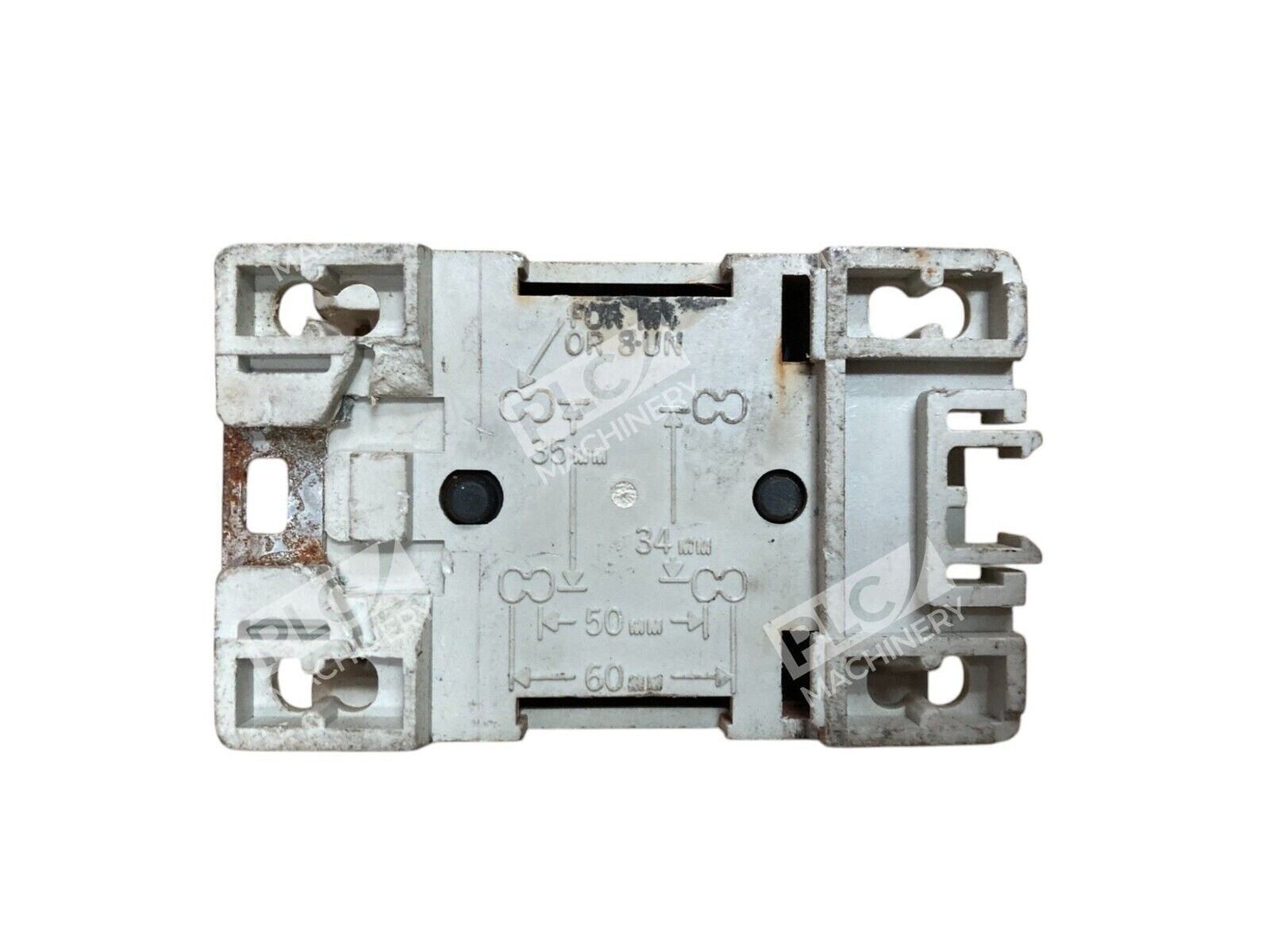

- Metal Base Mounting — stable installation in control enclosures and on DIN rail
Technical Specifications

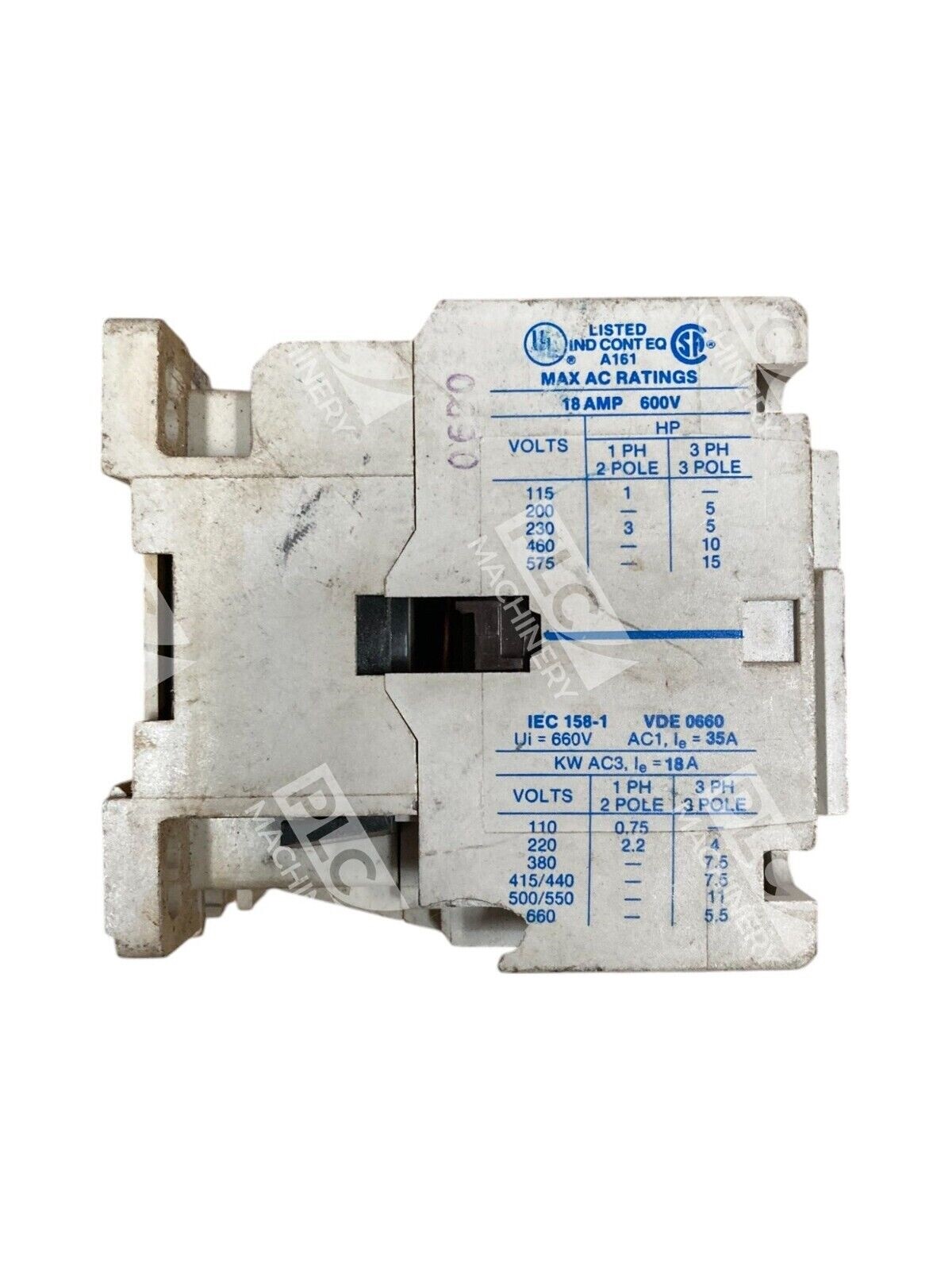

- Coil Voltage: 110-120V AC, 50-60 Hz
- Current Rating (AC3): 18A maximum
- Maximum Operating Voltage: 600V AC
- Poles: 3-pole (3PST)
- Motor Power @ 230V: 5 HP (3-phase)
- Motor Power @ 460V: 10 HP (3-phase)
- Terminal Type: Screw terminals
- Weight: 1.01 lbs
- Mounting: Metal base, panel or DIN rail compatible
- Frame Size: IEC 45mm Size D
- Manufacturer Status: Discontinued (replacement stock available)
Typical Applications
The CE15DN3 is commonly applied in:
- Three-phase motor starting and control circuits (≤10 HP @ 460V)
- Industrial automation and machine tool control panels
- Compressor and pump motor control
- HVAC and process equipment starter assemblies
- Facility maintenance and retrofit installations
- Legacy automation system replacements where OEM parts are unavailable
Compatibility & Replacements
Compatible With
- Eaton overload relay blocks (C306DN3 and compatible assemblies)
- Eaton auxiliary contact blocks (side-mounted, one per side maximum)
- Standard industrial control panels and enclosures (NEMA 1, 3R, 12)
- 110-120V AC control circuits (50/60 Hz)
- IEC 60947-4-1 compliant motor starters
Replaces / Drop-In Replacement For
The CE15DN3 is a direct replacement for other Size D, 18A Eaton contactors with identical electrical ratings and mounting footprints. For OEM-specific substitutions, verify coil voltage and contact configuration with your system integrator or panel builder.
Works With
- Eaton Freedom Series motor control equipment
- C306 thermal overload relay blocks
- IEC 60947 standard motor starter assemblies
- Both pneumatic and solid-state timing circuits
- Industrial PLC and relay logic control systems
