Overview

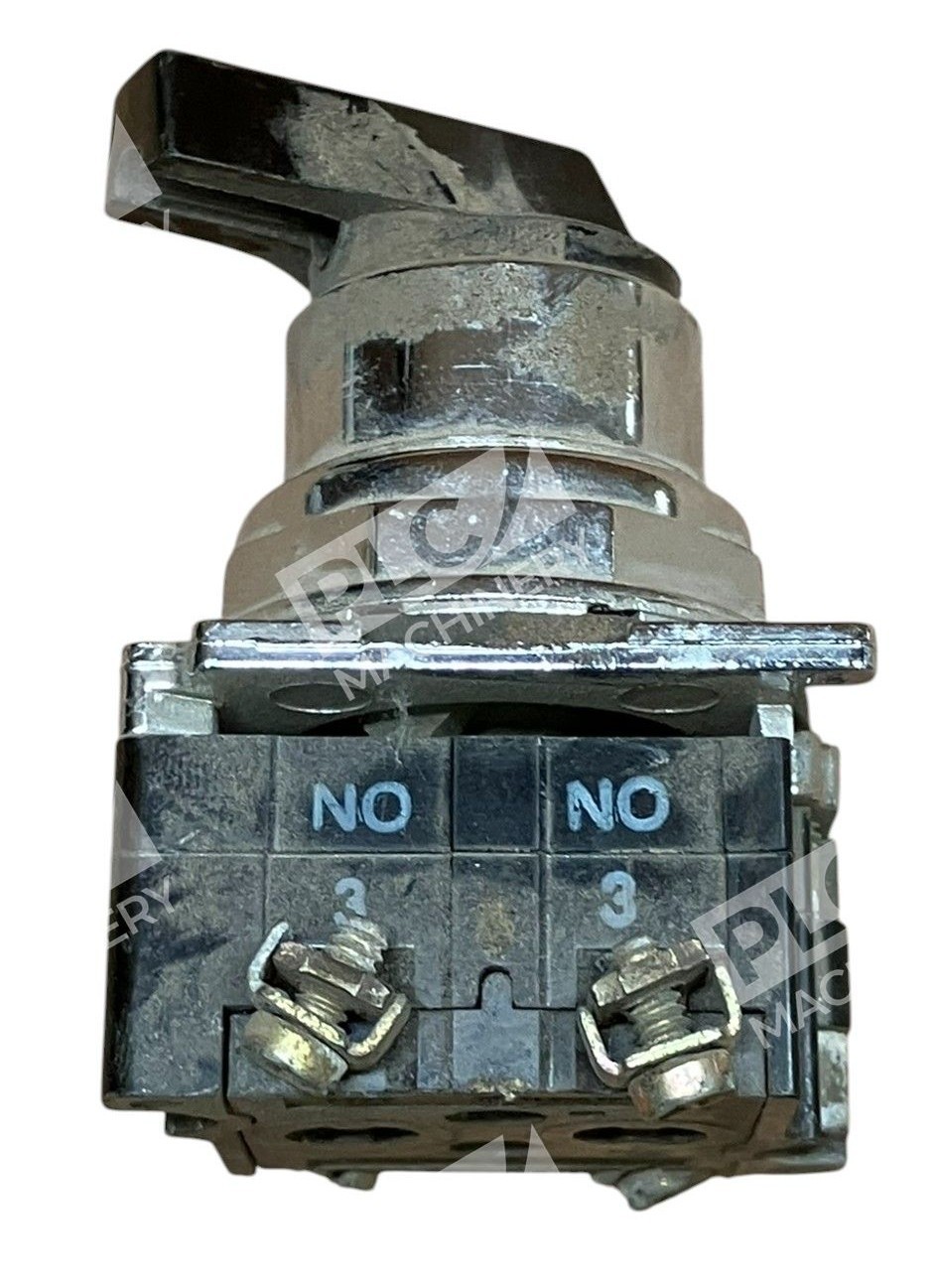

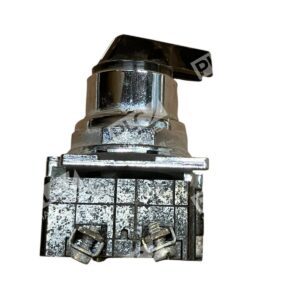

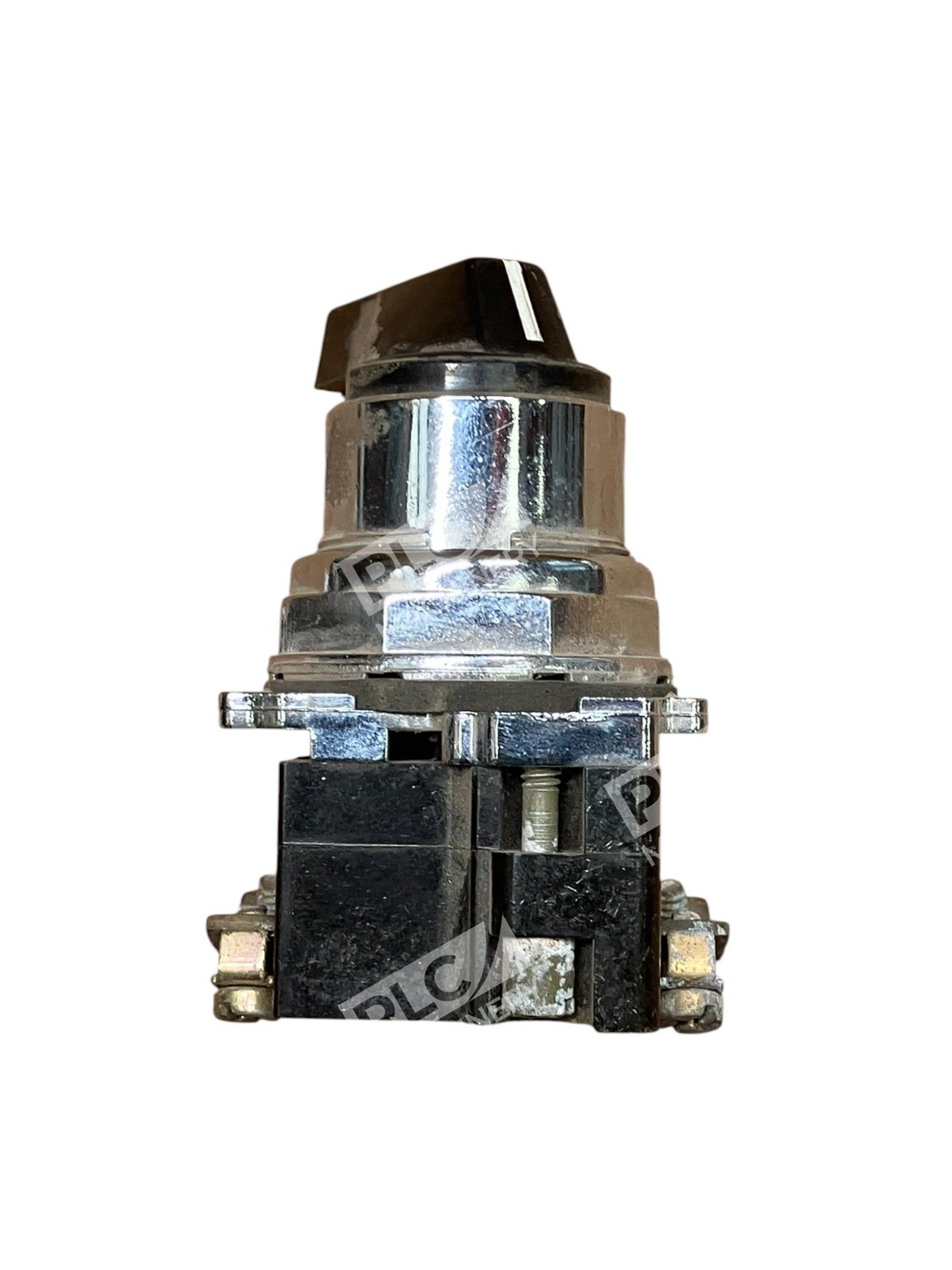

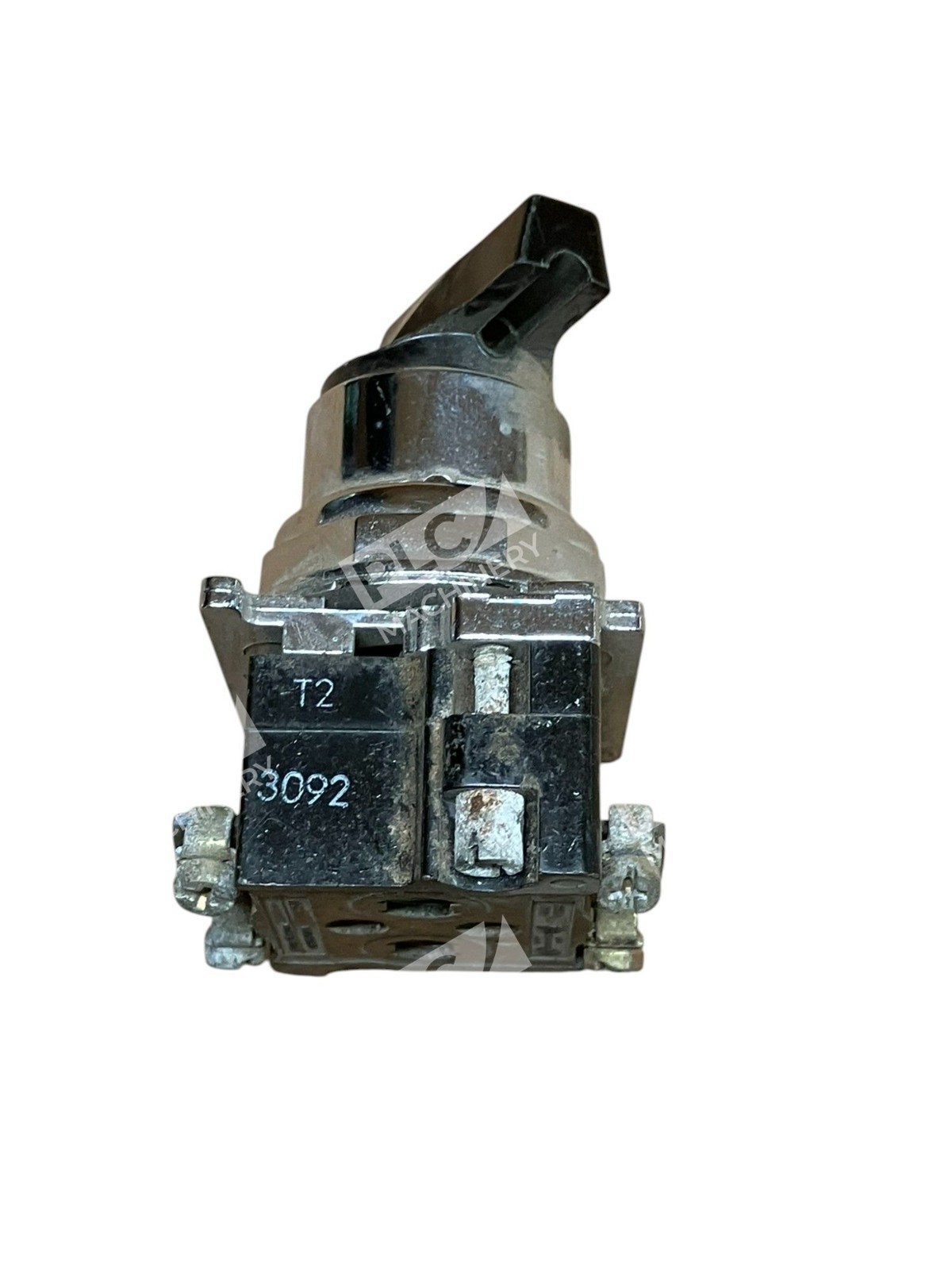

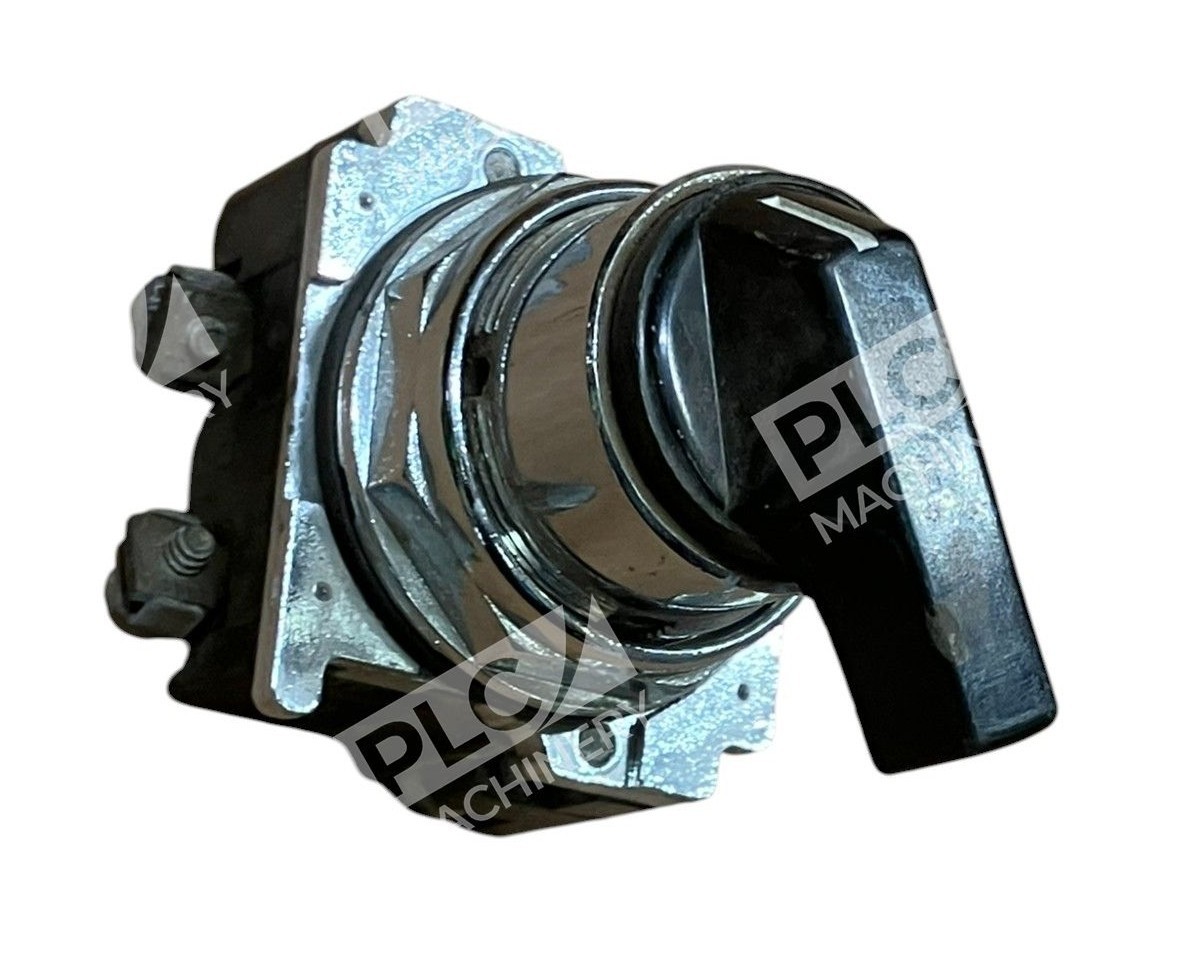

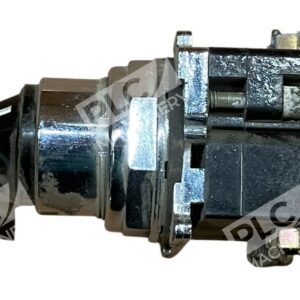

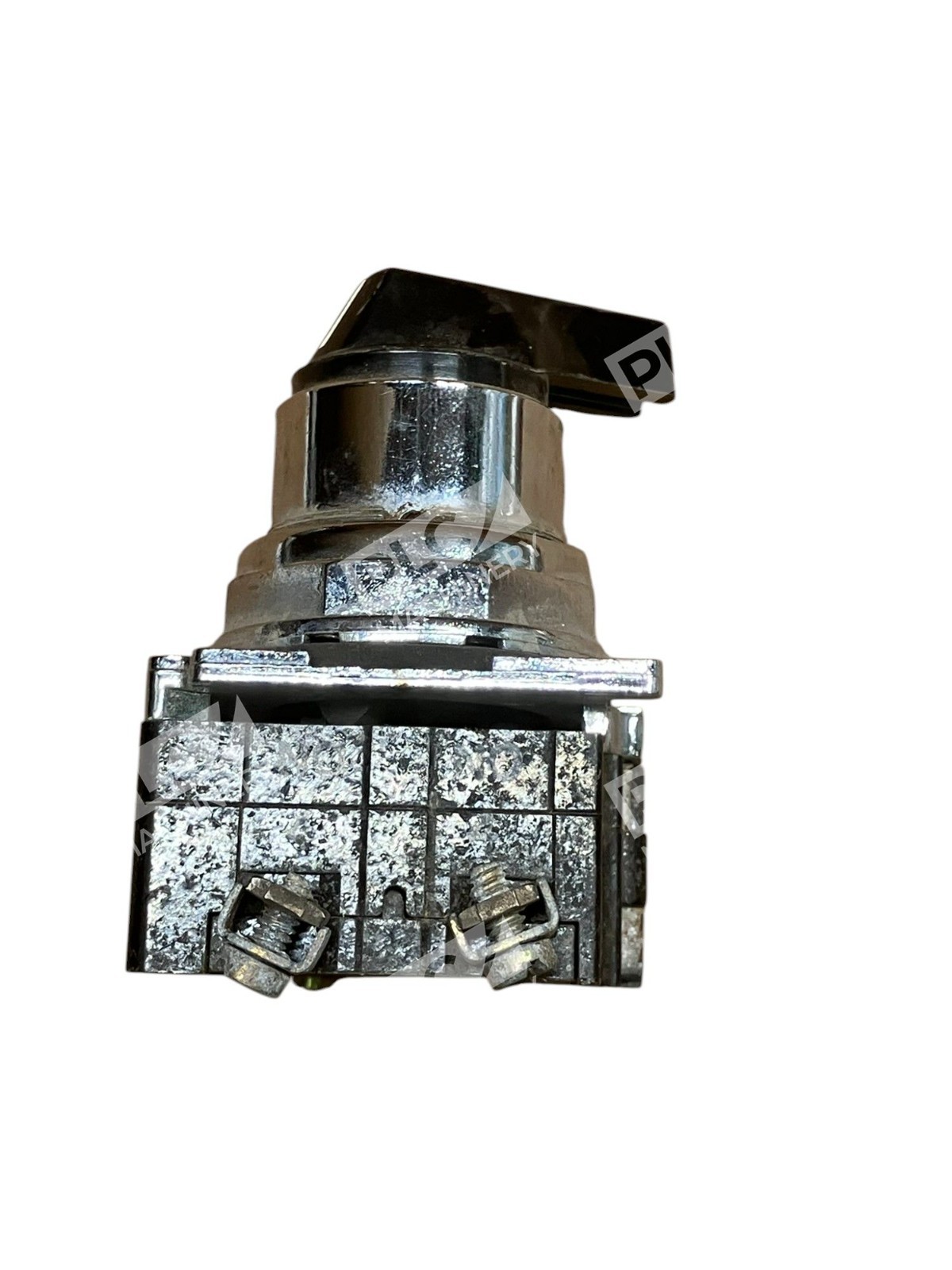

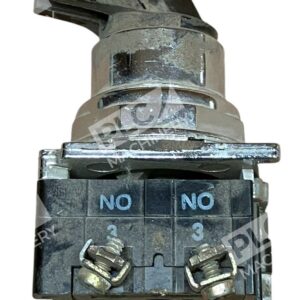

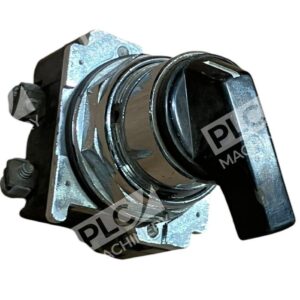

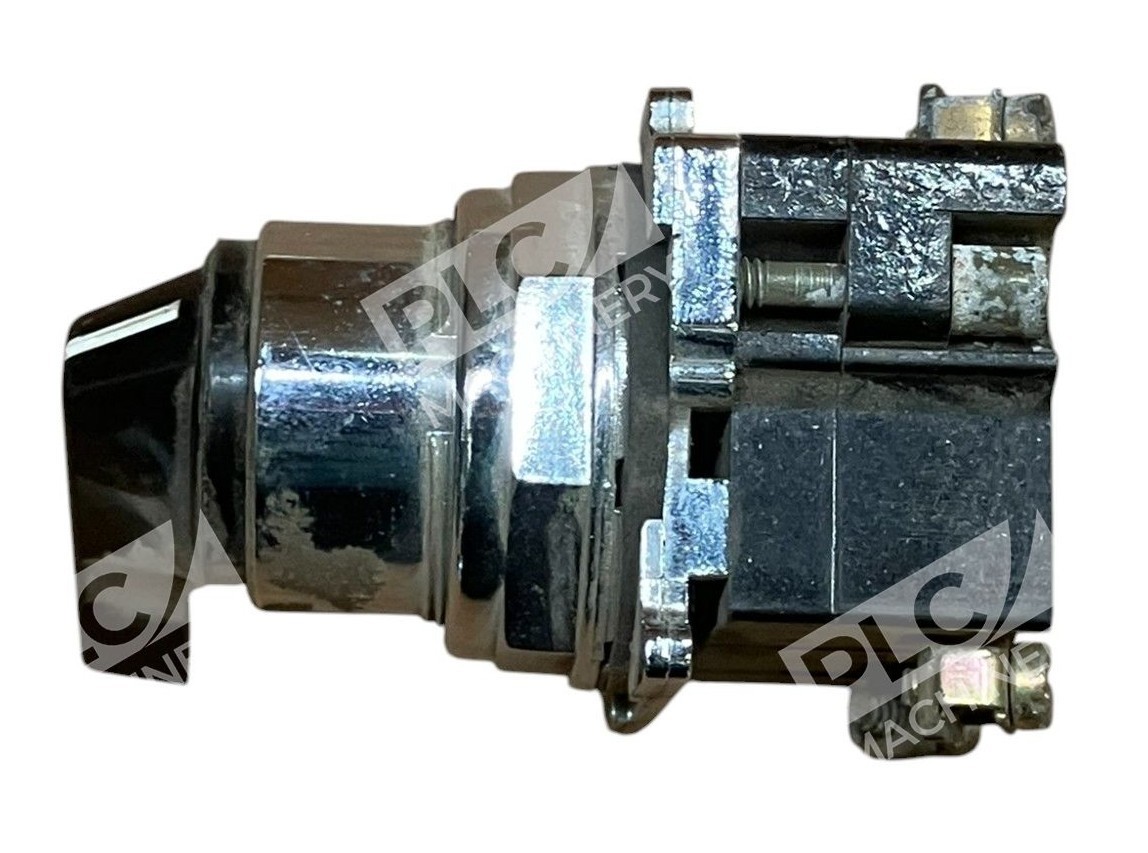

The Cutler-Hammer 10250T/S1000T lever switch with contact block is a modular industrial control component manufactured by Eaton for use in machinery, conveyor systems, and process control panels. The 10250T series provides flexible contact configurations compatible with standard 30.5mm pushbutton and selector switch enclosures.
Key Features
- Modular contact block design for flexible control configurations
- Durable construction rated for harsh industrial environments
- Standard 30.5mm (1.2 inch) mounting footprint
- Suitable for NEMA-compliant control panels
- Lever operator for reliable actuation in machinery control
Technical Specifications
- Manufacturer: Eaton / Cutler-Hammer
- Part Number: 10250T/S1000T
- Series: 10250T Industrial Control Switch
- Operator Style: Lever (A600 / P600 designation)
- Mounting: 30.5mm enclosure opening

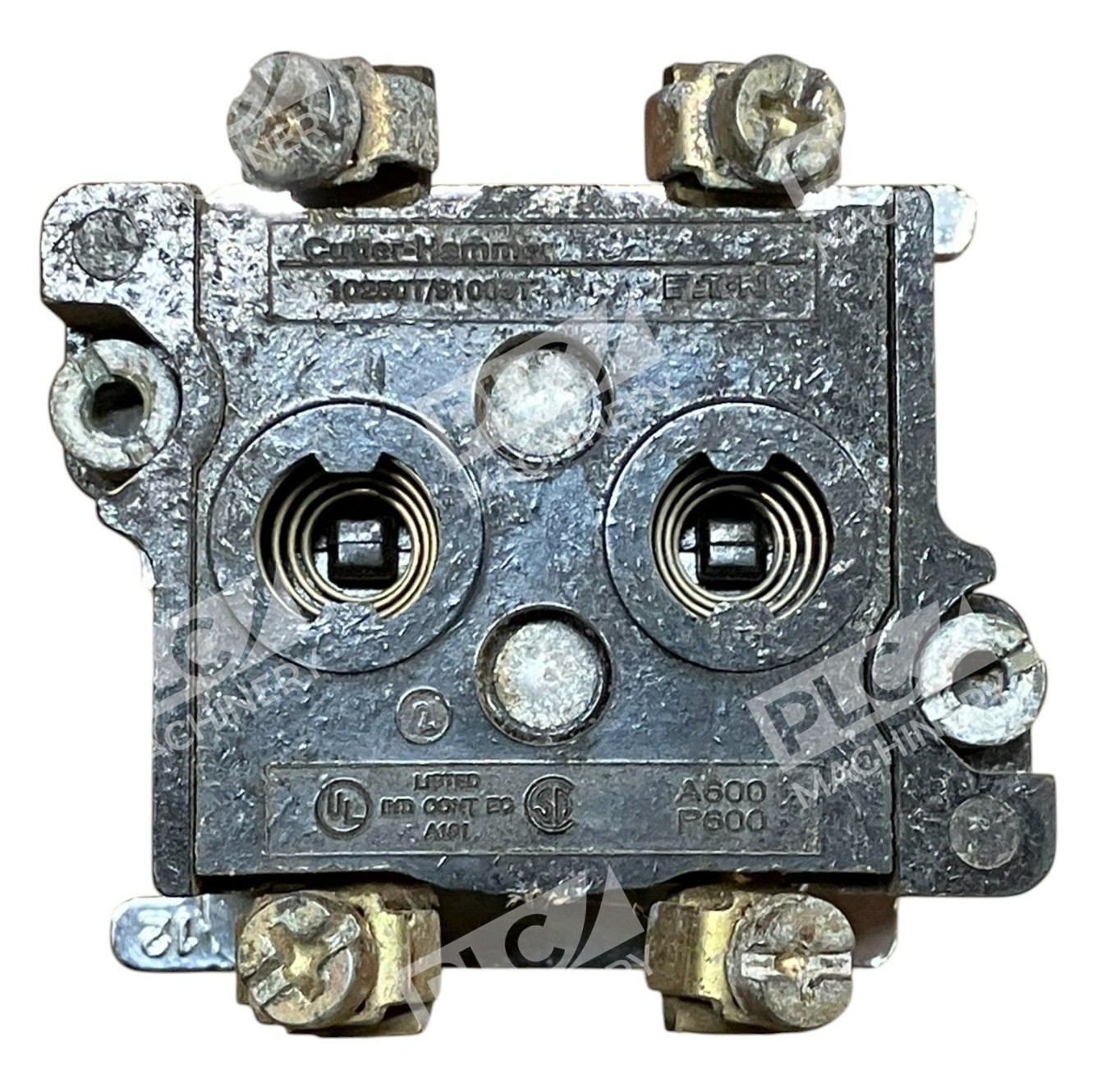

- Contact Type: Modular contact block (S1000T variant)
- Standards: NEMA 4X rated components
- Application: Industrial machinery, process control, selector switches
Typical Applications
The 10250T lever switch is commonly used in:
- Conveyor and material handling systems
- Machine tool control panels
- Motor starter circuits with selector logic
- Process automation and pump control
- Industrial equipment operator interfaces
Compatibility & Replacements
Compatible With
- Eaton/Cutler-Hammer 10250T series pushbutton and selector switch enclosures
- Standard 30.5mm (1.2 inch) control panel openings
- NEMA 4X stainless steel and painted steel enclosures
- Industrial automation control circuits rated 230V AC, 3A typical
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 10250T/S1000T contact block is part of a modular series; specific replacement compatibility depends on your existing control configuration and circuit requirements.
Works With
- Eaton/Cutler-Hammer 10250T operator assemblies (various cap and lever styles)
- Industrial control relay circuits and motor starters
- Legacy machinery control panels using modular contact blocks
- Standard industrial control wiring (screw terminal or push-on connections)
