Overview

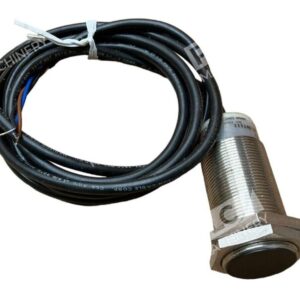

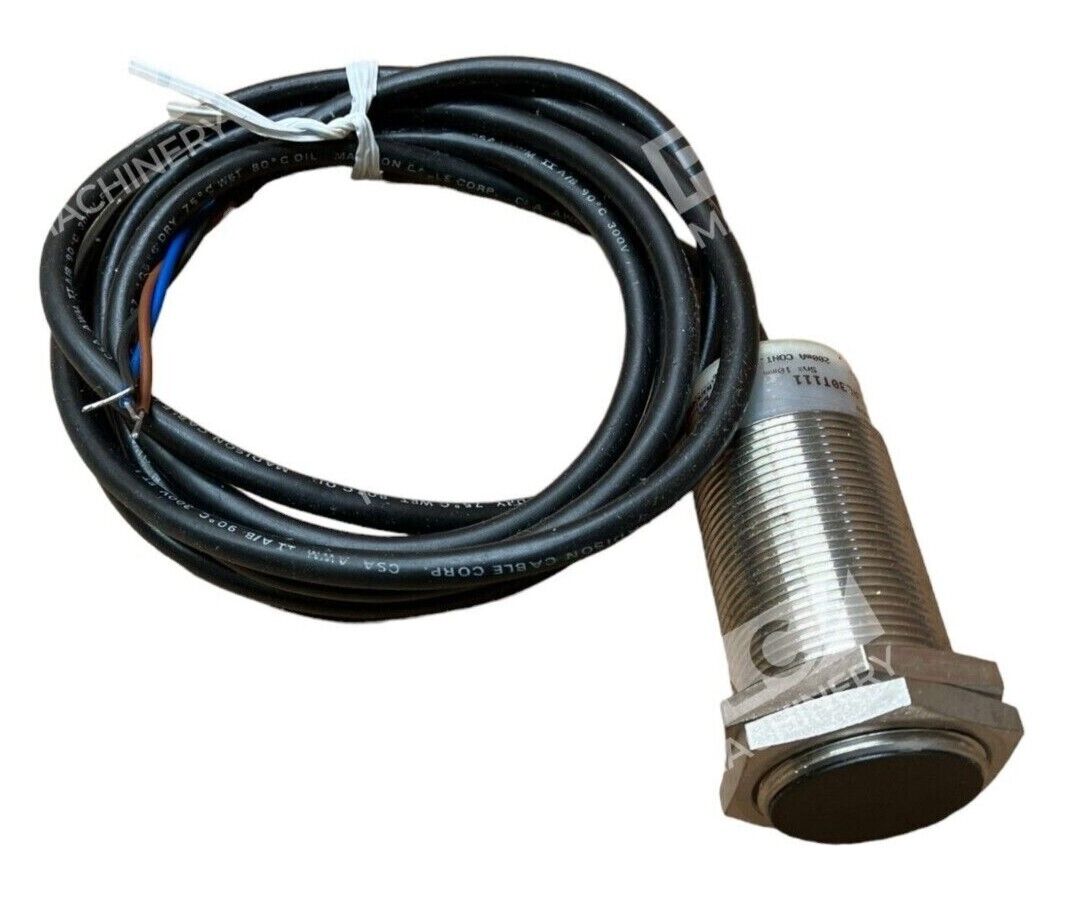

The Cutler Hammer E57LAL30T111 /E1 is an inductive proximity sensor built on the proven E57 platform from Eaton’s Cutler-Hammer division. The E57 series sensors are engineered for dependable, non-contact detection in factory automation, machine control, and material handling systems. This 30mm model provides solid sensing performance in compact form, making it suitable for space-constrained mounting applications.
Key Features
- Inductive sensing technology for reliable object detection without physical contact
- 30mm sensing distance class for precise target detection
- Industrial-grade construction for harsh factory environments
- LED status indicator for visual output confirmation
- Standard E57 series compatibility with common PLC and automation networks
Technical Specifications
- Sensor Type: Inductive Proximity Sensor
- Manufacturer: Eaton Cutler-Hammer
- Series: E57

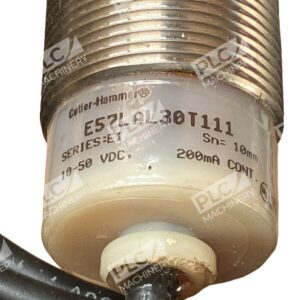

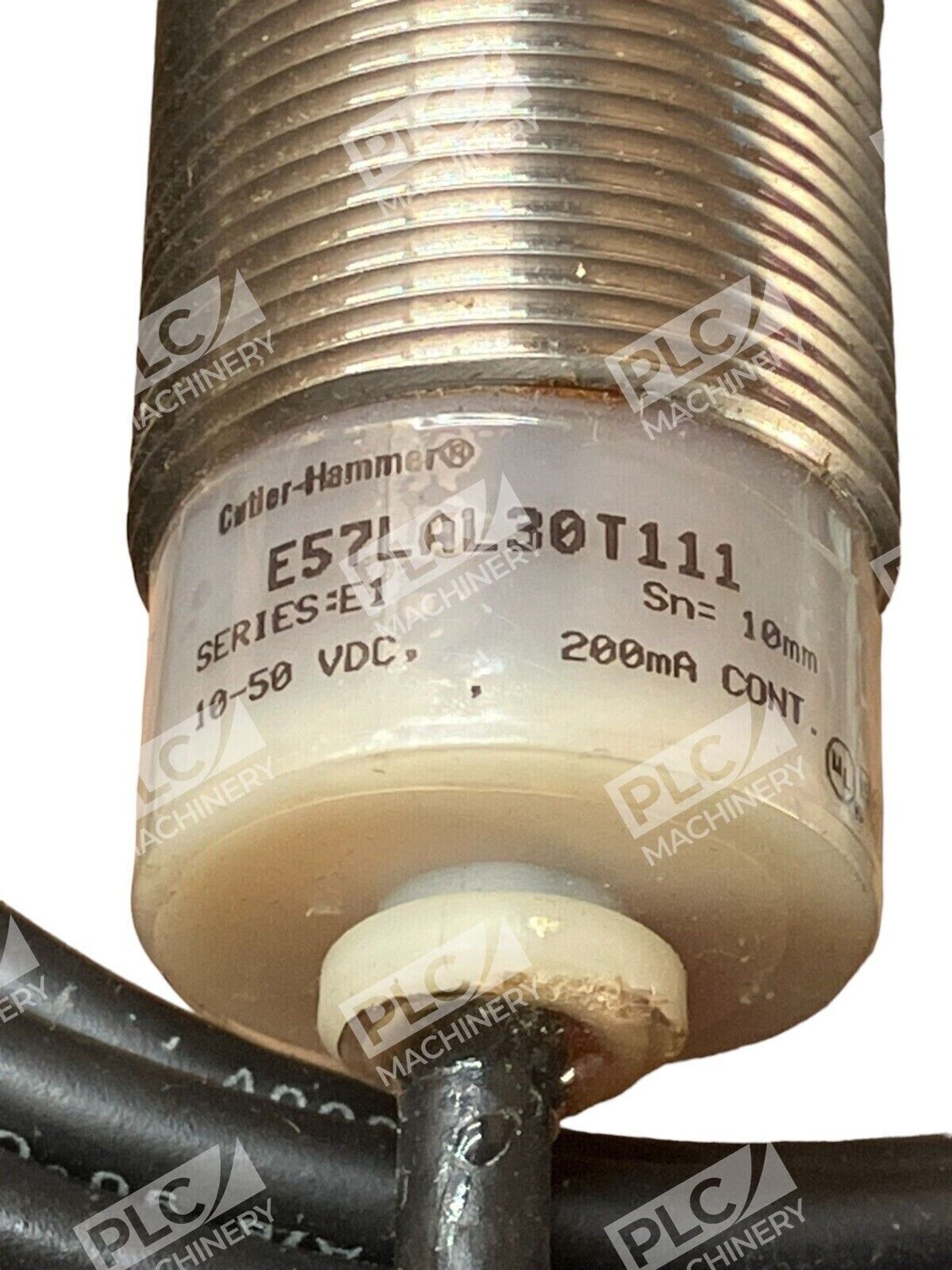

- Model Number: E57LAL30T111 /E1
- Sensing Distance Class: 30mm
- Detection Technology: Inductive (ferrous and non-ferrous metals)
- Output Type: Relay or solid-state (verify with system integrator)
- LED Indicator: Status indicator light included
Typical Applications
The E57LAL30T111 is ideal for:
- Part presence/absence detection on automated assembly lines
- Machine jam detection in packaging and material handling
- Position sensing in conveyor and indexing systems
- Pneumatic and hydraulic cylinder position monitoring
- General industrial automation control loops
Compatibility & Replacements
Compatible With
- Allen-Bradley CompactLogix, ControlLogix, and SLC processors
- Siemens S7-300, S7-1200, and S7-1500 PLCs via standard I/O modules
- Mitsubishi FX, Q-series, and iQ-F PLCs
- Omron CP-series and NX-series controllers
- Any 24 VDC industrial automation system
Replaces / Drop-In Replacement For
The E57LAL30T111 is part of the E57 series family. For specific cross-reference information and drop-in replacement models, verify compatibility with your system integrator before ordering, as variations in voltage, output type, and connection style may affect interchangeability.
Works With
- EtherNet/IP networks (with appropriate gateway modules)
- PROFIBUS and PROFINET (via Siemens or third-party adapters)
- Hardwired DC control circuits and relay logic
- Standard industrial push-button and limit switch circuits
- 24 VDC and AC automation power supplies
