Overview

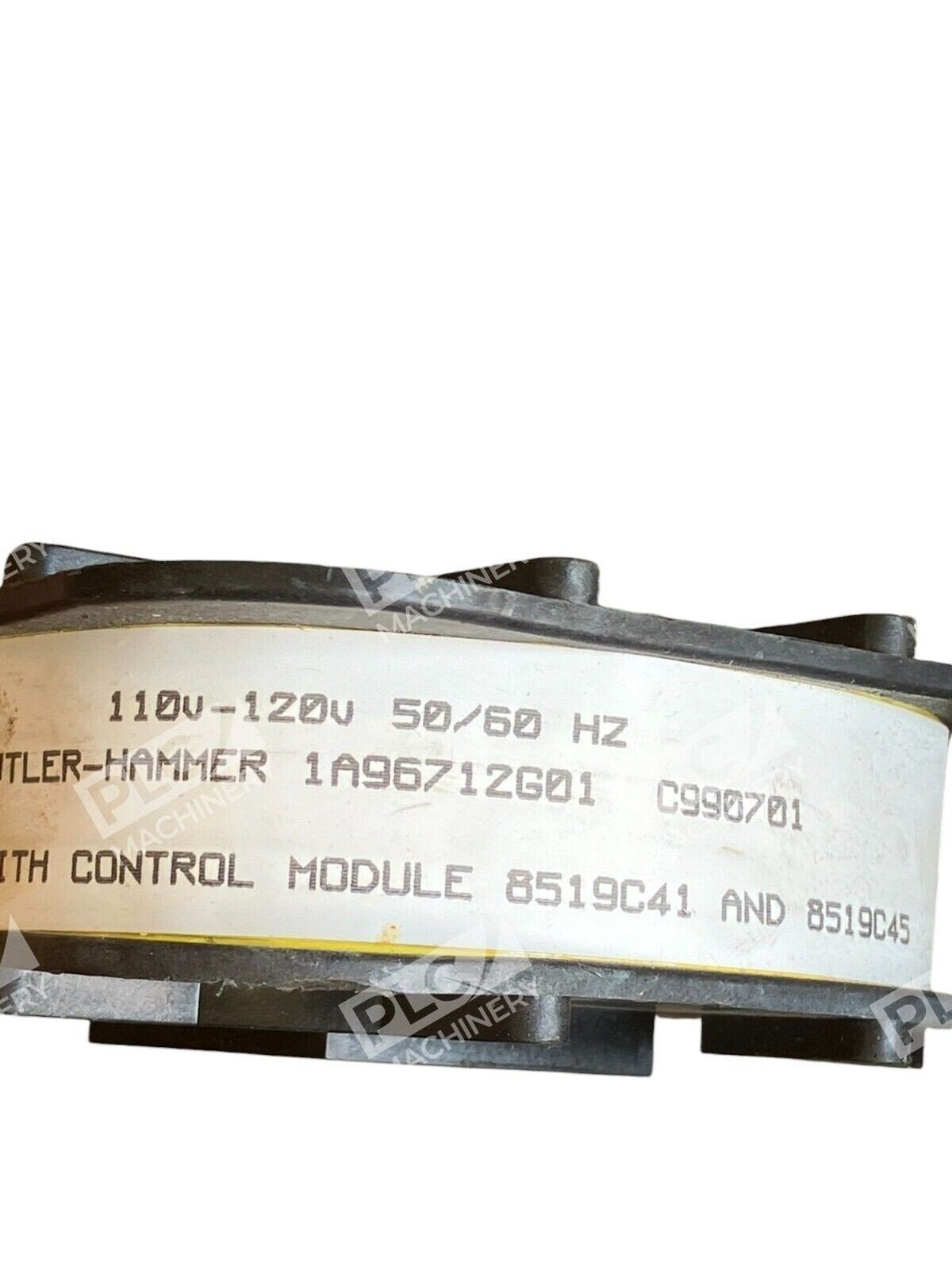

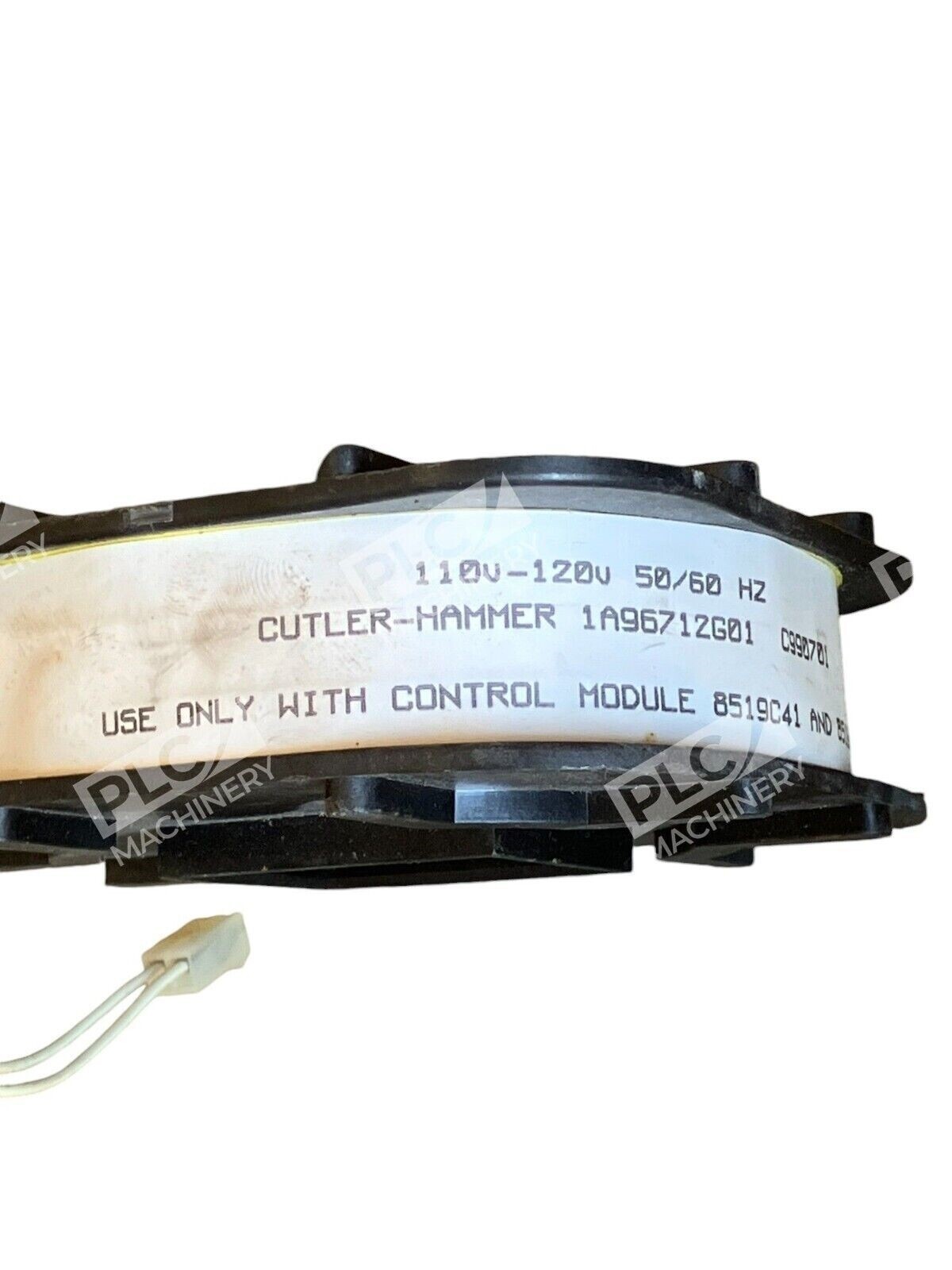

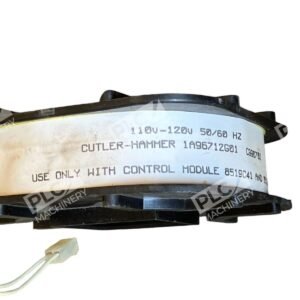

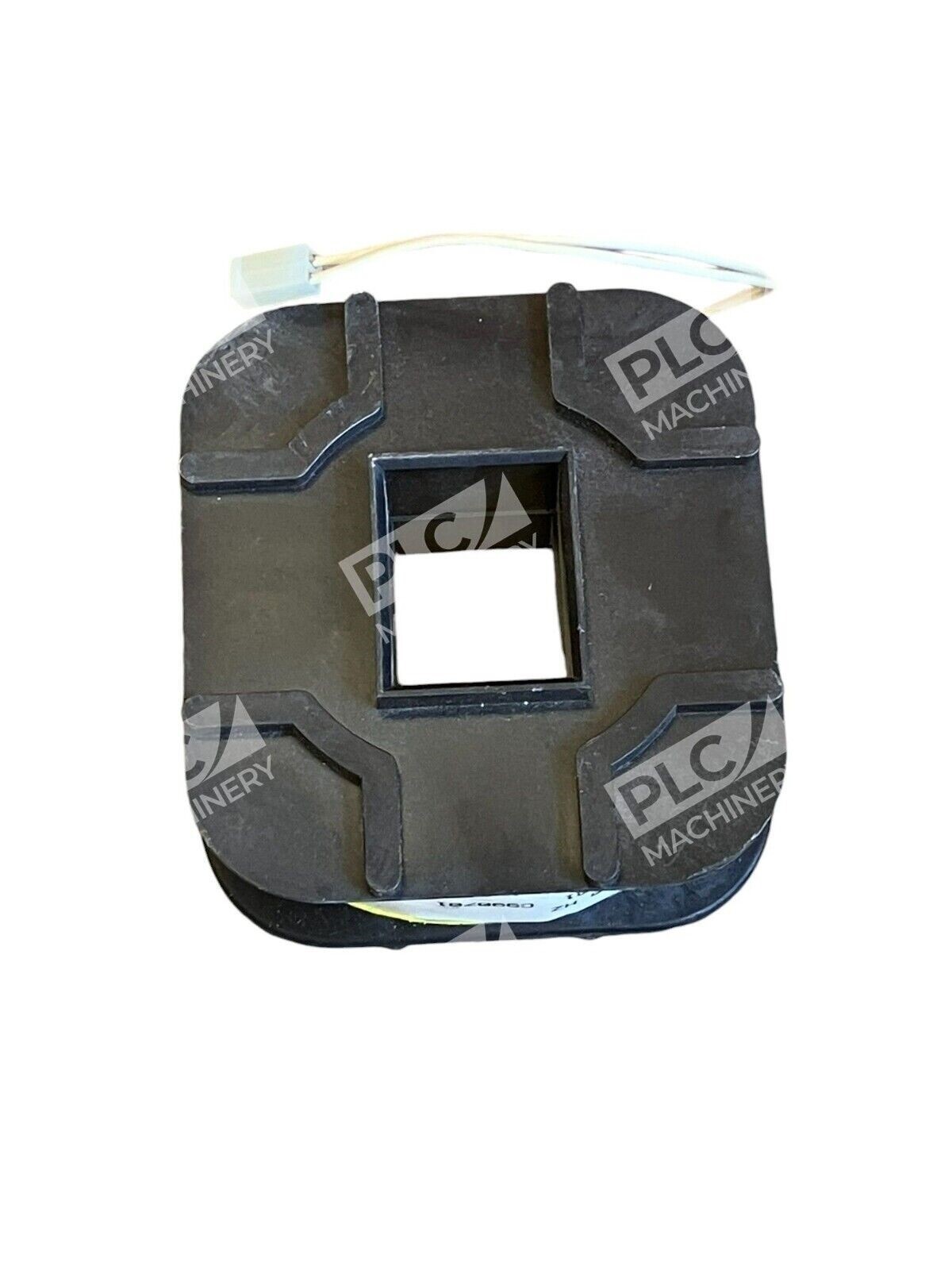

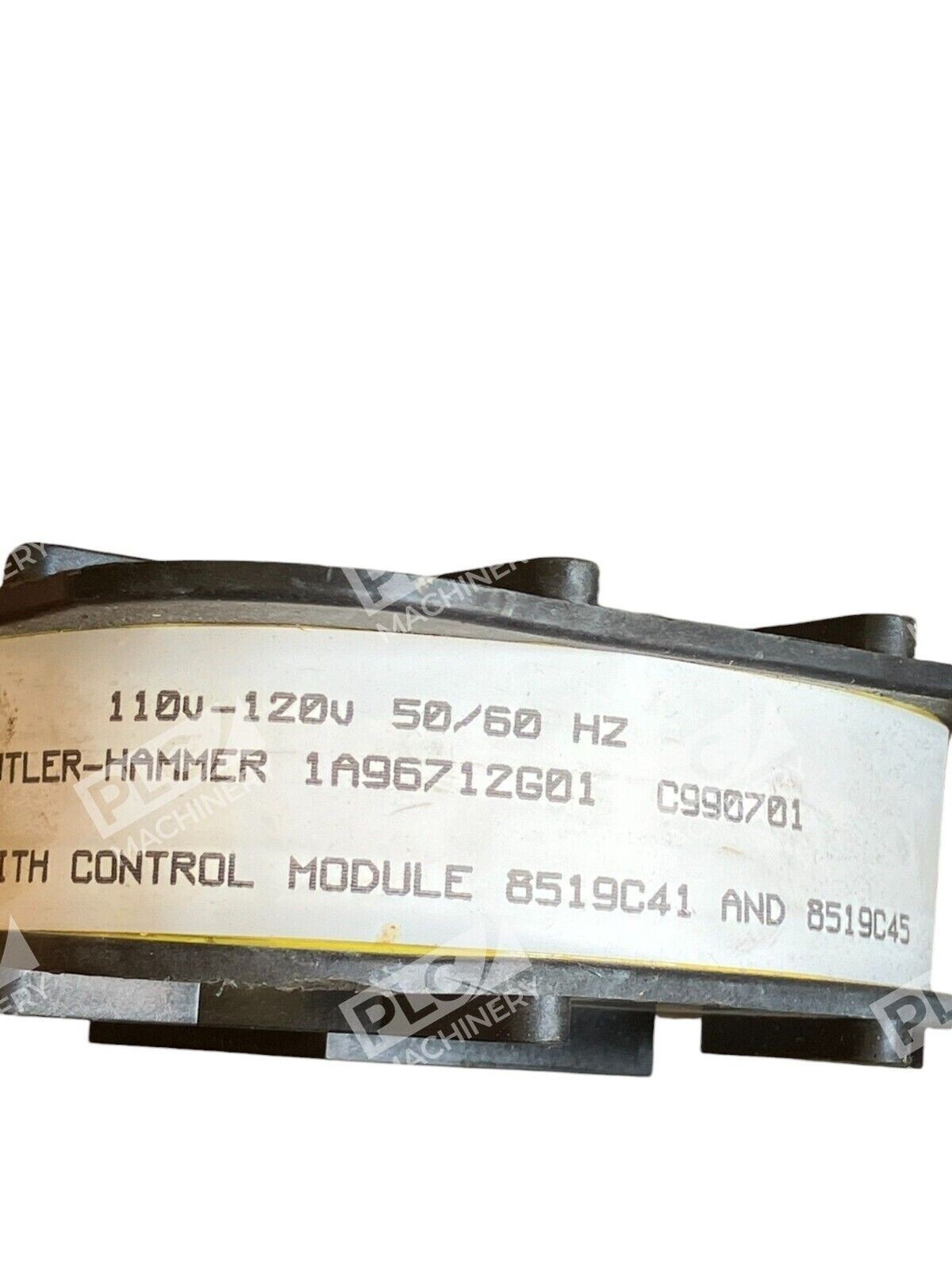

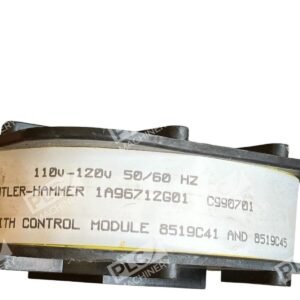

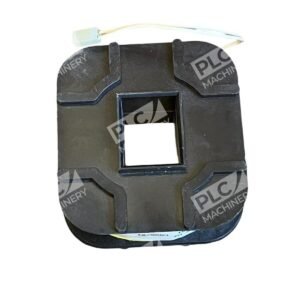

The Cutler-Hammer C990701 coil (model 1A96712G01) is a passive inductor component engineered for electrical control and filtering applications. Rated for 110V–120V operation at 50/60 Hz, this coil provides stable, reliable performance in motor control circuits, electromagnetic contactors, and industrial automation systems where precise inductance and low tolerance are required.
Key Features
- Dual voltage rating: 110V @ 50Hz / 120V @ 60Hz
- Maximum DC current: 1A
- Tolerance: ±0.1% for precision applications
- Bracket-mounted design with connector termination for quick installation
- Encapsulated construction for durability and environmental protection
- Passive component—no external power or control logic required
Technical Specifications
The coil delivers consistent inductance characteristics suitable for noise suppression, energy storage, and frequency filtering in low-power control circuits. Its tight tolerance and stable DC current rating make it ideal for precision instrumentation and motor starter applications where component reliability is critical.
Typical Applications
- Motor starter and contactor control coils
- Industrial relay and solenoid circuits
- EMI/RFI filtering and noise suppression
- Low-voltage DC control systems
- Automation panel inductors and filter networks
Compatibility & Replacements
Compatible With
- Eaton / Cutler-Hammer control systems and contactors
- Standard 110V–120V AC control circuits (50/60 Hz)
- Motor starter and relay assemblies
- Industrial control panels and automation equipment
Replaces / Drop-In Replacement For
This unit is a direct replacement for equivalent Cutler-Hammer inductor coils rated 110V–120V, 50/60 Hz with 1A maximum DC current. Verify compatibility with your system integrator before ordering to ensure proper fit and electrical matching.
Works With
- Cutler-Hammer / Eaton motor control assemblies
- Standard industrial relay and contactor circuits
- Fixed-frequency AC power systems (50 Hz and 60 Hz)
- Low-voltage DC control networks
