Overview

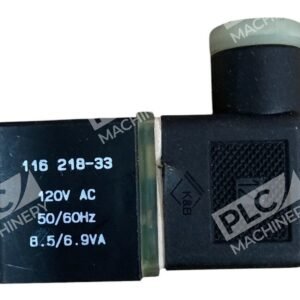

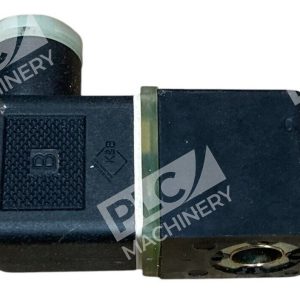

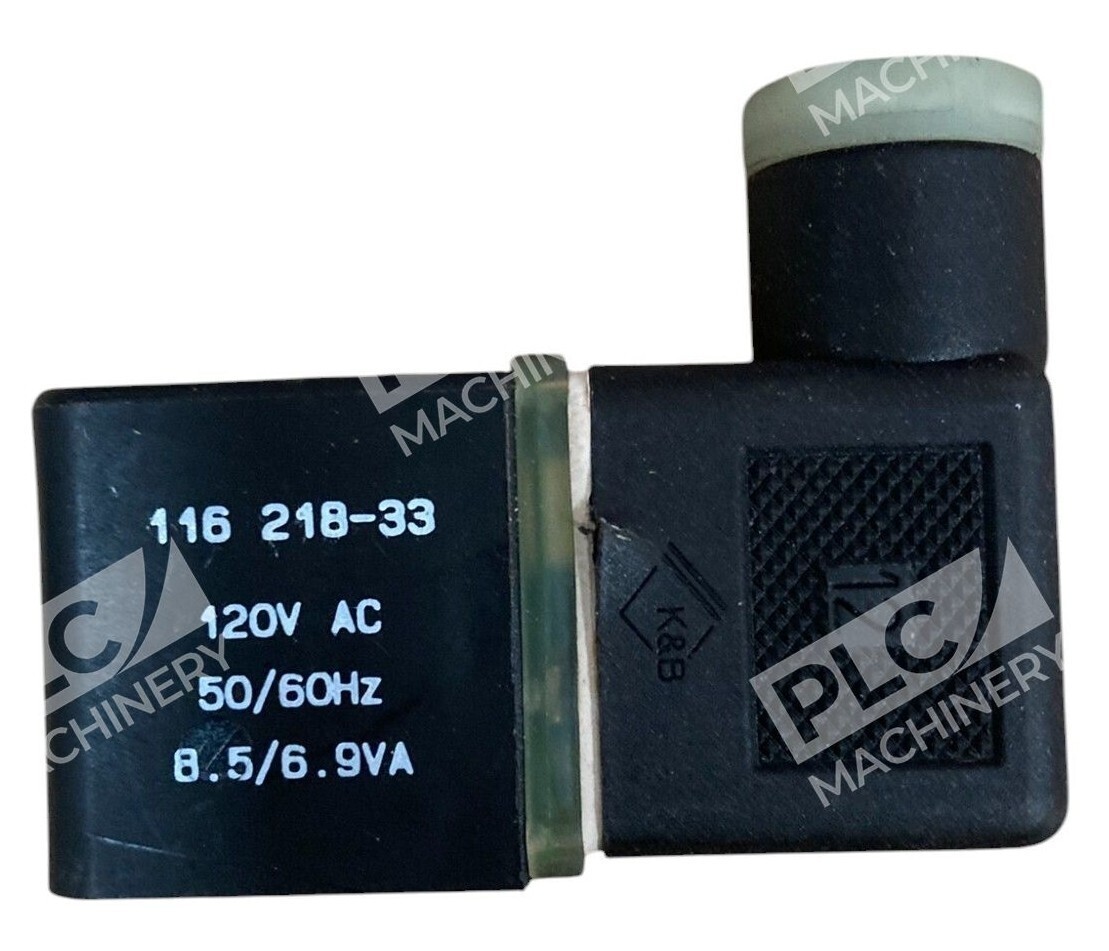

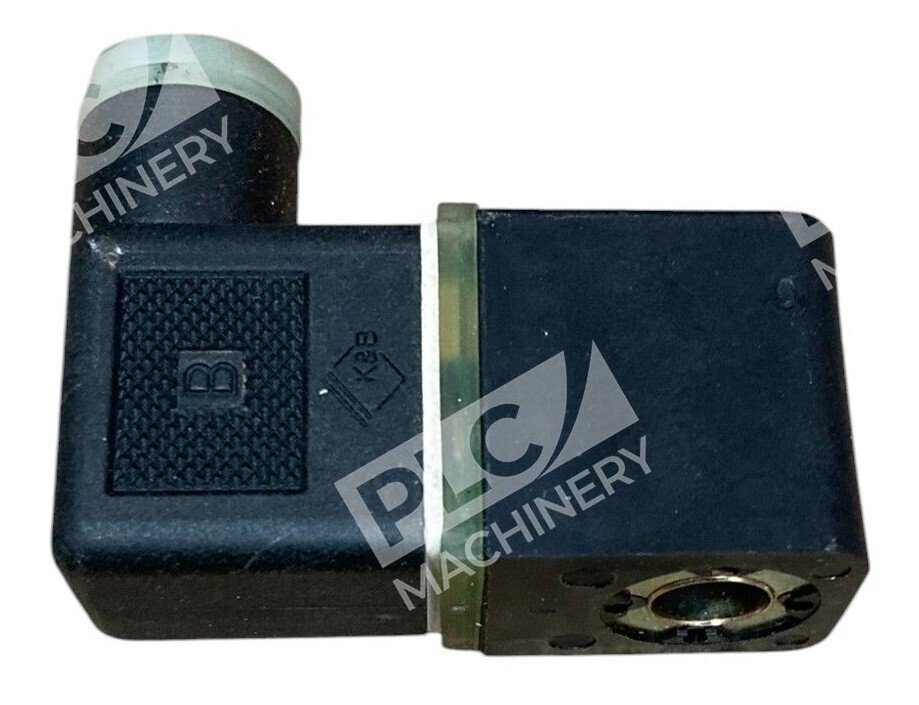

The ARO 116-218-33 is a plug-in solenoid coil designed for ARO pneumatic directional control valves. This coil is rated for 120VAC operation at both 50Hz and 60Hz, with a power consumption of 8.5VA at 50Hz and 6.9VA at 60Hz. The standard DIN 43650B connector interface ensures compatibility with a wide range of ARO valve bodies and proportional spool mechanisms.
Key Features
- Dual-frequency operation (50Hz/60Hz) — single coil rated for both international power standards
- DIN 43650B plug connector — interchangeable with ARO valve forms A, B, and common industrial standards
- Low power consumption — efficient 8.5VA (50Hz) / 6.9VA (60Hz) design
- Modular replacement — drop-in retrofit for existing ARO solenoid valve installations
- Robust industrial construction — proven field reliability in pneumatic control circuits
Technical Specifications
- Rated Voltage: 120VAC
- Frequency: 50Hz / 60Hz dual-rated
- Power (50Hz): 8.5VA
- Power (60Hz): 6.9VA
- Connector Type: DIN 43650B
- Coil Size: Approximately 22mm (Form B)
- Mounting: Plug-in cartridge design
- Standard Form: ARO Form B (43650B)
- Operating Temperature: Standard industrial range
- Weight: Approximately 1–2 lbs
Typical Applications
The ARO 116-218-33 is widely used in:
- Pneumatic directional control valves for air tool actuation
- Proportional spool mechanisms in automated machinery
- Industrial solenoid-operated directional valves
- OEM equipment requiring 120VAC actuation
- Replacement coils for existing ARO pneumatic circuits
Compatibility & Replacements
Compatible With
- ARO pneumatic directional control valves (Form A, B, and D bodies)
- ARO proportional valve systems
- Systems using DIN 43650B standard solenoid connectors
- 120VAC single-phase industrial electrical supplies (50Hz and 60Hz)
Replaces / Drop-In Replacement For
- OEM ARO 116-218-33 coil assemblies
- Original equipment solenoid coils in ARO valve platforms
- Equivalent 120VAC, 50/60Hz ARO Form B coils
Works With
- ARO Series 43650 valve manifolds
- DIN 43650B connector panels
- Standard 120VAC control circuits (50Hz international / 60Hz North American power standards)
- Existing ARO pneumatic proportional control systems
