Overview

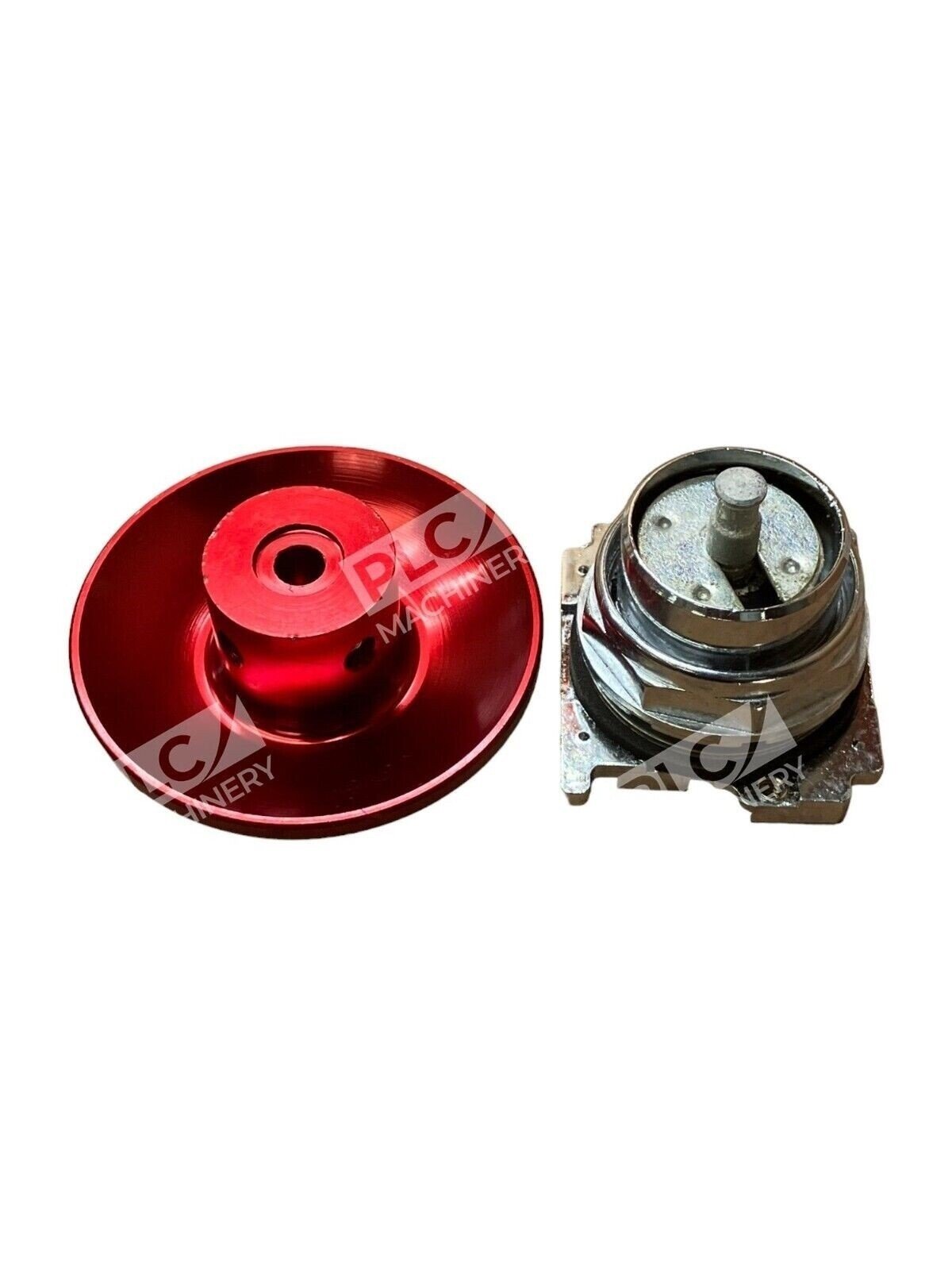

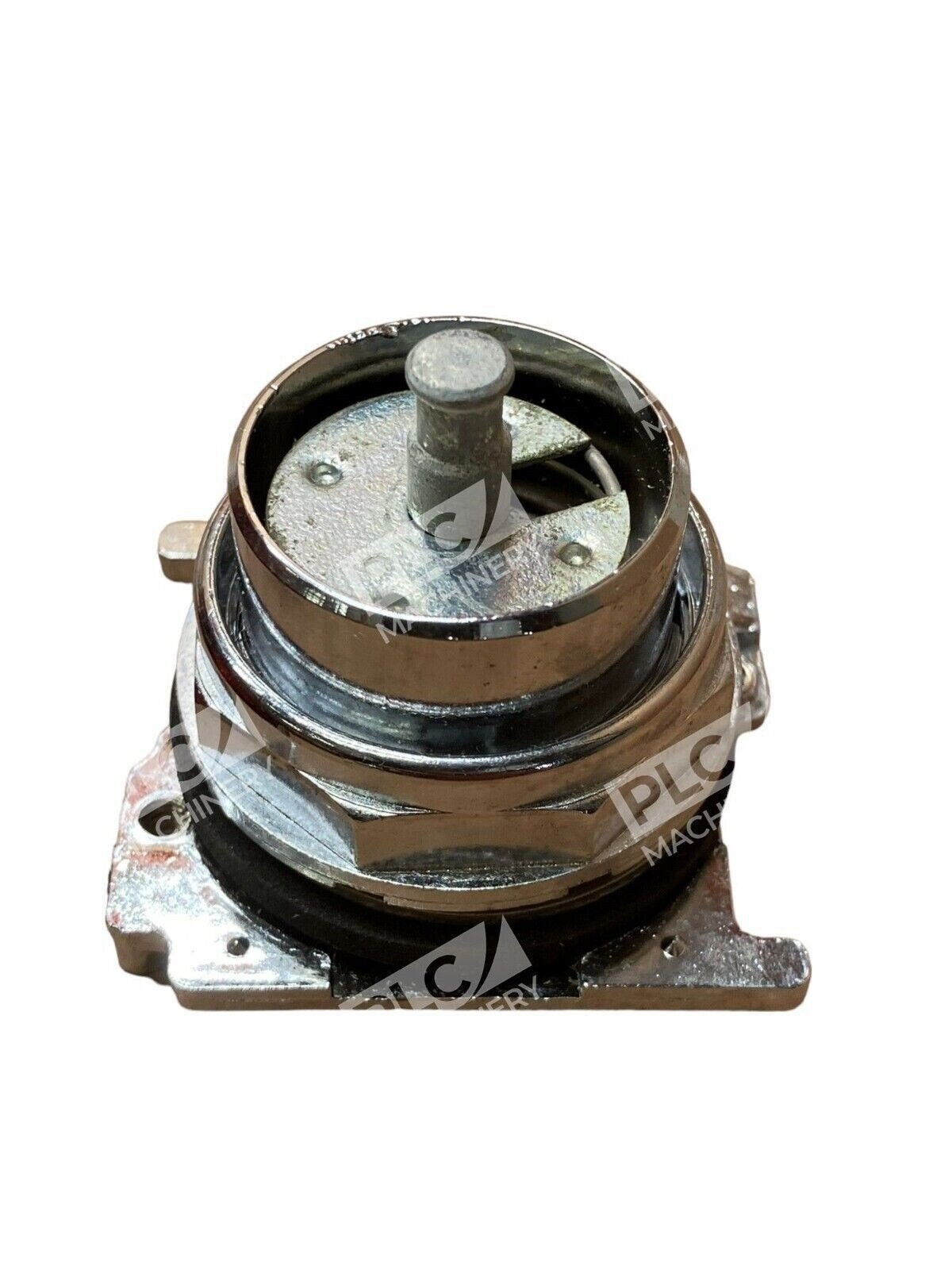

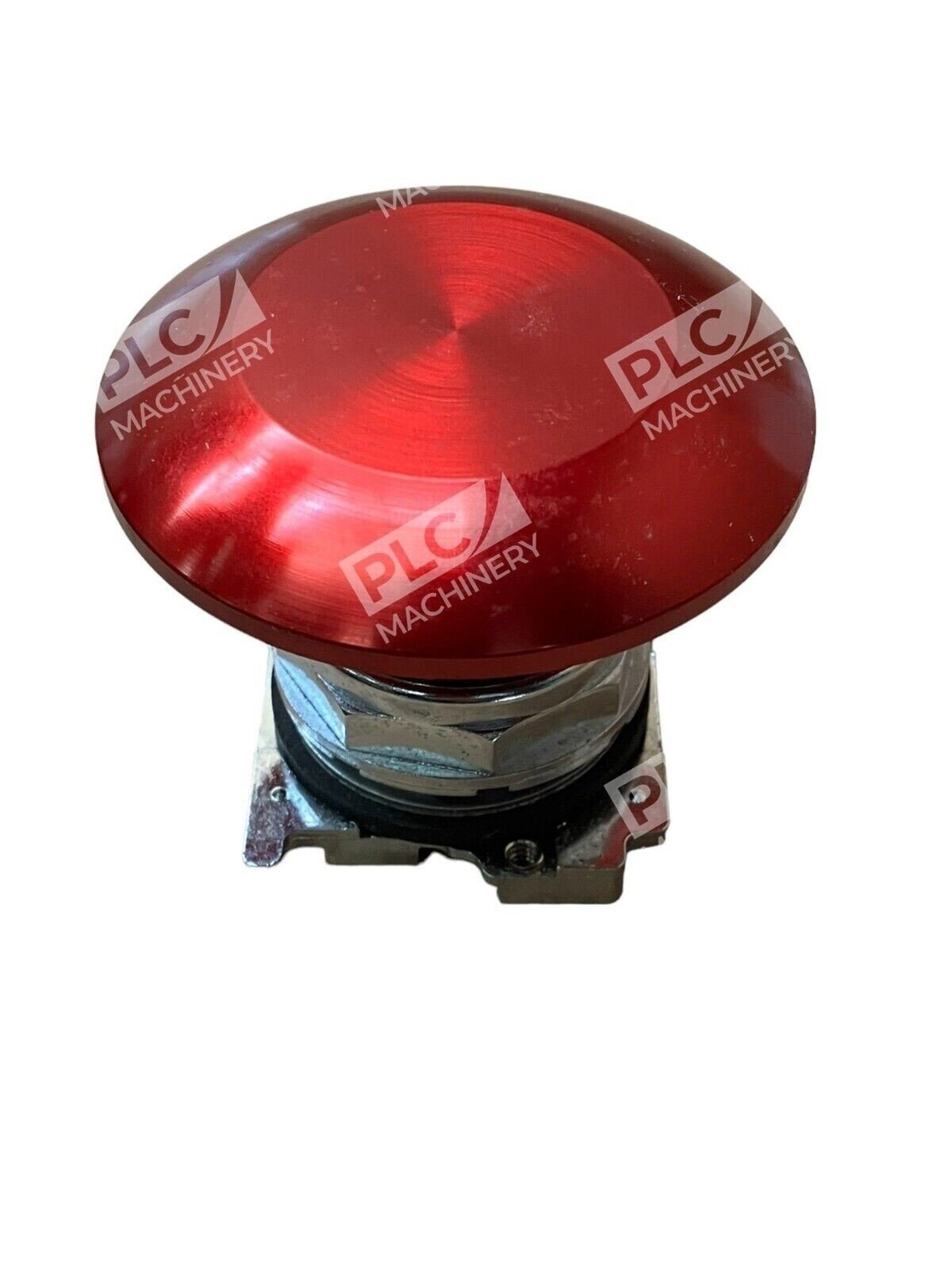

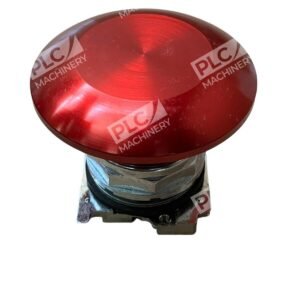

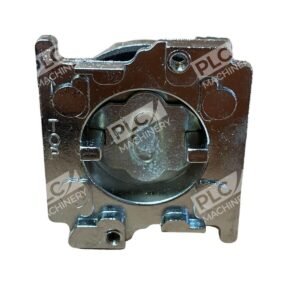

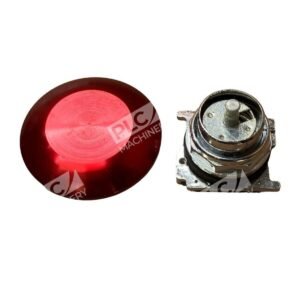

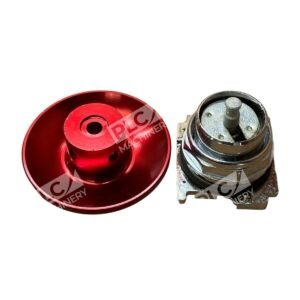

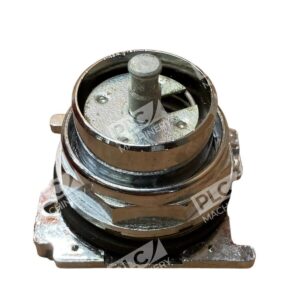

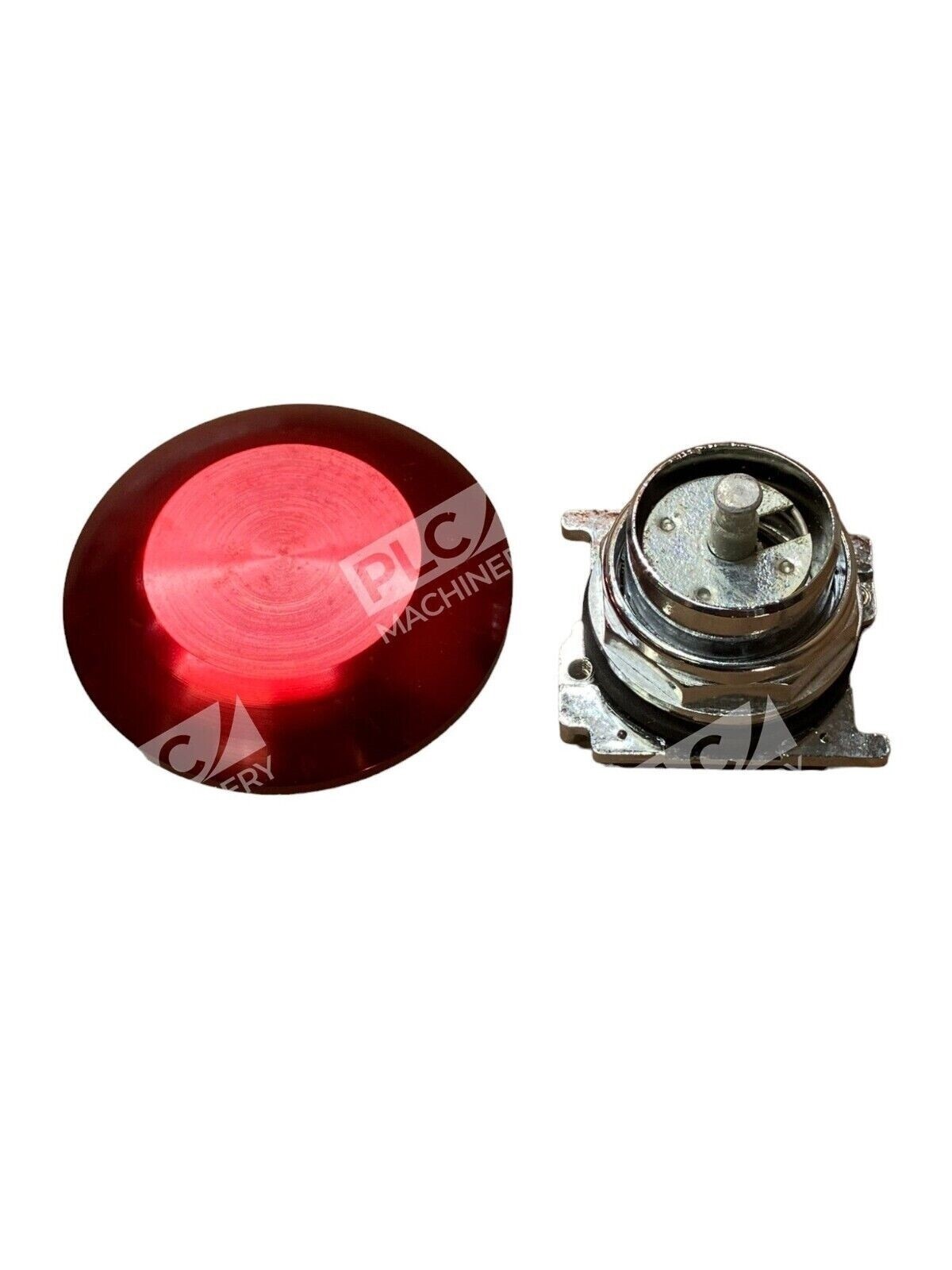

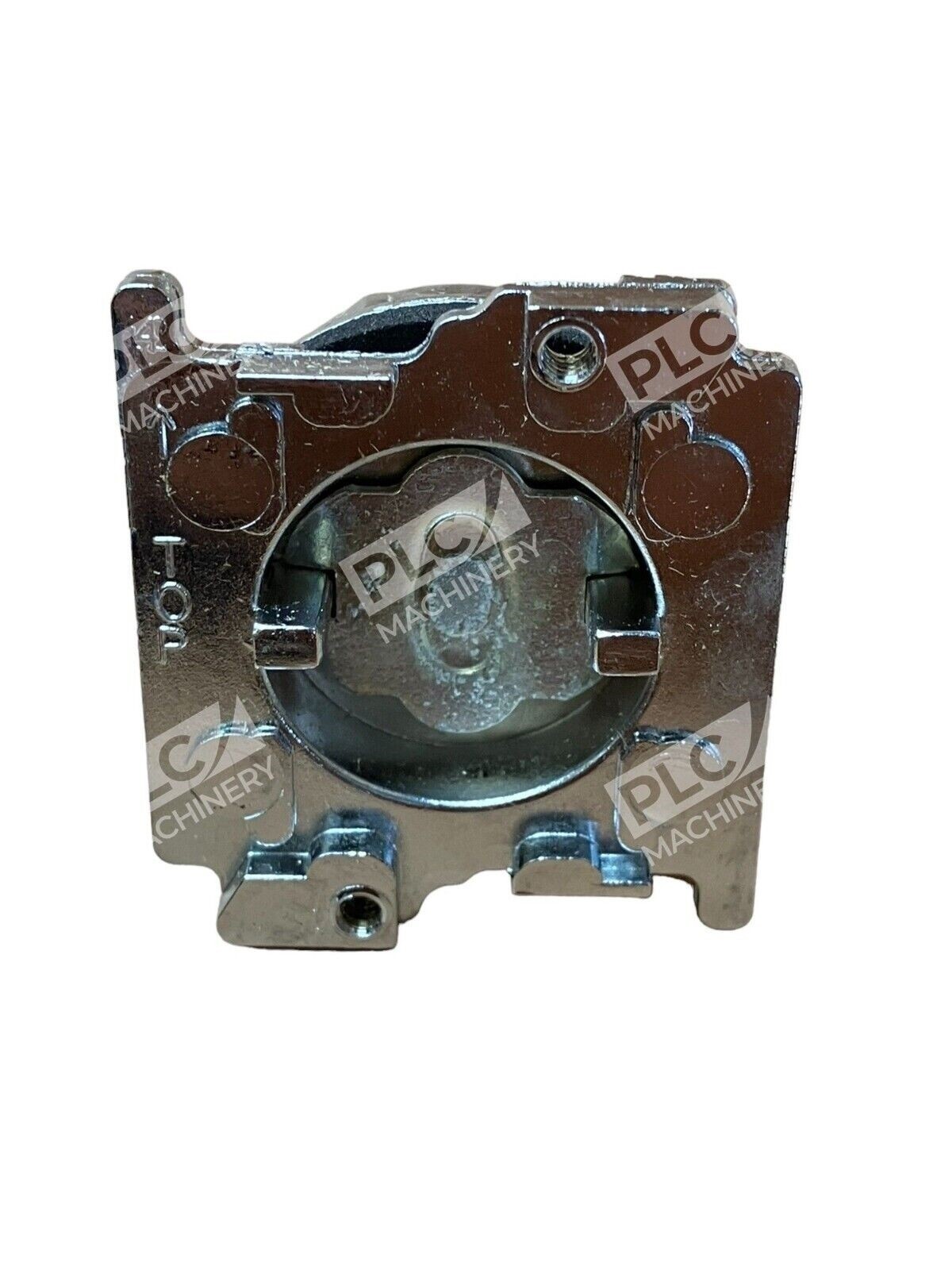

The Eaton 10250TJ63 is a heavy-duty, non-illuminated emergency stop pushbutton with a red jumbo mushroom head. Part of the 10250T series, this operator button features a 65mm mushroom cap on a 30.5mm door punch body. Built with anodized aluminum and chrome-plated housing, it withstands demanding industrial control applications including manufacturing, processing, and hazardous-area installations.
Key Features
- Jumbo Mushroom Head (65mm): Large, easy-to-locate actuator for rapid emergency shutdown
- Red Color with E-STOP Legend: Unmistakable visual identification for emergency functions
- Push-Pull Maintained Operation: 2/3-position non-illuminated design; stays in engaged position
- Heavy-Duty Construction: Die-cast zinc body with anodized aluminum finish and chrome-plated housing
- Wide Enclosure Rating: NEMA 3/3R/4/4X/12/13 for indoor/outdoor and washdown environments
- UL Listed & CSA Certified: Complies with EN60947-5-1, EN60947-5-5, and UL508 standards
Technical Specifications
- Actuator Type: Jumbo Mushroom Head
- Cap Diameter: 65mm
- Door Punch Size: 30.5mm
- Color: Red
- Legend: EMERG. STOP
- Material: Anodized Aluminum (cap), Die-cast Zinc (body)
- Operation: Push-Pull, 2/3-Position, Maintained (stay-put)
- Contacts: 2NC (Normally Closed) contacts
- Rated Current: 6A @ 120Vac (AC-15); 4A @ 240Vac (AC-15); 2A @ 660Vac (AC-15); 1A @ 125Vdc (DC-13)
- Enclosure Rating: IP65 / NEMA 3 / NEMA 3R / NEMA 4 / NEMA 4X / NEMA 12 / NEMA 13
- Features: Watertight, Oiltight
- Approvals: UL Listed, CSA Certified
- Product Status: Commercialized
- Series: Eaton 10250T
Typical Applications
- Emergency stop circuits in manufacturing and assembly equipment
- Control panel pushbutton stations for machinery shutdown
- Industrial process control and automation systems
- Washdown and wet environment applications (NEMA 4X rated)
- Motor starters and variable frequency drive (VFD) circuits
- Hazardous-area control stations requiring instant operator access
Compatibility & Replacements
Compatible With
- Eaton / Cutler-Hammer 10250 series modular pushbutton stations
- Non-illuminated 2/3-position push-pull operator stations
- Industrial control panels rated NEMA 3/3R/4/4X/12/13
- AC circuits: 120Vac, 240Vac, 480Vac, 660Vac
- DC circuits: 125Vdc, 250Vdc, 660Vdc
- Hardwired control systems and relay logic circuits
Replaces / Drop-In Replacement For
- Older Cutler-Hammer 10250TJ63 units requiring replacement
- Other 30.5mm jumbo mushroom heads in the 10250 series (verify exact contact configuration)
Works With
- Allen-Bradley control systems and panel wiring
- Siemens SIMATIC control stations
- Rockwell Automation safety circuits
- Standard industrial relay cabinets and motor control centers (MCCs)
- Emergency shutdown networks (hardwired, non-networked)
