Overview

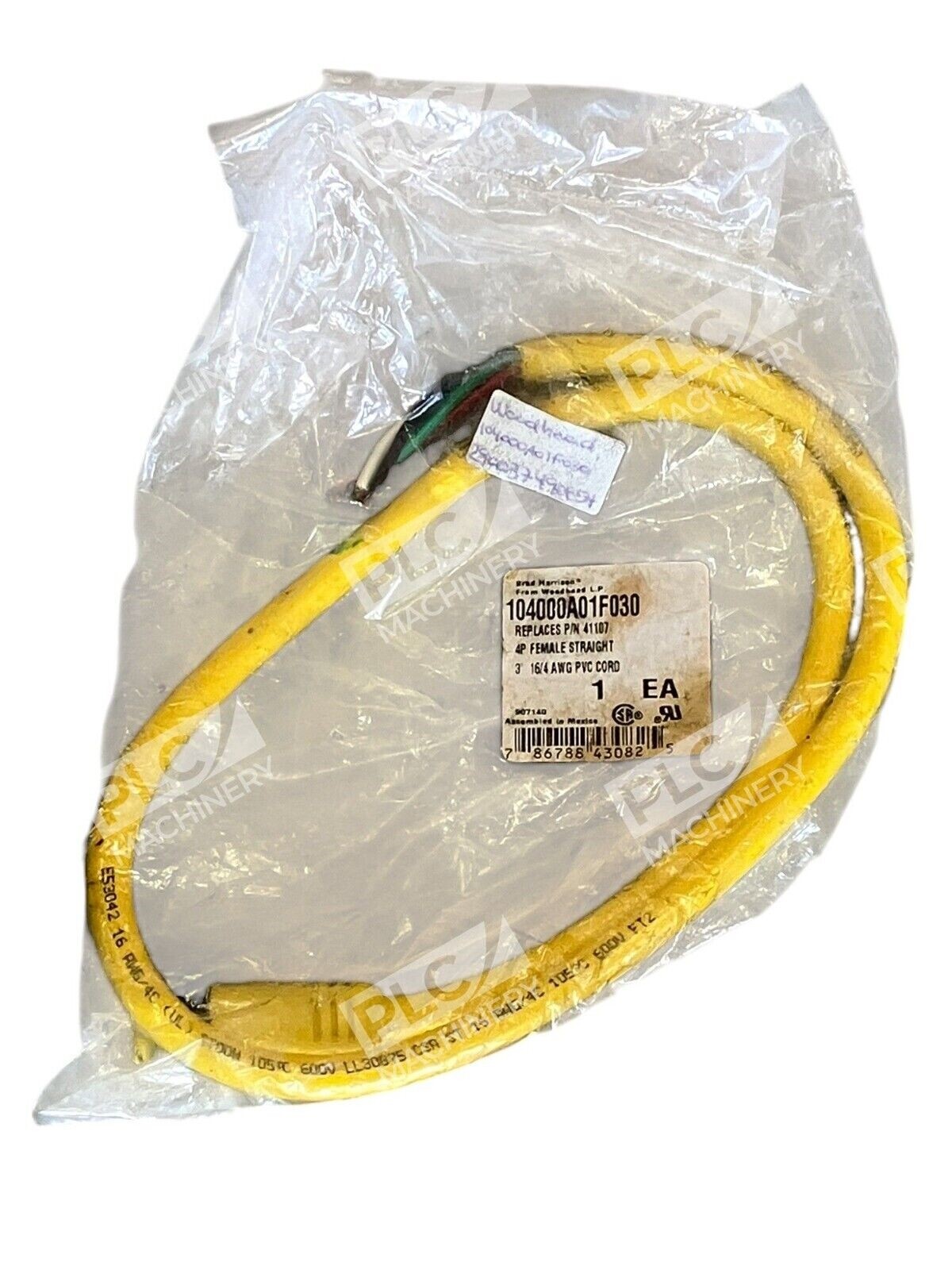

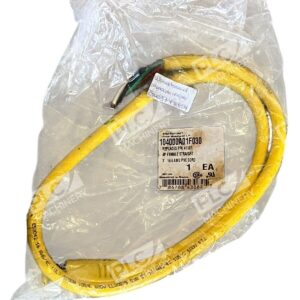

The Brad Harrison 104000A01F030 is a Mini-Change cordset designed for industrial automation and sensor connectivity. This straight female connector features a single-ended configuration with pigtail termination, ideal for temporary or flexible wiring applications. The 104000A01F030 delivers reliable signal transmission in demanding manufacturing and control environments.
Key Features
- Mini-Change A-Size connector with single keyway for fool-proof mating
- Straight female connector with pigtail end configuration
- Gold-plated copper alloy contacts for corrosion resistance
- Zinc coupling nut with black epoxy coating for durability
- Quad-Beam™ socket contact design maintains consistent contact pressure
- IP67-rated for temporary submersion protection
- Yellow PVC cable jacket with 100 lb cable strain relief
Technical Specifications
Input voltage rating of 600 VAC and maximum continuous current of 10 A make this cordset suitable for low-to-medium power control circuits. The 16 AWG conductor size and PVC insulation provide adequate protection for industrial environments while maintaining flexibility for installation in confined spaces.
Typical Applications
This cordset is commonly used in machine automation, sensor interfacing, PLC input/output modules, and control panel wiring. Its modular design makes it ideal for equipment requiring frequent reconfiguration or temporary connections in factory floors, assembly lines, and industrial control systems.
Compatibility & Replacements
Compatible With
- Brad Mini-Change connectors and receptacles
- Woodhead 130006 series receptacles
- Industrial control systems and sensor networks
- Standard 24 VDC and 120 VAC control circuits
Replaces / Drop-In Replacement For
- Brad Harrison cordsets with Mini-Change A-Size connector configuration
- Woodhead quick-disconnect cable assemblies in the 130006 series
Works With
- Mini-Change mating receptacles and connectors
- Standard industrial PLC I/O modules
- Discrete sensor and control signal applications
- 12–600 VAC control circuits
