Overview

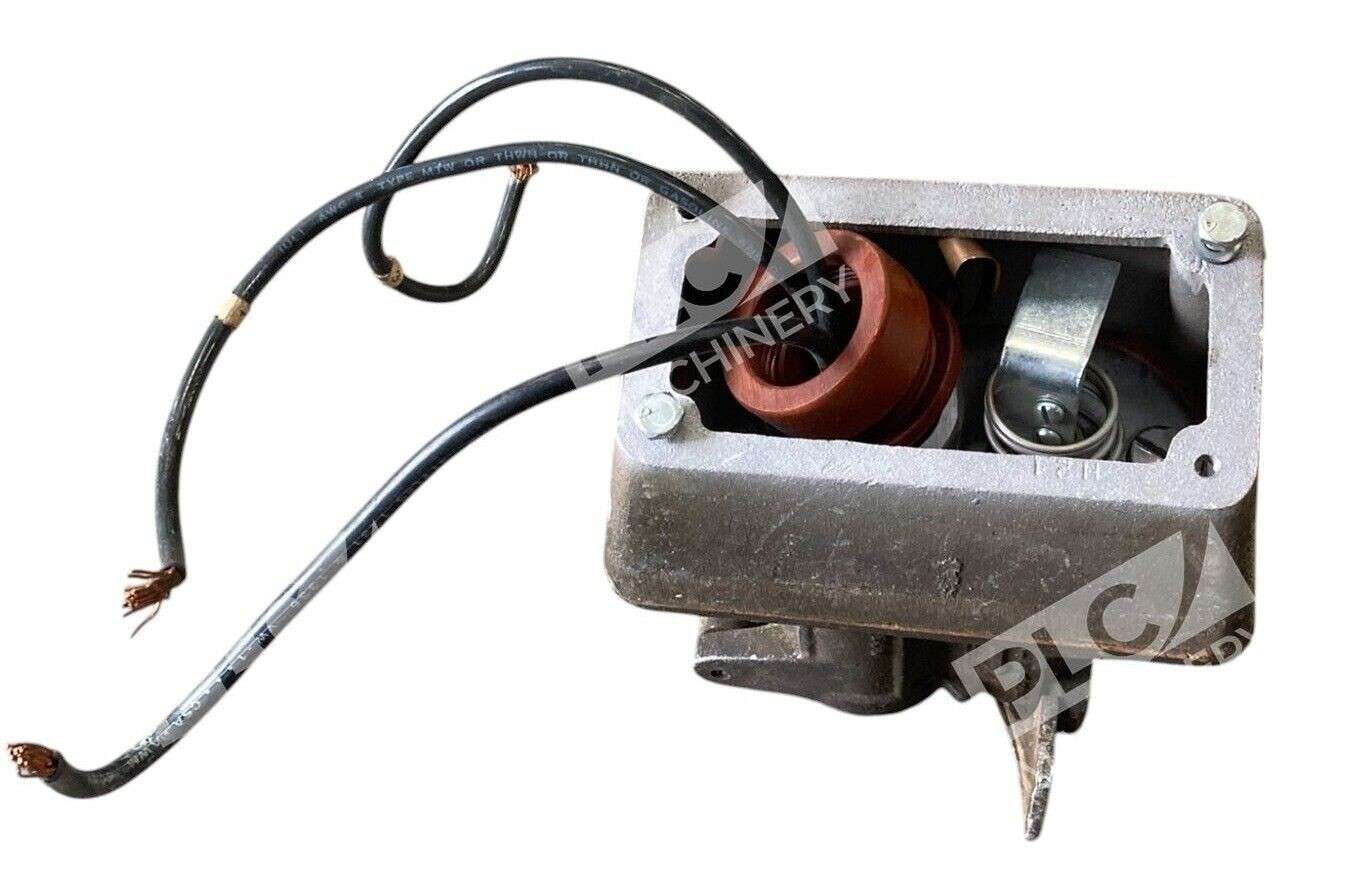

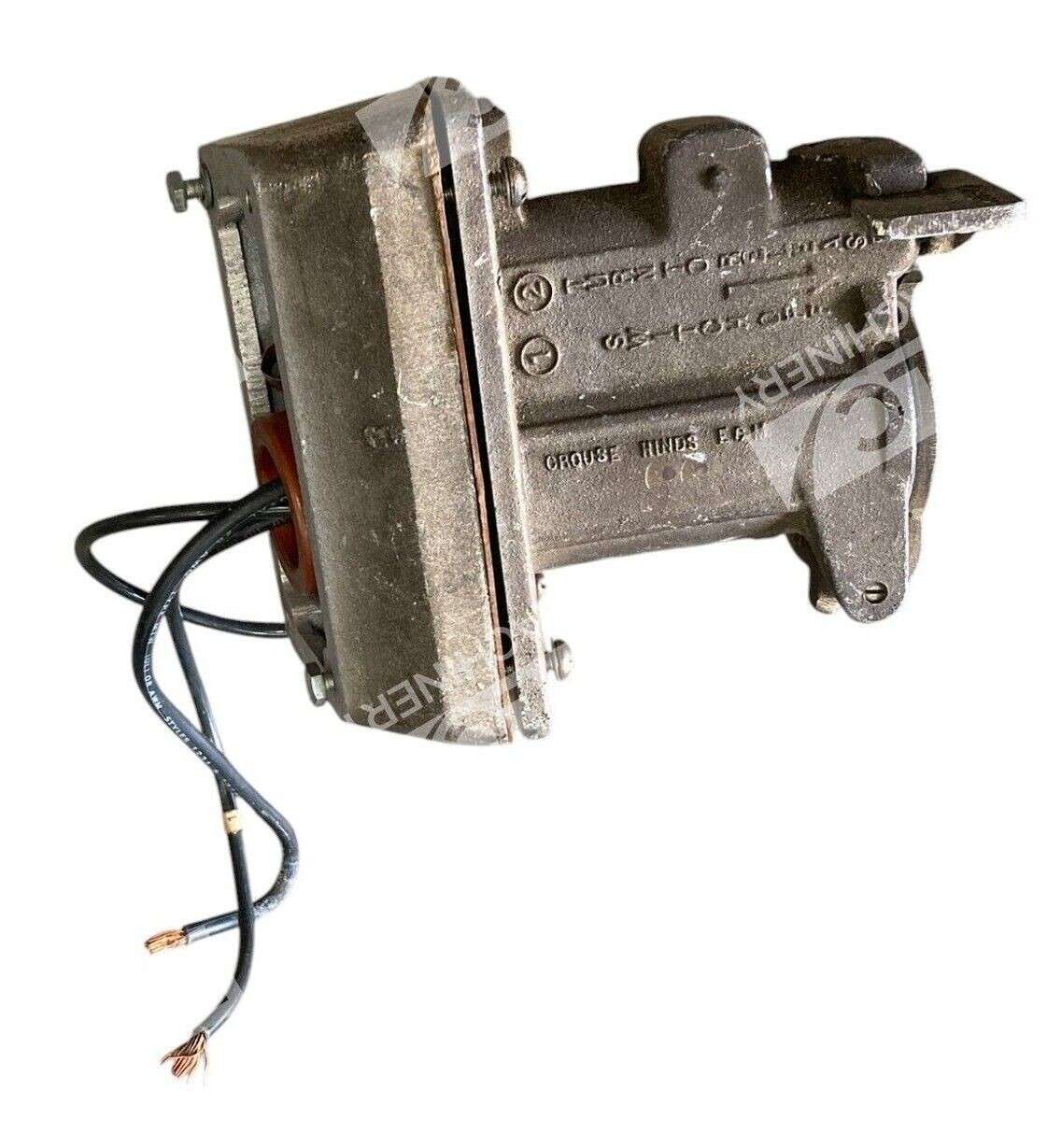

The Crouse Hinds 7565-D is an explosion proof receptacle unit manufactured by Eaton’s Crouse-Hinds division. This heavy-duty device features a 3-wire configuration with ground protection and is engineered for industrial and hazardous location environments where reliable, safe power distribution is essential. The integrated switch release mechanism allows controlled plug engagement and disengagement, while included mounting bolts facilitate secure installation in temporary or permanent power distribution setups.
Key Features
- 3-wire with ground (3W/G) configuration for enhanced electrical safety
- Explosion proof design for use in hazardous (classified) locations
- Integrated switch release mechanism for controlled disconnection
- Mounting bolts included for quick assembly and installation
- Heavy-duty industrial construction for demanding work environments
- Designed for portable equipment power supply applications
Technical Specifications
- Manufacturer: Eaton Crouse-Hinds
- Model Number: 7565-D
- Configuration: 3 Wire with Ground
- Type: Explosion Proof Receptacle/Plug
- Switch Type: Switch Release Mechanism
- Included Components: Mounting Bolts
- Design Standard: Arktite Series
- Material: Cast aluminum body with steel hardware
- Protection Class: Hazardous Location rated
Typical Applications
The Crouse Hinds 7565-D receptacle is ideal for:
- Motor generator sets and portable power distribution
- Temporary electrical power circuits on industrial sites
- Hazardous classified locations (Class I environments)
- Equipment requiring frequent connection/disconnection cycles
- Compressors, welders, and portable tool power supply
- Oil rig maintenance and offshore installations
- Mining and chemical processing facility electrical infrastructure
Compatibility & Replacements
Compatible With
- Eaton Crouse-Hinds power distribution systems and enclosures
- Arktite series plugs and receptacles (3-wire configurations)
- Standard industrial temporary power distribution networks
- Hazardous location Class I, Group C and D environments
- Equipment rated for explosion proof power interfaces
Replaces / Drop-In Replacement For
- Verify with your system integrator for specific replacement models
- Compatible with other 3-wire grounded Arktite receptacle housings when engineering specifications match
- Direct replacement within Crouse-Hinds 7565 series variants
Works With
- Crouse-Hinds CPP plugs (CPP series connectors)
- Standard industrial electrical conduit and wiring systems
- NEMA and NEC compliant power distribution networks
- Hazardous location electrical standards: UL 1203, CSA C22.2 No. 30
- Temporary and permanent power distribution applications
