Overview

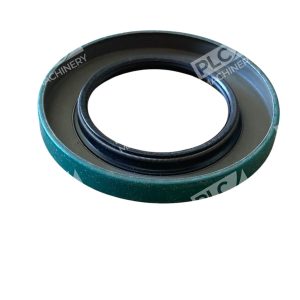

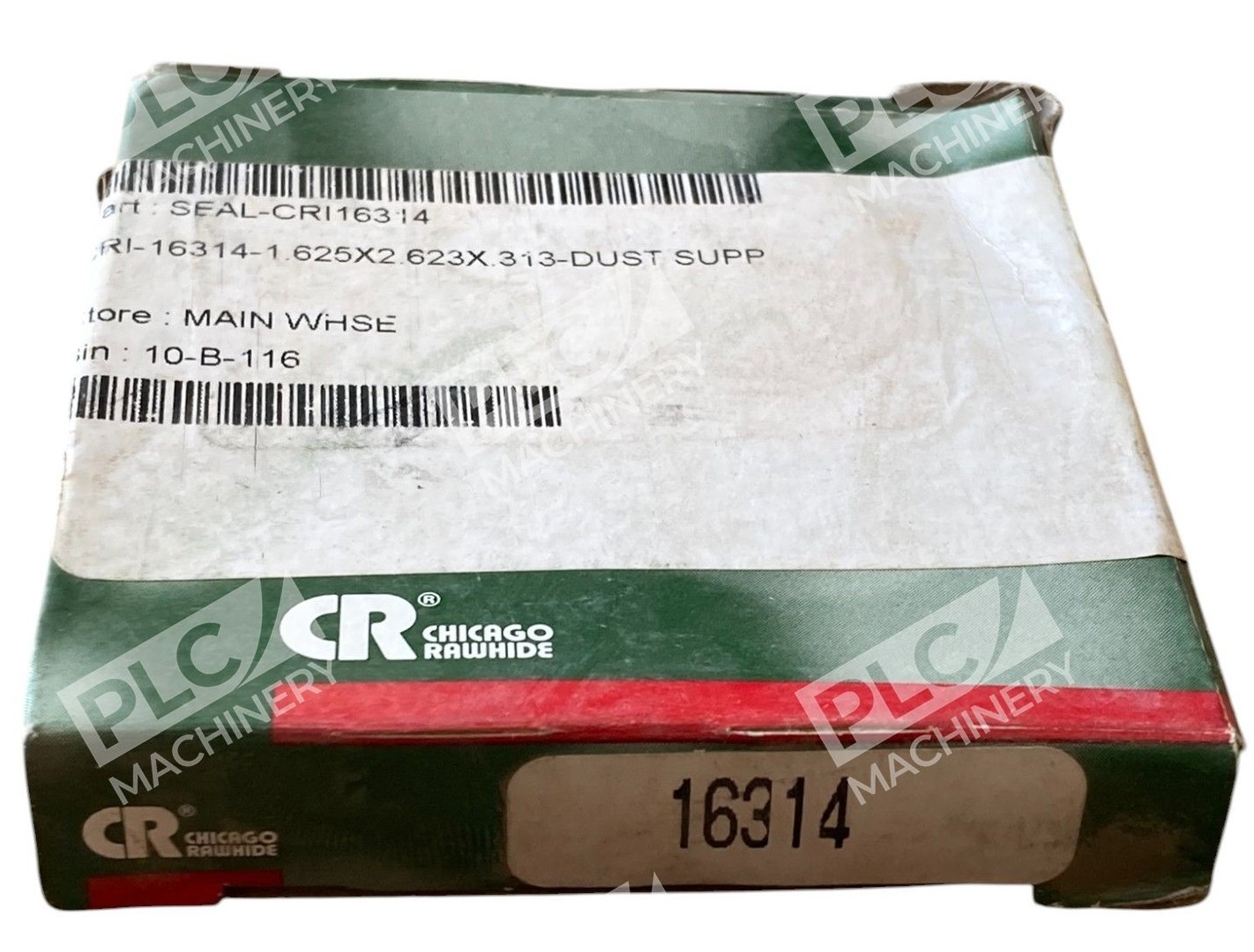

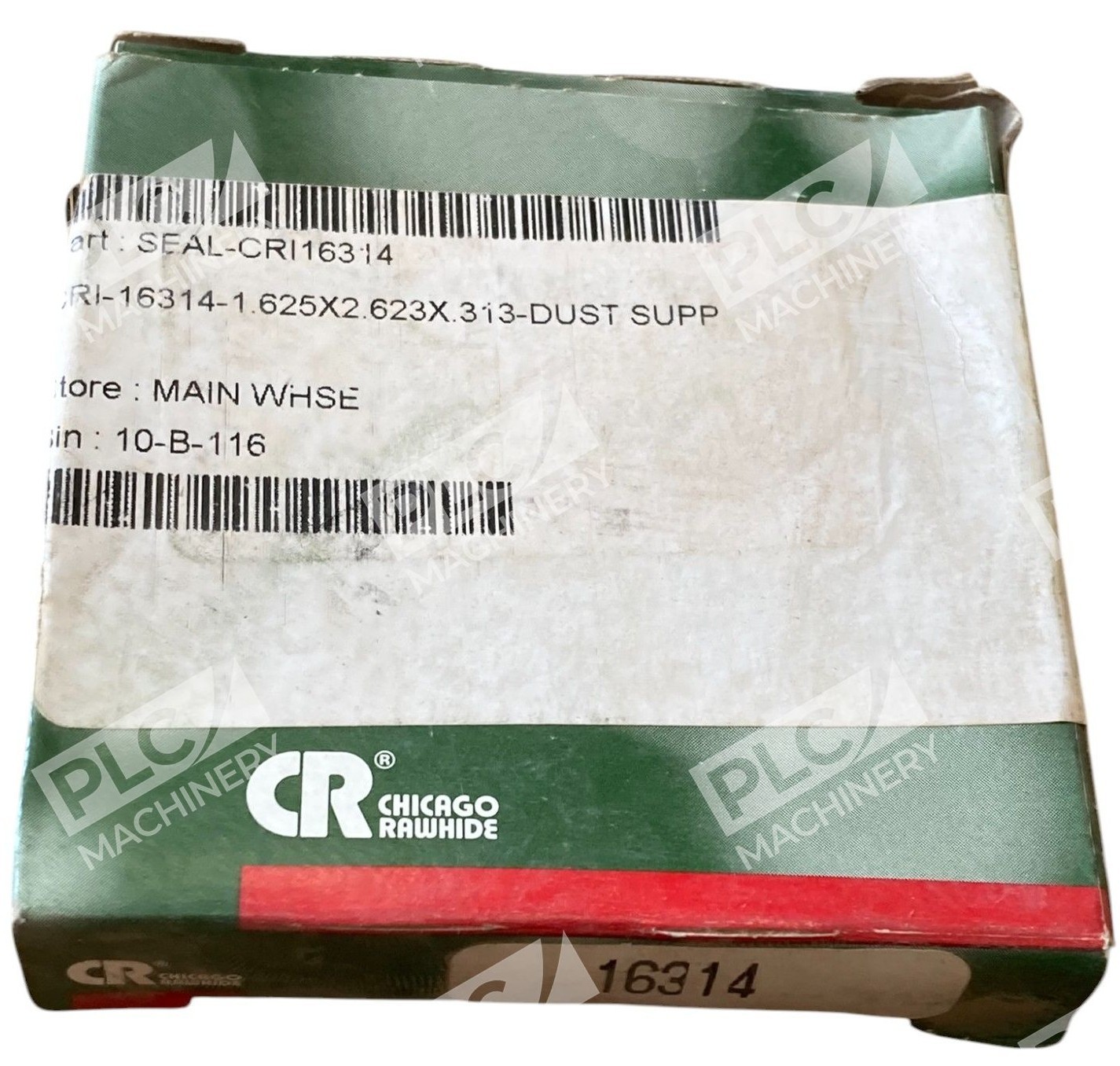

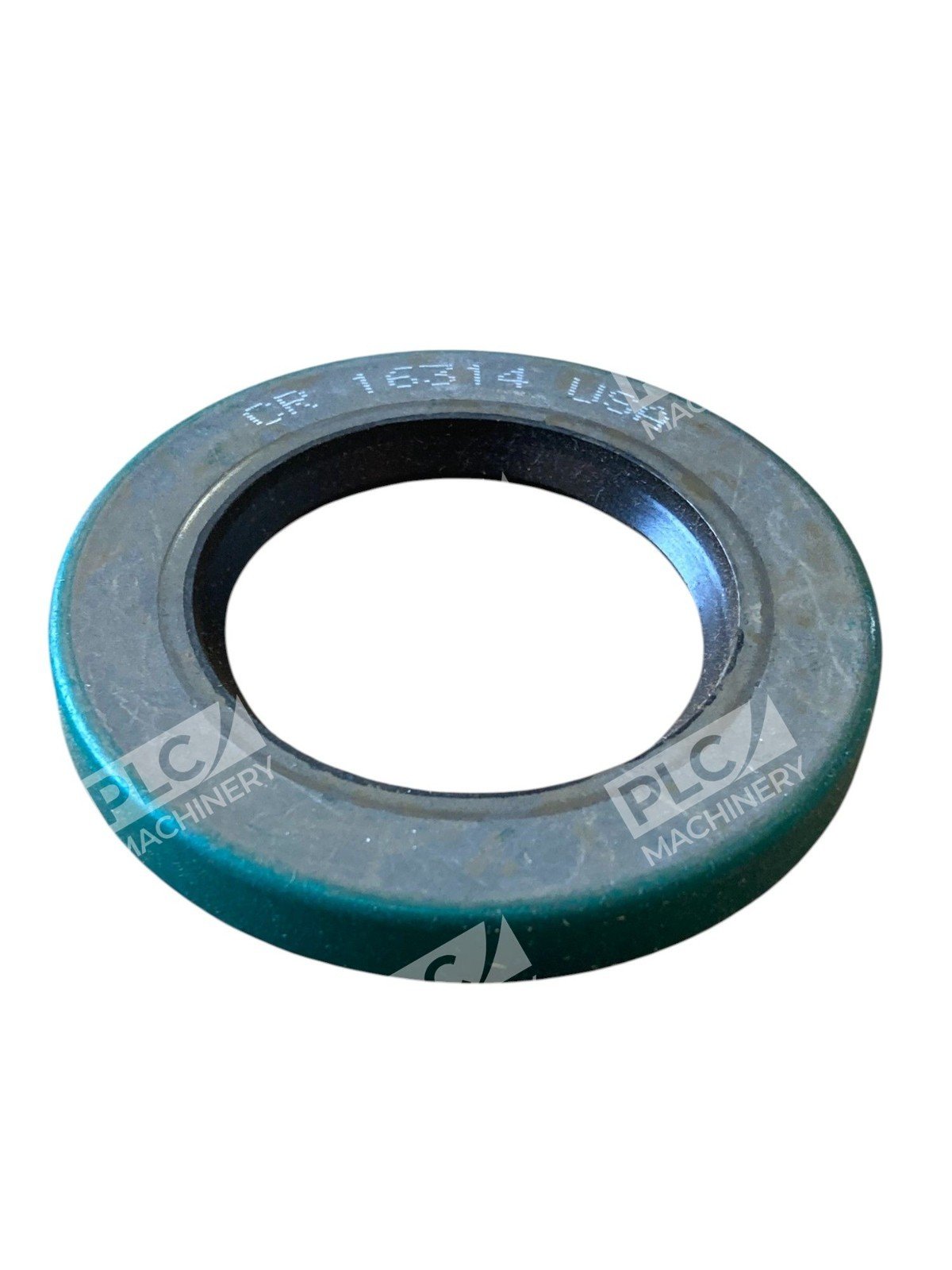

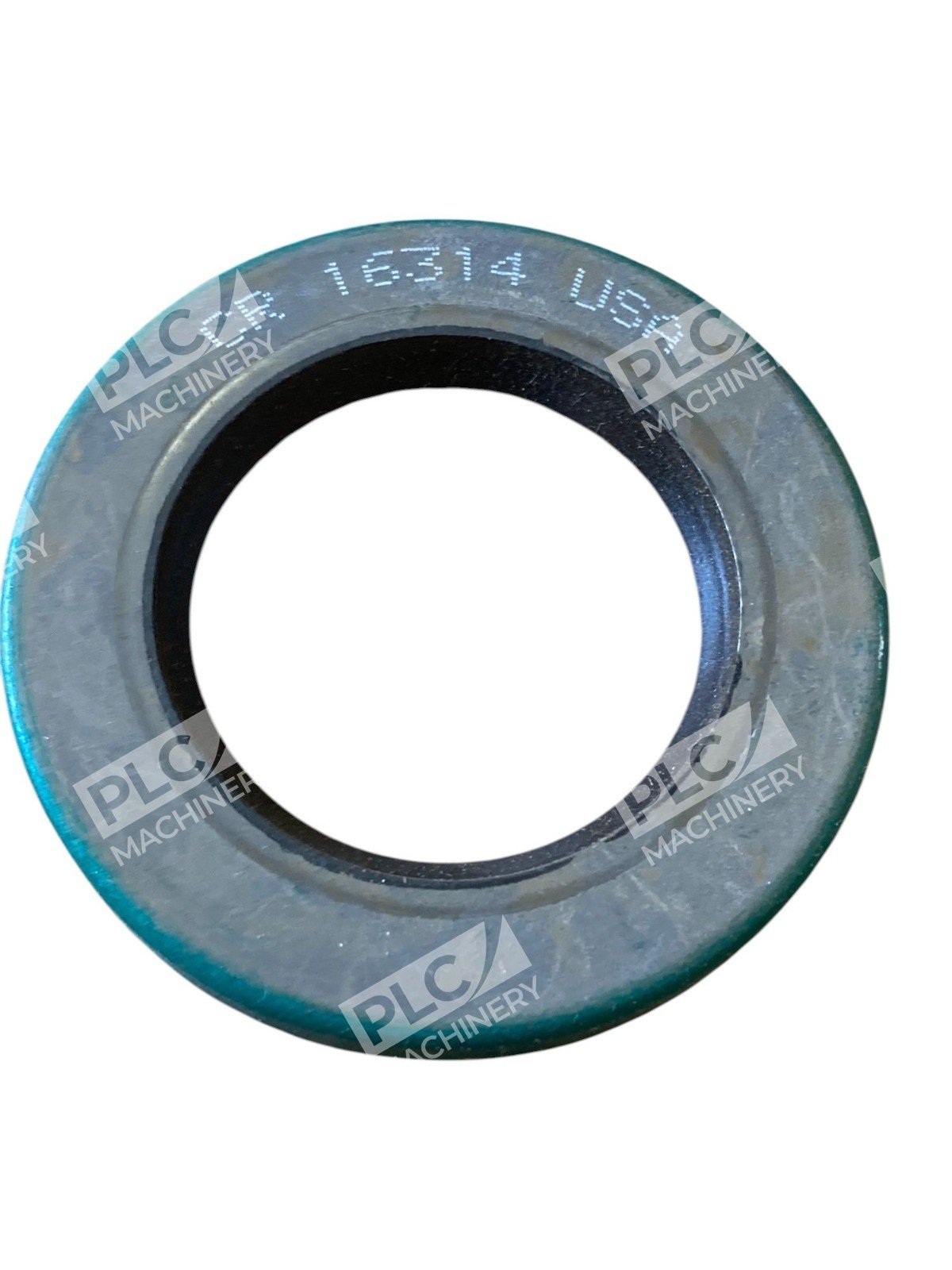

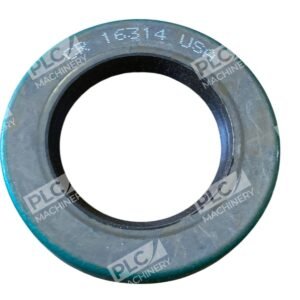

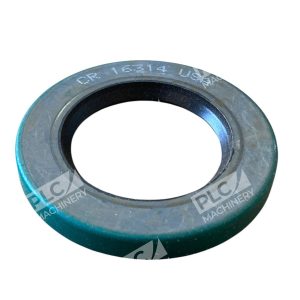

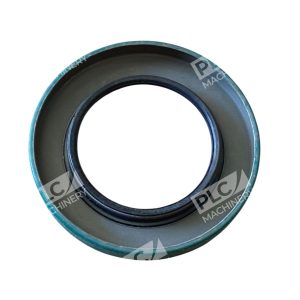

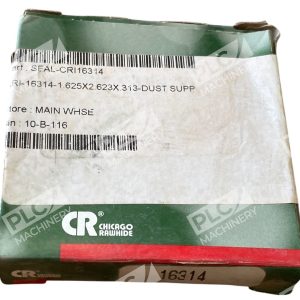

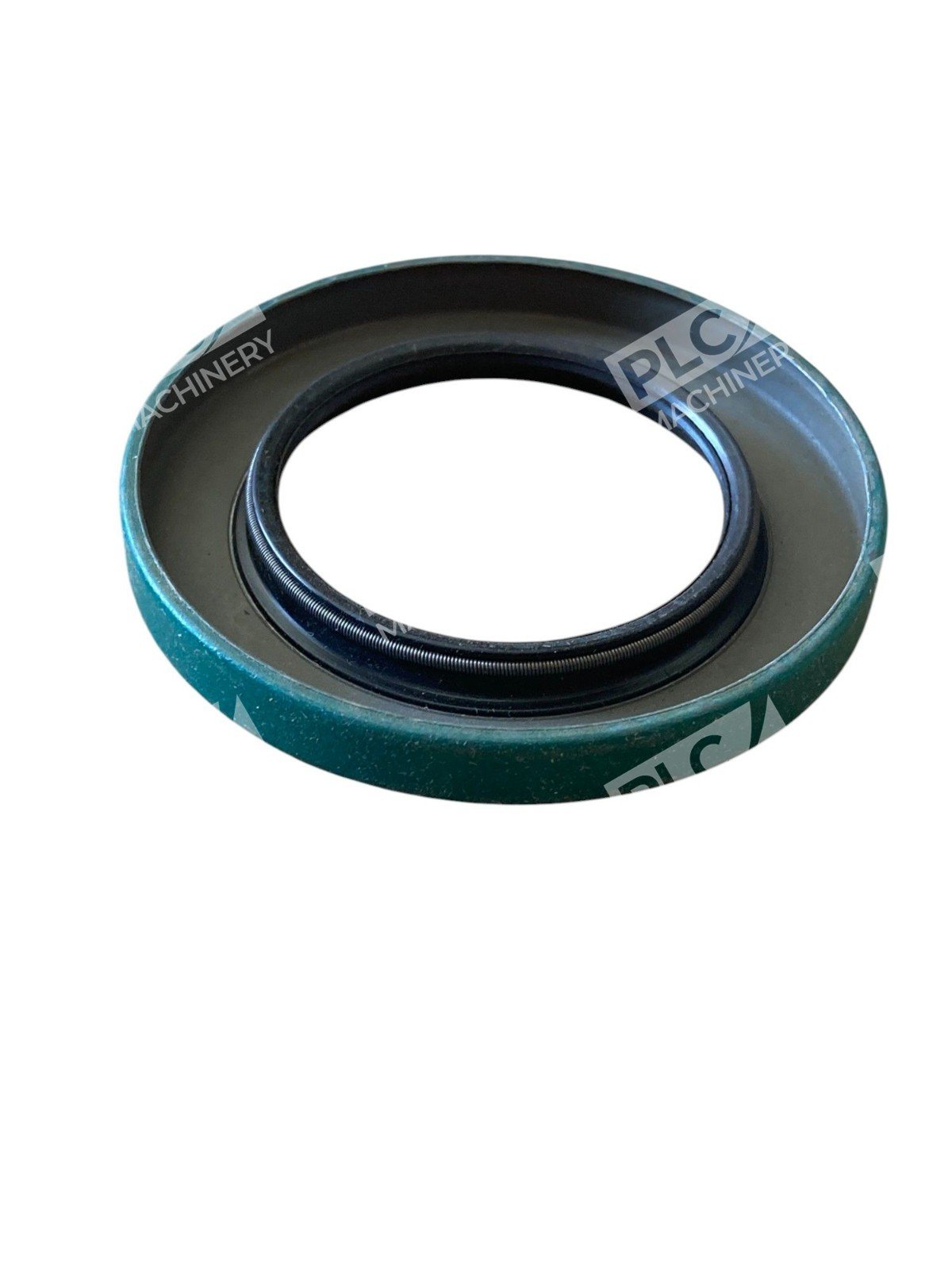

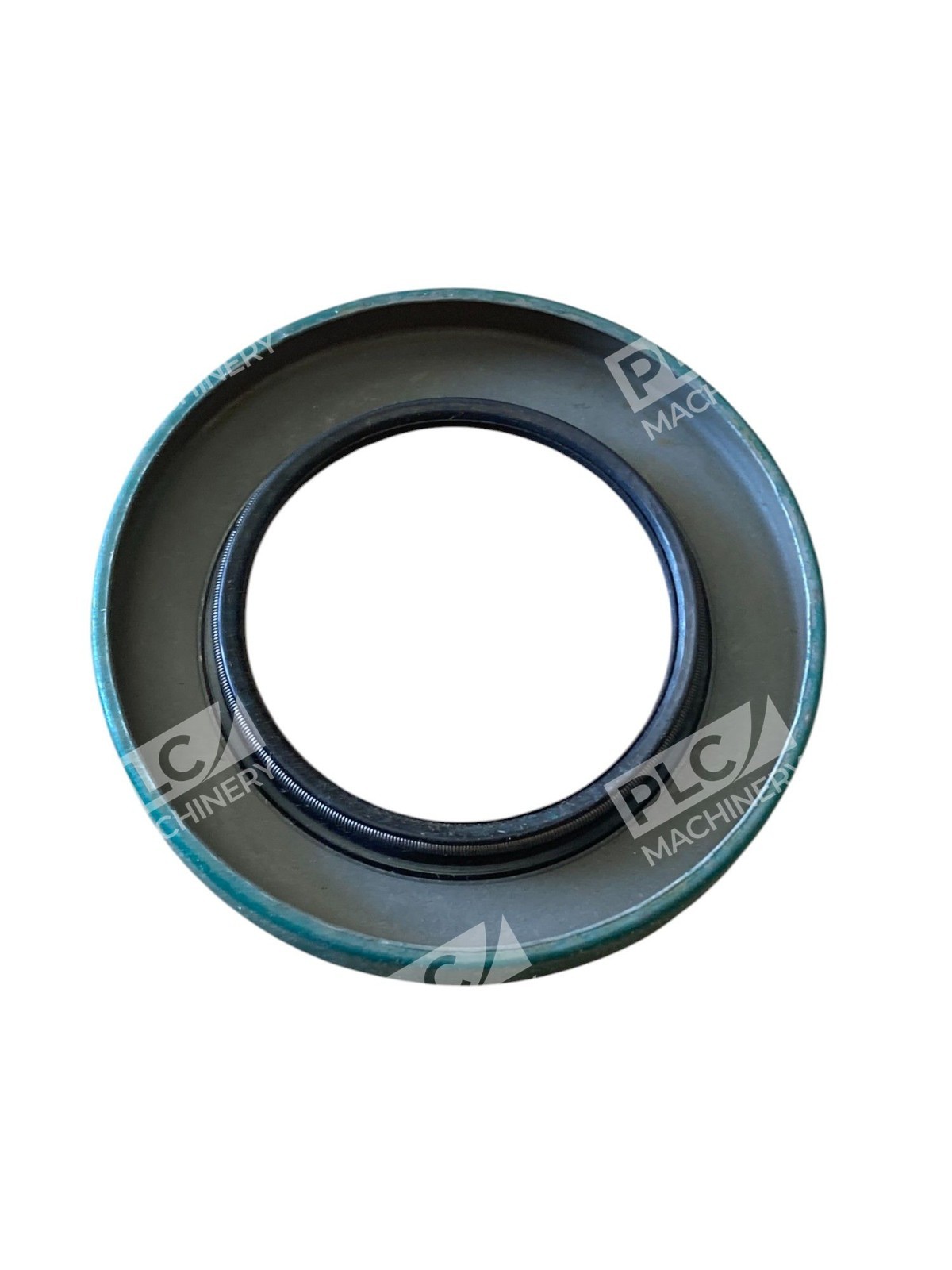

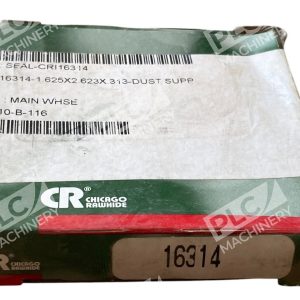

The CR 16314 oil seal is a small-bore radial shaft seal manufactured by CR Seals (SKF/Chicago Rawhide), a leader in industrial sealing solutions since 1878. This CRW1-type seal features a single wave lip design optimized for reliable performance in rotating equipment across manufacturing, agriculture, and general industrial applications. With a 1.625-inch shaft diameter and nitrile rubber lip, the CR 16314 delivers consistent leak prevention and extends equipment service life.
Key Features
- Single-lip wave design for optimal pumping and minimal heat generation
- Nitrile (NBR) elastomer lip resists oil, water, and moderate chemicals
- Steel casing with garter spring for secure bore fit and shaft retention
- CRW1 design—industry-standard for small-bore radial shaft sealing
- Operating range from -40 to 210°F supports diverse industrial environments
- Proven SKF/Chicago Rawhide quality and reliability
Technical Specifications
- Shaft Diameter (ID): 1.625 inches (1-5/8″)
- Outside Diameter (OD): 2.623 inches
- Width (W): 0.313 inches
- Design Type: CRW1
- Seal Type: Rotary Shaft Seal (Radial)
- Lip Material: Nitrile Rubber (NBR)
- Lip Configuration: Single Wave Lip
- Casing Material: Steel with Garter Spring (Carbon Steel)
- Operating Temperature: -40 to 210°F
- Pressure Rating: 10 psi maximum
- Configuration: Solid (non-split)
Typical Applications
The CR 16314 is widely used in:
- Agricultural equipment (tractors, balers, combines)
- Construction and earthmoving machinery
- Industrial gearboxes and transmissions
- Pump and motor assemblies
- Small-bore spindle and gear shaft sealing
- General industrial rotating equipment maintenance and repair
Compatibility & Replacements
Compatible With
- Small-bore equipment with 1.625-inch shaft diameters
- Industrial rotating machinery requiring standard radial shaft sealing
- Equipment designed for CRW1-type seal compatibility
- SKF/Chicago Rawhide seal installations and bearing assemblies
Replaces / Drop-In Replacement For
- Older CR Chicago Rawhide 16314 seals
- OEM radial shaft seals in legacy industrial equipment (verify part compatibility before installation)
Works With
- Compatible wear sleeves: SKF 99161, 99162, 99826 (optional counterface protection)
- Standard industrial shaft seal installation procedures
- Oil and grease-lubricated bearing systems
