Overview

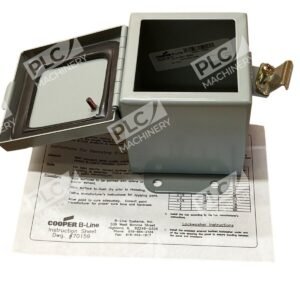

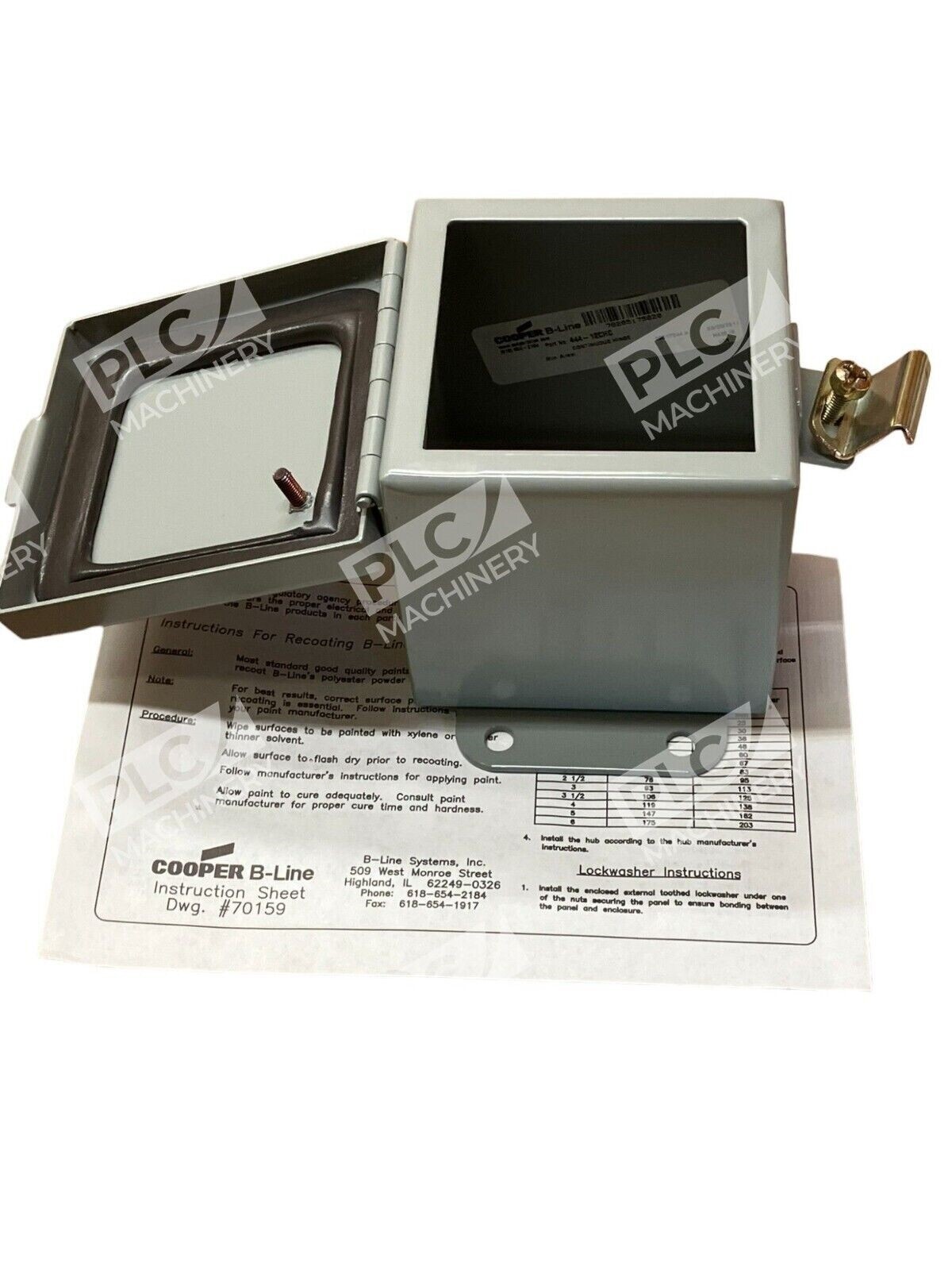

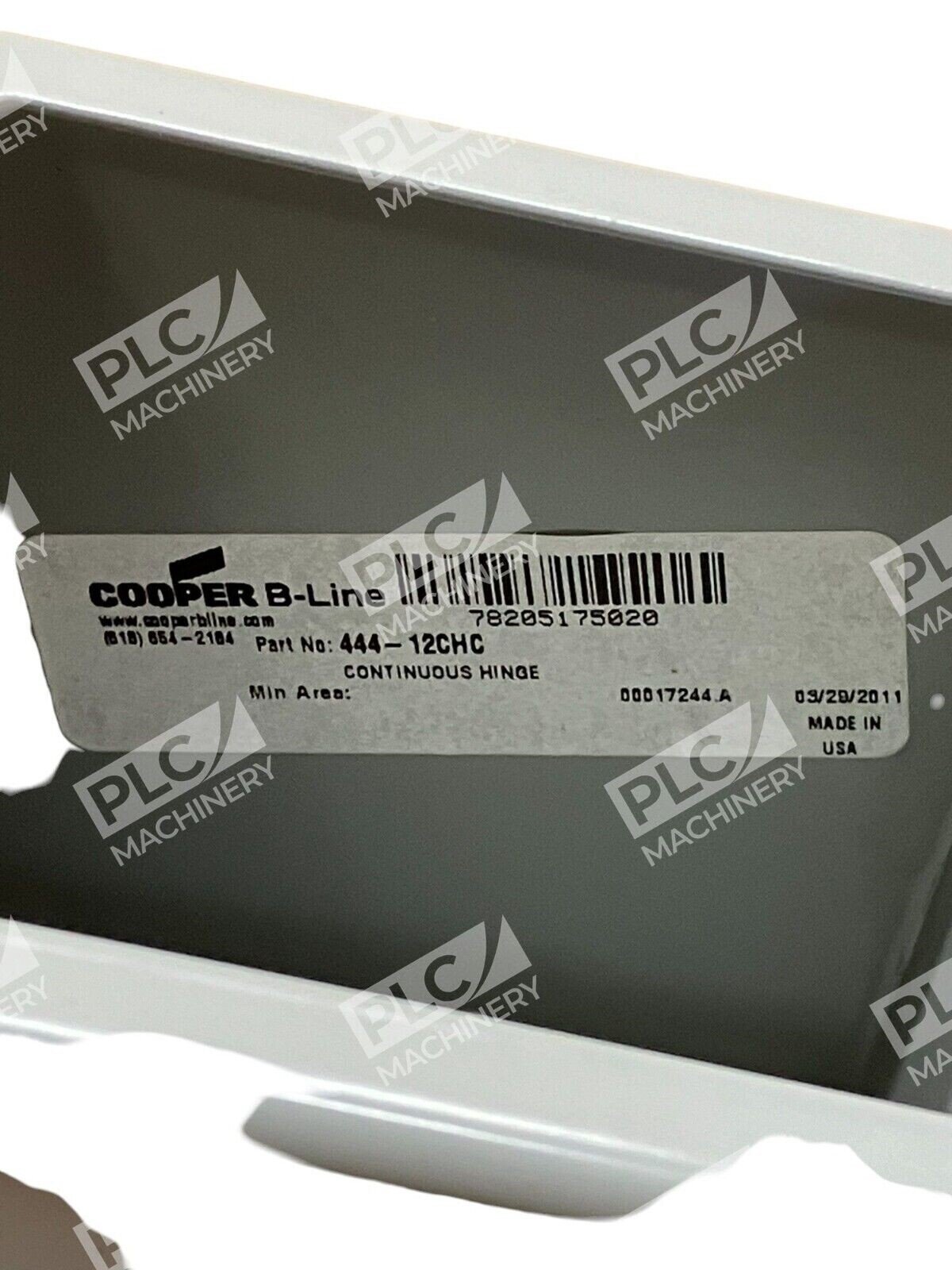

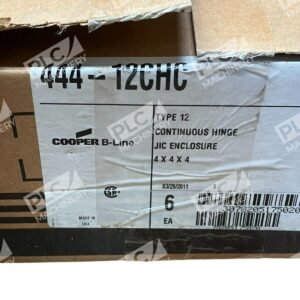

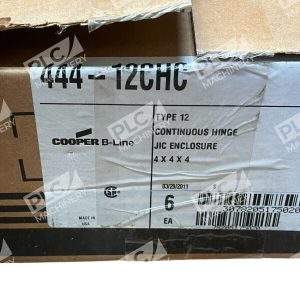

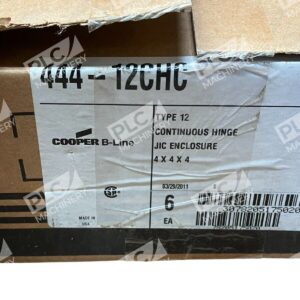

The Eaton B-Line 444-12CHC is a NEMA 12 rated Type 12 JIC continuous hinge enclosure designed for compact industrial control panel applications. This 4x4x4 inch cabinet features robust carbon steel construction with a seamless, painted finish, making it suitable for wall-mount installation in manufacturing, machinery control, and electrical distribution environments.
Key Features
- Continuous hinge design with easy-to-operate screw clamps for quick access
- 16 gauge carbon steel with all-welded seams for structural integrity
- Oil-resistant gasket on cover for IP65 dust and moisture protection
- External mounting feet for secure wall mounting
- Ground stud provided on cover for proper grounding
- ANSI 61 gray polyester powder coat finish
- UL 508A and CSA C22.2 certified
Technical Specifications
- Dimensions: 4 in (W) × 4 in (H) × 4 in (D)
- Material: Carbon steel, 16 gauge
- NEMA Rating: NEMA 12 / IP65
- Enclosure Type: JIC panel enclosure with continuous hinge
- Cover Closure: Continuous hinge with screw clamps
- Gasket: Oil-resistant, fixed on cover
- Finish: ANSI 61 gray polyester powder coat
- Mounting: Wall mount with external feet
- Certifications: UL 508A, CSA C22.2
- Weldnuts: 10-32 provided for optional internal panel mounting
Typical Applications
The 444-12CHC is ideal for compact control panels requiring NEMA 12 protection in:
- Machine tool control cabinets
- Process automation and instrumentation enclosures
- Motor control centers and terminal boxes
- Industrial equipment electrical distribution boxes
- Small PLC and control system housings
Compatibility & Replacements
Compatible With
- Standard control circuit components rated for NEMA 12 environments
- Motor starters and disconnect switches
- PLCs, terminal blocks, and control relays
- Industrial automation panels and terminal boards
- DIN rail mounted components (with internal mounting accessories)
Replaces / Drop-In Replacement For
- Cooper B-Line 444-12CHC (current Eaton designation)
- Verify specific model compatibility with your system integrator before ordering
Works With
- Standard electrical panel assembly practices and wiring standards
- IEC and NEMA control component mounting standards
- Industrial automation platforms requiring compact NEMA 12 rated enclosures
