Overview

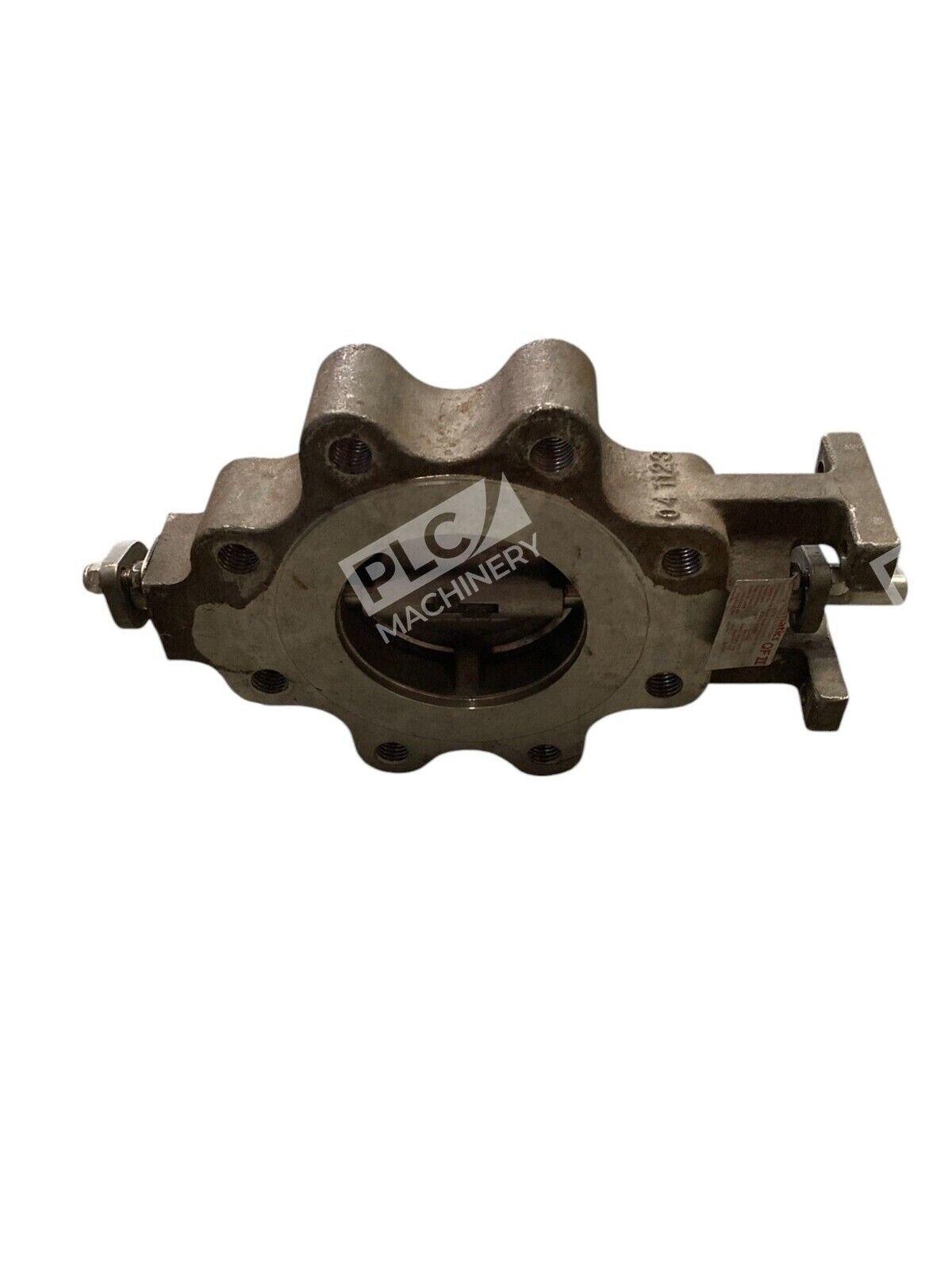

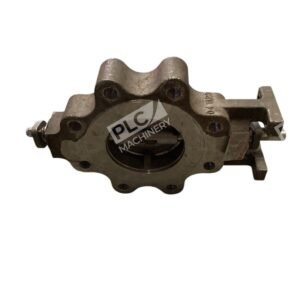

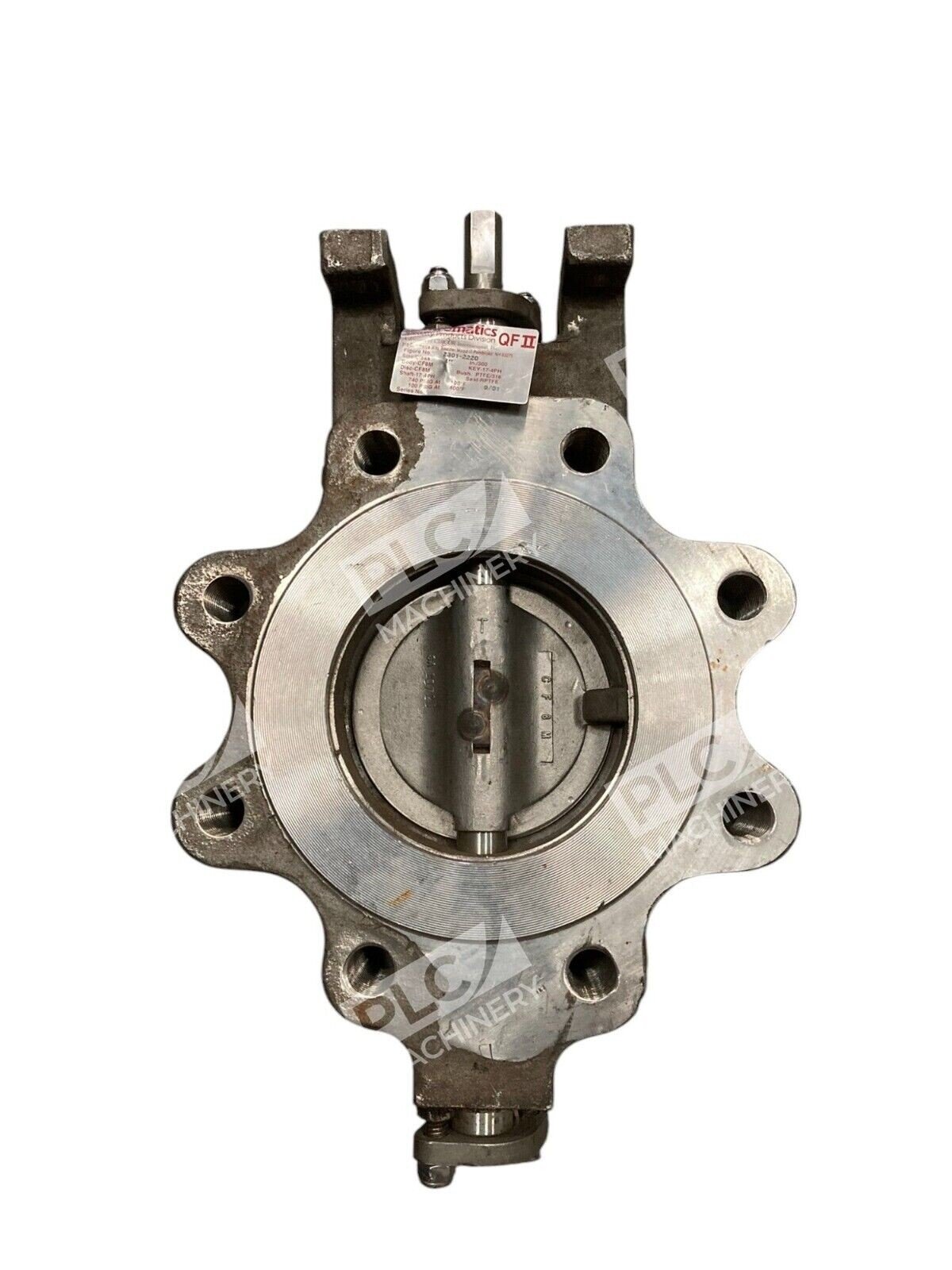

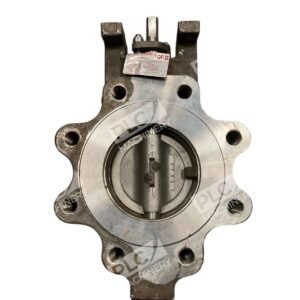

The NIBCO LCS-6822 is a premium 1″ butterfly valve designed for industrial flow control and isolation. Built with CF8M stainless steel body and 17-4 stainless steel shaft, this 285 PSI-rated valve delivers reliable performance in corrosive and high-temperature environments. The lug-style design supports both isolation and throttling applications across HVAC, hydraulic, plumbing, and mechanical systems.
Key Features
- Quarter-turn (90-degree) operation for fast, simple open/close control
- Internal stem/disc splined drive eliminates pins and bolts, preventing leak paths
- Ductile iron disc with EPDM encapsulation for extended service life
- Extended neck design allows insulation thickness up to 2 inches
- CF8M stainless steel body resists corrosion and scaling
- 17-4PH stainless shaft provides superior strength and longevity
Technical Specifications
- Valve Size: 1 inch
- Body Material: CF8M (Duplex Stainless Steel)
- Shaft Material: 17-4PH Stainless Steel
- Pressure Rating: 285 PSI
- Disc Material: Ductile Iron with EPDM Encapsulation
- Operation Type: Quarter-turn (90 degrees)
- Style: Lug (threaded lugs for bolt mounting)
- Connection: Flanged
- Manufacturer: NIBCO
- Part Number: LCS-6822 (1″)
Typical Applications
The LCS-6822 is ideal for commercial, industrial, and mechanical HVAC systems requiring reliable flow control:
- Chilled water and hot water isolation in HVAC systems
- Condenser water throttling in cooling loops
- Hydraulic and pneumatic systems requiring corrosion resistance
- Glycol-based fluid circulation in closed-loop systems
- Plumbing and industrial flow control applications
- High-temperature or chemically aggressive environments
Compatibility & Replacements
Compatible With
- Standard 1″ ASME/ANSI flanged piping systems
- Lug-style butterfly valve mounting brackets and bolts
- Commercial and industrial HVAC control systems
- Pneumatic and hydraulic actuators (manual or powered valve operators)
- Flow monitoring and throttling control systems
Replaces / Drop-In Replacement For

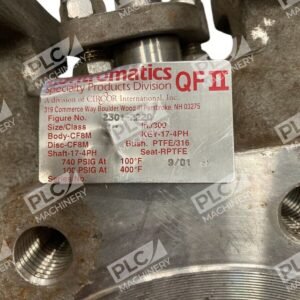

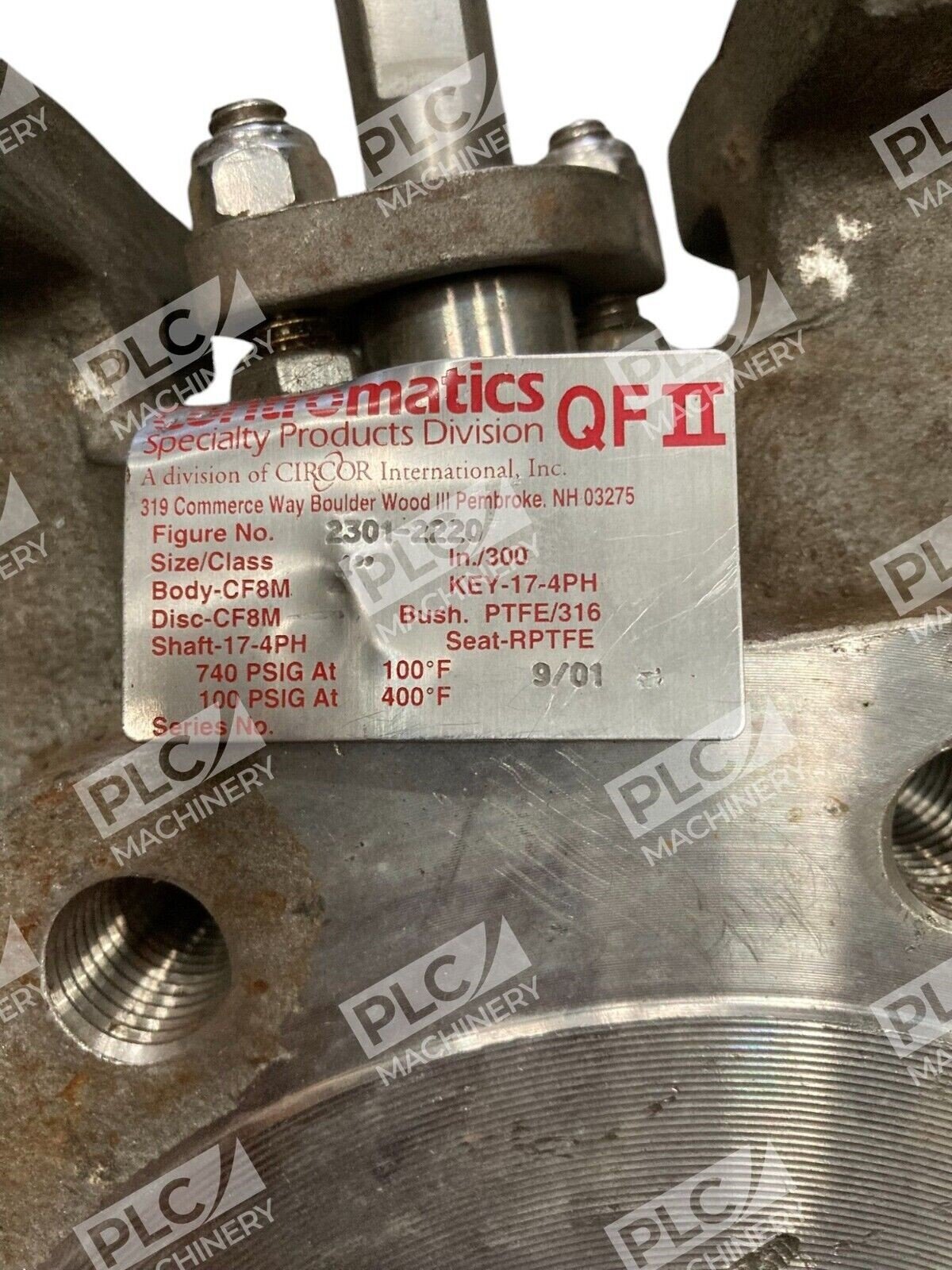

- Keystone 2301-2220 (1″ CF8M butterfly valve with 17-4 shaft)
- Other 1″ NIBCO LCS-6822 units across compatible configurations
- Verify flange type and mounting style with your system specifications before installation
Works With
- Manual butterfly valve handles and levers
- Electric and pneumatic valve actuators
- HVAC BACnet and building automation control systems
- Manual isolation and throttling control procedures
- Standard industrial piping and instrumentation (P&ID) diagrams
