Overview

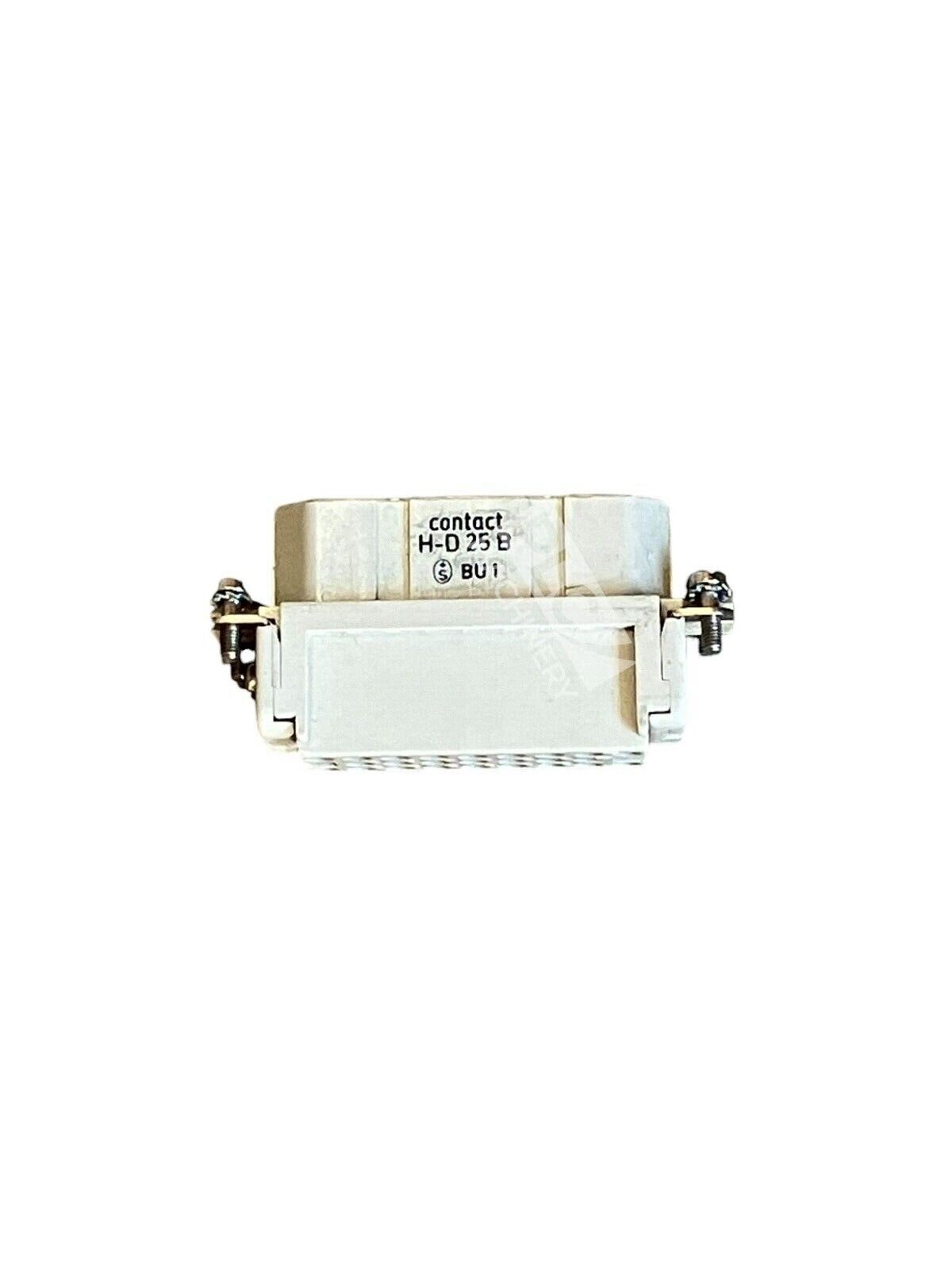

The H-D-25-B contact insert is part of Lapp’s EPIC H-D rectangular connector series, engineered for applications requiring a high number of contacts in a compact form factor. This contact insert accommodates 25 signal contacts and is designed for use with Lapp’s panel-mount frames and connector housings. The H-D-25-B variant is configured for stamped or machined crimp contact termination, making it suitable for high-reliability industrial control systems, machine automation, and device interconnects.
Key Features
- 25-position contact insert for rectangular connectors
- Compatible with Lapp EPIC H-D connector series
- Supports both stamped and machined crimp contacts
- Designed for panel-mount frame and sleeve housing integration
- High-density contact arrangement for space-constrained applications
- VDE certified production control (Reg.-Nr. B437)
Technical Specifications
The following specifications apply to the H-D-25-B contact insert:
- Contact Count: 25 signal contacts
- Contact Type: Socket contacts (female)
- Connector Series: EPIC H-D rectangular
- Termination Method: Crimp (stamped or machined contacts)
- Certification: VDE-REG. No. B437
- Material: Copper alloy contacts with gold plating
- Mounting: Panel-mount frame integration with 3 mm mounting hole
Typical Applications
The connector insert is ideal for applications requiring a high number of contacts, commonly found in machine or device manufacturing. The H-D-25-B is commonly used in:
- Industrial control systems and PLCs
- Machine automation and robotics
- Packaging and processing equipment
- Motor control and drive systems
- Signal distribution panels
- Test and measurement instrumentation
Compatibility & Replacements
Compatible With
- Lapp EPIC H-D rectangular connector housings and frames
- Lapp panel-mount connector frames for H-D series
- Lapp sleeve housing systems (VS-25 and equivalent dimensions)
- Standard 25-position rectangular connector systems using Lapp specifications
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The H-D-25-B is a contact insert component; full replacement typically requires matching the connector housing, frame, and termination contact type (stamped vs. machined).
Works With
- Crimp termination tools compatible with Lapp stamped and machined contacts
- Lapp EPIC H-D connector housings and panel-mount frames
- Standard rectangular connector strain relief sleeves
- Industrial automation wiring and control systems
