Overview
The Conbraco 87A10801 is a 2-inch flanged ball valve from Apollo’s 87A-100 series, designed for industrial applications requiring corrosion-resistant fluid control. Built with 316 stainless steel body and ball, paired with PTFE seals, this valve delivers reliable shutoff and excellent corrosion resistance in demanding environments. The standard port configuration and lever-operated actuator make it ideal for manual flow control in chemical, petrochemical, and general industrial systems.
Key Features
- 316 stainless steel ball and body construction for superior corrosion resistance
- PTFE (Teflon) trim seats and seals for chemical compatibility
- 250 psig (150 lb pressure class) rated for standard industrial service
- Flanged end connection per ANSI standard pattern
- Lever-operated manual actuator for easy on-off control
- Standard port (non-full-port) design for reliable shutoff performance
Technical Specifications
- Part Number: Conbraco 87A10801
- Series: Apollo 87A-100 (Stainless Steel Flanged)
- Nominal Size: 2 inches
- End Connections: Flanged (150 lb ANSI)
- Pressure Rating: 250 psig (cold, non-shock)

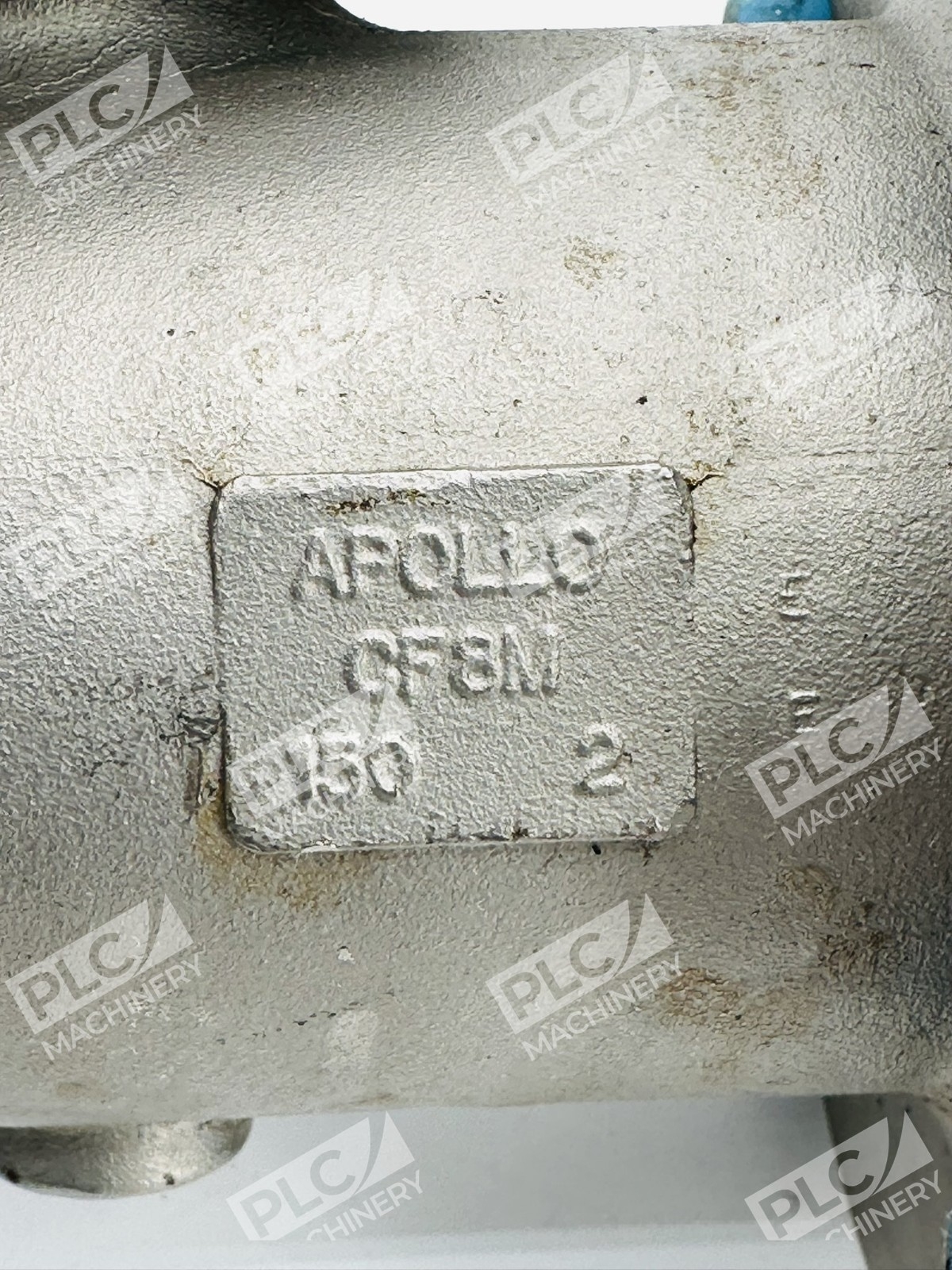

- Body Material: 316 Stainless Steel
- Ball Material: 316 Stainless Steel
- Trim Material: 316 Stainless Steel / PTFE
- Port Type: Standard Port
- Actuator Type: Lever Operated
- Inlet to Outlet Length: 7 inches
- Top to Inlet Center Height: 4.62 inches
- Seat/Seal Material: PTFE
Typical Applications
The 87A10801 is commonly used in:
- Chemical and petrochemical processing plants
- Water treatment and desalination systems
- Oil and gas pipeline isolation and control
- Corrosive media service where 316 stainless steel is specified
- Tank outlet and bypass applications requiring manual isolation
- General industrial shutoff service in pressurized systems
Compatibility & Replacements
Compatible With
- ANSI 150 lb flanged piping systems
- Standard 2-inch flanged connections per ANSI B16.5
- Systems rated for 250 psig working pressure
- Manual and pneumatic actuator mounting (ISO 5211 pad)
- Stainless steel and carbon steel piping systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 87A10801 replaces other Apollo 87A-100 series 2″ flanged valves with identical pressure class and connection pattern.
Works With
- ISO 5211 mounting pad for pneumatic and electric actuators
- ANSI B16.5 flanged connection standard
- Industrial process control systems
- Manual lever operation or actuator-ready conversion
