Overview

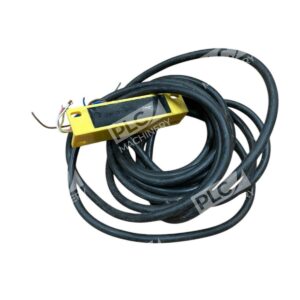

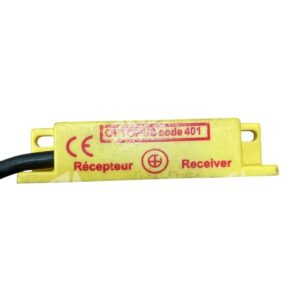

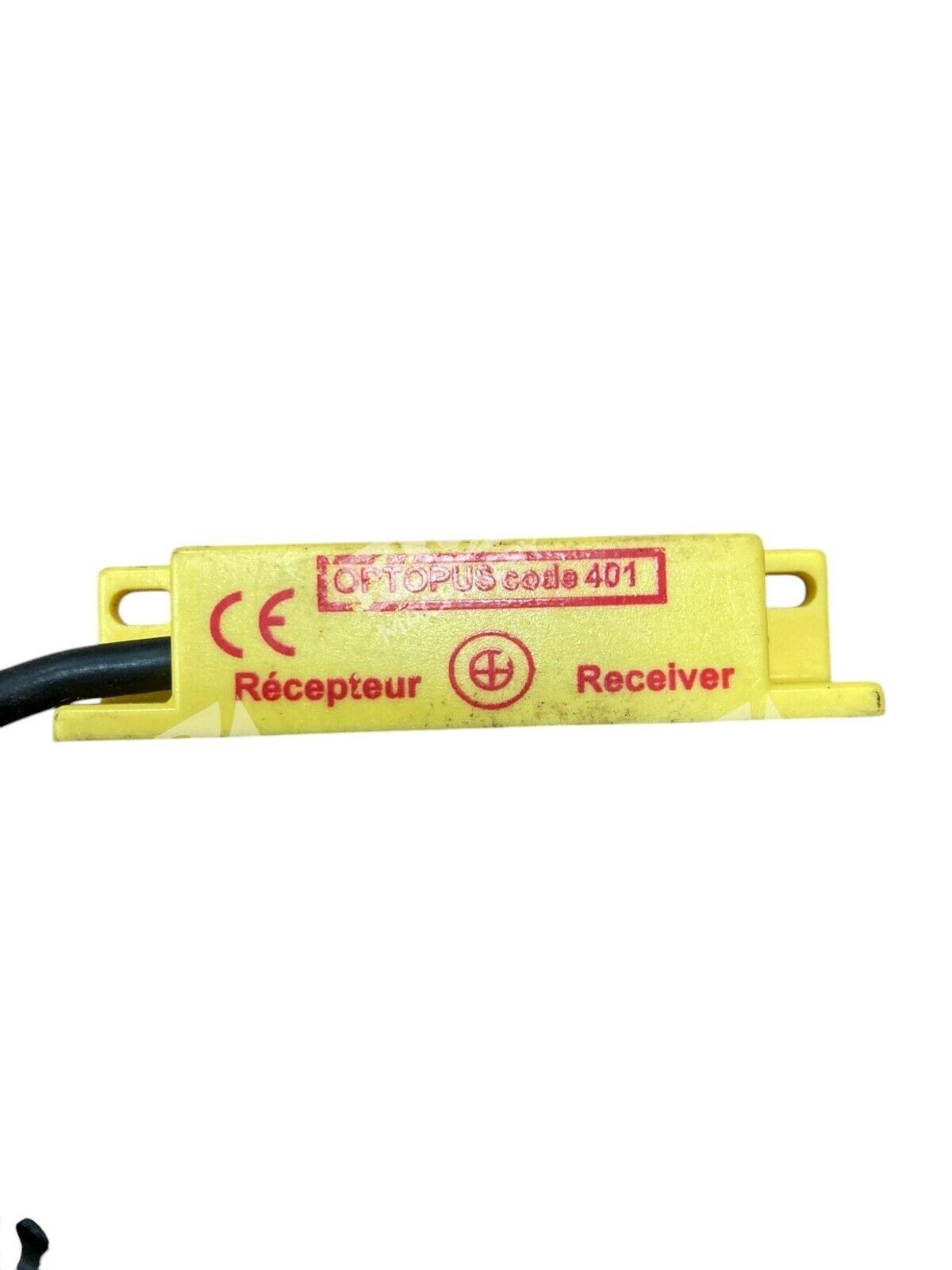

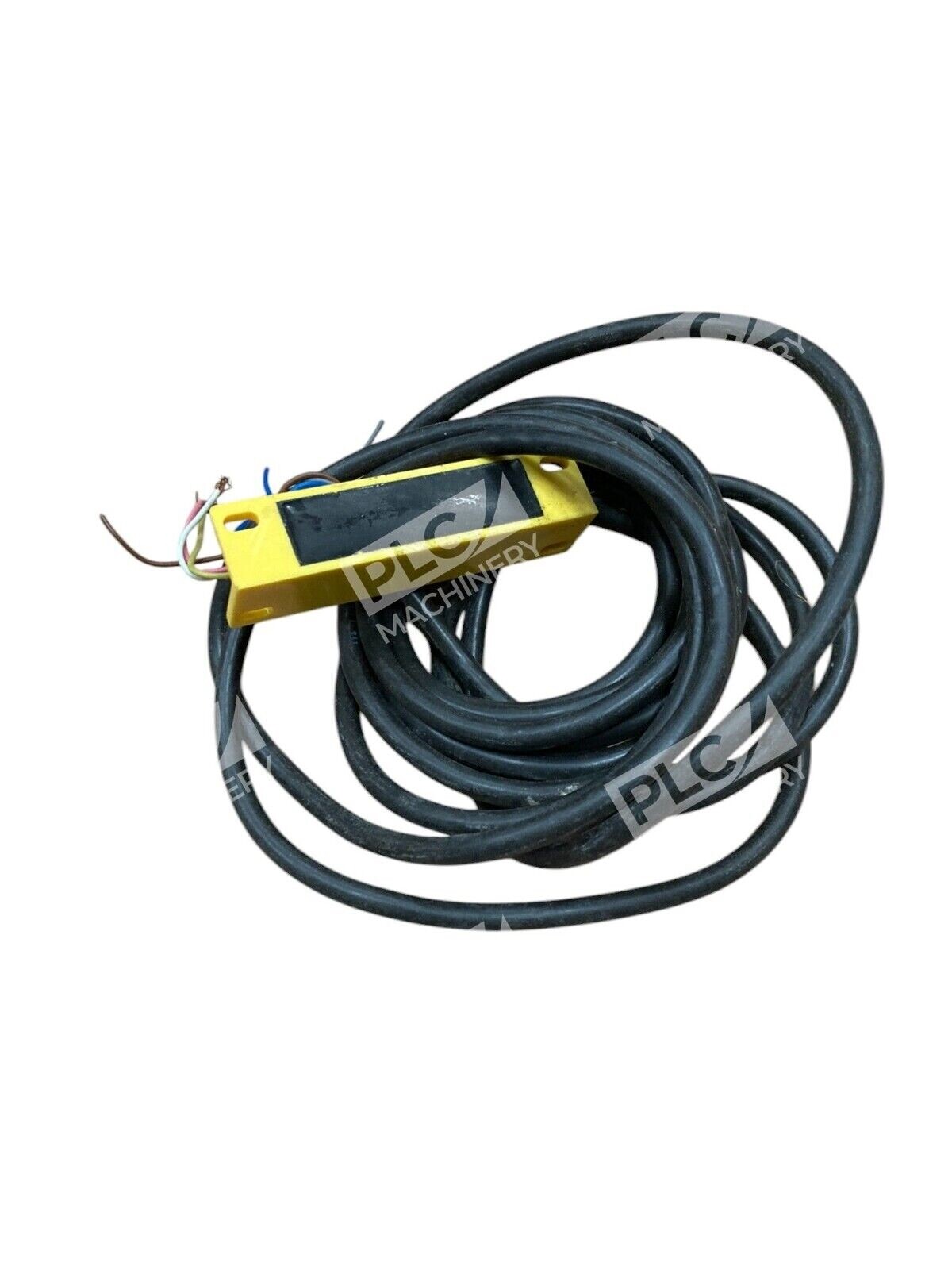

The Comitronic BTI 401-OPTOPUS is a miniature non-autonomous safety switch receiver engineered for position control on dangerous machinery access points. It operates at 24V with a primary current of 250 mA and uses patented solid-state process-coded construction with no moving parts, eliminating the wear and alignment issues inherent to mechanical or reed-switch interlocks. Manufactured in France by Comitronic-BTI, this unit is ideal for guarding doors, gates, and casings on hazardous equipment.
Key Features
- Coded Magnetic Detection: Mono-code inviolable detection encoding with LED indicator for code recognition
- Safety Contacts: 2 x NO 0.4A maximum at 24V (redundant) plus 1 x 250mA PNP contact
- Safety Performance: PL = e per EN ISO 13849-1, Category 4 with AWAX controller
- Switching Distance: Maximum 9 mm activation distance with 1 mm hysteresis
- Automatic Reset: Automatic reset operation
- Mounting: 4 tamper-proof M3 screws (optional bracket ref: BH3)
Technical Specifications
- Supply Voltage: 24 V DC
- Primary Current: 250 mA

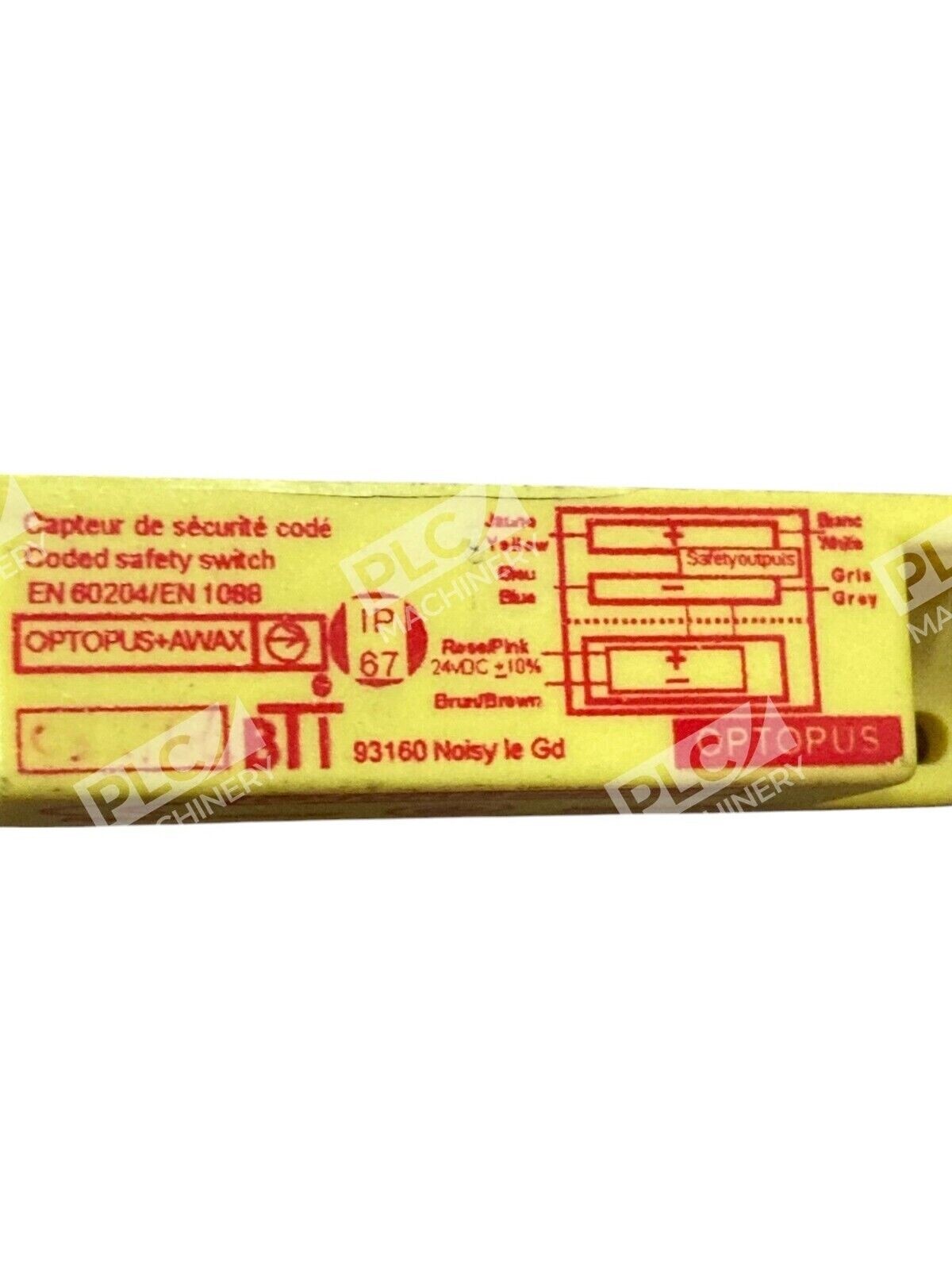

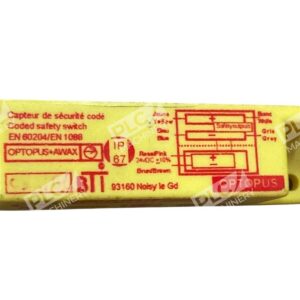

- Safety Contacts: 2 x NO 0.4A @ 24V + 1 x PNP 250mA
- Operating Temperature: -20°C to +60°C
- IP Rating: IP67
- Switching Distance: 9 mm
- Hysteresis: 1 mm
- Cable Material: PVC

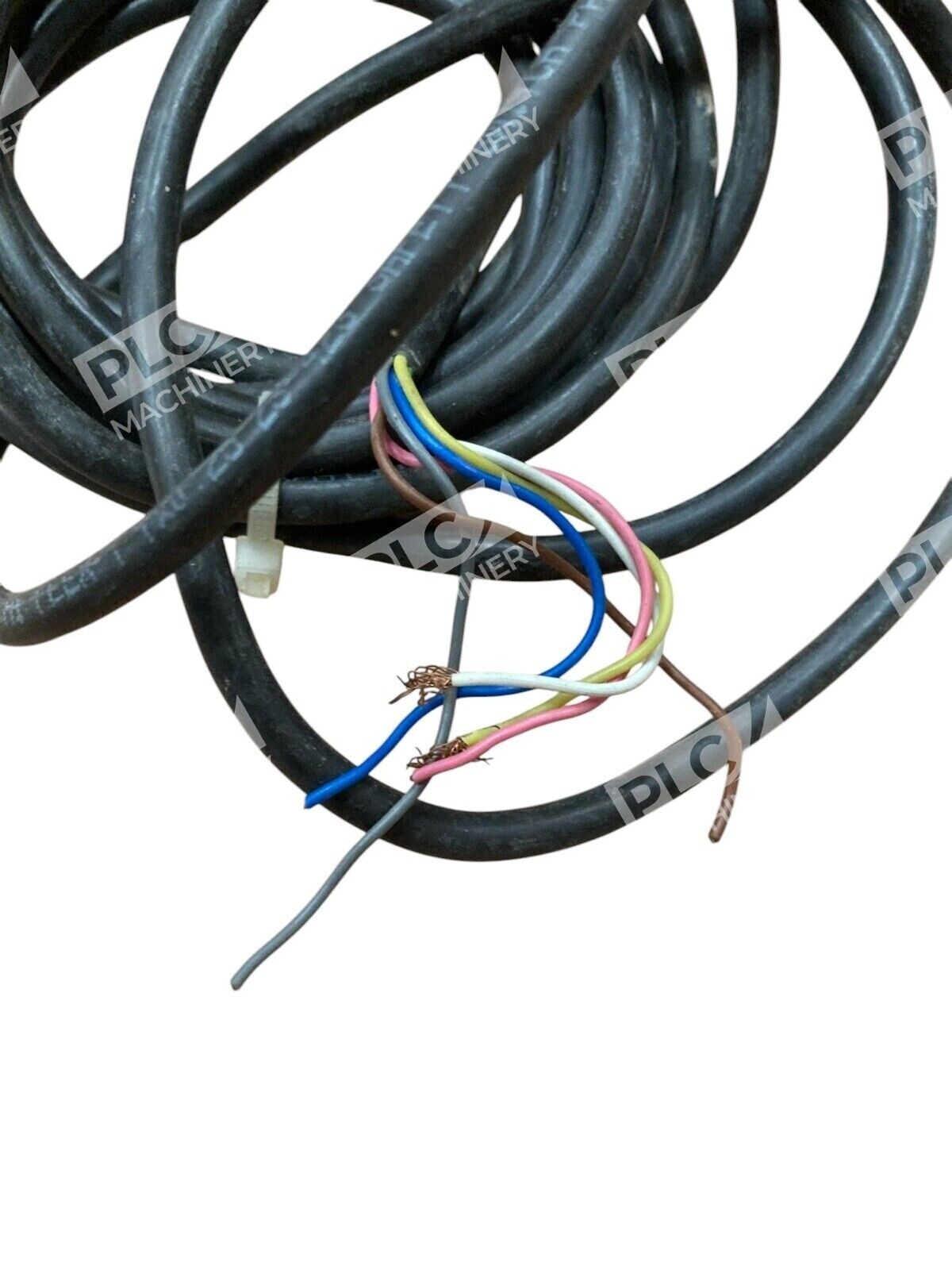

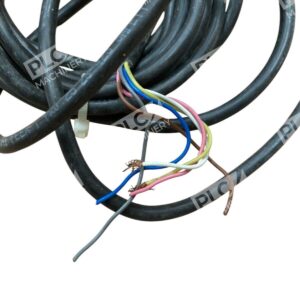

- Cable Length: 6 meters with connector termination
- Weight: 515 g
- Detection Encoding: Mono-code inviolable
Typical Applications
- Machine Guarding: Position control for interlock doors and casings on hazardous industrial machinery
- Access Control: Multi-access protection for dangerous production areas with low-cost monitoring solutions
- Automation Systems: Auxiliary safety signaling in automated production lines requiring non-contact position verification
- Safety Interlocks: Coded magnetic switching for emergency stop circuits and equipment lockout/tagout (LOTO) applications
Compatibility & Replacements
Compatible With
- AWAX controller systems for safety management and diagnostics
- 24V DC industrial control systems and safety relay modules
- Safety hardwired circuits requiring redundant contact monitoring
- Industrial machine builders using ISO 13849-1 certified interlocks
Replaces / Drop-In Replacement For
- OPTOPUS DEC series magnet safety switches
- Other Comitronic-BTI miniature coded receivers in safety interlock applications
- Verify exact compatibility with your current transmitter unit before ordering, as receiver/transmitter pairs must be matched.
Works With
- COMITRONIC-BTI patented solid-state process-coded magnetic systems
- Comitronic-BTI OPTOPUS DEC transmitter units for non-autonomous safety switch operation
- Standard 24V DC safety relay circuits and diagnostic modules
- ISO 13849-1 compliant machine control systems
