Overview

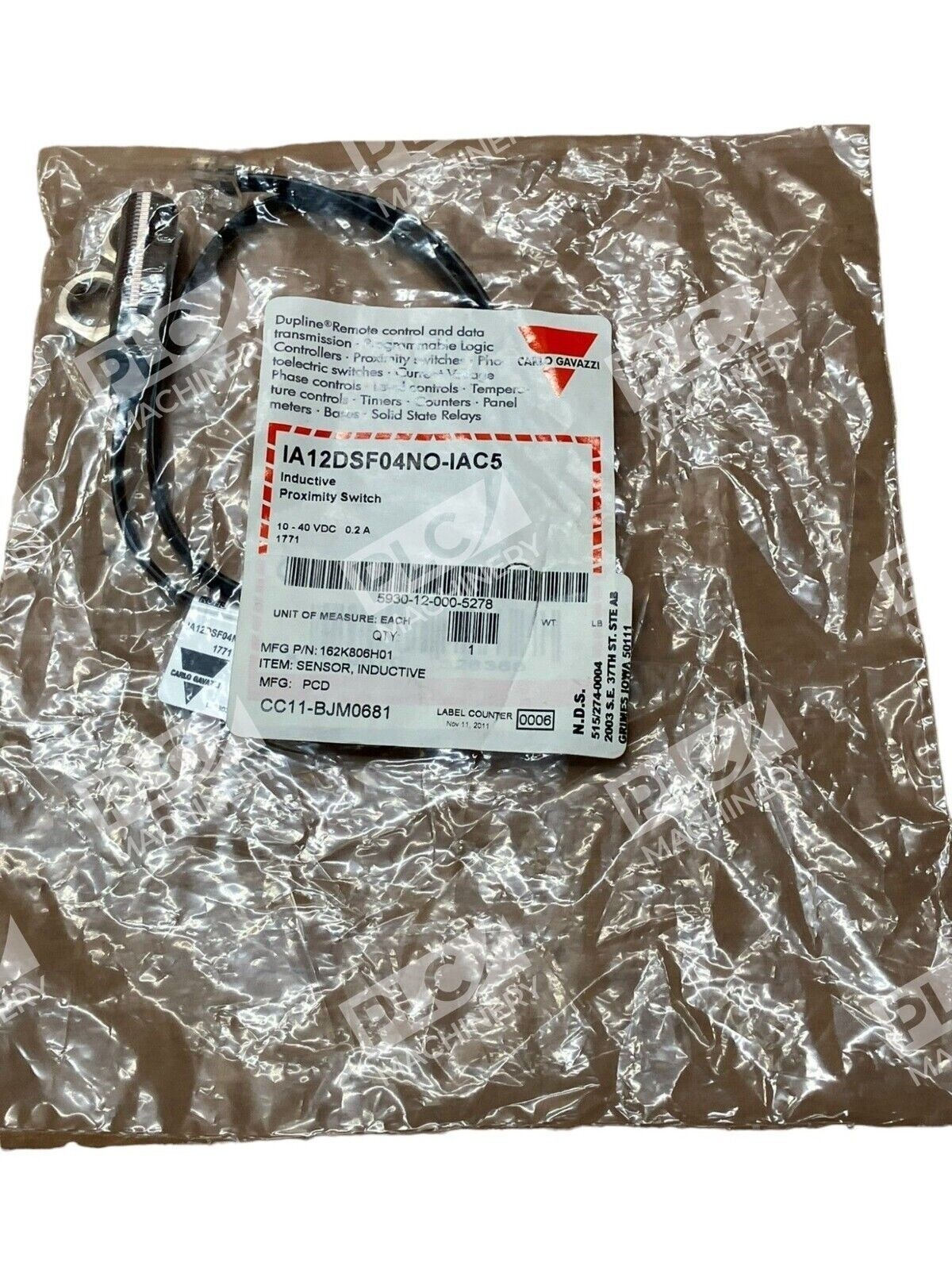

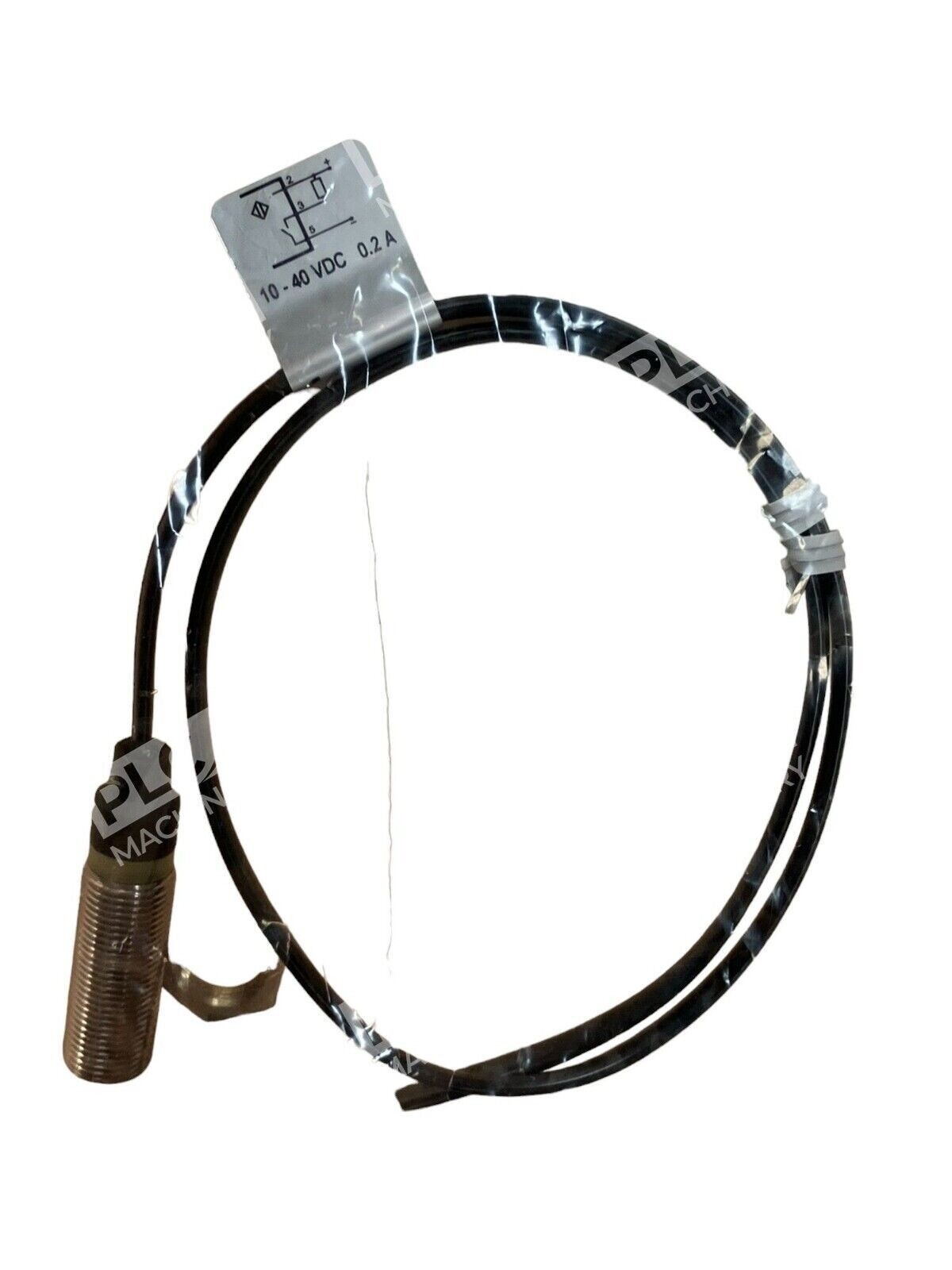

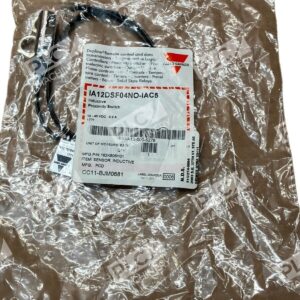

The Carlo Gavazzi IA12DSF04NO-IAC5 is an inductive proximity switch engineered for industrial automation and motion control applications. This M12-housed sensor provides non-contact detection of metal objects, making it ideal for manufacturing, automotive, packaging, and assembly line environments. The device transmits signals upon object presence without requiring physical contact, reducing wear and improving system reliability.
Key Features
- Inductive Sensing Technology – Detects ferrous and non-ferrous metal objects reliably without physical contact
- M12 Compact Housing – Threaded barrel design for easy installation in tight industrial spaces
- 4mm Sensing Distance – Optimized detection range for precision positioning and object counting applications
- Normally Open (NO) Output – Switch closes when metal object approaches; integrates seamlessly with PLC and control systems
- Wide Supply Voltage Range – 10-30VDC operation accommodates diverse industrial power architectures
- IP67 Protection Rating – Sealed against dust and moisture for robust performance in harsh factory environments
- Reverse Polarity Protection – Built-in protection against incorrect wiring
Technical Specifications
- Sensor Type: Inductive Proximity Switch
- Housing: M12 Threaded Barrel
- Detection Range: 4 mm
- Output Type: Normally Open (NO)
- Supply Voltage: 10–30 VDC
- Protection Rating: IP67 (dust and moisture sealed)
- Series: IA12DSF
- Country of Origin: Denmark (Carlo Gavazzi)
Typical Applications
- Parts presence and counting on automated conveyor systems
- Position detection in robotic handling and assembly
- Metal object detection in packaging and filling lines
- Limit switching in motion control and machinery
- Automotive production line object sensing
- Material handling and sorting automation
Compatibility & Replacements
Compatible With
- Allen-Bradley PLCs and CompactLogix controllers via standard digital input modules
- Siemens S7-1200, S7-1500 controllers (24VDC I/O)
- Mitsubishi FX and Q-series PLCs
- Omron CP and NJ series controllers
- Schneider Electric Modicon and Harmony panels
- Standard 24VDC or 12VDC industrial control systems
- EtherNet/IP and PROFIBUS networks (via appropriate I/O interface)
Replaces / Drop-In Replacement For
- Carlo Gavazzi IA12DSF04NO (without connector variant)
- Similar M12 4mm inductive sensors from industry equivalents
Works With
- Studio 5000 (Allen-Bradley digital input configuration)
- TIA Portal (Siemens S7 projects)
- GX Works (Mitsubishi FX/Q programming)
- Sysmac Studio (Omron controllers)
- Discrete 24VDC input modules and standard relay logic
- No specialized software required; operates as a simple digital switch
