Overview

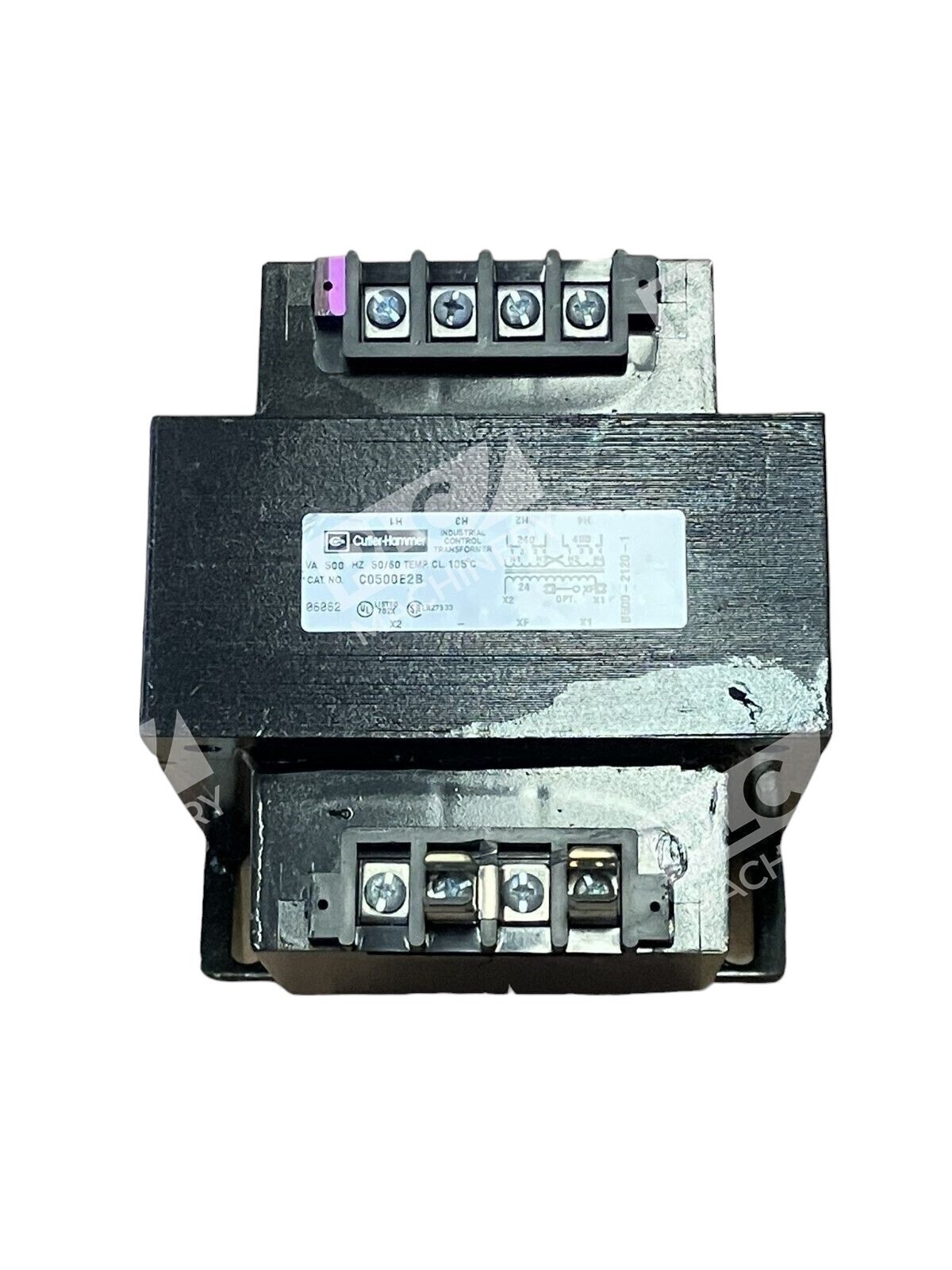

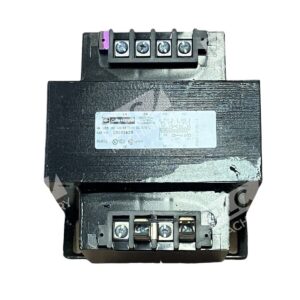

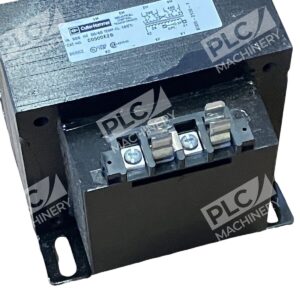

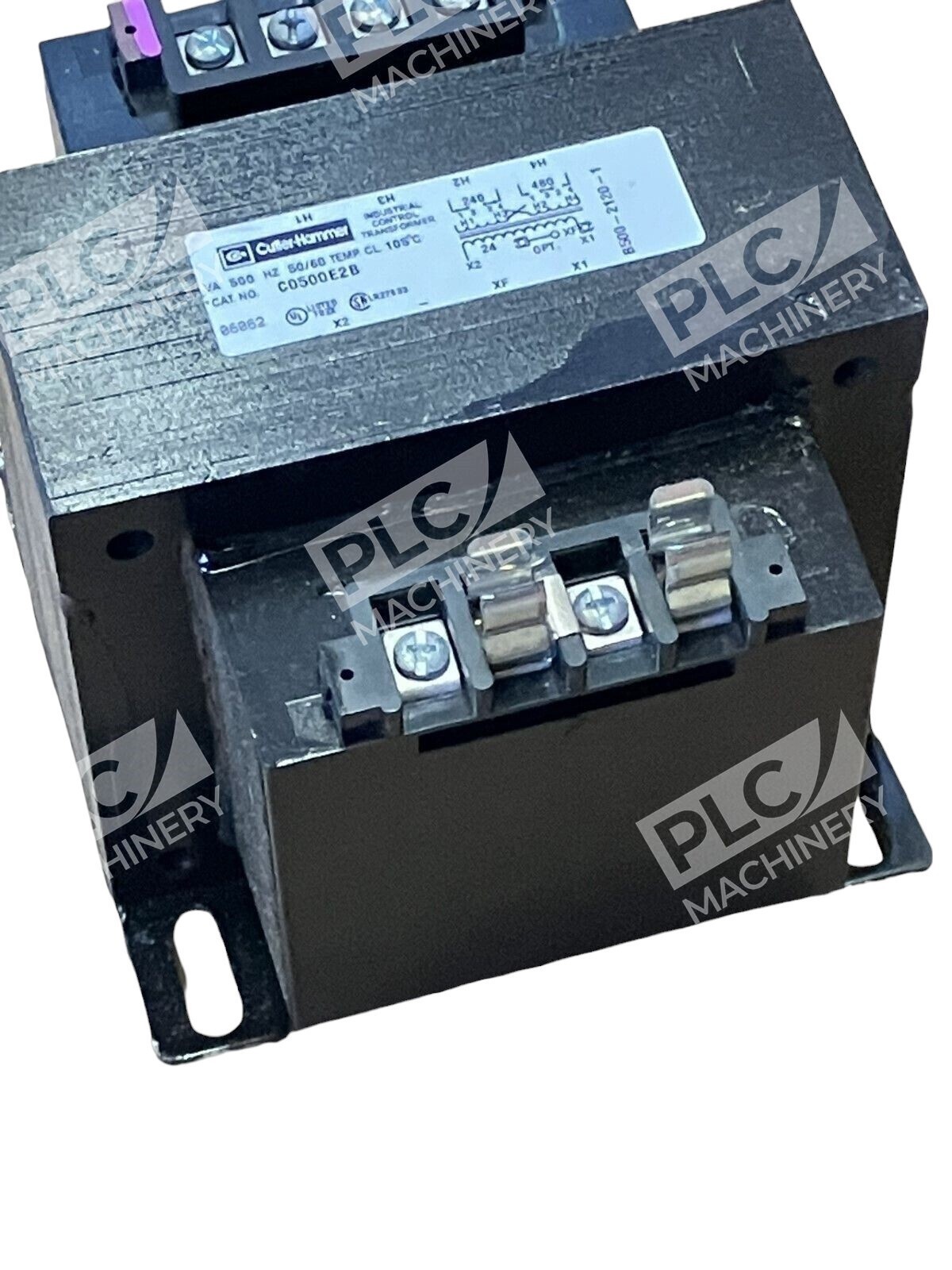

The Eaton C0500E2B is a Type MTE industrial control transformer rated at 500 VA, engineered for reliable step-down voltage conversion in industrial control systems. This Type MTE industrial control transformer features primary voltage options of 240×480V, 230×460V, or 220×440V, with secondary voltage of 120/115/110V. It enables safe isolation of control circuits from main power and lighting systems, supporting both single-phase 50/60 Hz operation.
Key Features
- Operates at 50/60 Hz for North American and international installations
- Copper magnet wire construction for efficient transformer operation
- Regulation exceeds ANSI/NEMA requirements and meets ST-1 performance standards
- Provides stepped-down voltages enabling isolated control circuits independent of power and lighting grounds, affording greater safety to the operator
- Primary fuse block included for circuit protection
- Stainless steel enclosure material for durability in industrial environments
Technical Specifications
- Power Rating: 500 VA
- Primary Voltage: 240×480V (also 230×460V, 220×440V available)
- Secondary Voltage: 120/115/110V AC
- Frequency: 50/60 Hz
- Phase: Single Phase
- Temperature Rating: 55°C
- Coil Material: Copper
- Enclosure Material: Stainless Steel
- Type: Industrial Control Transformer (MTE Series)
- Conversion Function: Step-down
Typical Applications
The Eaton C0500E2B is ideal for:
- Machine tool and CNC automation control circuits
- Industrial panel-mount installation where isolated low-voltage control is required
- Factory automation systems requiring voltage step-down and circuit isolation
- Motor control centers and switchgear where independent control power is needed
- OEM equipment where safe operator control and NEMA compliance are essential
Compatibility & Replacements
Compatible With
- Industrial control panels and enclosures rated for 240V or 480V primary input
- Motor control centers (MCCs) and switchgear requiring isolated 120V secondary control power
- Machine tool control systems requiring stepped-down control voltage
- Facility electrical systems operating at 50 or 60 Hz
Replaces / Drop-In Replacement For
- C0500E2AFB (equivalent Type MTE rating, verify tap configuration with system integrator)
- C0500E5E and other 500VA Type MTE transformers (confirm primary/secondary voltage compatibility)
- Legacy Cutler-Hammer control transformers with matching voltage and VA ratings
Works With
- Allen-Bradley control systems and motor control centers
- Siemens SIMATIC industrial automation platforms
- Mitsubishi FA industrial equipment
- Schneider Electric and other major OEM control panels
- Standard industrial electrical enclosures and switchgear requiring 50/60 Hz operation
