Overview

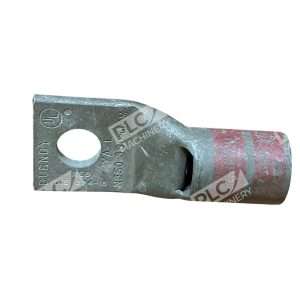

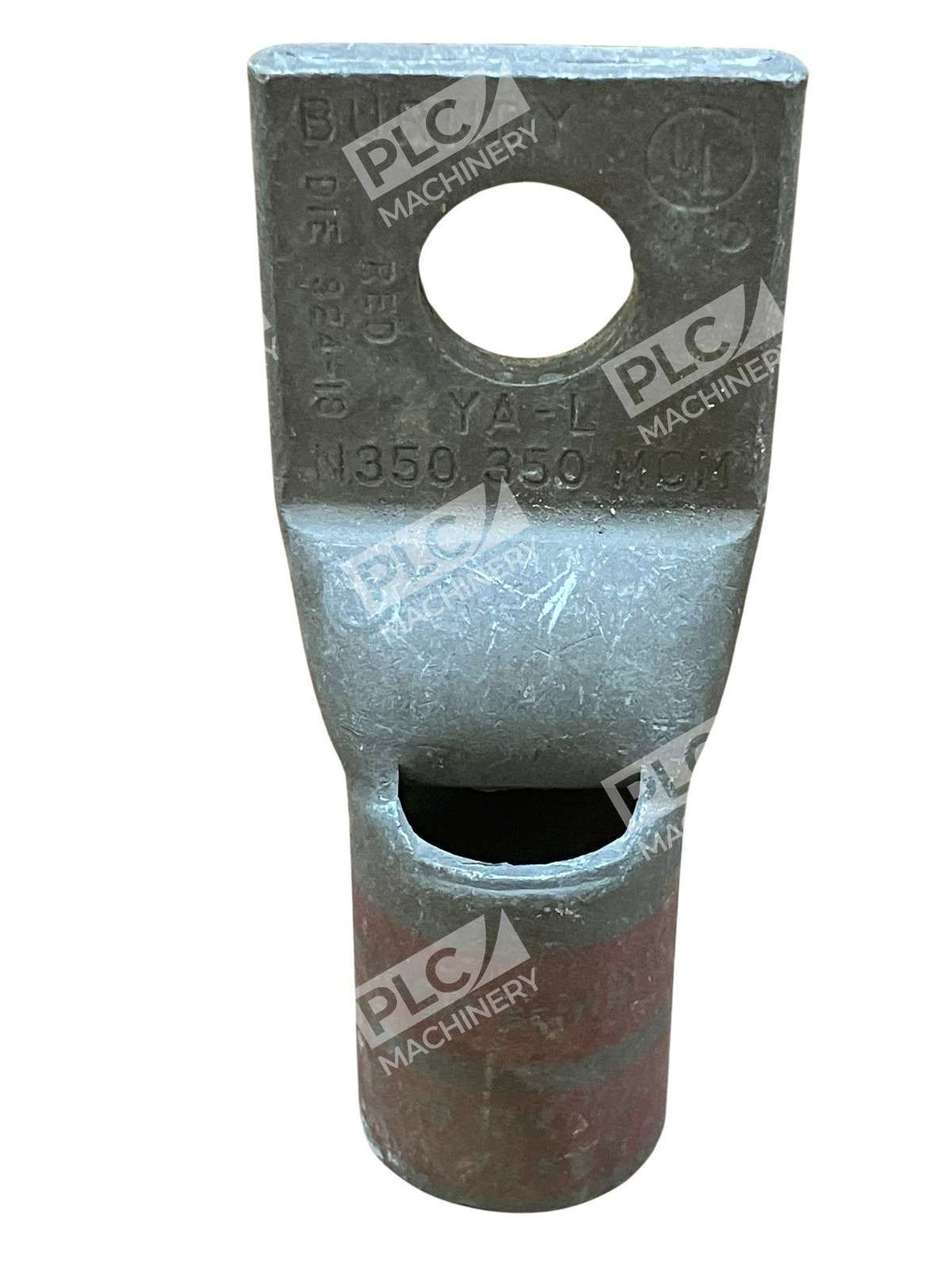

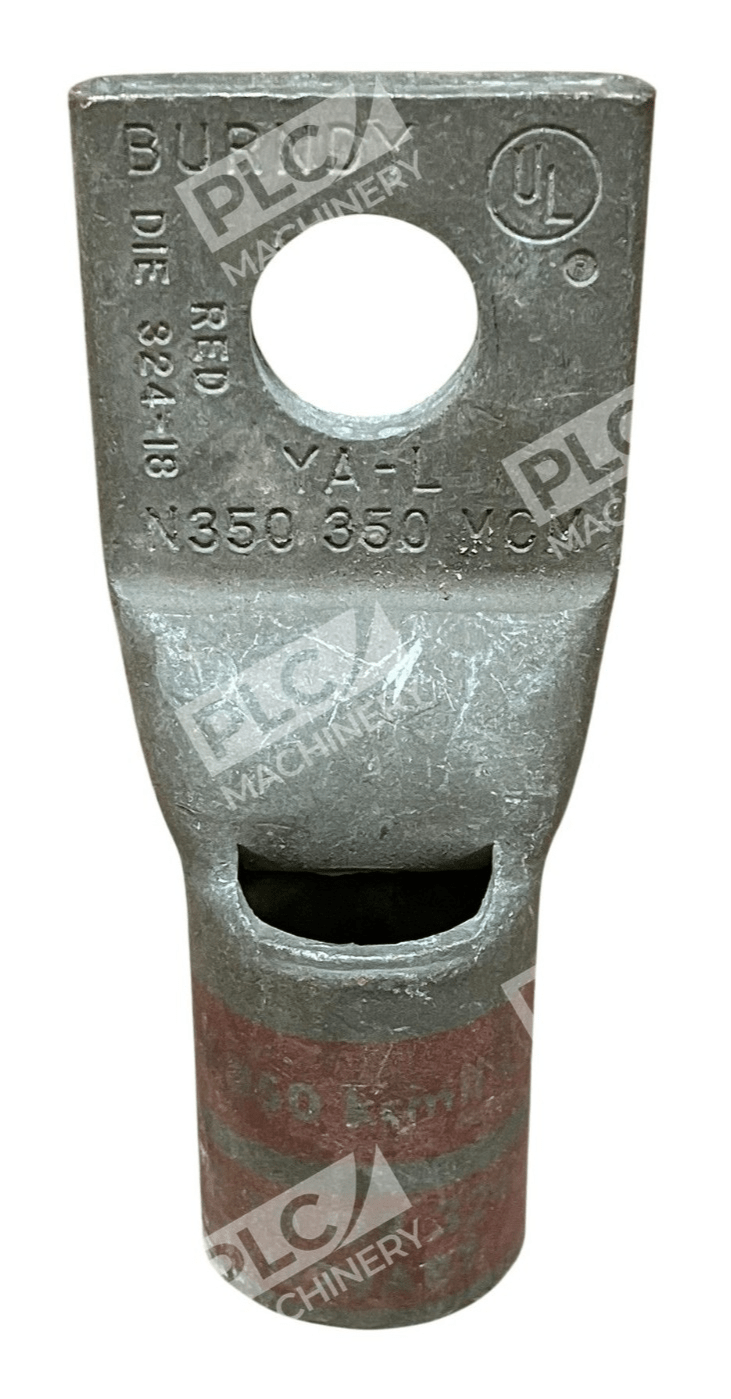

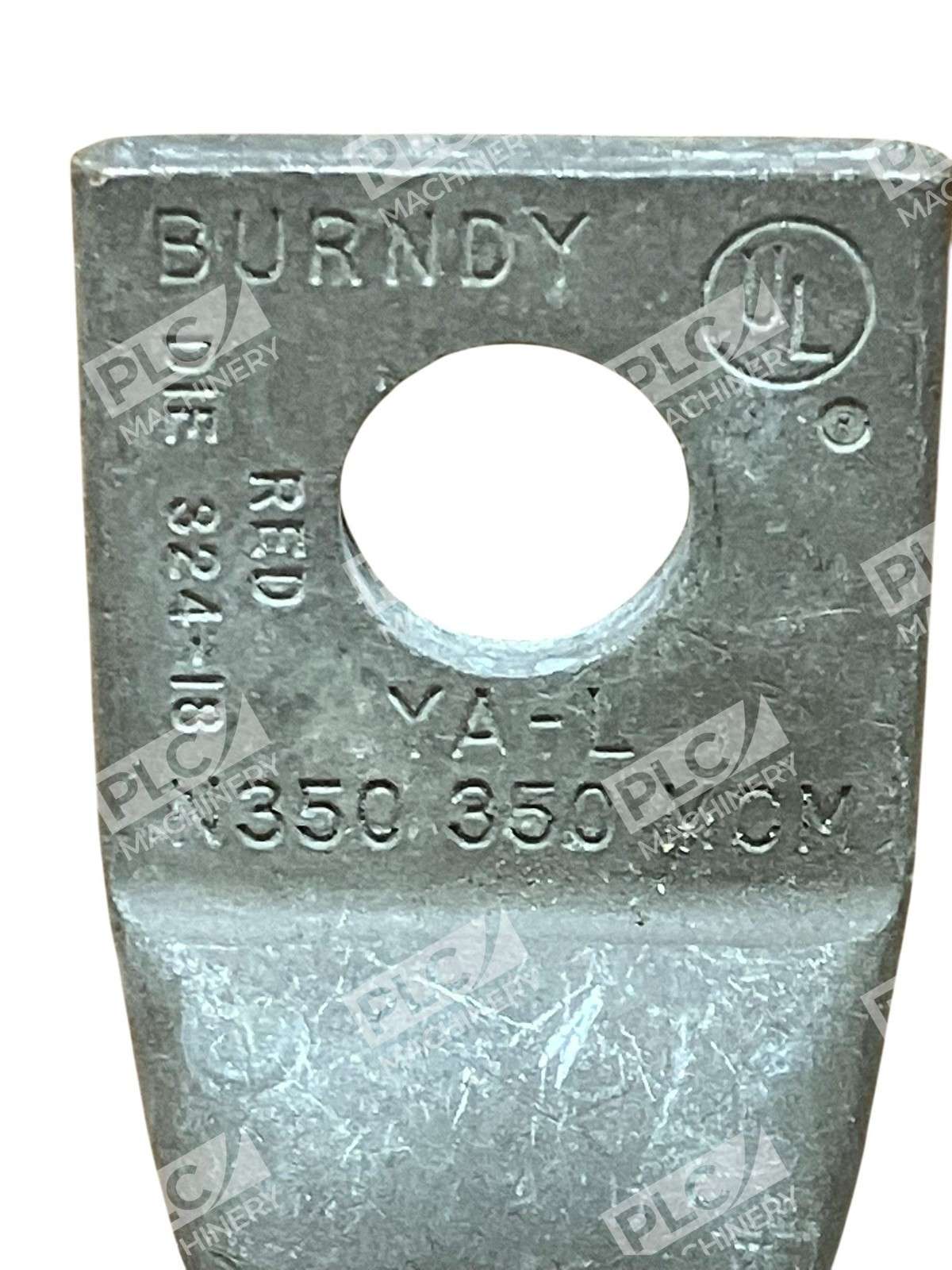

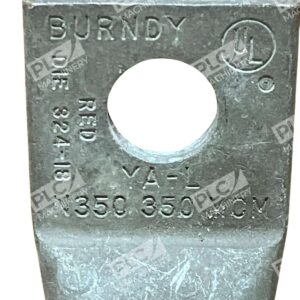

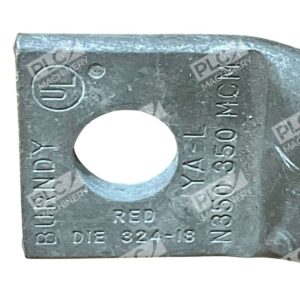

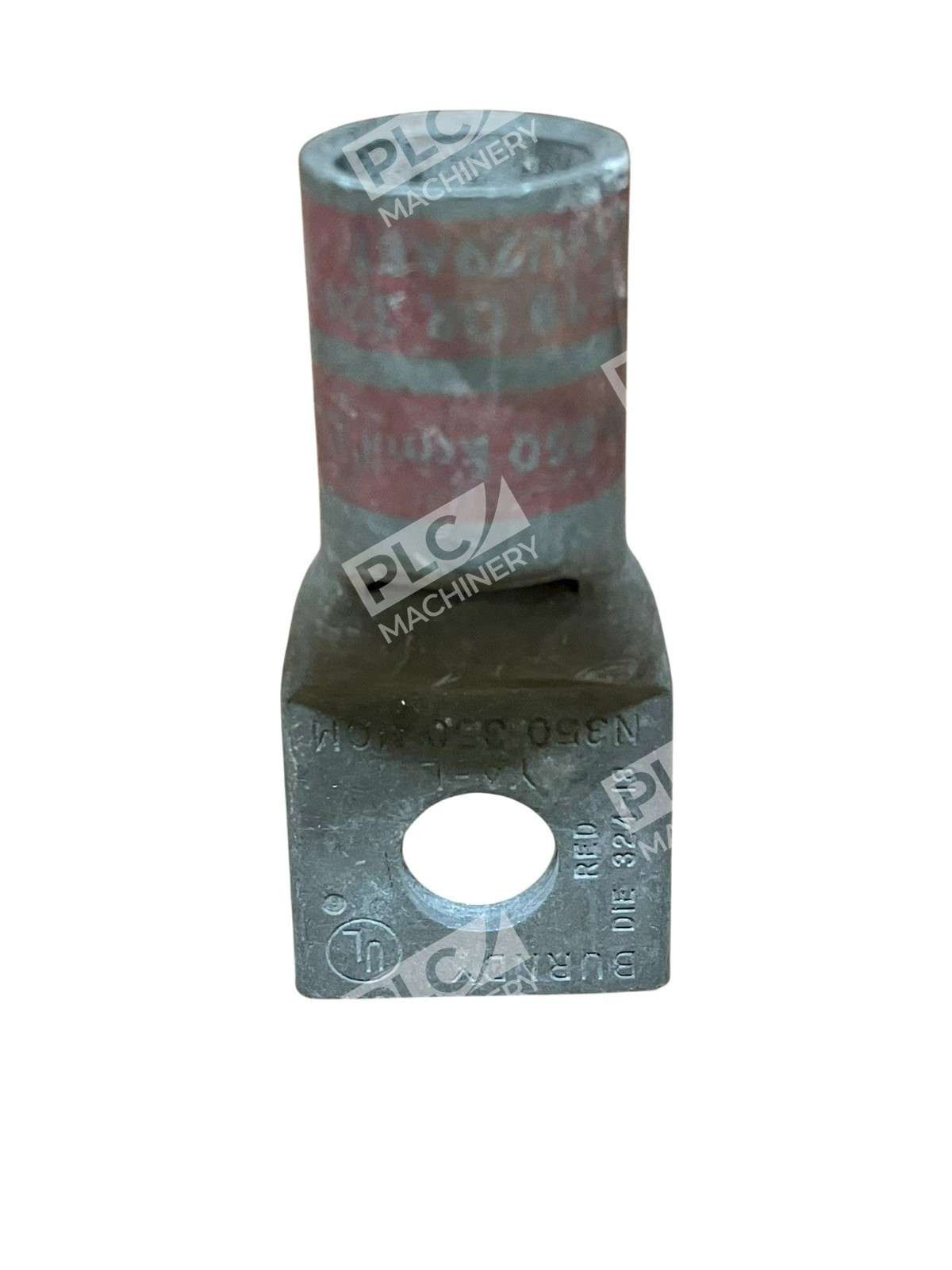

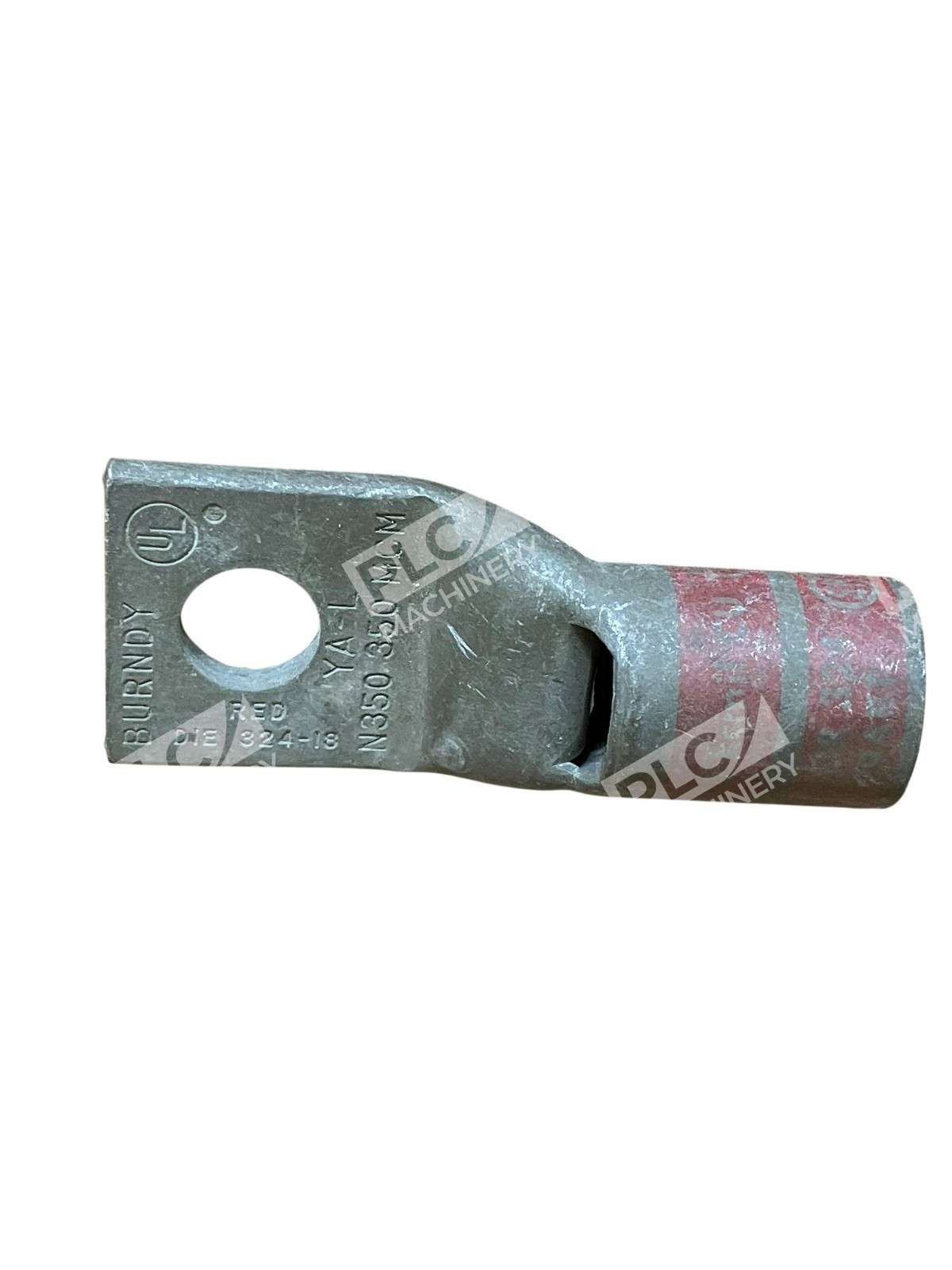

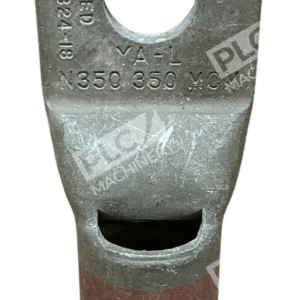

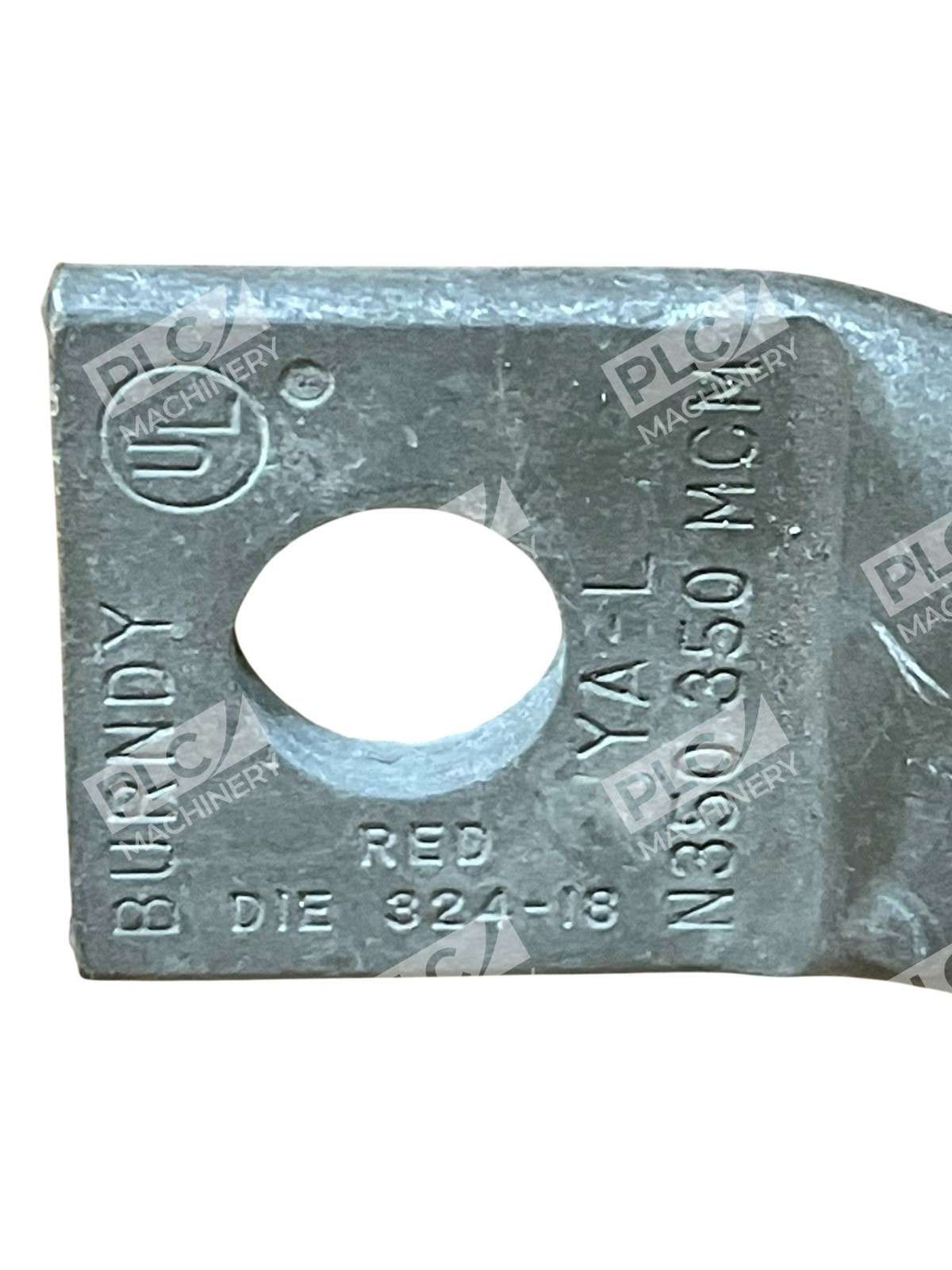

The Burndy YA-L N350 350 MCM compression lug is a heavy-duty copper terminal designed for terminating 350 kcmil (kilowatt circular mil) copper conductors in industrial, utility, and commercial electrical applications. These HYLUG™-series connectors feature red color coding and die index 324-18 for easy identification during installation. Manufactured from seamless high-conductivity electrolytic copper with electro-tin plating, they deliver reliable low-resistance electrical connections rated for up to 35 kV.
Key Features
- Seamless high-conductivity electrolytic copper barrel construction for low resistance and ductility
- Red color-coded with die index 324-18 for tool die matching
- Electro-tin plated for durable corrosion resistance in outdoor and harsh environments
- Rated for 350 kcmil wire terminations and 1/2" bolt stud connections
- UL/CSA certified for utility and industrial power distribution
- Long barrel design for optimal crimp geometry and conductor grip
Technical Specifications
- Wire Gauge: 350 kcmil (MCM)
- Connector Type: Compression Lug Terminal
- Stud/Bolt Size: 1/2 inch
- Material: Electrolytic Copper, Tin Plated
- Color Code: Red
- Die Index: 324 / 18
- Barrel Configuration: Long Barrel with Internal Chamfer
- Temperature Rating: 90°C
- Voltage Rating: Up to 35 kV
- Certifications: UL/CSA Listed
- Plating: Electro-tin plated (proprietary brite finish)
- Series: HYLUG™ (Burndy)
Typical Applications
- Utility power distribution and transmission substations
- Industrial motor and equipment terminations
- Central office and wireless telecommunications infrastructure
- Commercial electrical panels and switchgear
- Heavy-gauge copper bus bar and cable lug assemblies
- Renewable energy systems (solar, wind) requiring high-amperage connections
Compatibility & Replacements
Compatible With
- Burndy Y35, Y39, Y750, and PAT750 series crimping tools
- Burndy MD7-34R, Y500CTHS, Y46, and PAT750 crimping equipment
- Standard compression lug applications using 1/2" stud bolt fasteners
- 350 kcmil copper wire (solid and stranded, per NEC and CEC standards)
Replaces / Drop-In Replacement For
- Burndy YA312N (2-hole variant)
- Burndy YA31 (single-hole standard barrel)
- Other 350 kcmil red die (324-18) compression lugs meeting ASTM and UL specifications
Works With
- Burndy compression crimping tools and dies rated for red die connectors
- ASTM B33 copper compression lug standards
- NEC Article 250 (grounding and bonding) and utility interconnection requirements
- Industry-standard 1/2" bolt stud electrical cabinets and equipment
