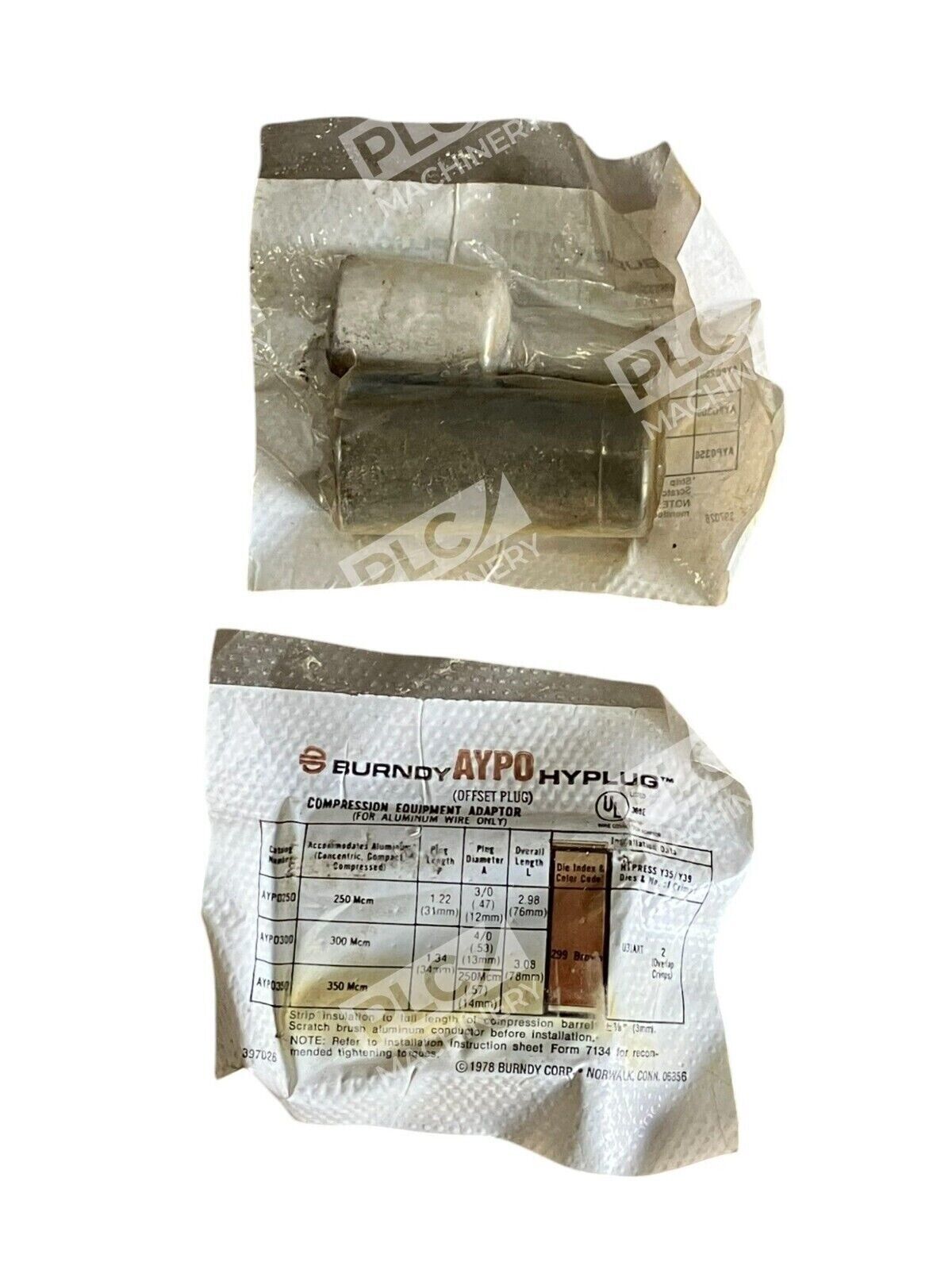

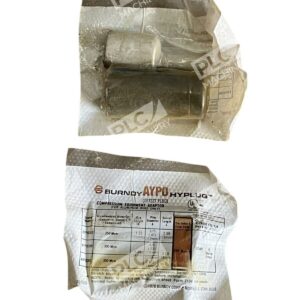

Overview
The Burndy Hyplug AYP0 series comprises aluminum compression adapters engineered for secure termination of aluminum and copper conductors in mechanical connector applications. This lot includes two units in sizes AYP0250, AYP0300, and AYP0350, designed to eliminate bi-metallic corrosion through all-aluminum, electro-tin-plated construction. Each adapter arrives factory sealed with Penetrox oxide-inhibiting compound and matching EPDM rubber cover rated for 600 VAC.
Key Features
- All-aluminum, electro-tin-plated design eliminates bi-metallic corrosion risk
- Factory prefilled with Penetrox compound containing conductive metallic particles for air-tight, low-impedance connections
- EPDM rubber covers supplied and rated for 600 VAC, eliminating need for tape
- Compact offset pin design permits installation in equipment with limited working space
- Solid electro-tin-plated aluminum plug provides smooth contact surface for superior electrical conductivity
- Five die sets cover wire range from 6 AWG to 750 kcmil, reducing inventory requirements

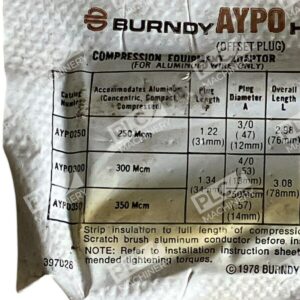

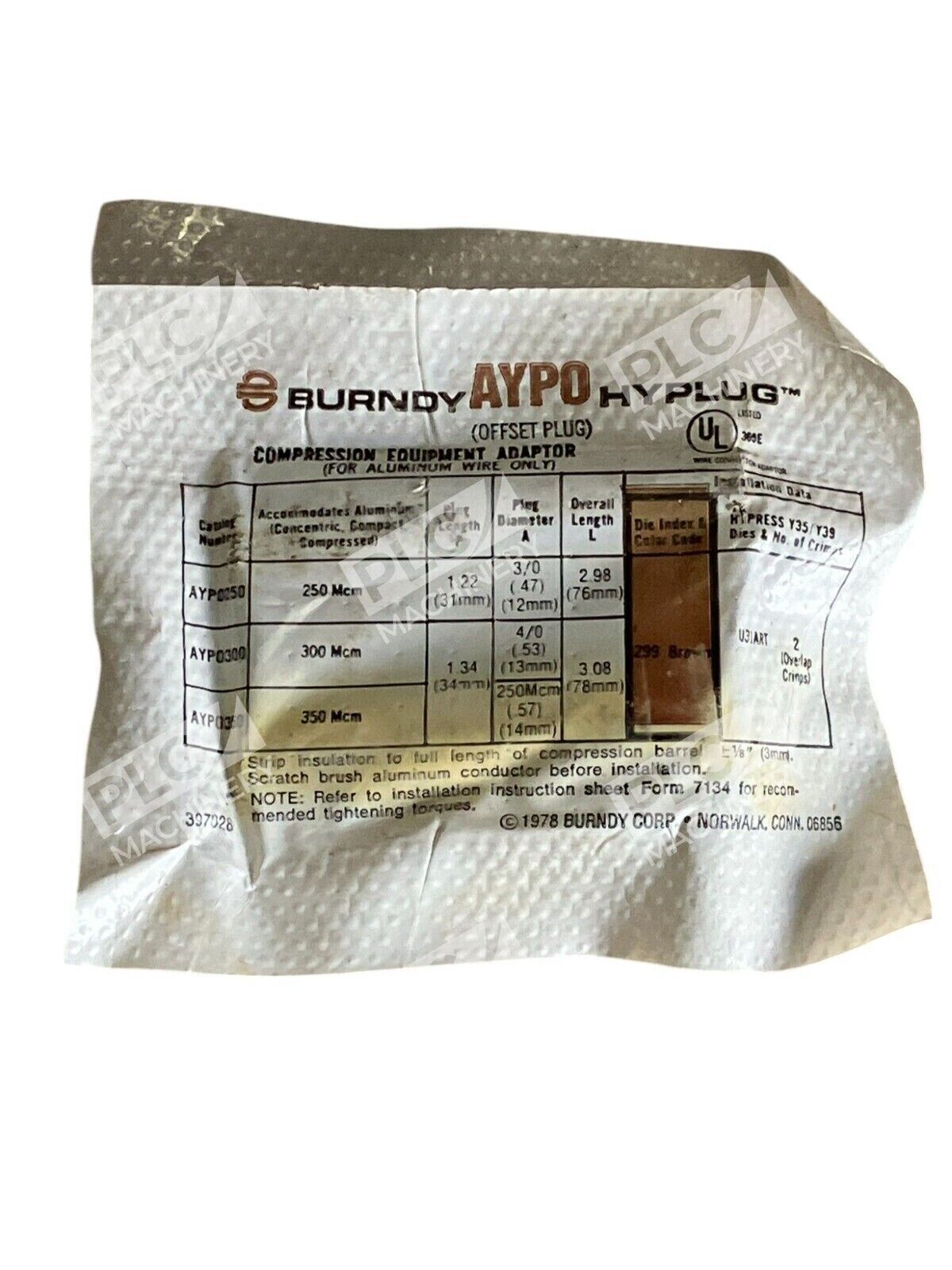

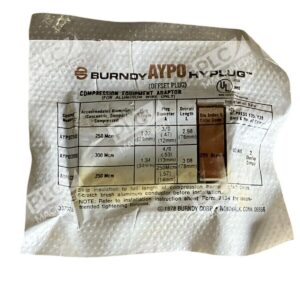

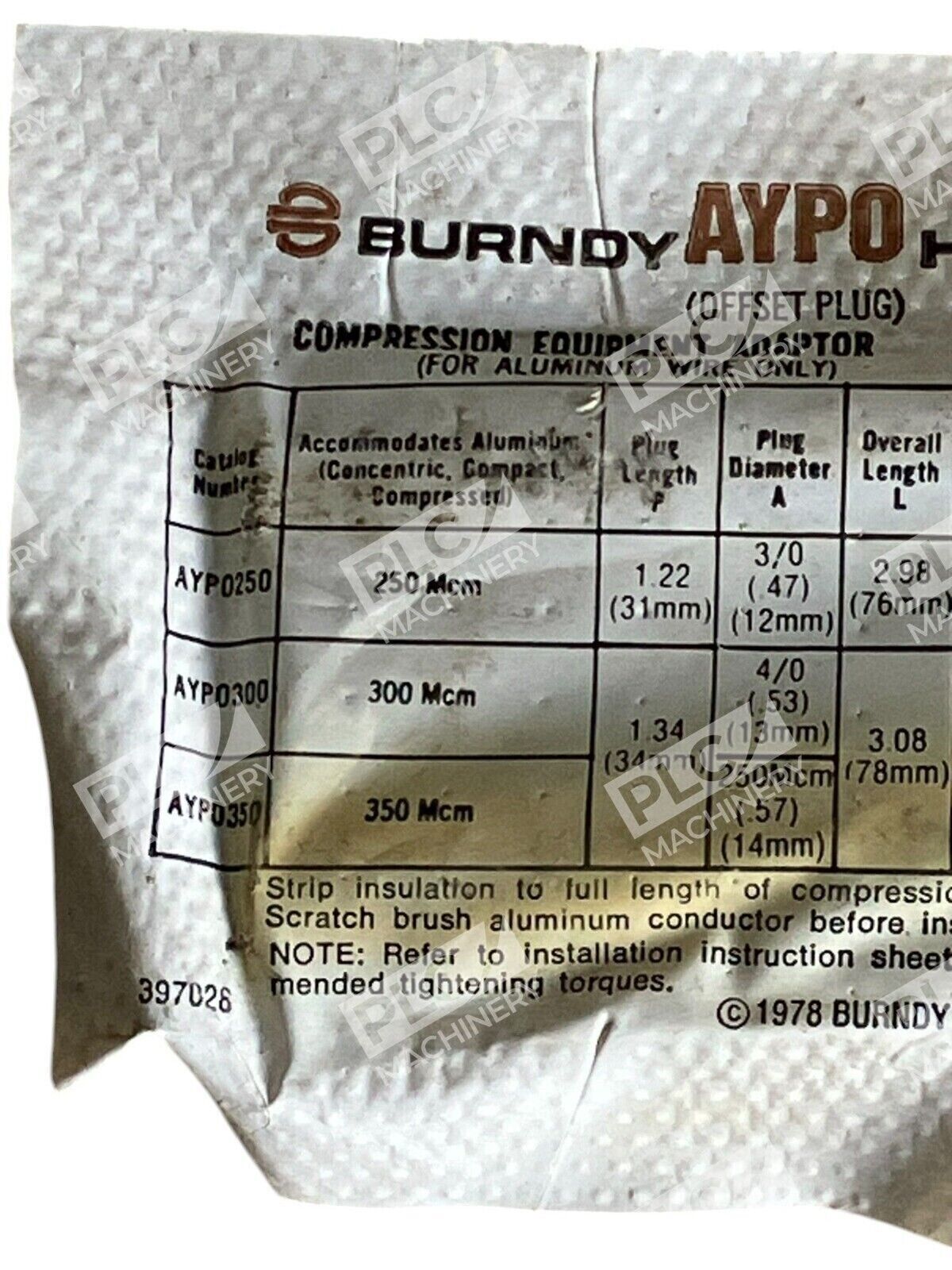

Technical Specifications
- Product Type: Compression Pin Adapter (Offset/Straight)
- Material: Aluminum, electro-tin-plated
- Conductor Compatibility: Aluminum and copper (Al/Cu rated)
- Voltage Rating: 600 to 35,000 VAC
- Temperature Rating: 90°C
- Preloading Compound: Penetrox (oxide inhibitor with conductive particles)
- Cover Material: EPDM rubber, 600 VAC rated
- Connector Finish: Electro-plated tin
- Wire Size Compatibility: 6 AWG to 750 kcmil (five die sets)
- Installation Method: Crimped compression termination
- Packaging: Individual plastic convenience pack (connector and cover together)
Typical Applications
Burndy Hyplug AYP0 adapters are specified in:
- Molded case circuit breaker terminations
- Panelboard and distribution equipment connections
- Meter socket conductor terminations
- Power distribution systems requiring aluminum-to-copper transitions
- High-current electrical equipment where space is constrained
Compatibility & Replacements
Compatible With
- Molded case circuit breakers (Schneider, Siemens, ABB, General Electric)
- Panelboard and switchgear equipment
- Meter socket assemblies (single-phase and three-phase)
- High-voltage distribution systems
- Mechanical connector applications rated 600 VAC to 35,000 VAC
Replaces / Drop-In Replacement For
- Burndy AYP350 (350 kcmil straight compression pin adapter)
- Burndy AYP0350 (offset version)
- Burndy AYP300 (300 kcmil compression adapter)
- Burndy AYP0300 (offset version)
- Burndy AYP250 (250 kcmil compression adapter)
- Burndy AYP0250 (offset version)

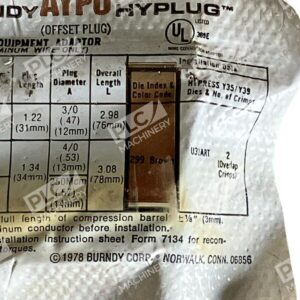

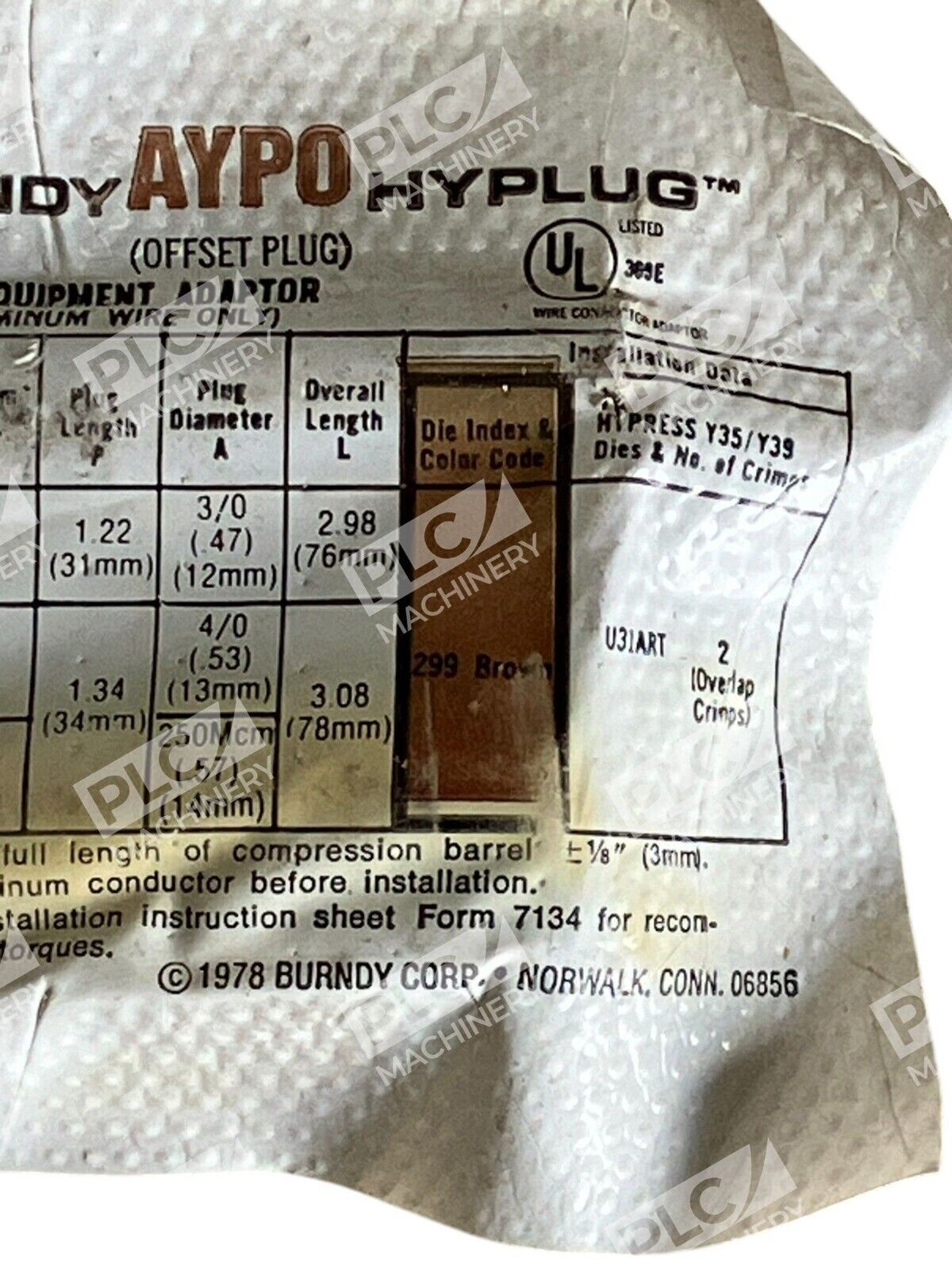

Works With
- Crimping tools: Y35, Y39, Y750, Y644HS (Hypress dieless), Y81KFT, Y81KFTMBH, PAT81KFT-18V
- Dies: U31ART (standard), PUADP-1 adapter compatible
- Compression termination methods approved per NFPA 70 (National Electrical Code)
