Overview

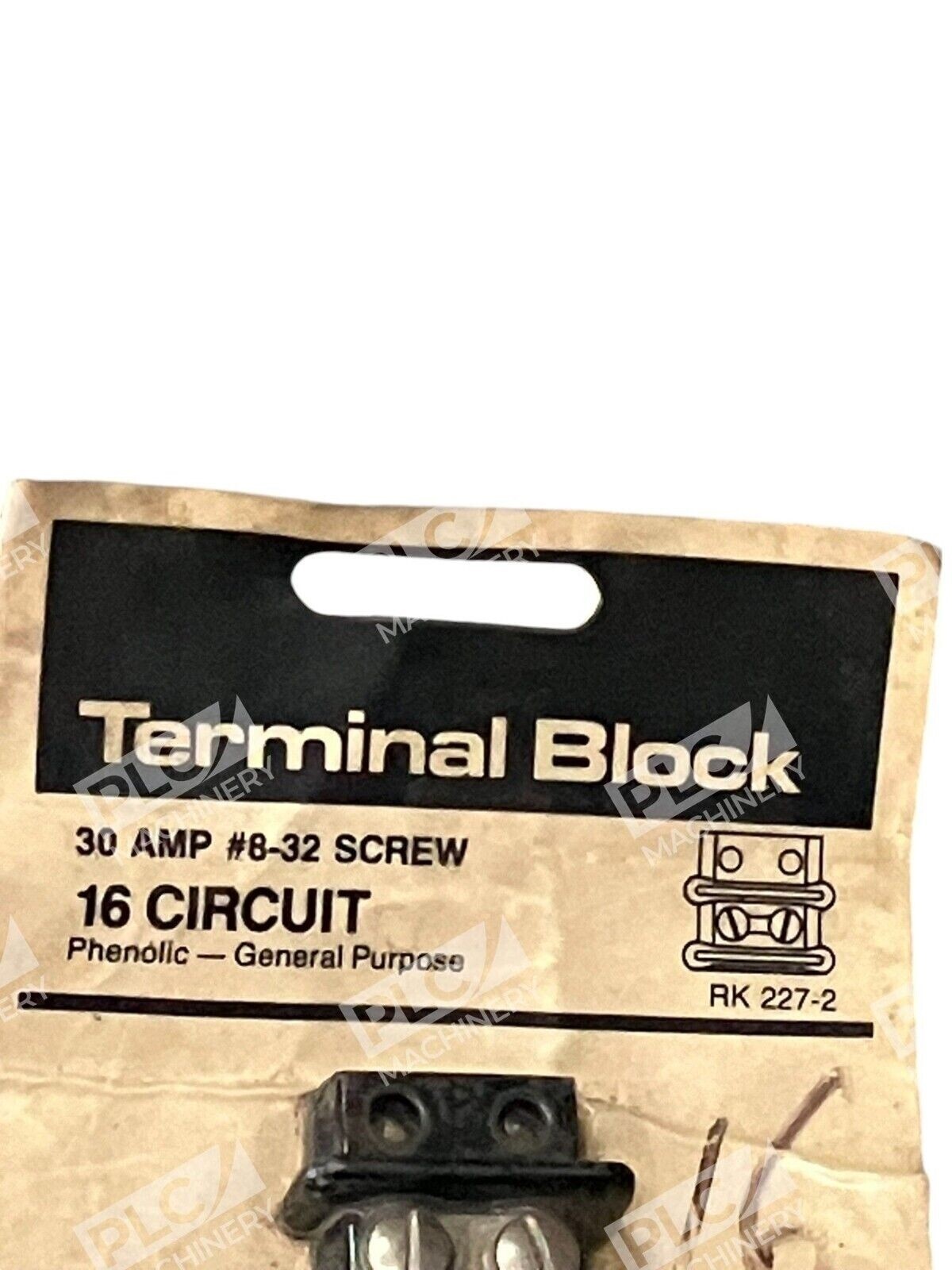

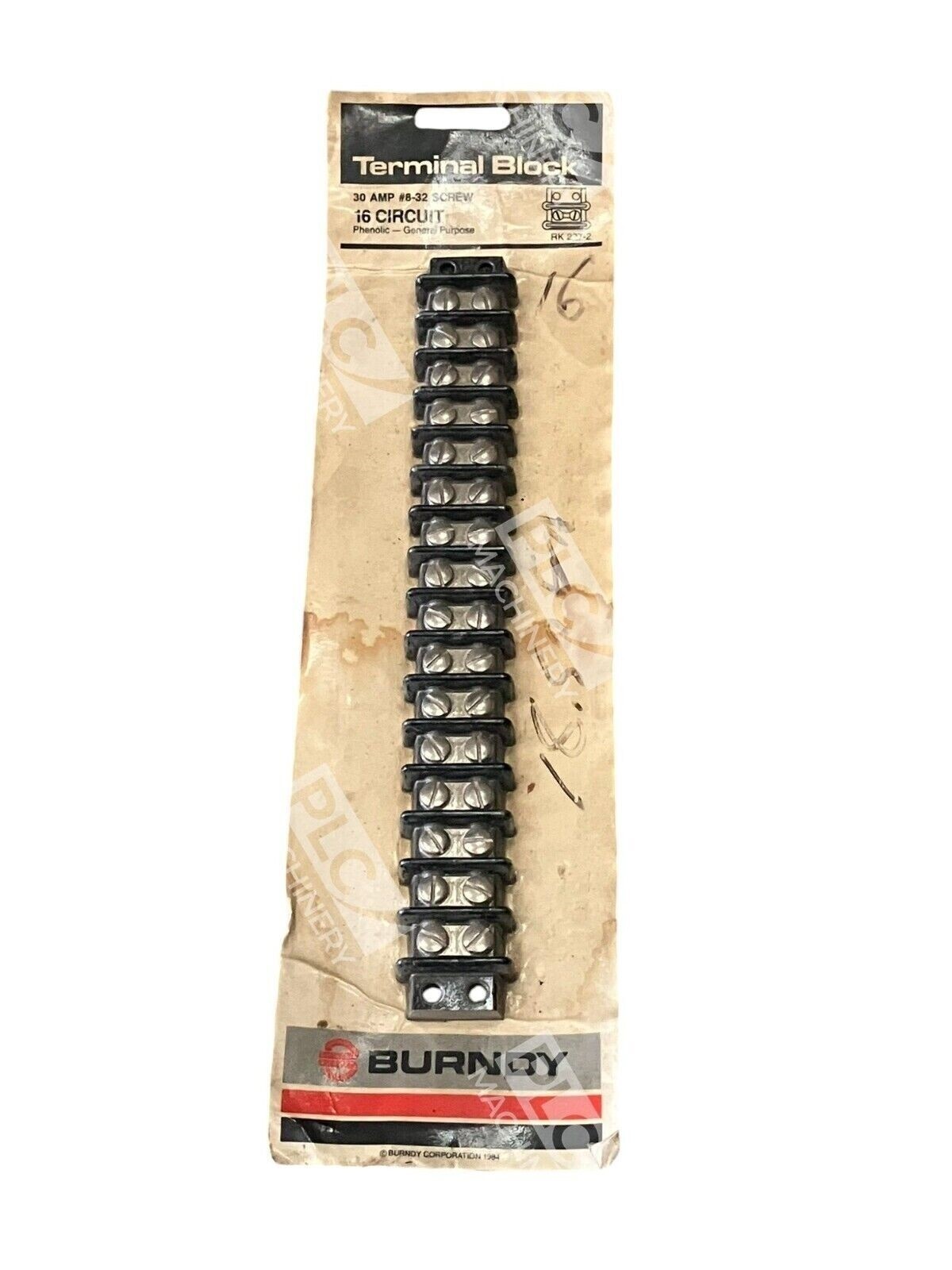

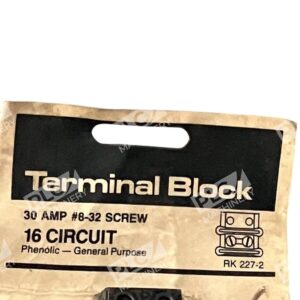

The Burndy RK227-2 is a barrier-style screw terminal block designed for multi-circuit power distribution and signal connections in industrial and commercial installations. With 16 circuits rated at 30A, this component provides reliable wire termination with steel nickel-plated screws that resist corrosion and ensure long-term performance. The double-row configuration and compact design make it ideal for control panels, motor control centers, and distribution equipment.
Key Features
- 16 circuits with strap-screw terminal type for secure wire connections
- 30A current rating per circuit for industrial-duty applications
- 300V rated (UL component requirements: Class B commercial, Class C general industrial)
- Steel nickel-plated screws resist oxidation and corrosion
- Double-row barrier-style mounting for compact panel layout
- Supports wire sizes up to 10 AWG terminal capacity
- #8-32 screw threads for standardized installation
Technical Specifications
- Breakdown voltage: 10,500 Vdc withstand rating
- Double-row configuration for space efficiency
- Nickel-plated steel screws for corrosion resistance
- No cover type — open barrier style
Typical Applications
The Burndy RK227-2 is commonly deployed in:
- Industrial control panels and enclosures
- Motor control centers (MCC)
- Power distribution terminals in switchgear
- PLC and automation equipment wiring
- Commercial HVAC and equipment control
- Machine tool and manufacturing equipment
Compatibility & Replacements
Compatible With
- Standard industrial control panel enclosures
- DIN rail and panel-mounted installations
- Power distribution systems operating at 300V or below
- Wire gauges from 10 AWG to smaller (strap-screw configuration)
Replaces / Drop-In Replacement For
- Burndy RK2272 (alternate part number designation)
- Other 16-circuit barrier-style terminal blocks with matching dimensions and screw thread specifications
Works With
- Standard industrial wiring practices and NFPA standards
- UL-listed control equipment and panelboards
- Commercial and industrial electrical distribution systems
