Overview

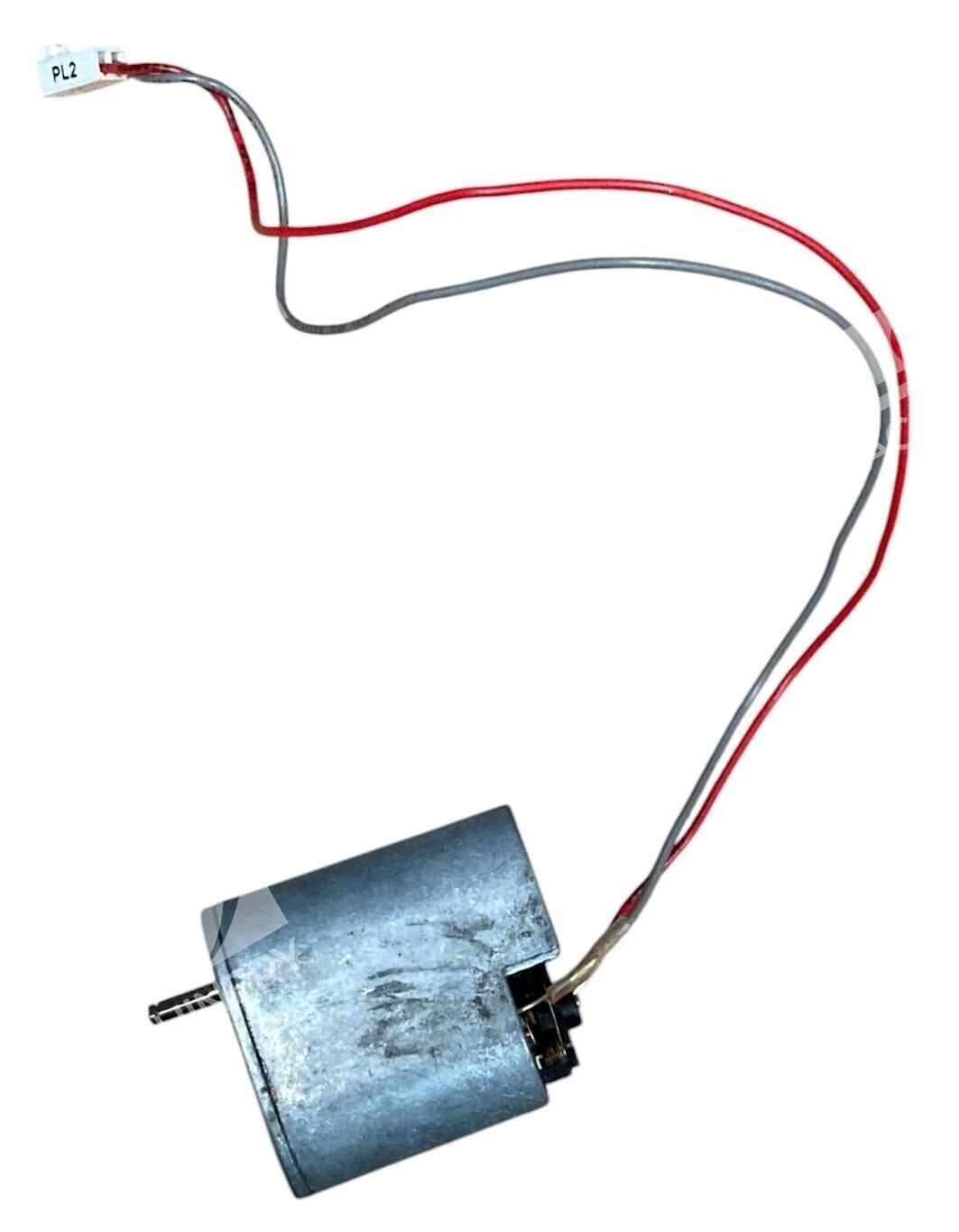

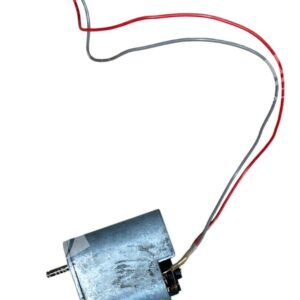

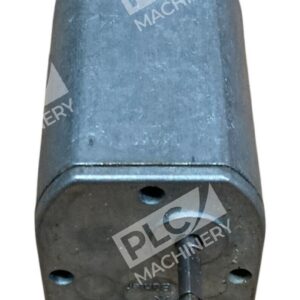

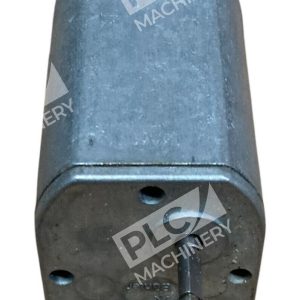

The Bühler Motor 1.61.065.464 is a compact DC gear motor engineered for industrial motion control and automation applications requiring precise low-speed torque delivery. Operating at 24VDC with 90mA current draw, this parallel-shaft motor produces 9.0Ncm (90 mNm) of output torque at approximately 64–69 rpm, making it suitable for controlled positioning, drive mechanisms, and robotic actuators where reliability and efficiency are critical.
Key Features
- 24VDC rated supply voltage for safe low-voltage industrial use
- 9.0Ncm output torque with consistent low-speed performance
- Compact parallel-shaft gearbox design for space-constrained installations
- Low current consumption (90mA) enables simple power supply integration
- Robust brushed DC motor core engineered for durability in industrial environments
Technical Specifications

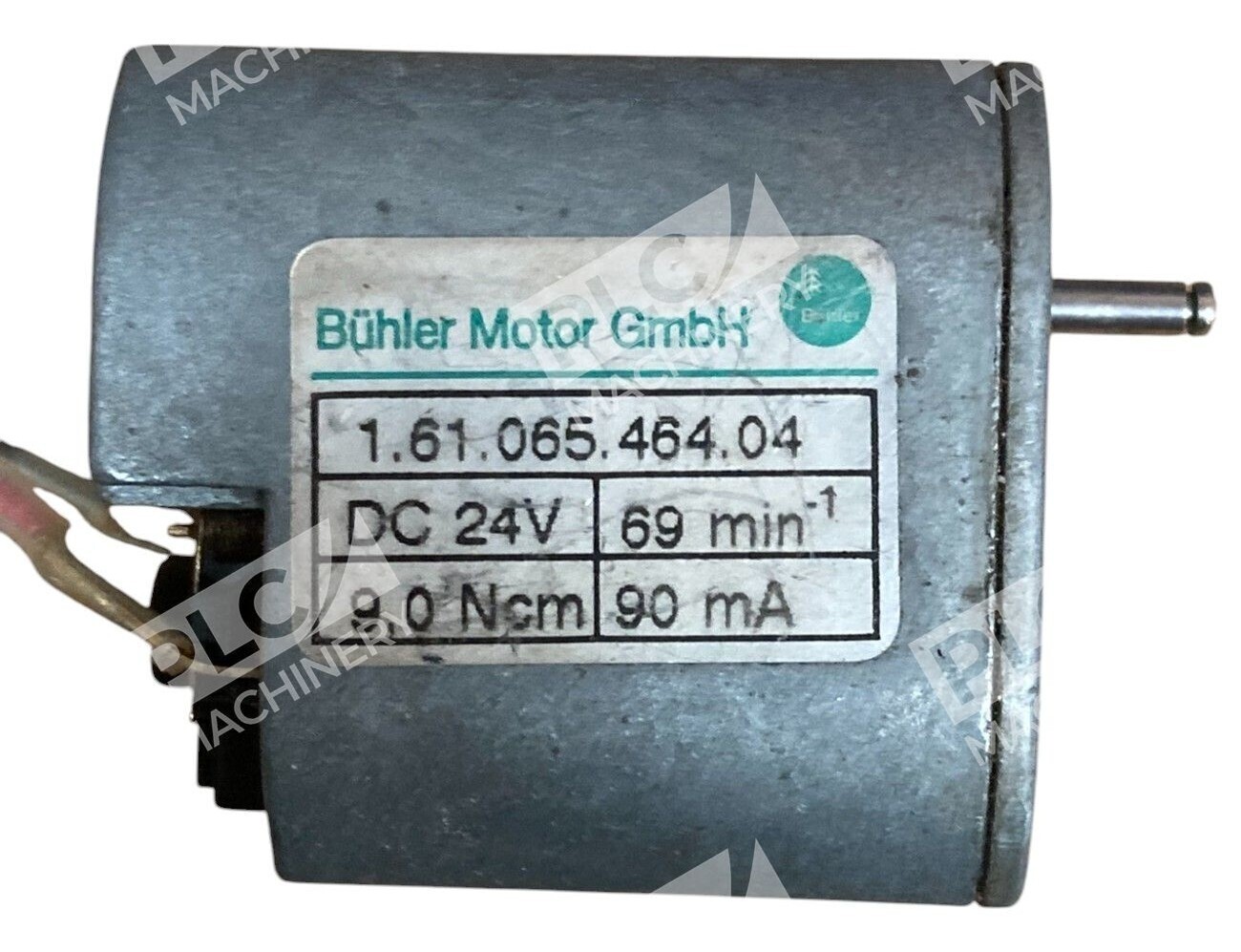

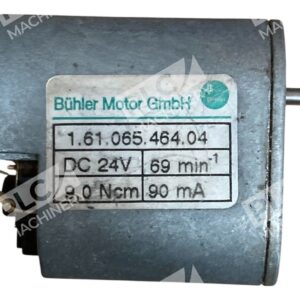

The Bühler Motor 1.61.065.464 offers the following verified specifications:
- Supply Voltage: 24 VDC
- Output Torque: 9.0 Ncm (90 mNm)
- Operating Speed: 64–69 min⁻¹ (rpm)
- Current Draw: 90 mA (nominal)
- Gearbox Type: Parallel-shaft
- Motor Type: Brushed DC with integrated gearhead
- Mounting: Compact industrial housing
Typical Applications
- Precision robotic arms and linear actuators
- Conveyor belt drive systems and material handling equipment
- Medical device actuation and laboratory automation
- HVAC damper and valve control mechanisms
- Industrial machinery positioning and feed mechanisms
- Automation equipment requiring consistent low-speed torque delivery
Compatibility & Replacements
Compatible With
- 24VDC regulated power supplies and industrial control systems
- Brushed DC motor controllers and PWM speed regulators
- Standard shaft-coupling and drive belt systems
- Automation platforms requiring low-voltage, low-current actuation
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. The 1.61.065.464 is part of Bühler Motor’s 1.61.065.4xx series; adjacent models in the series (1.61.065.465 at 15 Ncm, 1.61.065.466 and 1.61.065.467 at 20 Ncm) serve similar applications at higher torque ratings.
Works With
- Standard PWM motor controllers and DC speed drives
- Industrial relay logic and PLC discrete outputs
- 24VDC fieldbus-enabled control modules
- Hand-held potentiometer-based speed adjustment circuits
