Overview

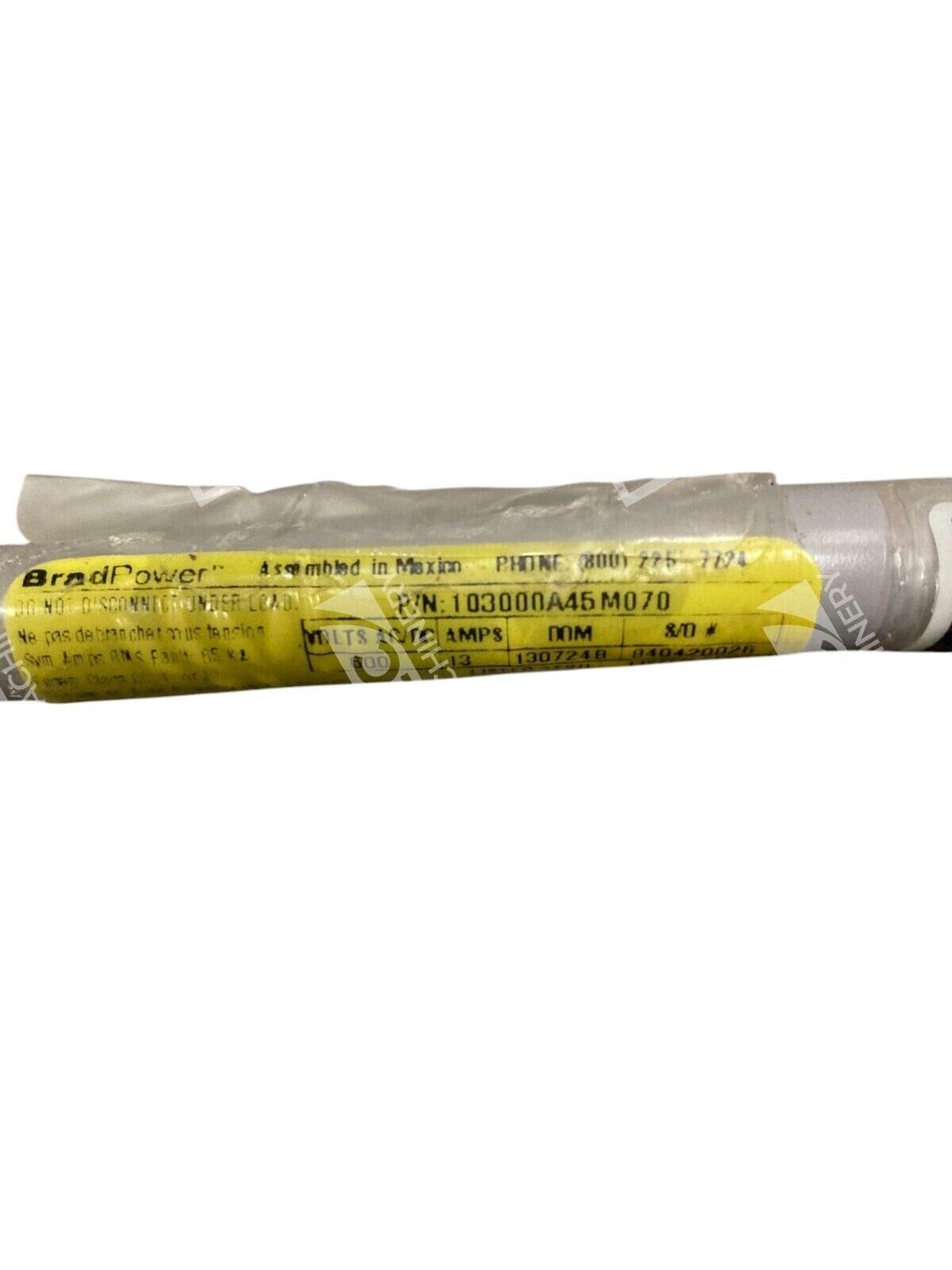

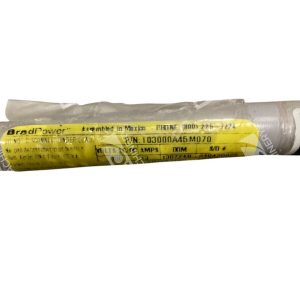

The Molex Woodhead 103000A45M070 is a one-ended BradPower industrial cordset designed for modular power distribution in automation and motor control applications. This factory-molded cable assembly eliminates the need for field wiring and traditional hard-wired connections, providing engineers and maintenance technicians with a plug-and-play solution that accelerates system setup and reduces installation labor.
Key Features

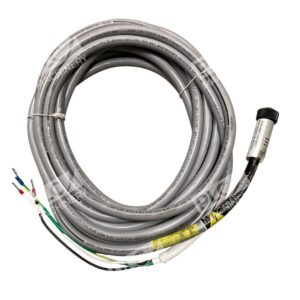

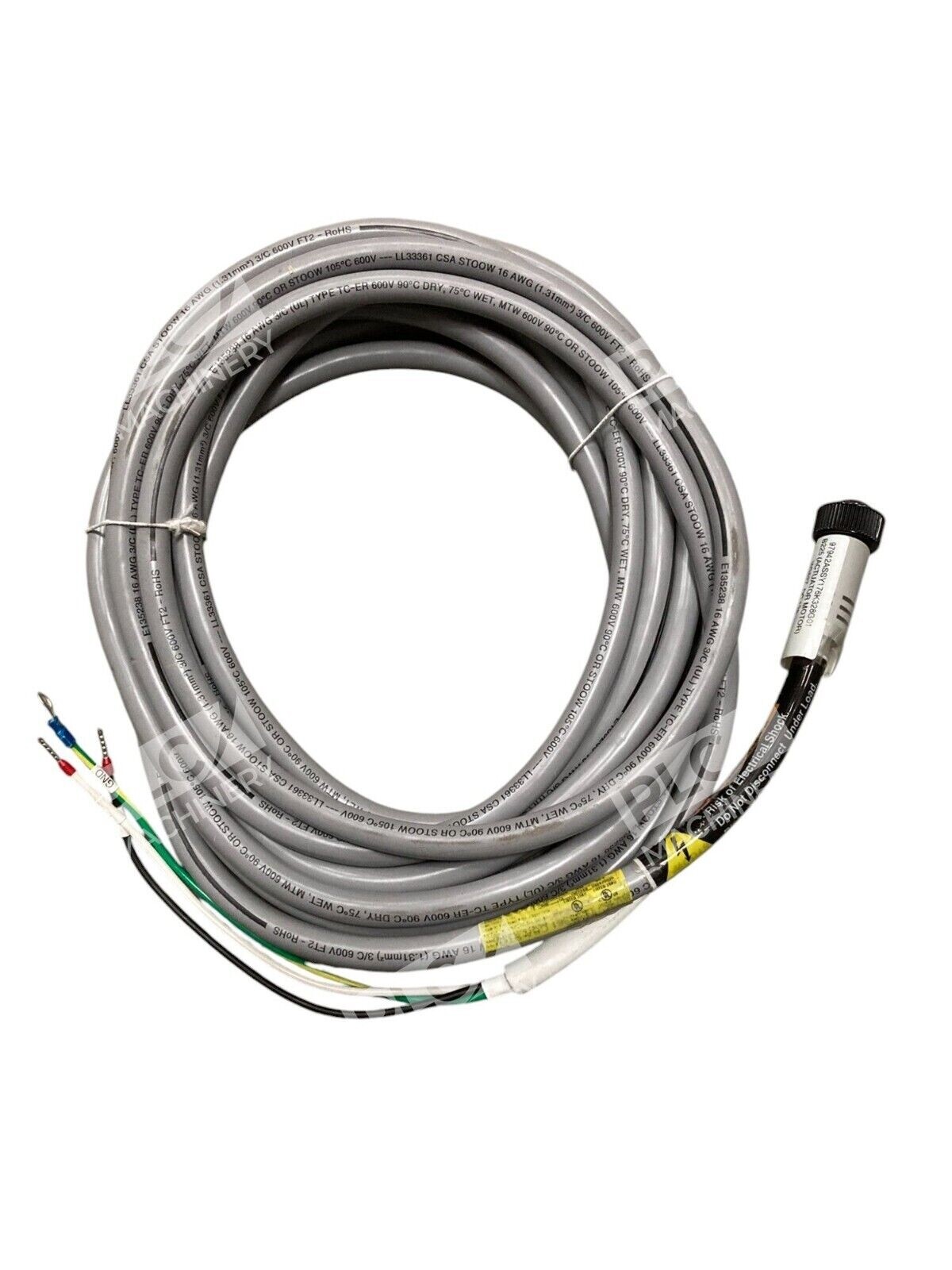

- One-ended (single-ended) configuration with molded male connector and pigtail termination
- 3-pole design for single-phase or basic multi-conductor applications
- Crush-resistant PVC cable construction for durability in industrial environments
- Factory pre-wired and tested connectors eliminate field termination
- Quick-connect modular system reduces installation time and commissioning costs
- IP67-rated connector housing for outdoor and washdown-rated applications
Technical Specifications
- Connector Type: BradPower A-Size (7/8″ M22)
- Configuration: 3-Pole Male to Pigtail
- Cable Length: 7 meters (23 feet)
- Wire Gauge: 18 AWG
- Cable Material: PVC
- Voltage Rating: 600V
- Operating Temperature: -10°C to +60°C
- IP Rating: IP67
- Manufacturer: Molex (BradPower brand)
Typical Applications
- Motor power distribution in manufacturing automation systems
- Machine tool control and quick-disconnect power feeds
- Industrial panel-to-motor cabling without hard-wiring
- Modular factory automation systems requiring frequent reconfiguration
- OEM equipment where tool-free connector assembly is required
Compatibility & Replacements
Compatible With
- All BradPower A-Size (7/8″ M22) receptacles and mating connectors
- Three-phase and single-phase motor control circuits rated for 600V
- Industrial automation controllers with BradPower-compatible connectors
- Rockwell Automation, Siemens, Mitsubishi, and other PLC-based systems using BradPower modular power distribution
Replaces / Drop-In Replacement For
- Equivalent Molex BradPower one-ended cordsets of identical connector size and pole configuration
- Custom field-wired motor cable assemblies requiring traditional conduit installation
- Verify exact compatibility with your control system integrator before ordering to ensure proper mating connector availability.
Works With
- BradPower modular receptacles and quick-connect power distribution systems
- Standard industrial three-phase and single-phase motor circuits
- Machinery that utilizes modular quick-disconnect power architectures
- Applications requiring 600V-rated power distribution without permanent conduit installation
