Overview

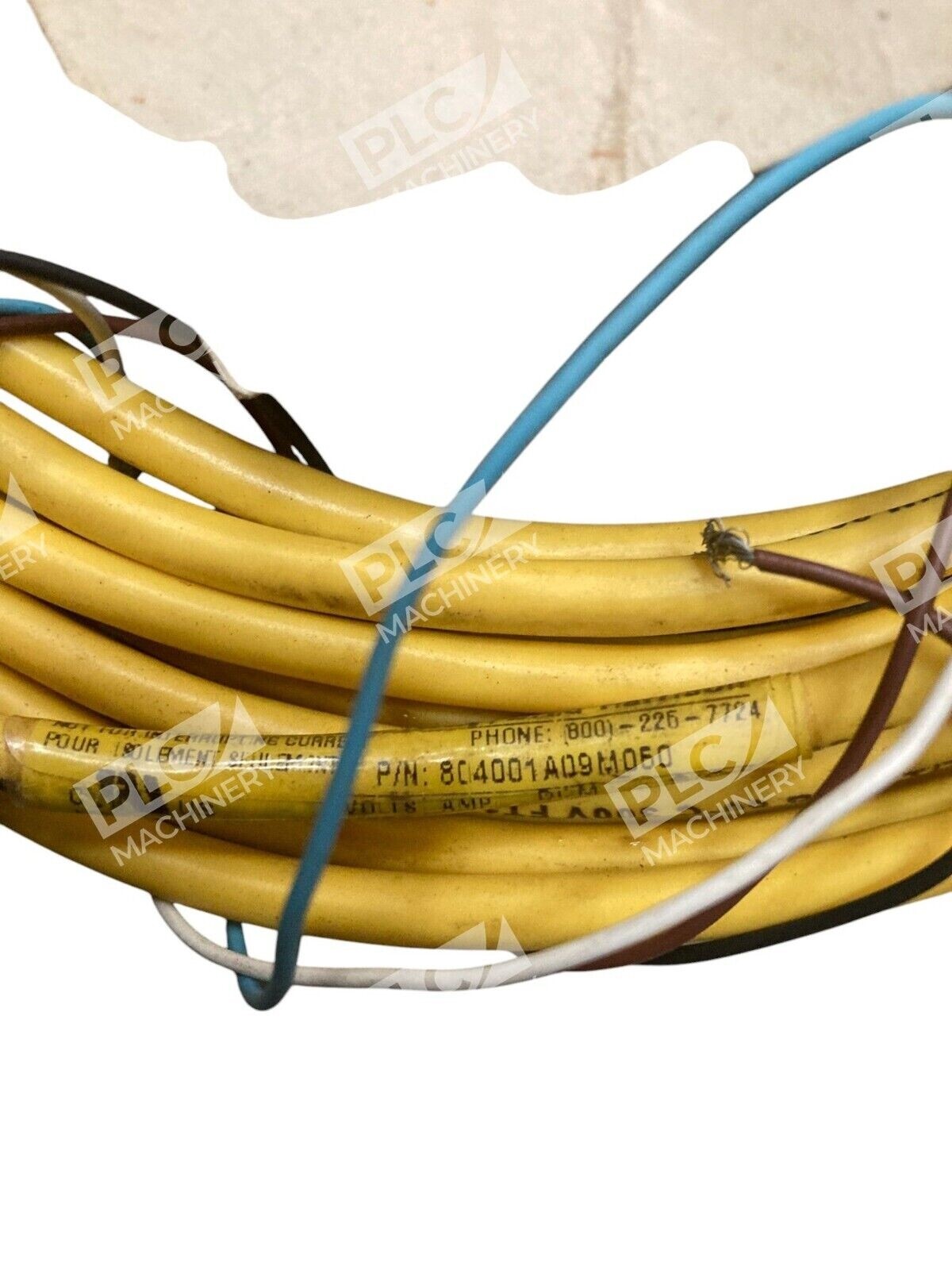

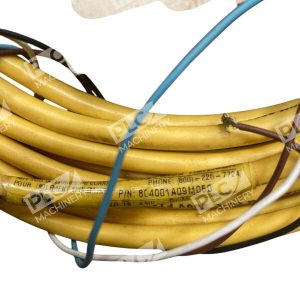

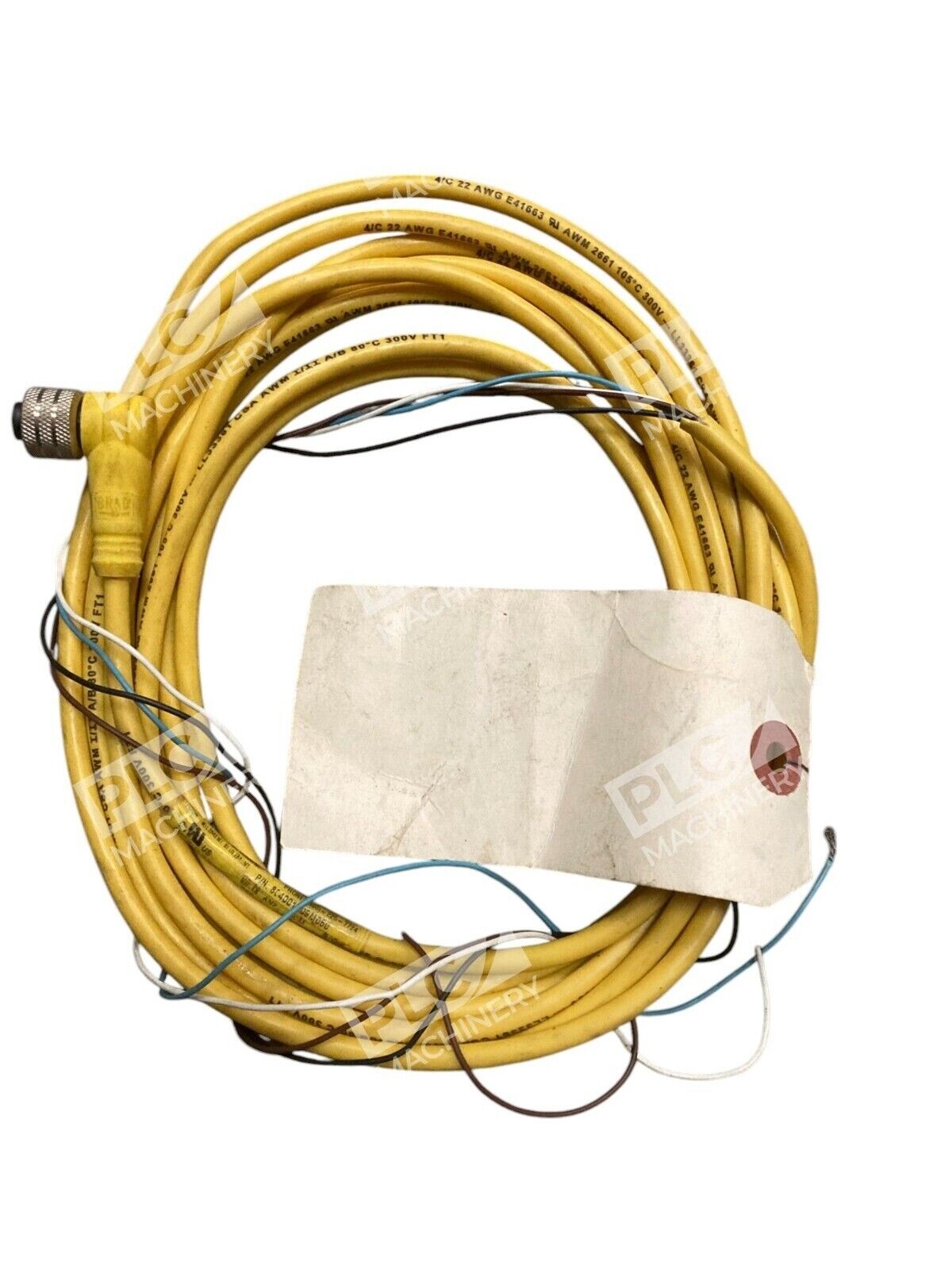

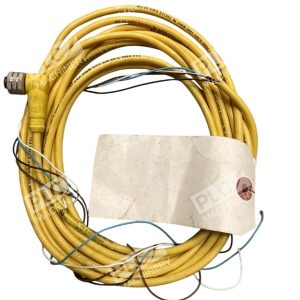

The Brad Harrison 804001A09M050 is an industrial-grade M12 Micro-Change cordset engineered for sensor and actuator connectivity in harsh industrial environments. This single-ended cordset features a 4-pin M12 90-degree female connector paired with a 5 m pre-terminated yellow PVC cable and bare wire termination on the opposite end. Rated for 4A continuous current and built to NEMA 6P specifications, this cordset delivers the sealed, rugged performance demanded in automated production systems.
Key Features
- M12 90-degree female connector with single keyway and 4 poles for positive keying and quick engagement
- 5 meter yellow PVC jacket cable with bare wire pigtail for direct field termination
- IP67/IP68 environmental sealing protects against moisture, dust, and washdown conditions
- Gold over nickel-plated contacts and nickel-plated brass coupling nut ensure low resistance and corrosion resistance
- UL listed and CSA certified for North American industrial applications
- NEMA 6P-rated for use in temporary submersion and wash-down environments
Technical Specifications
- Connector Type: M12 Micro-Change, 4-pin female, 90-degree orientation
- Cable Length: 5 meters
- Current Rating: 4 amperes continuous
- Wire Gauge: 22 AWG
- Cable Jacket: Yellow PVC
- Contact Material: Gold over nickel-plated copper alloy
- Coupling Nut: Nickel-plated brass
- Operating Temperature Range: −4°F to 221°F (−20°C to 105°C)
- Sealing Rating: IP67, IP68
- Certifications: UL listed, CSA certified, IEC compliant
- NEMA Rating: 6P (temporary submersion and wash-down)
- Connector Body Material: PUR (polyurethane)
- End Configuration: M12 female connector (End 1) × bare wire (End 2)
Typical Applications
The Brad Harrison 804001A09M050 is ideal for:
- Sensor connections in packaging, pharmaceutical, and food processing lines
- Proximity and limit switch interconnect in automated machinery
- Industrial encoder and position transducer quick-connect systems
- Valve and solenoid control circuits in pneumatic and hydraulic automation
- Automotive manufacturing and assembly applications requiring sealed, washable connectors
- Process control systems where rapid sensor replacement is critical to uptime
Compatibility & Replacements
Compatible With
- Any industrial controller or I/O module with M12 female receptacles
- Sensor and actuator devices equipped with M12 connectors
- Programmable Logic Controllers (PLCs) from Allen-Bradley, Siemens, Mitsubishi, and Omron with M12 input/output
- PROFINET and EtherCAT enabled devices using M12 connectors
- IP67/IP68-rated sensor assemblies and transducers
Replaces / Drop-In Replacement For
- Brad Harrison 804000A09M050 (similar 4-pin female cordset with straight connector orientation)
- Woodhead/Molex equivalent M12 4-pin female cordsets in 5 m configurations
- Other M12 single keyway 4-pole cordsets rated 4A or higher
Works With
- M12 A-coded and X-coded protocol devices
- Industrial Ethernet networks via M12 connectors (PROFINET, EtherCAT)
- IEC 61076-2-109 standard M12 receptacles and chassis connectors
- Sealed junction boxes and sensor distribution panels with M12 mating faces
- PLC programming environments and HMI systems configured for M12 sensor I/O
