Overview

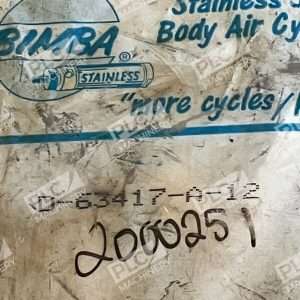

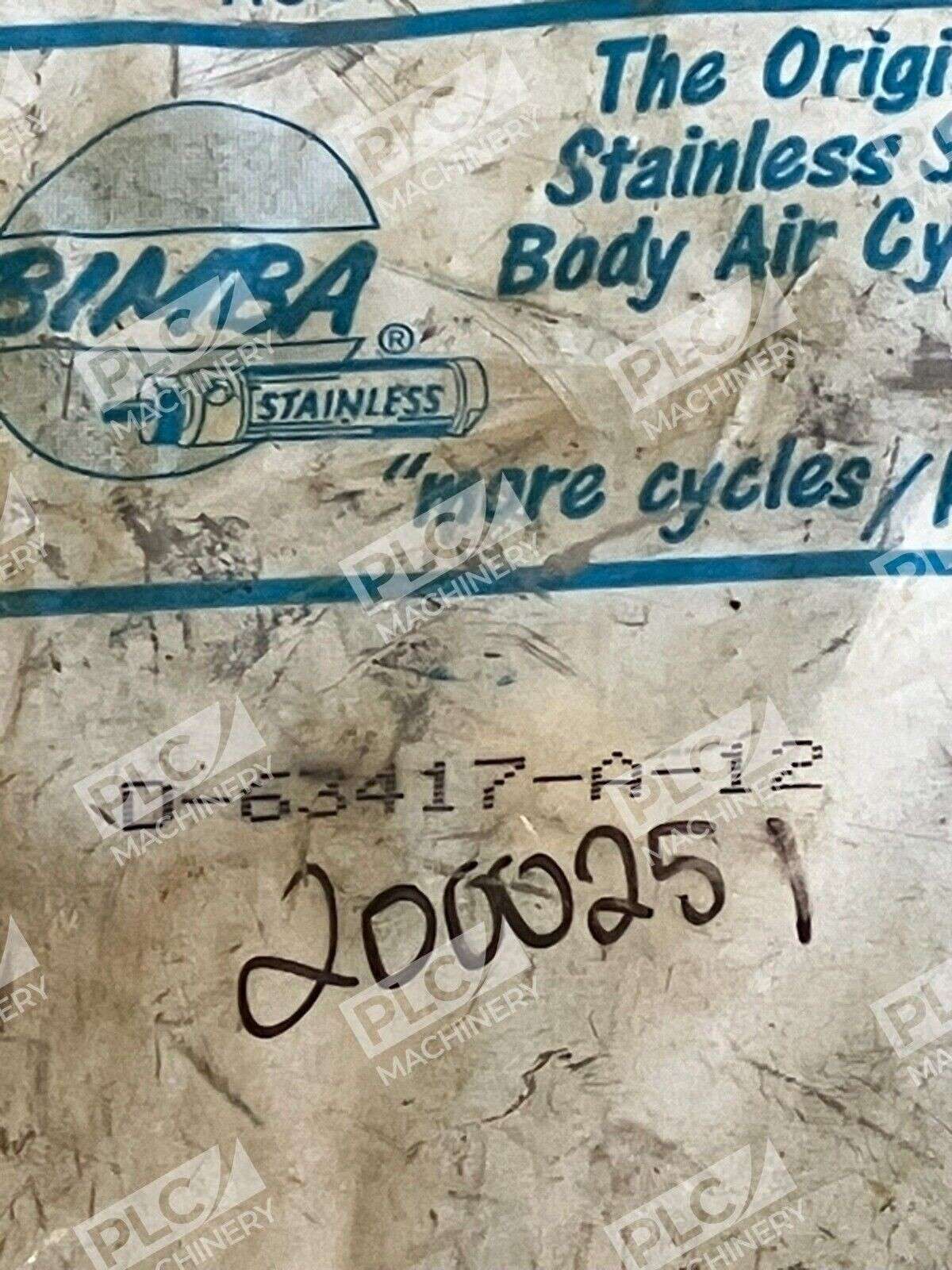

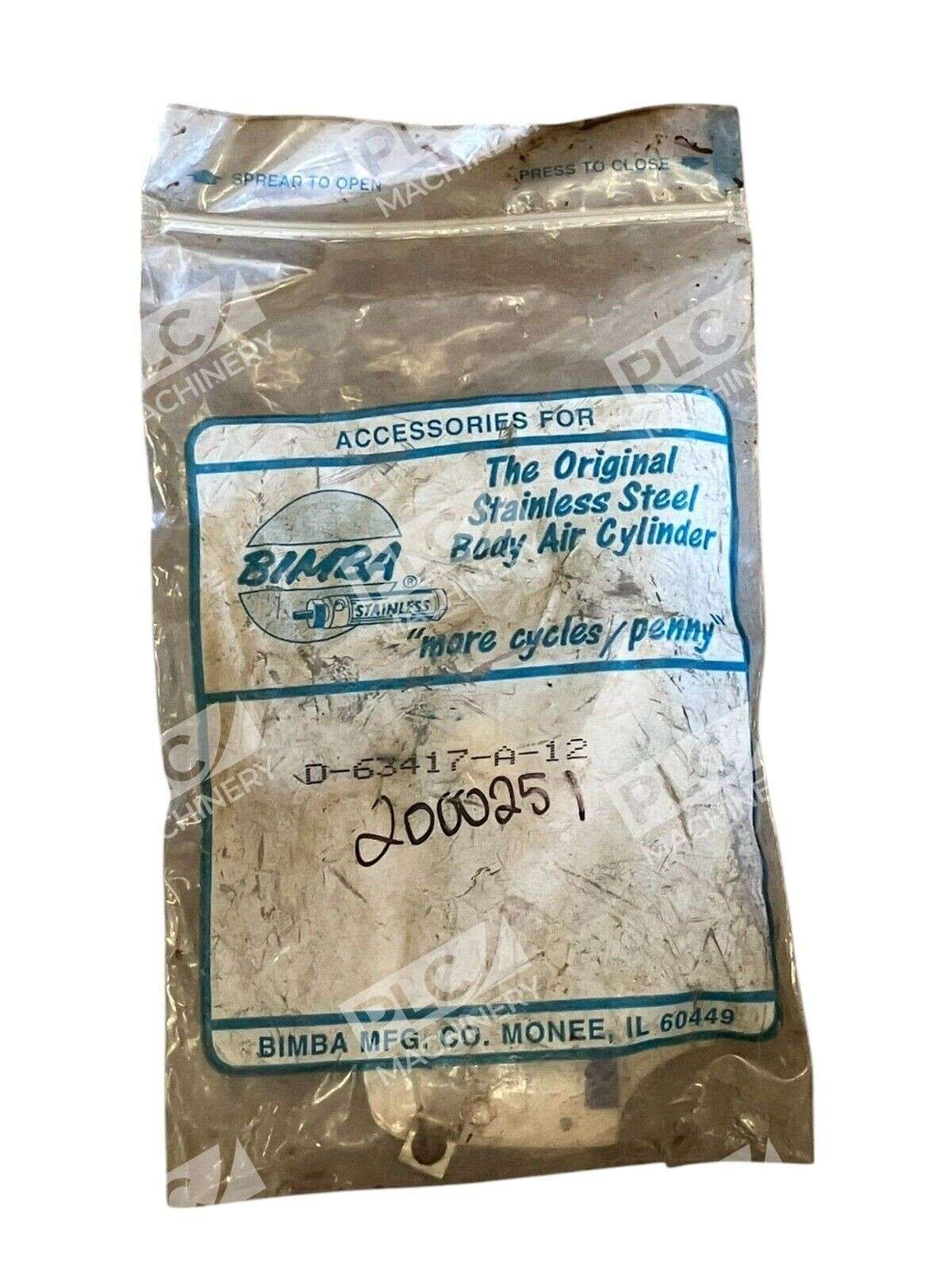

The Bimba D-63417-A-12 is a double-acting pneumatic cylinder from Bimba’s Original Line series, engineered for consistent, low-maintenance performance in industrial automation and pneumatic systems. The Original Line air cylinder sets the standard for a reliable and low maintenance non-repairable air cylinder. This model delivers robust construction suitable for professionals requiring dependable pneumatic actuation without complex servicing.
Key Features
- Double-acting design for controlled extension and retraction
- Original Line cylinders operate at 250 psi maximum working pressure
- Non-repairable, sealed construction eliminates field maintenance
- Permanent grease lubricant requires no additional lubrication during service
- Threaded rod and port mounting options for flexible installation
- More than 125,000 units of various shelving models are kept in stock for immediate delivery
Technical Specifications
Verify the following specifications against your system requirements and consult the manufacturer’s documentation:
- Cylinder Type: Double-Acting Pneumatic
- Series: Original Line
- Maximum Operating Pressure: 250 psi
- Design: Non-repairable
- Rod Style: Stainless steel threaded rod (standard)
- Mounting Options: Front nose, threaded studs, or pivot mounting
- Port Type: Pneumatic threaded ports (size varies by configuration)
Typical Applications
- Automated manufacturing and assembly lines
- Material handling and positioning systems
- Industrial clamping and pressing equipment
- Automated tool changers and end-of-arm tooling
- OEM equipment and machinery
- General-purpose pneumatic actuation in tight-tolerance environments
Compatibility & Replacements
Compatible With
- Standard pneumatic 80-series air prep systems (filters, regulators, lubricators)
- General-purpose pneumatic control valves and manifolds
- ISO/NG6 solenoid and manual directional control valves
- Pneumatic pilot lines and tubing per ISO 4401 standards
- Electronic position sensors and proximity switches
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. Bimba Original Line cylinders with the same bore, stroke, port configuration, and mounting style may serve as direct replacements for other Original Line variants. Consult Bimba’s technical support or distributor for confirmed cross-references.
Works With
- ISO 4401 (CETOP 05) and NFPA standard control systems
- Pneumatic schematic and circuit design software
- PLC-based pneumatic automation systems
- Industrial air preparation and conditioning equipment
- Standard pneumatic tubing and fittings per ISO 1219 standards
