Overview

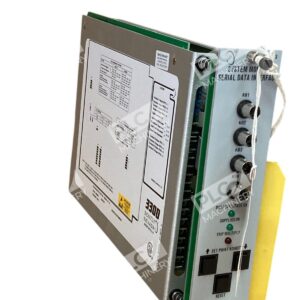

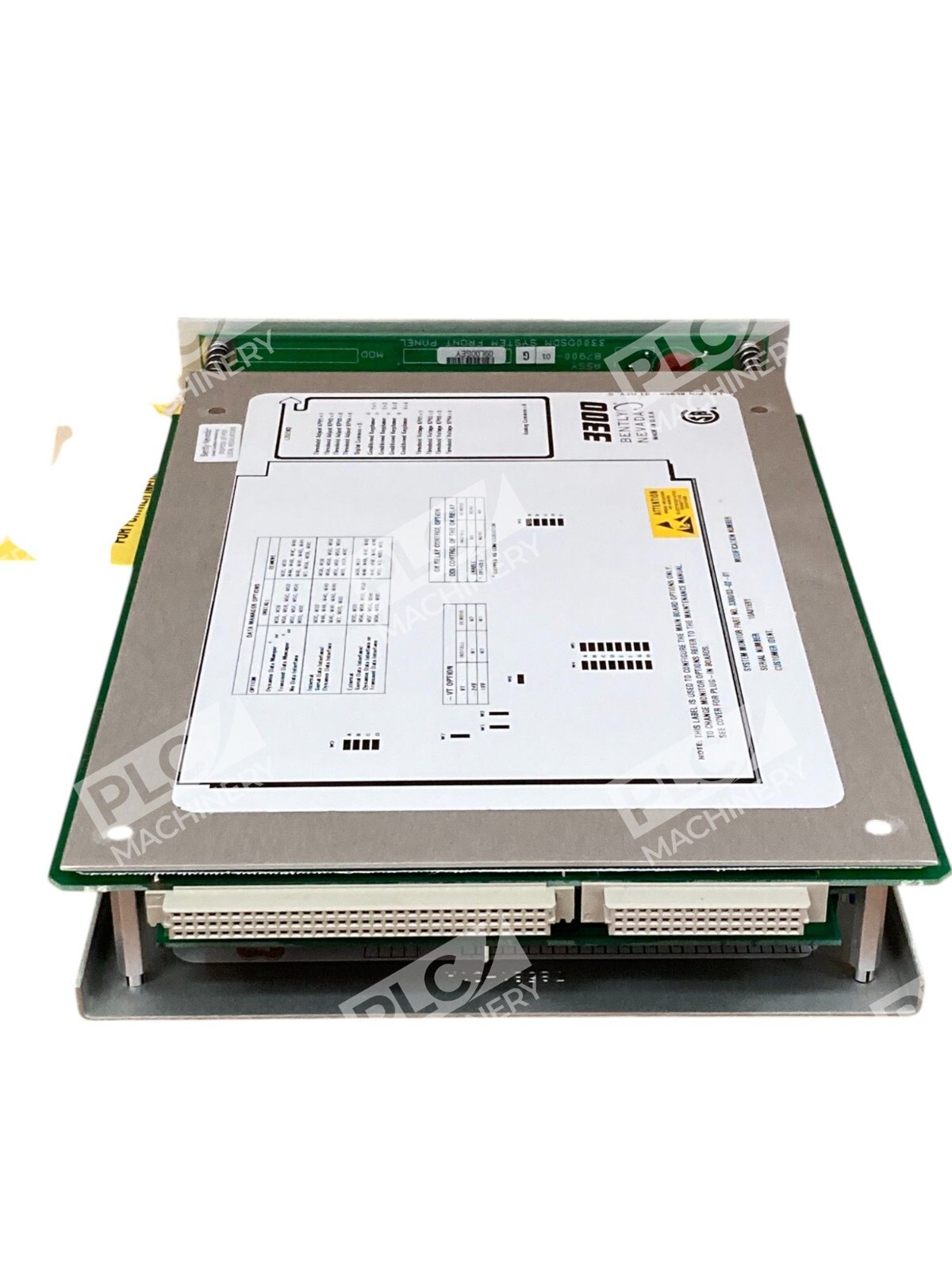

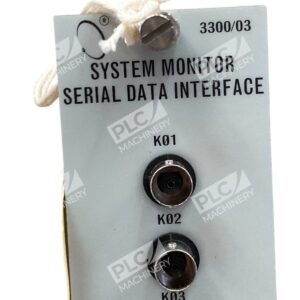

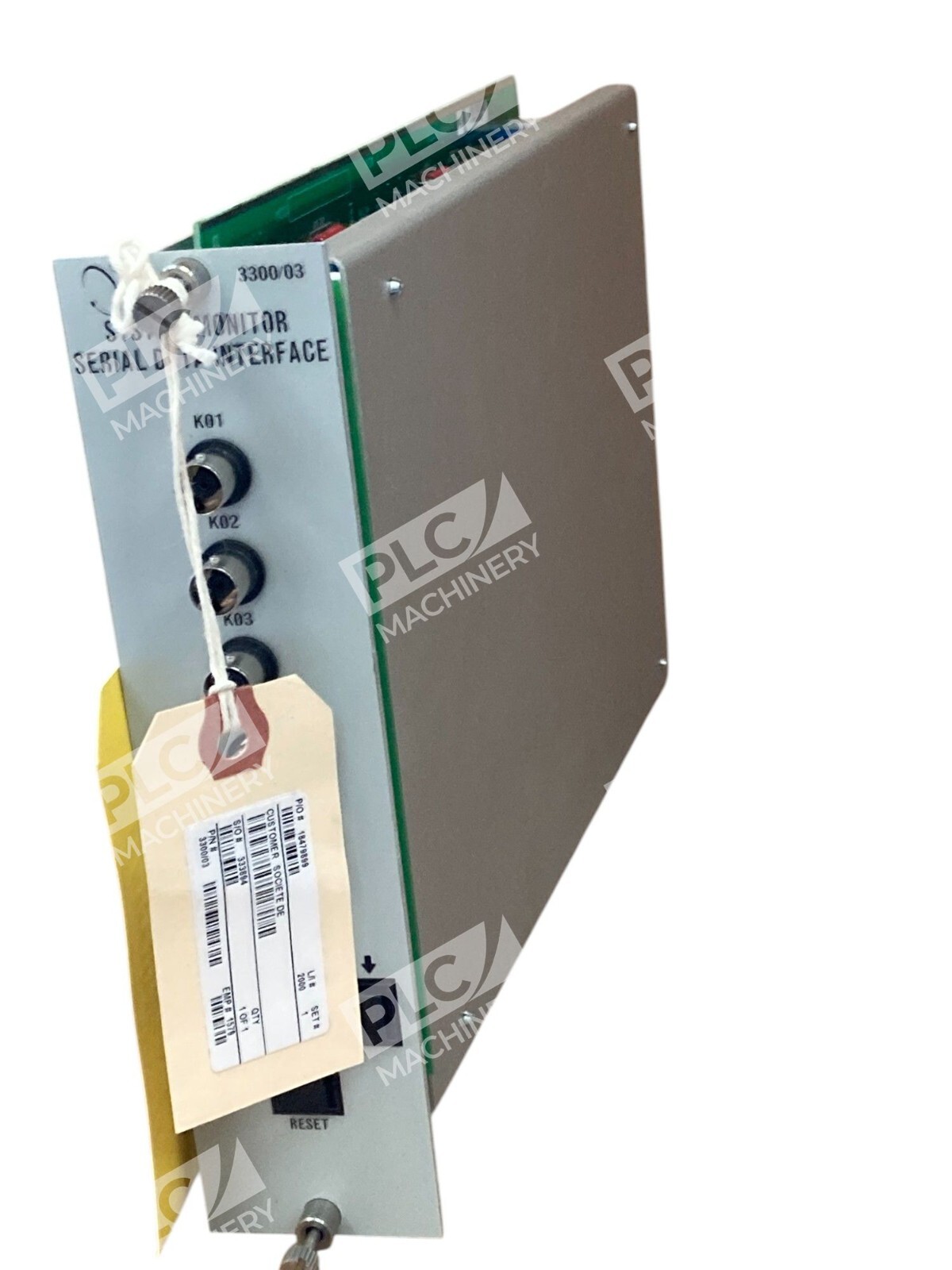

The Bentley Nevada 3300/03-02-01 is a Serial Data Interface (SDI) equipped System Monitor module for the Bentley Nevada 3300 Series machinery monitoring system. Installed in the second position of the 3300 monitoring rack, this unit centralizes system management, communications, and logic functions while maintaining full isolation from the critical machinery protection path. The 3300/03-02-01 configuration adds bi-directional serial data communications capability, allowing real-time integration with plant DCS, historian, and asset management systems.
Key Features
- Serial Data Interface (SDI) enables bi-directional communication with external monitoring and SCADA systems

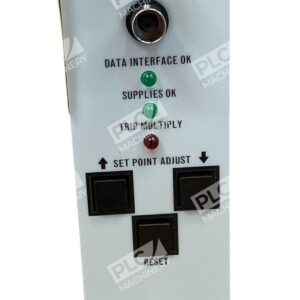

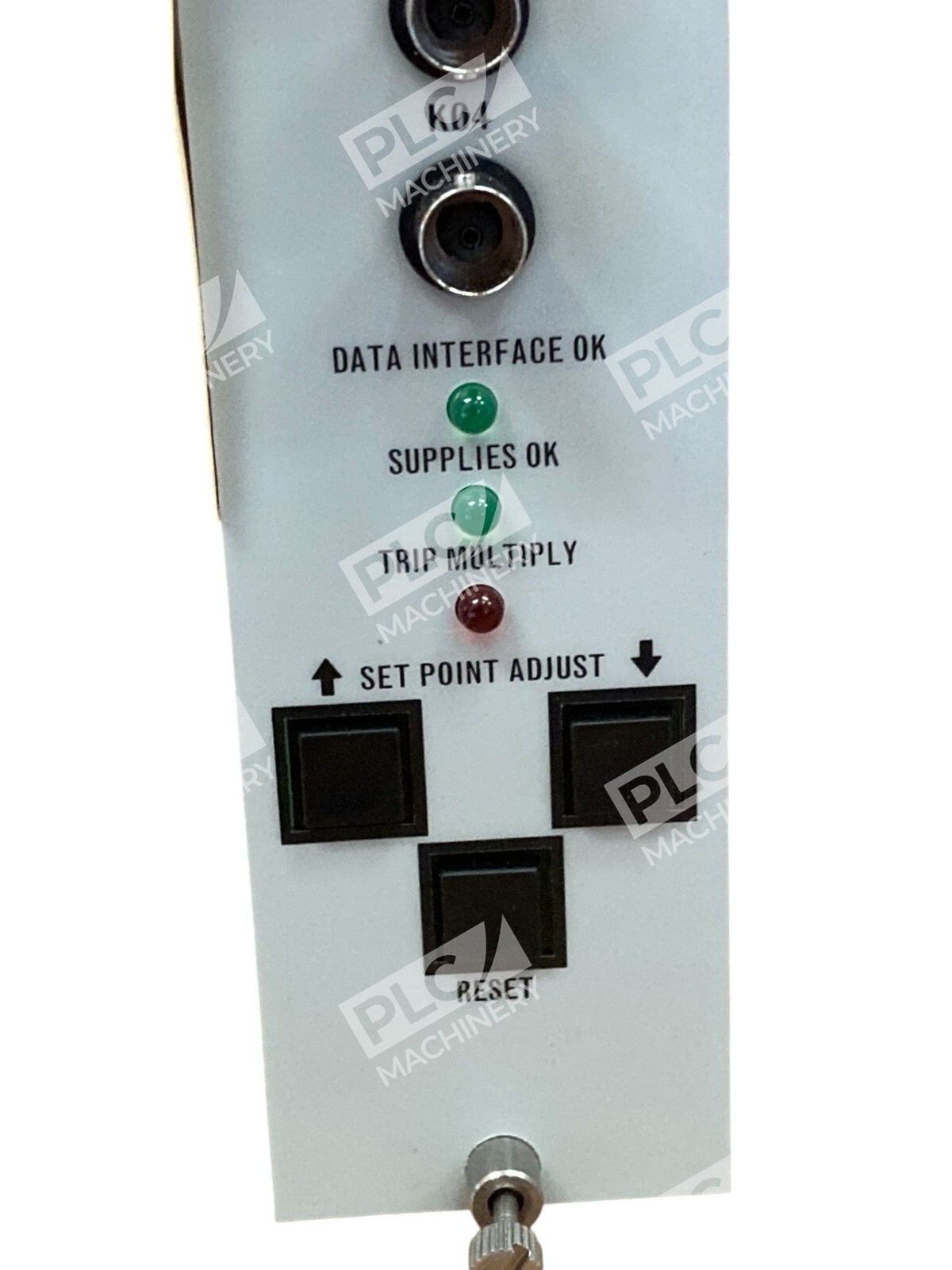

- Continuous voltage monitoring of system power supplies with front-panel LED status indication
- Isolated relay logic architecture—system functions independent from machine protection operations
- Compatible with buffered transducers and direct-output proximity sensors used in 3300 monitoring configurations
- Modular design supports upgrades from basic 3300/01 monitor or cross-compatibility with DDI (Dynamic Data Interface) options
- Thermal stability across industrial temperature ranges suitable for power generation, petrochemical, and rotating machinery applications
Technical Specifications
- Model: 3300/03-02-01
- Product Type: System Monitor with Serial Data Interface
- Rack Position: Position 2 (standard installation)
- Communications: RS-422 Serial Data Interface (SDI)
- Voltage Monitoring: Continuous supply-level supervision with NOT OK relay output
- Relay Outputs: System OK relay; additional channel relays for individual monitor modules (configuration-dependent)
- Design Standard: SDI/DDI communications compatible; analog signal conditioning path isolated from control logic
- Certifications: Industrial automation safety barriers available on compatible monitor modules (refer to 3300 Relay datasheet)
- Manufacturer: Bentley Nevada (General Electric subsidiary)
- Series: 3300 Asset Condition Monitoring System
Typical Applications
- Multi-channel machinery vibration monitoring in steam turbines, gas turbines, and rotating equipment
- Integration hub for distributed monitoring networks where plant-wide alarms and alerts must communicate to control systems
- Temperature, proximity, tachometer, and eccentricity monitoring in large rotating machinery
- Long-duration asset health trending and predictive maintenance programs
- Safety-critical machinery protection in industrial power plants and petrochemical facilities
Compatibility & Replacements
Compatible With
- Bentley Nevada 3300 Series multi-channel monitoring racks (vibration, temperature, proximity, tachometer, and diagnostic modules)
- Buffered transducers and direct-output proximity sensor types used in 3300 configurations
- RS-422 serial networks and plant historian/SCADA systems supporting standard serial protocols
- Relay logic control systems and emergency shutdown (ESD) circuits in machinery protection applications
- Direct Power Supply modules and backplane units designed for 3300 racks
Replaces / Drop-In Replacement For
- 3300/03-00-01 (basic System Monitor without SDI; upgrade only—verify configuration before ordering)
- Verify compatibility with your integrator or Bentley Nevada technical support before ordering replacement units
Works With
- Bentley Nevada DM2000 asset monitoring software and diagnostics platform
- TDM/TDIX/TDXnet communications processors and their corresponding serial interface modules
- RS-422 serial data protocols native to standard PLC and DCS historian systems
- 3300 Series Technical Documentation (Bently Nevada part number 104003-01) for integration and configuration details
