Overview

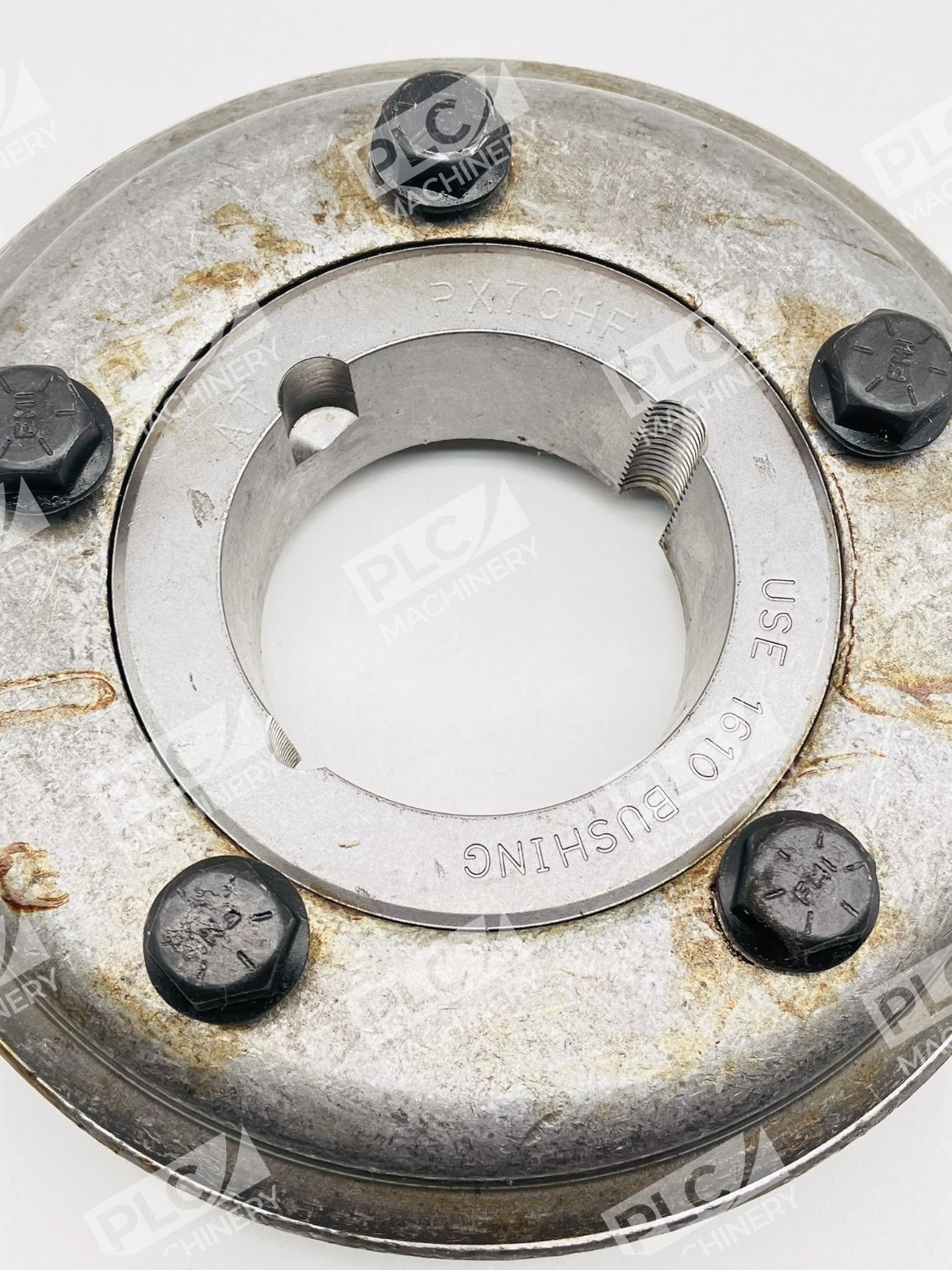

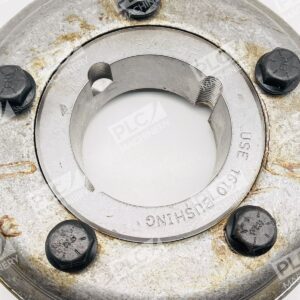

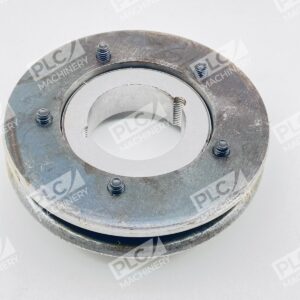

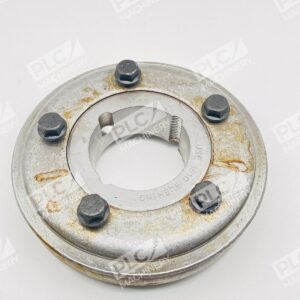

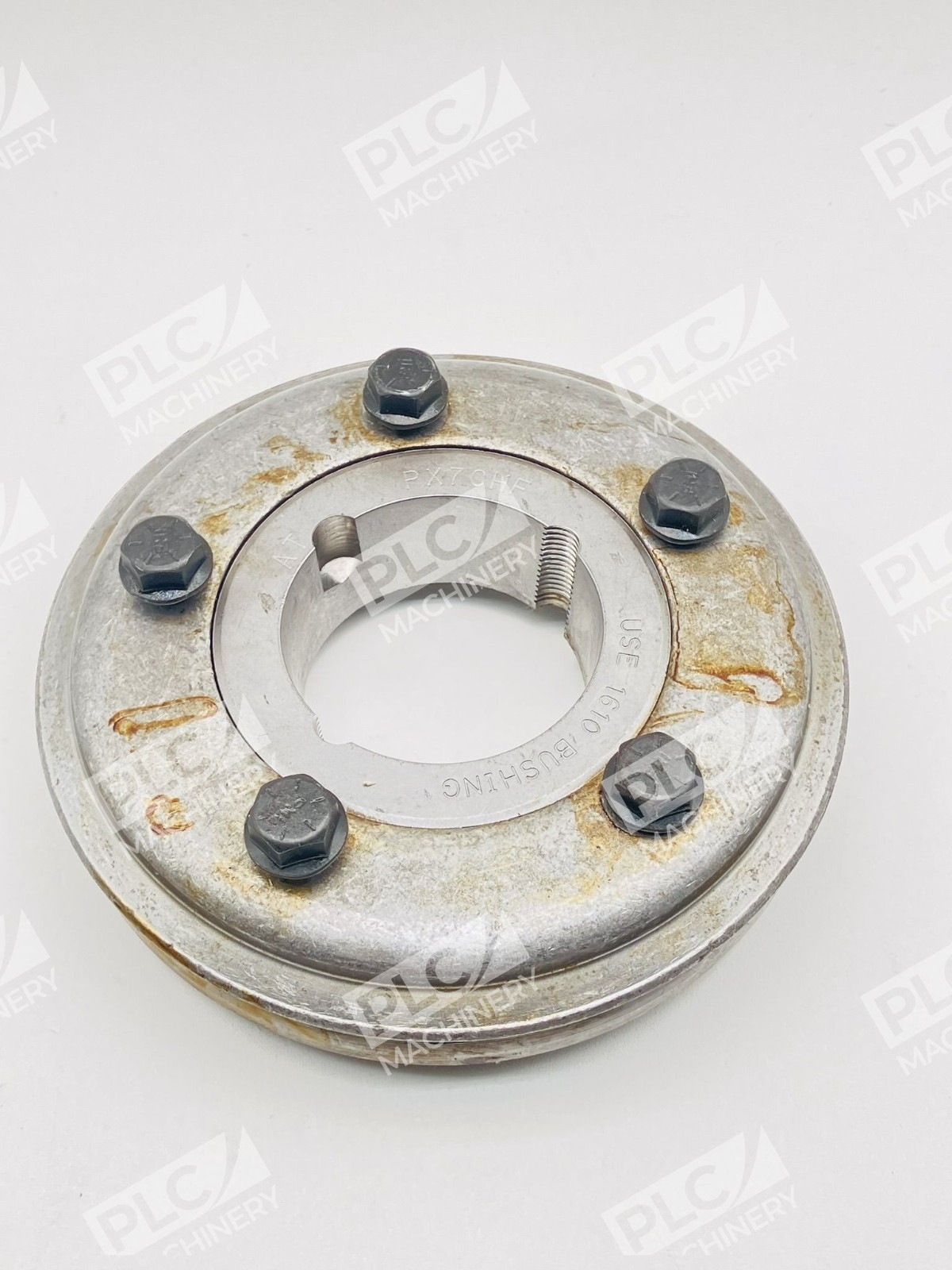

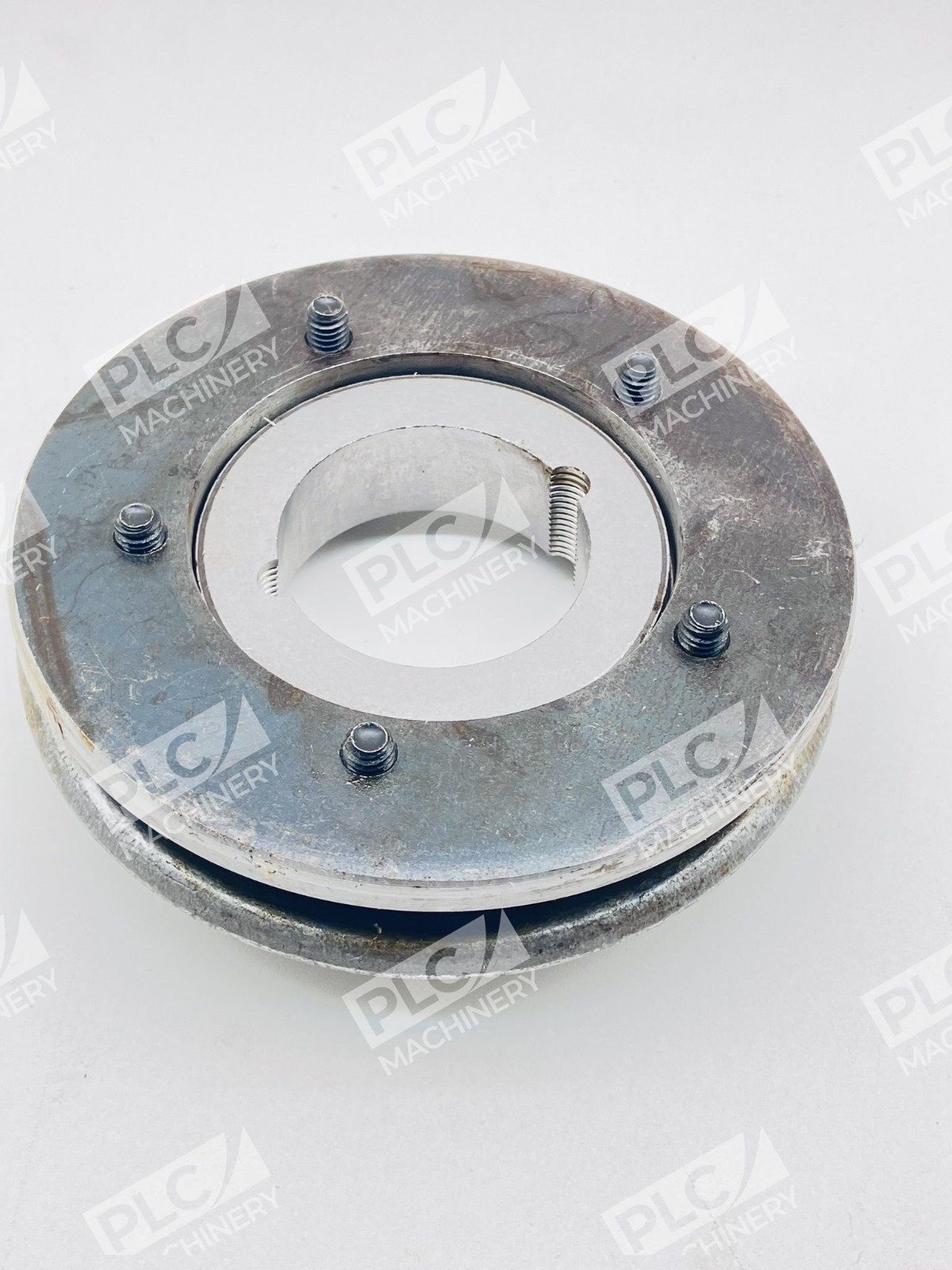

The Dodge PX70 taper-lock flange assembly is a precision-engineered mechanical coupling component designed for industrial power transmission applications. Manufactured by Dodge (a division of Baldor), this flange assembly features a taper-lock bushing interface for secure shaft attachment and accommodates the 1610 bushing size. The sintered steel construction provides durability and consistent torque transmission, making it ideal for machinery requiring reliable, low-maintenance shaft coupling solutions.
Key Features
- Elastomeric tire coupling — absorbs shock and misalignment without lubrication
- Taper-lock bushing design — quick installation and removal with no keyways required
- Sintered steel flange — corrosion-resistant, long service life
- Close-coupled shaft spacing — compact mounting footprint
- Wide temperature range — rated –45 °F to 180 °F
- ATEX certified — compliant for use in hazardous environments
Technical Specifications
- Bore Diameter: 1-11/16 in (1.6875 in)
- Outside Diameter: 7.375 in (7.38 in)
- Length Through Bore: 1 in
- Overall Length: 3.56 in
- Rated Torque: 2200 lbf·in (247.8 N·m)
- Horsepower @ 100 RPM: 3.49 hp (2.6 kW)
- Maximum Speed: 3600 rpm
- Parallel Misalignment Capacity: 0.125 in
- Angular Misalignment Capacity: 4°
- Axial Misalignment Capacity: 0.3125 in
- Weight: 3.8 lbs
- Temperature Rating: –45 °F to +180 °F (–42.8 °C to +82.2 °C)
- Flange Material: Sintered steel
- Coupling Type: Elastomeric tire
- Bushing Type: Taper-lock
- Shaft Attachment: Bushed
Typical Applications
The PX70 taper-lock flange assembly is commonly used in:
- Pump and motor coupling assemblies
- Conveyor drive systems
- Fan and blower applications
- Industrial gearbox input/output shafts
- Compressor drive trains
- Material handling equipment
- General industrial machinery requiring shock absorption and misalignment tolerance
Compatibility & Replacements
Compatible With
- Dodge PX series elastomeric tire couplings
- All motors and pumps with shaft diameters sized for 1610 taper-lock bushing (consult bushing sizing charts for exact bore fit)
- Industrial automation systems requiring ISO 1940 Class G 6.3 balance standards
- ATEX-certified machinery in hazardous classified areas (Groups IIA, IIB, IIC)
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator or equipment manufacturer before ordering. The Dodge PX70 taper-lock assembly may directly replace equivalent OEM flange components on Baldor-Dodge coupled motors and transmission equipment. Original equipment part number cross-references are available from authorized Baldor distributors.
Works With
- 1610 taper-lock bushings (standard sizing)
- Dodge elastomeric tire coupling components
- Industrial maintenance and retrofit programs (OEM and aftermarket)
- SCADAssist and predictive maintenance platforms for shaft monitoring
