Overview

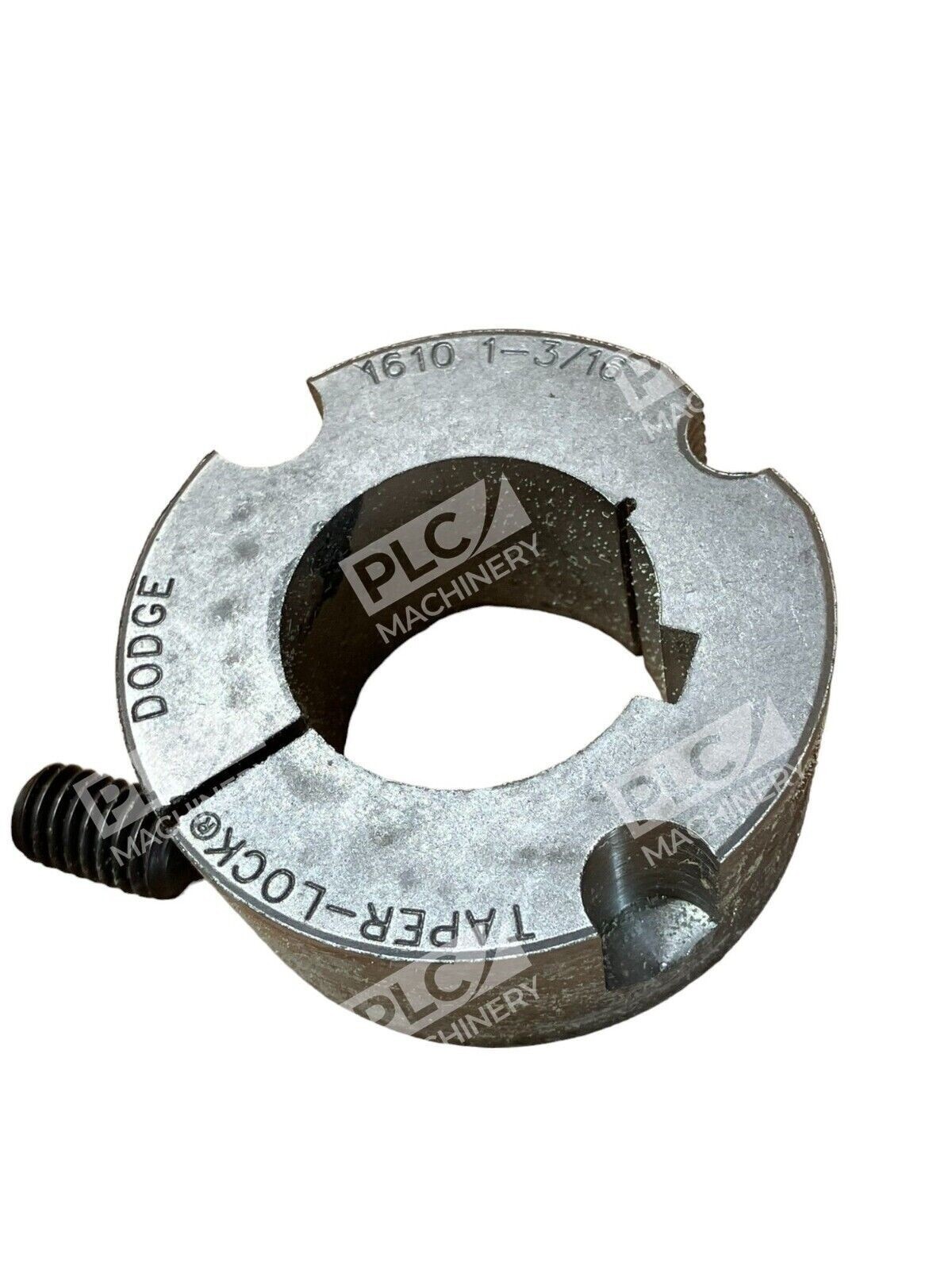

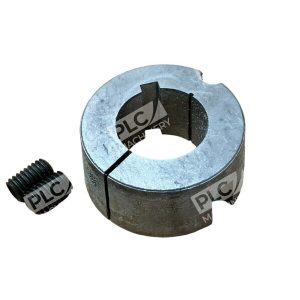

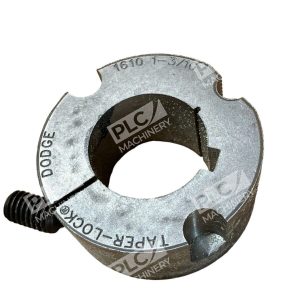

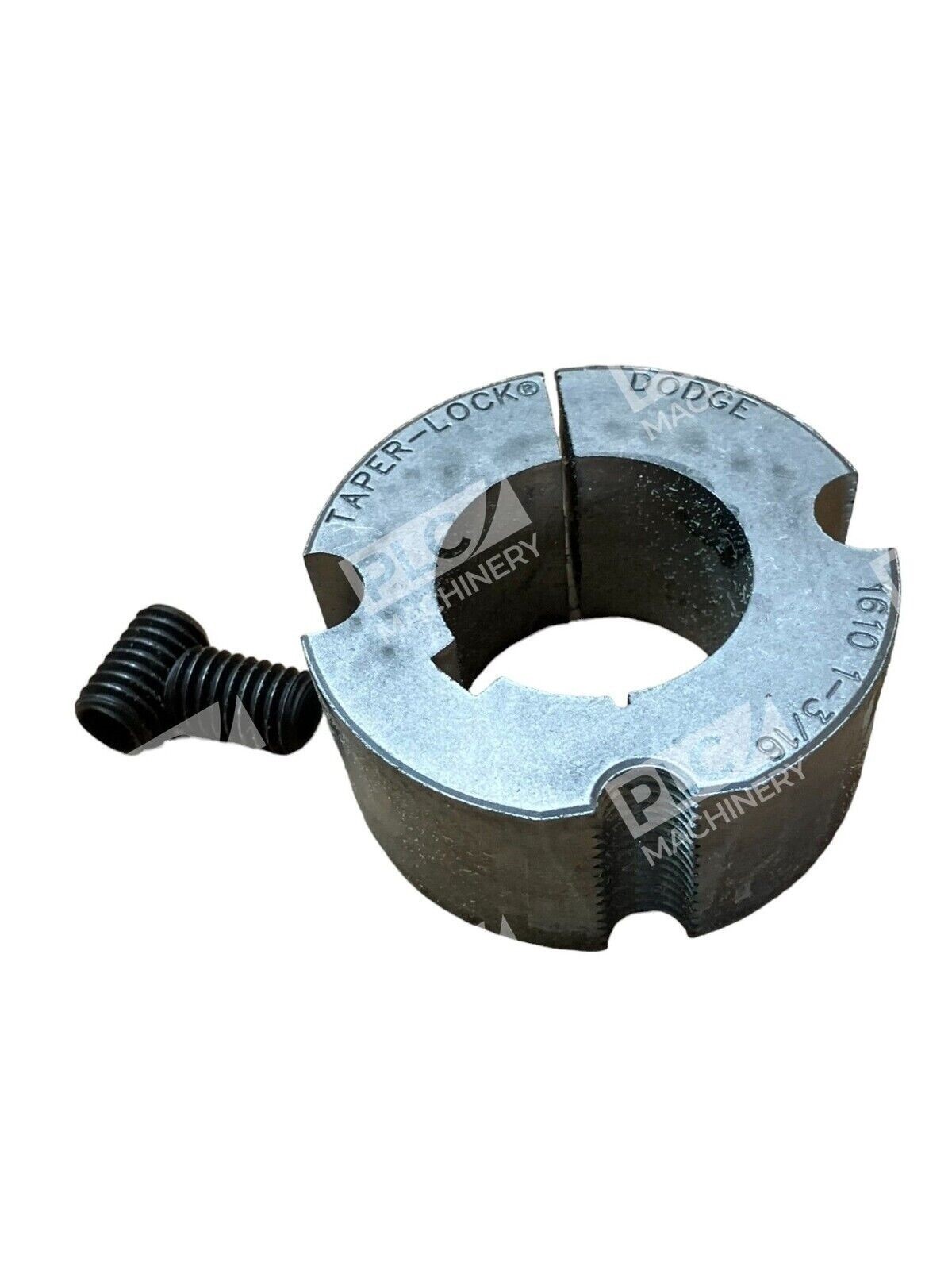

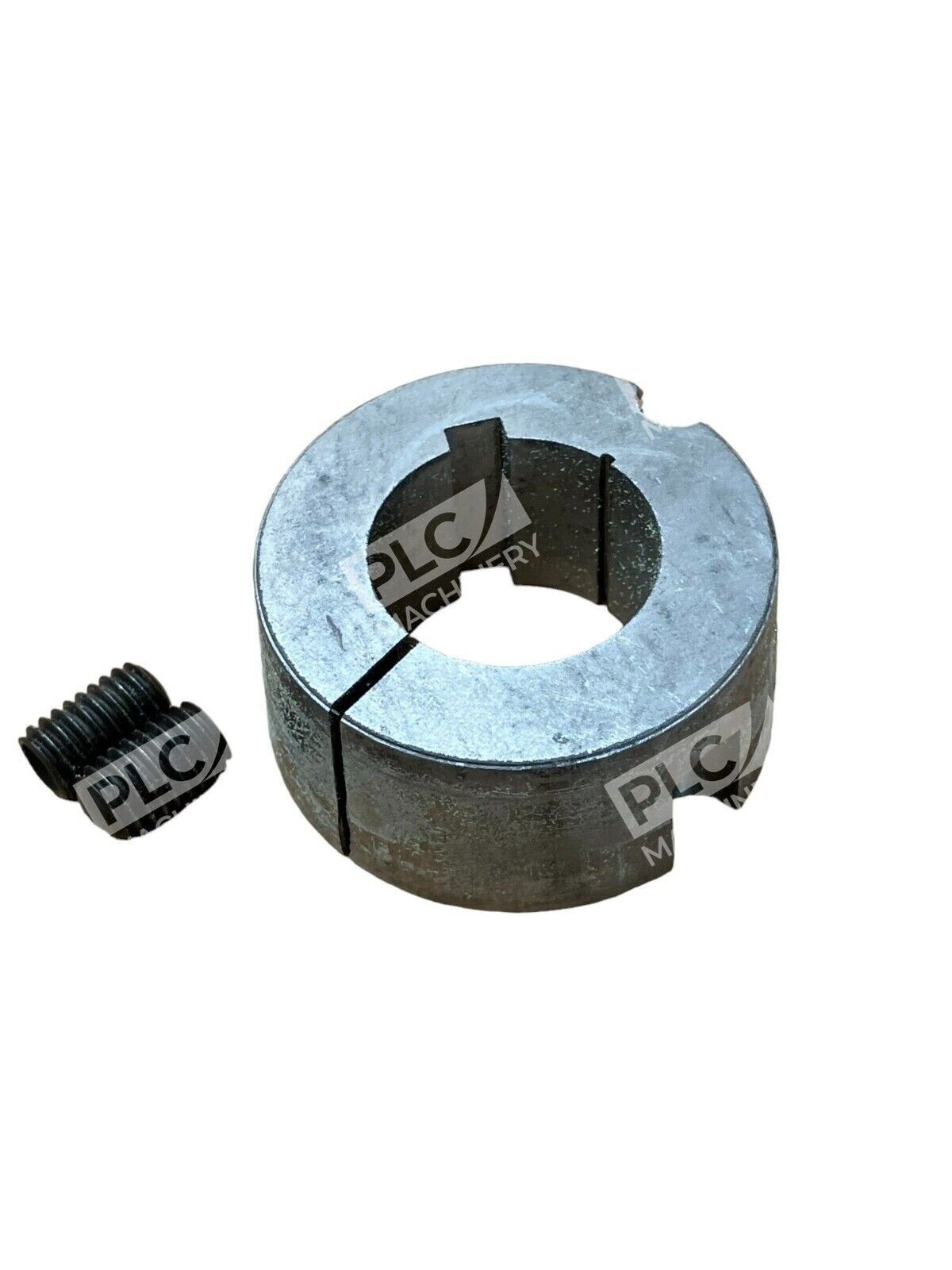

The Dodge 117160 tapered lock bushing is a Type 1610 stock bore bushing engineered for direct shaft coupling in mechanical drive systems. Dodge Taper-Lock bushings are flangeless for clean, compact application and are engineered with an 8 deg taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble. This model suits applications requiring reliable, maintenance-friendly bushing performance without axial shaft load constraints.
Key Features
- Clean and compact design with easy on/off operation
- 8 deg taper grips tight, holds tight, runs true and no wobble
- Flush mounting and no protruding parts
- Sintered steel construction for durability and repeatability
- Stock bore ready for immediate installation without custom machining
Technical Specifications
- Bore Diameter: 1-3/16 in
- Barrel Diameter: 2-1/4 in
- Hub Diameter: 3-1/4 in
- Overall Length (OAL): 1 in
- Taper Angle: 8 deg
- Keyway: 1/4 x 1/8 in
- Bolt Circle: 2.13 in
- Bolt Holes: 2
- Screw Size: 3/8 x 5/8 in
- Maximum Torque: 4300 in-lb
- Material: Sintered Steel
Typical Applications
The Dodge 117160 bushing is commonly used in:
- Conveyor drive systems and power transmission equipment
- Industrial motor couplings and shaft adapters
- Machinery requiring compact, vibration-free bushing solutions
- Pump and fan drive applications with consistent rotational loads
- Equipment upgrades and preventive maintenance replacements
Compatibility & Replacements
Compatible With
- Dodge mechanical drive systems and standard shaft diameters matching 1-3/16″ bore
- Motor and reducer output shafts, 1-3/16″ diameter
- Standard conveyor and coupling equipment using 1610-series bushings
- Equipment designed for Taper-Lock bushing Type 1610 installations
Replaces / Drop-In Replacement For
- Dodge 117160 (OEM equivalent)
- Other Type 1610 tapered lock bushings with 1-3/16″ bore and 2-1/4″ barrel diameter
Works With
- All standard 1610-series Dodge taper-lock equipment and fixtures
- Compatible with Dodge manual installation and removal tools
- Suitable for use with standard mechanical drive system configurations
