Overview

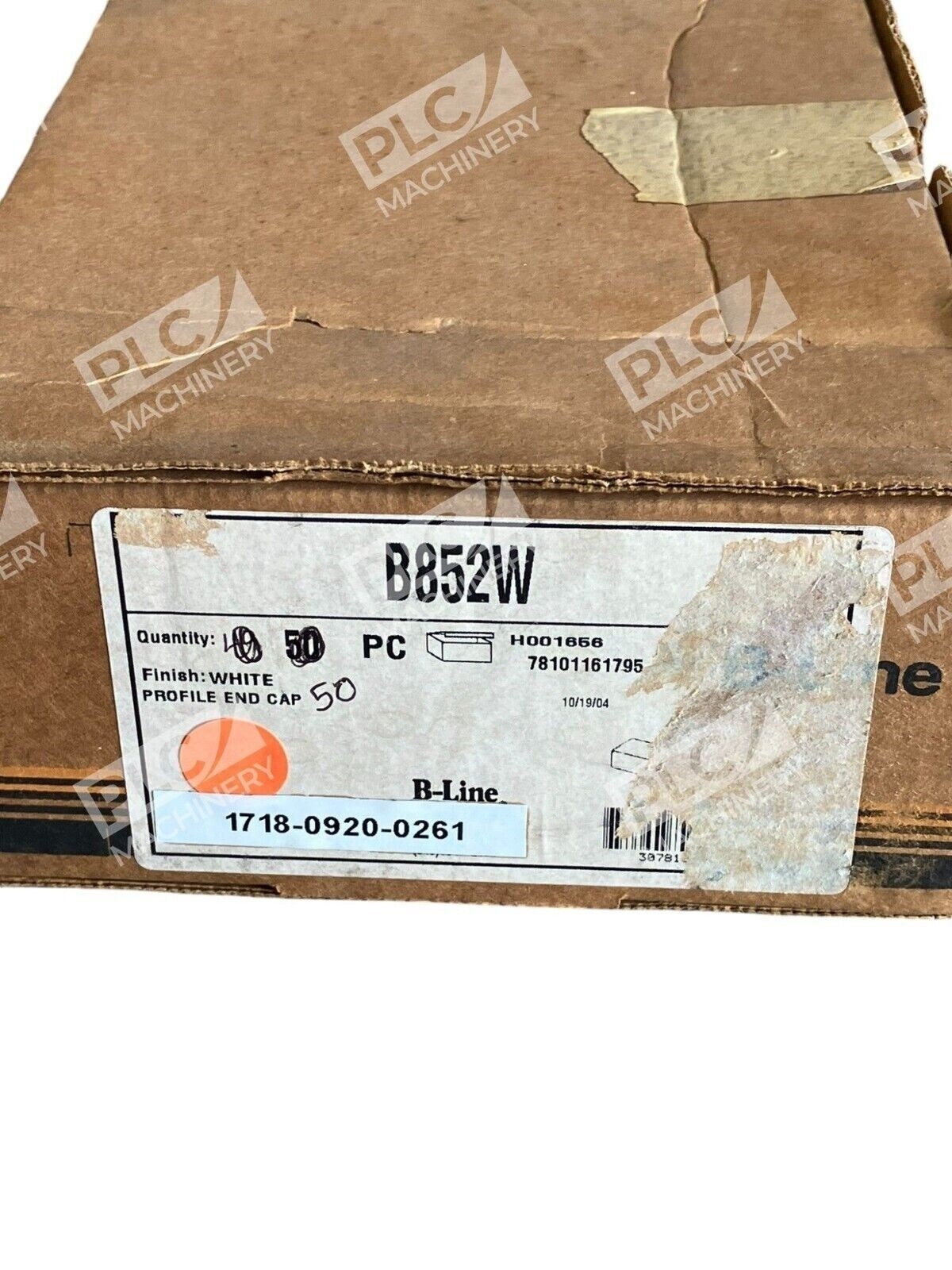

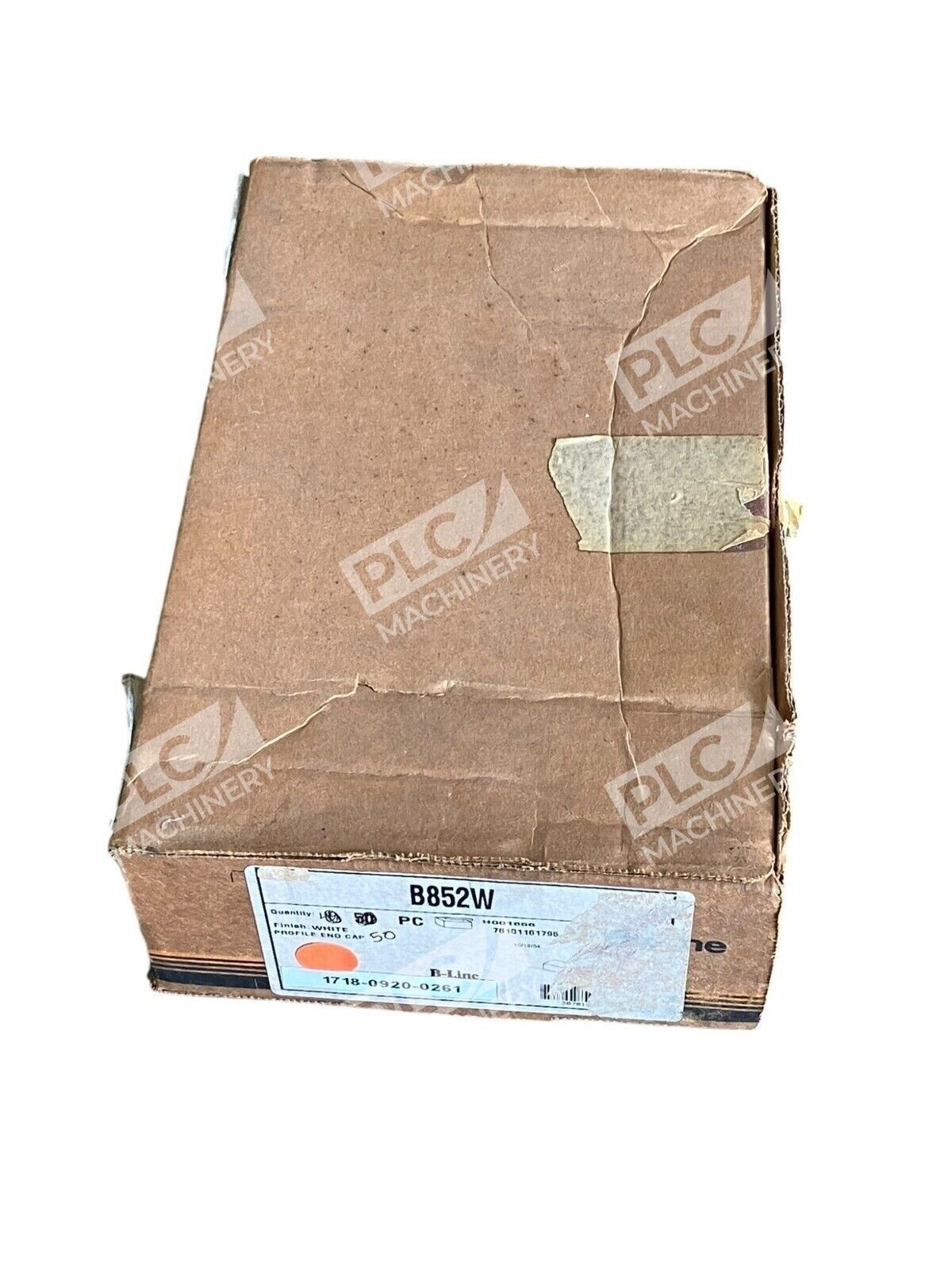

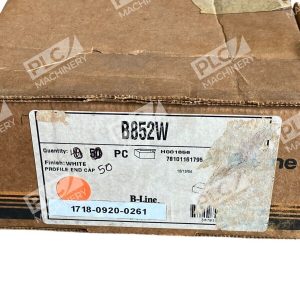

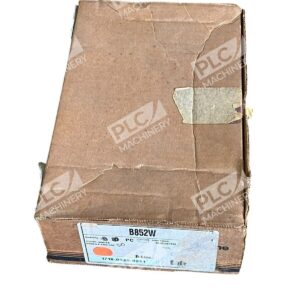

The Eaton B-Line B852W profile end cap is a white PVC plastic cap engineered to cleanly terminate 13/16″ × 1-5/8″ B52 series strut channel. Available in bulk quantities of 50 units per box, this fitting completes the B-Line modular strut system and simplifies raceway closure during installation and renovation projects.
Key Features
- White PVC plastic construction—durable, lightweight, and corrosion-resistant
- Designed for 13/16″ × 1-5/8″ B52 channel termination
- Box quantity of 50 units reduces per-unit cost for bulk electrical projects
- Drop-in fit—no modification or fasteners required
- Temperature rated for continuous operation up to 200°F (93°C)
Technical Specifications
- Manufacturer: Eaton B-Line Systems
- Part Number: B852W
- Material: PVC plastic
- Color: White
- Height: 0.81 inches
- Length: 1.25 inches
- Width: 1.62 inches
- Channel Size: 13/16″ × 1-5/8″ (B52 series)
- Temperature Rating: Continuous 200°F (93°C); Intermittent 350°F (177°C)
- Quantity per Box: 50 units
- UPC: 781011617950
Typical Applications
- Electrical raceway and strut channel termination in commercial and industrial facilities
- Cable and wire management system closure on suspended or wall-mounted B52 channel
- Protects conductor runs from dust and moisture ingress at channel endpoints
- Building retrofit projects requiring bulk quantities of channel hardware
- Data center and telecommunications cable infrastructure installations
Compatibility & Replacements
Compatible With
- Eaton B-Line B52 series strut channel (13/16″ × 1-5/8″)
- B-Line modular strut systems and cable trays
- Standard electrical raceway and conduit installations
- Suspended ceiling and wall-mounted cable support structures
Replaces / Drop-In Replacement For
- Older or worn B852W end caps from legacy B-Line installations
- Generic PVC end caps designed for 13/16″ × 1-5/8″ shallow strut channel
Works With
- Eaton B-Line strut channel hardware ecosystem
- Compatible with all standard B52 channel fittings, supports, and fasteners
- Suitable for indoor and protected outdoor installations up to rated temperature limits
