Overview

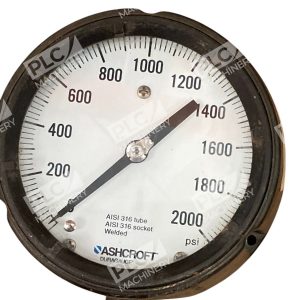

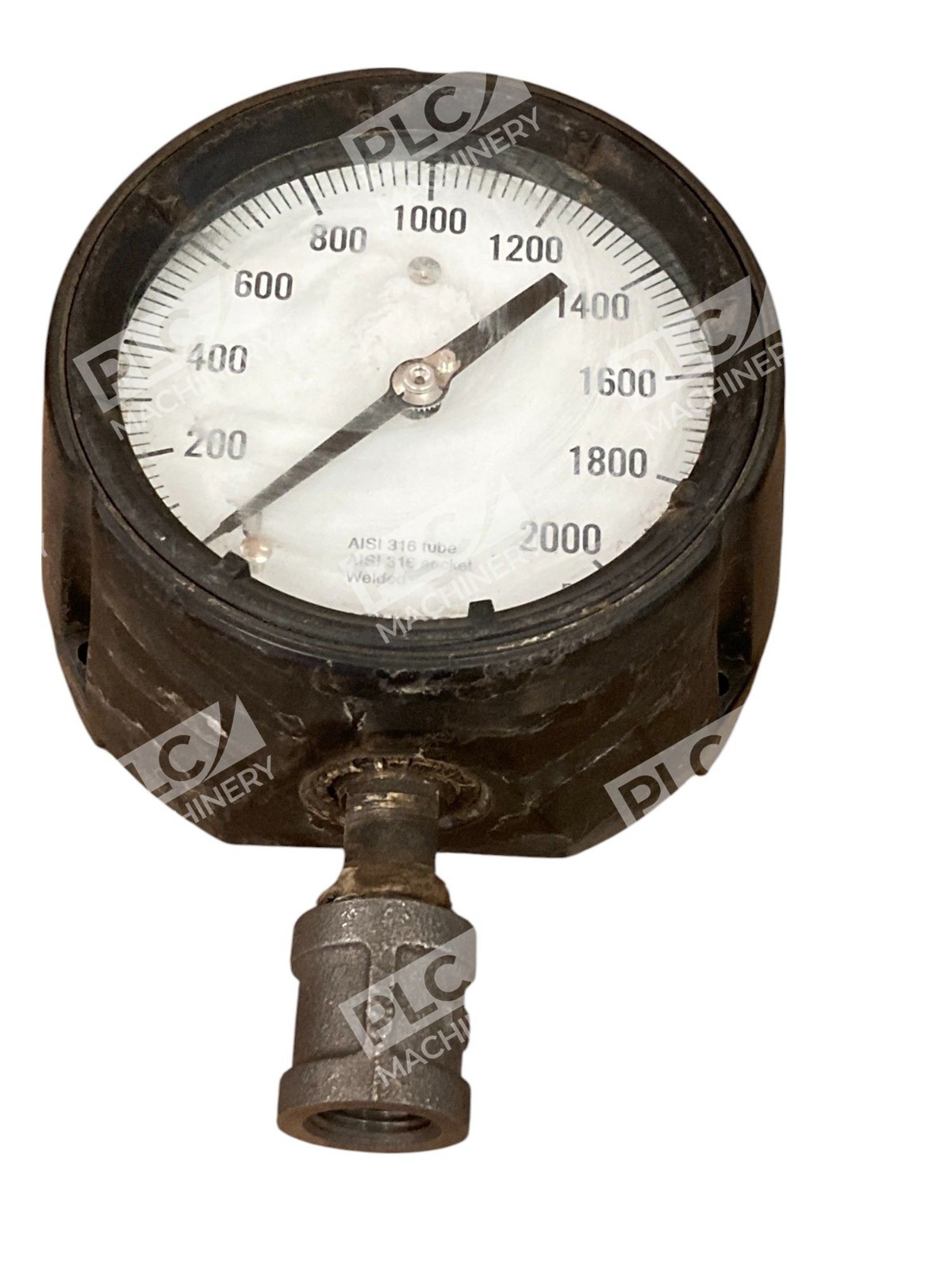

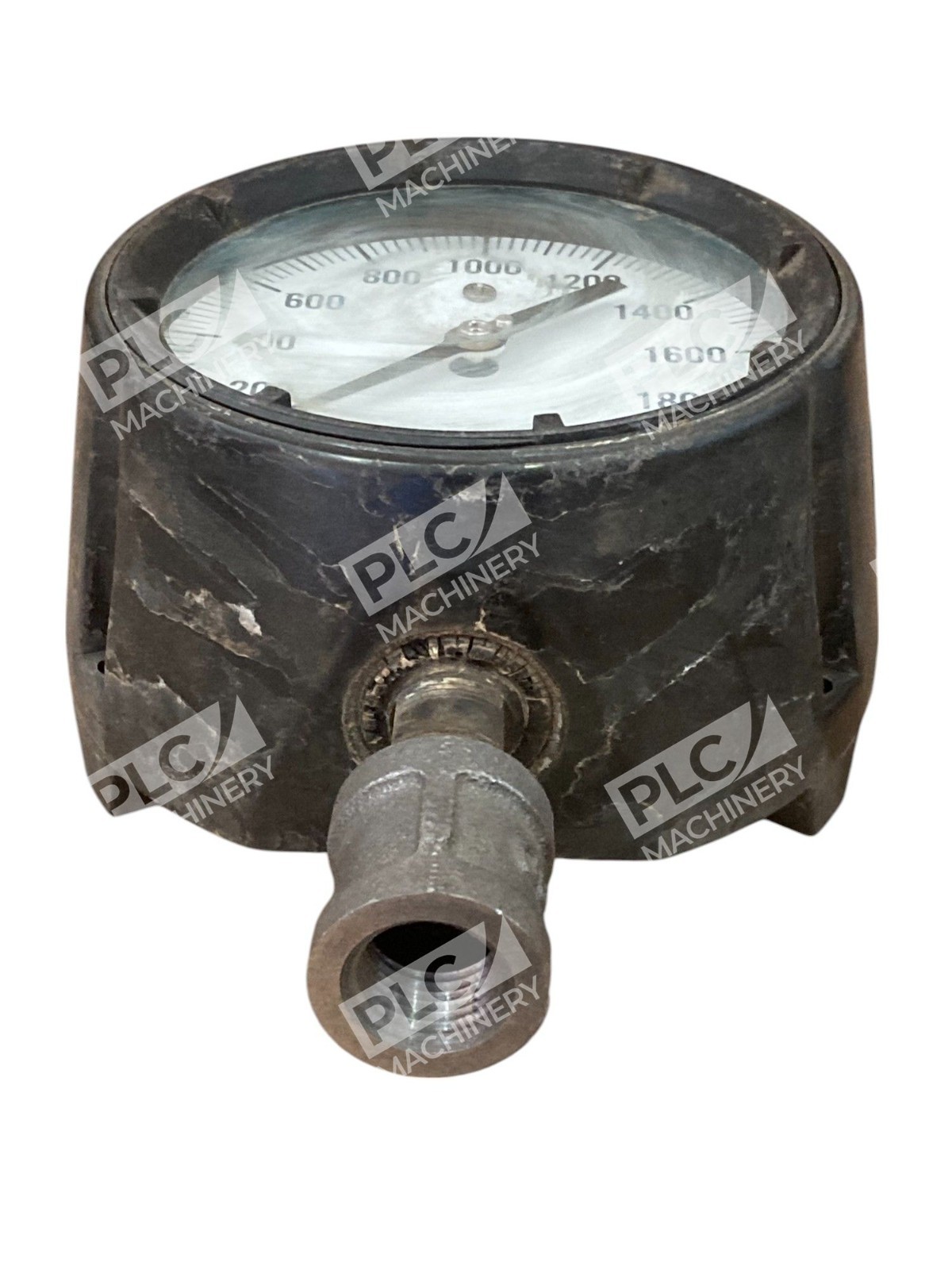

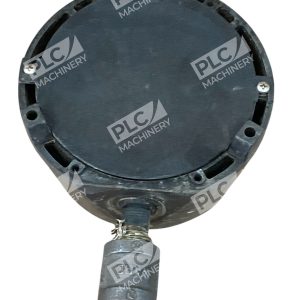

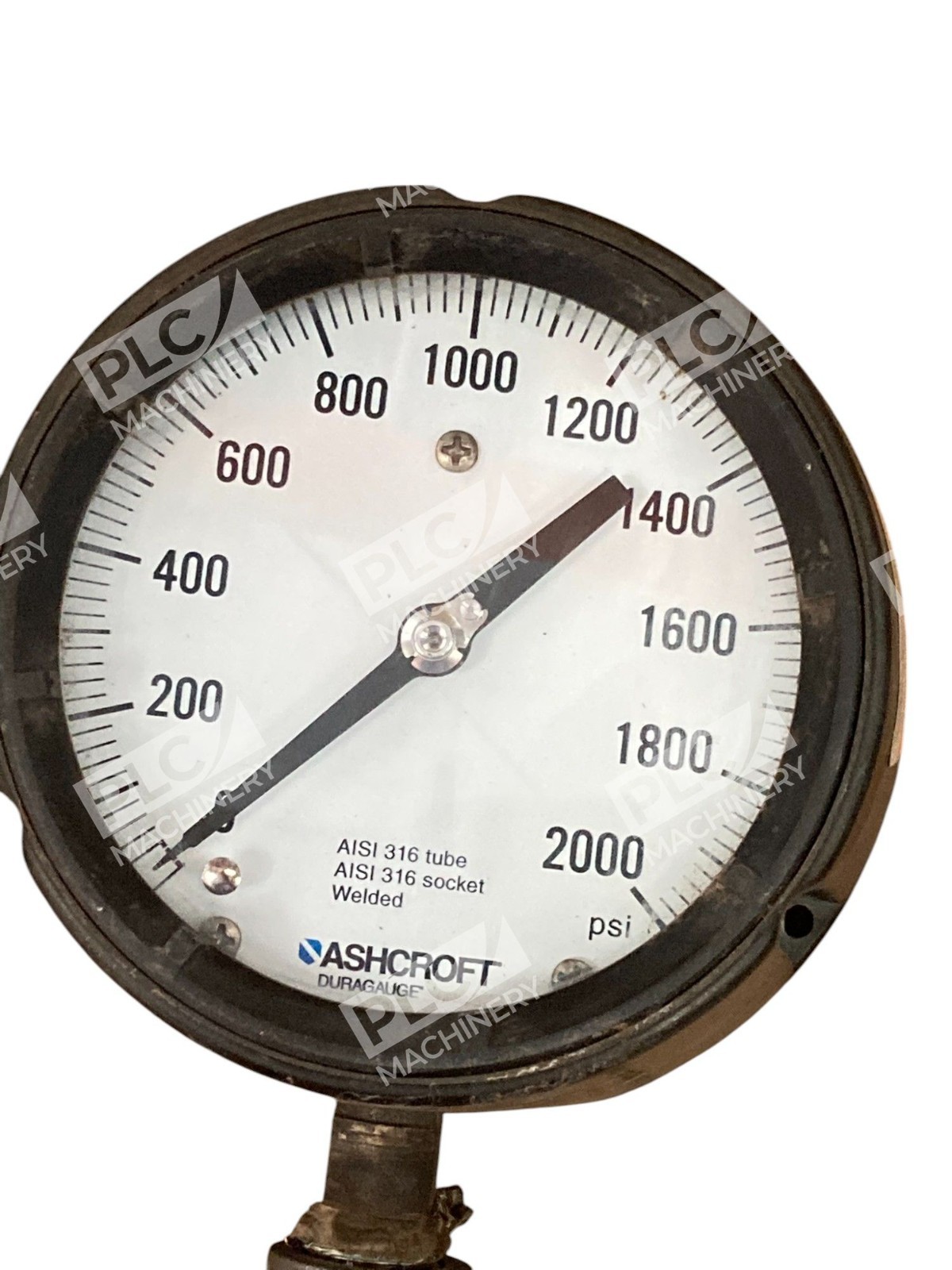

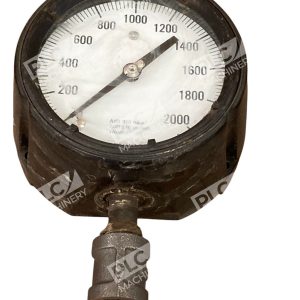

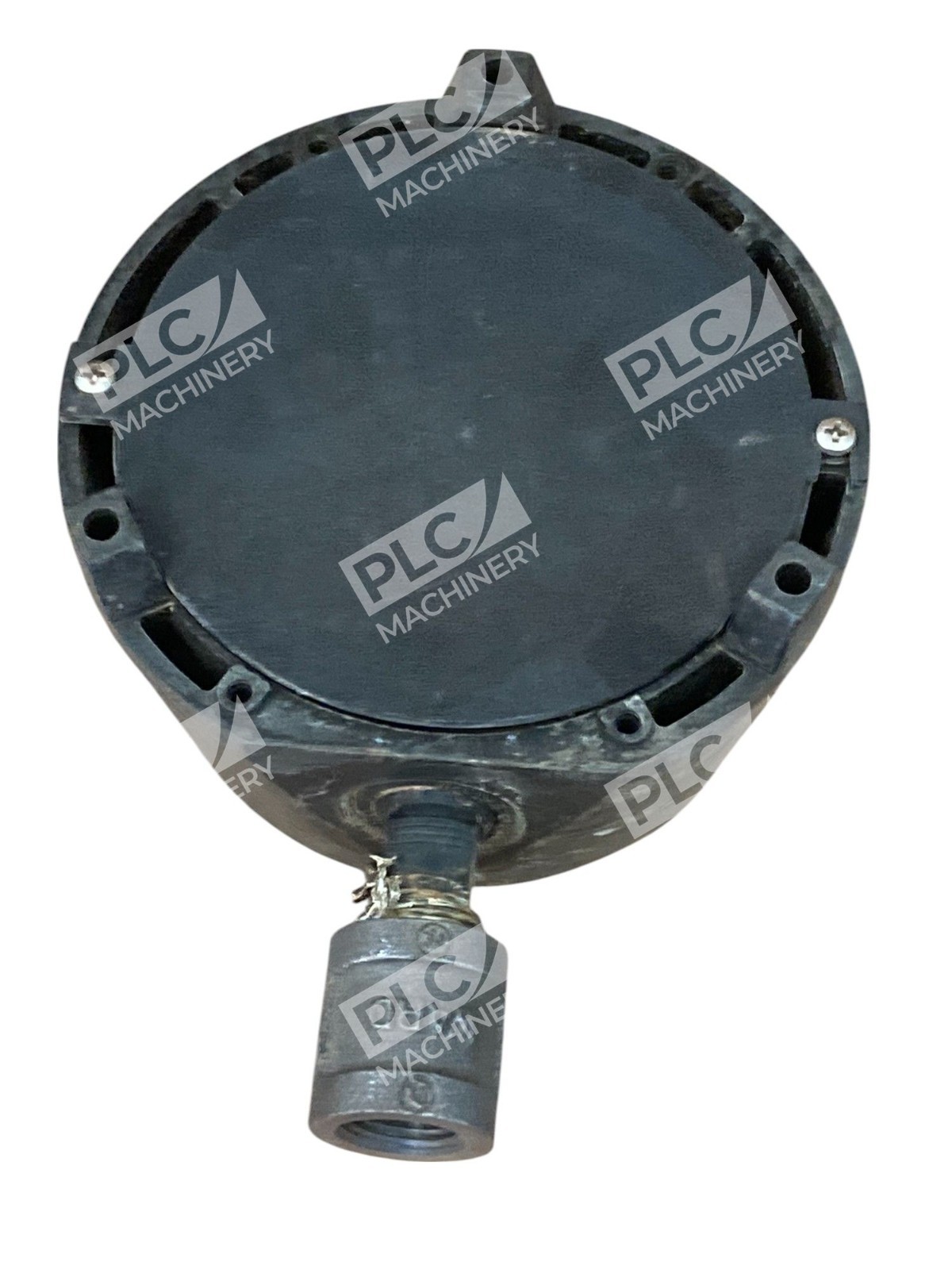

The Ashcroft 0-2000 PSI pressure gauge is engineered for demanding industrial applications requiring durable, corrosion-resistant pressure measurement. With welded AISI 316 stainless steel tube and socket construction, this gauge withstands harsh process conditions and chemical exposure that would corrode standard carbon steel components.
Key Features
- Welded AISI 316 stainless steel tube and socket for superior corrosion resistance
- 0–2000 PSI measurement range suitable for high-pressure applications
- Industrial-grade accuracy meeting ASME B40.1 standards
- All-stainless construction protects against ambient and process corrosion
- Dry gauge design compatible with most gaseous and liquid media
- Field-proven reliability in petrochemical, refinery, and marine environments
Technical Specifications
- Pressure Range: 0–2000 PSI
- Tube Material: AISI 316 Stainless Steel (welded)
- Socket Material: AISI 316 Stainless Steel
- Case Material: 304 Stainless Steel
- Accuracy: ±1.6% of span (typical for Ashcroft industrial gauges)
- Standard Connection: NPT (Verify thread size and mount type with your system integrator)
- Certifications: ASME B40.1, NSF-61 compliant (316L wetted parts)
- Wetted Materials: AISI 316 stainless steel throughout
- Operating Temperature: -40°F to 120°F (verify with product documentation)
- Gauge Type: Bourdon tube, dry service
Typical Applications
This 0–2000 PSI gauge is commonly deployed in:
- Petrochemical refineries and chemical plants monitoring high-pressure processes
- Offshore oil and gas operations where corrosive marine atmospheres demand stainless construction
- Compressor discharge and pump outlet pressure monitoring
- Hydraulic system diagnostics and maintenance
- Industrial steam systems and high-temperature process lines (with appropriate isolation)
- Pharmaceutical and food processing where stainless components prevent contamination
Compatibility & Replacements
Compatible With
- NPT threaded ports (verify thread size: typically 1/4″ or 1/2″ NPT)
- Dry service applications with non-corrosive gaseous or liquid media
- Standard gauge isolation valves and diaphragm seal systems
- Ashcroft diaphragm seals and isolation rings (refer to Ashcroft min/max compatibility guide)
- Applications requiring NSF-61 compliance and high-purity systems
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This gauge replaces other Ashcroft welded AISI 316 models in the same pressure range and connection size. Consult Ashcroft or your distributor for model interchangeability.
Works With
- Ashcroft Duragauge and standard welded stainless steel gauge series
- SAE J514/J1926 O-Ring pressure connections
- Direct manifold and remote mount diaphragm seal systems
- ASME B40.100 Grade 1A compliant instrument standards
- Pressure gauges used in ASME Section VIII pressure vessel and piping systems
