Overview

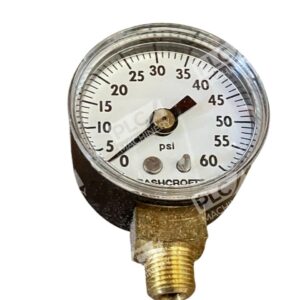

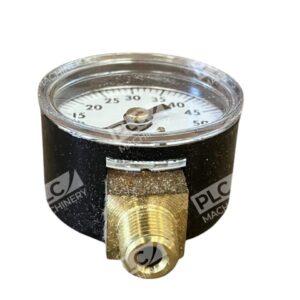

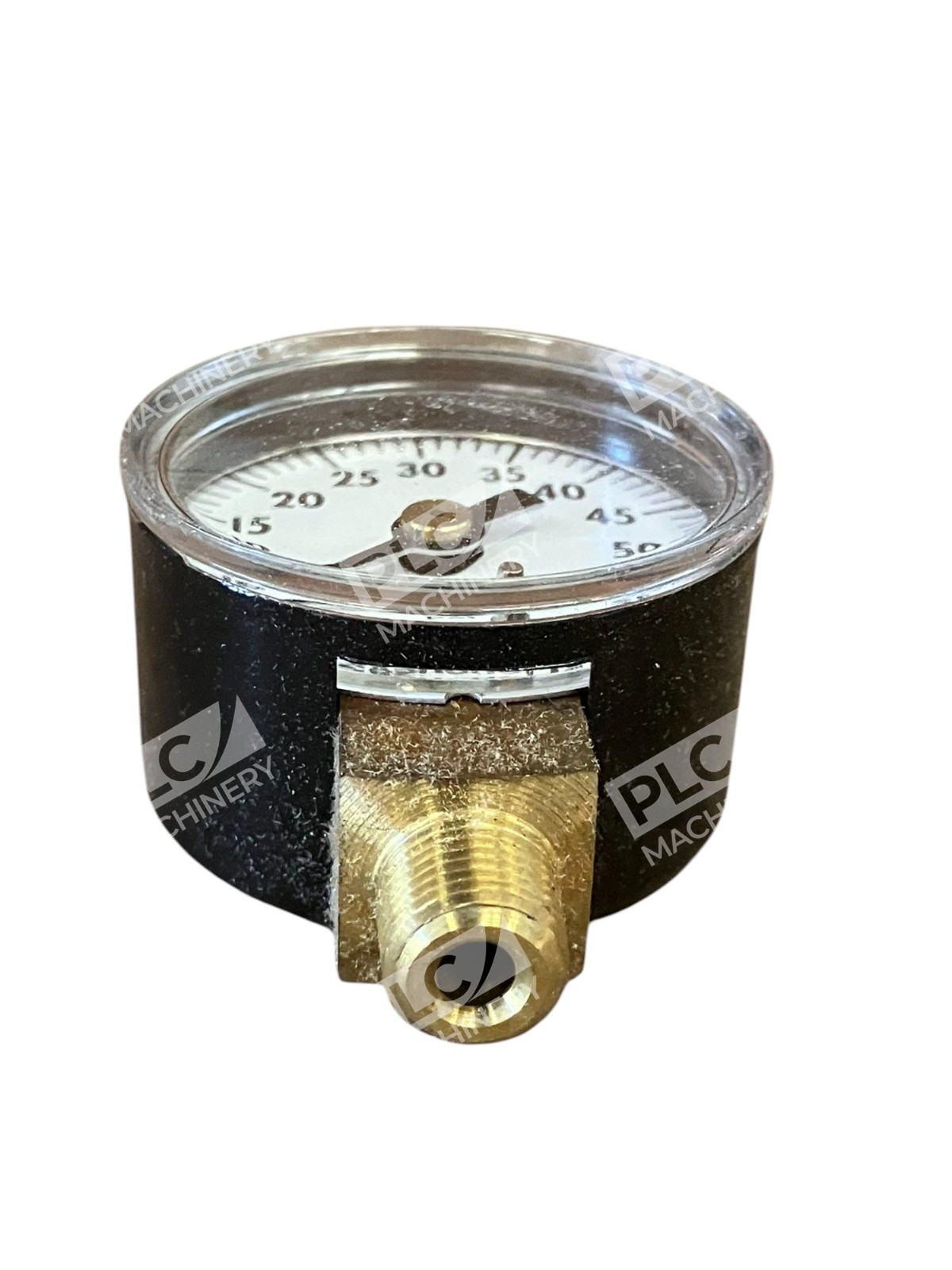

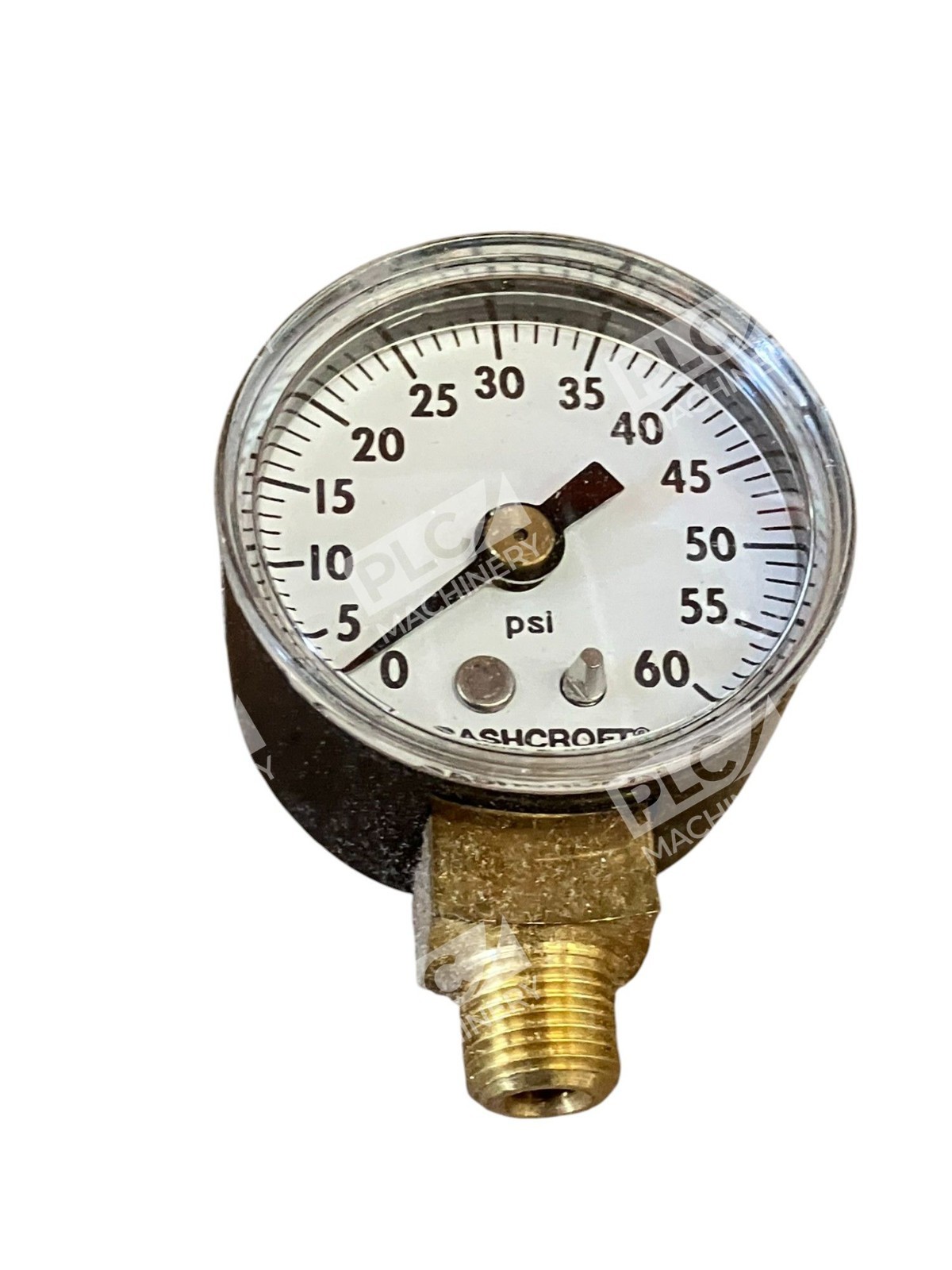

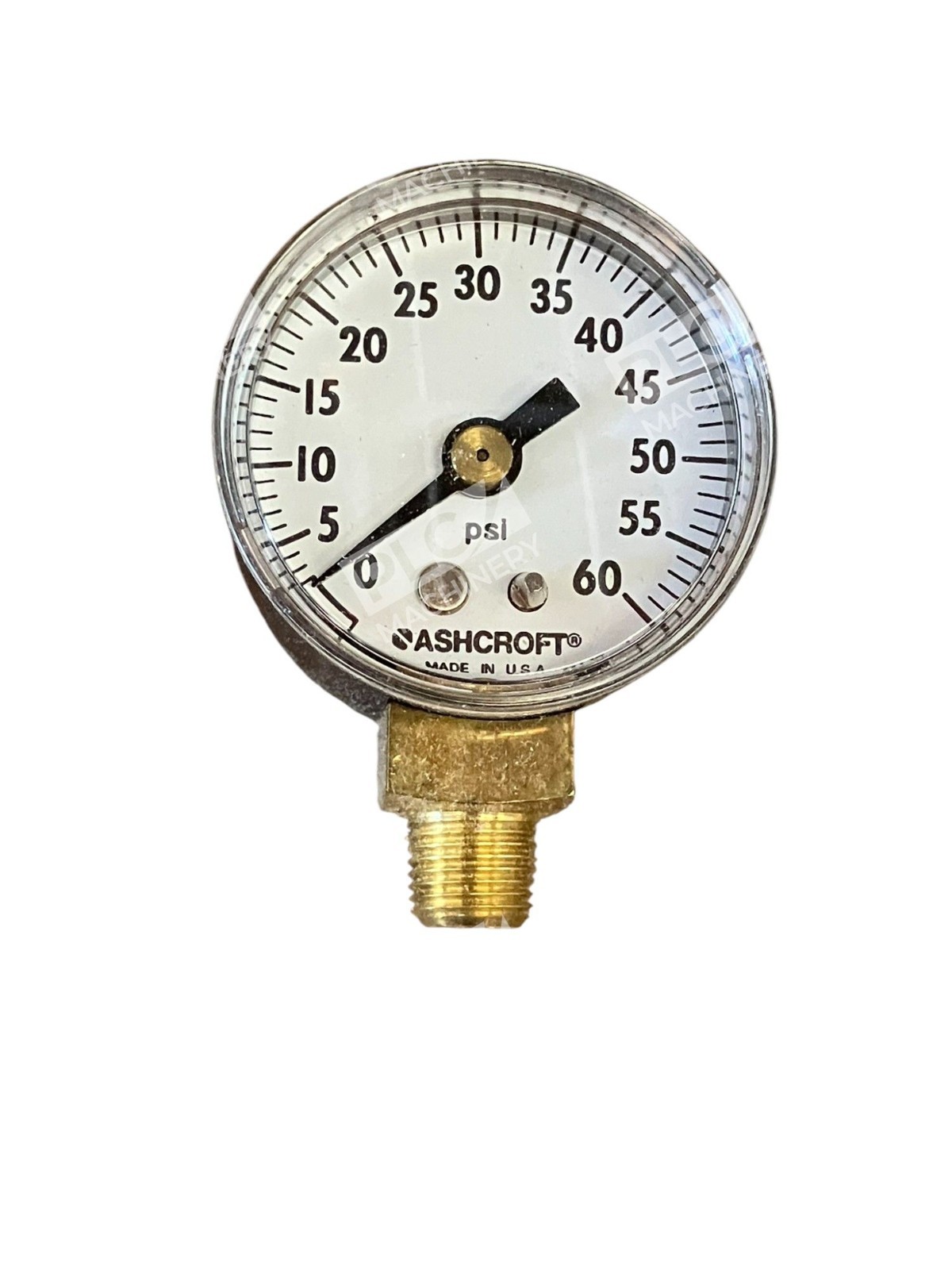

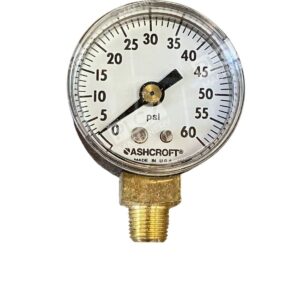

The Ashcroft 15W-1005-H-01L-60 is a Type 1005 commercial pressure gauge designed for accurate, dependable pressure measurement in industrial and OEM applications. With a 0-60 PSI range, 1/8″ NPT brass socket connection, and 1-1/2″ dial face, this gauge combines proven design with industrial-grade durability. The Type 1005 case construction ensures aesthetic appeal without compromising performance or reliability in process monitoring environments.
Key Features
- 0-60 PSI measurement range for low-pressure industrial applications
- 1/8″ NPT threaded connection with brass socket for secure, corrosion-resistant installation
- 1-1/2″ dial face provides clear, easy-to-read pressure indication
- Type 1005 commercial-grade case design for long-term operational stability
- Lightweight and compact—0.20 lbs—for flexible mounting options

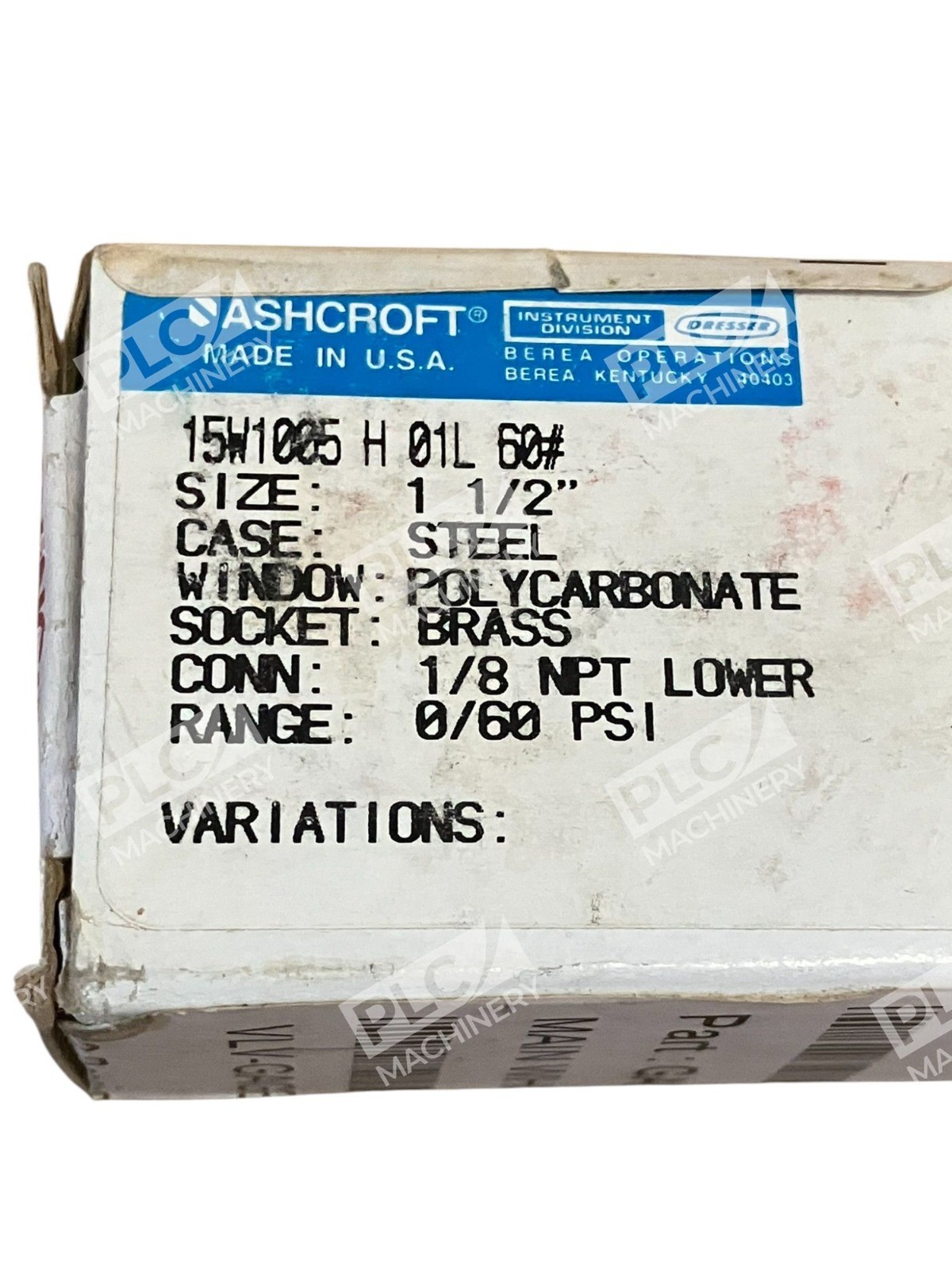

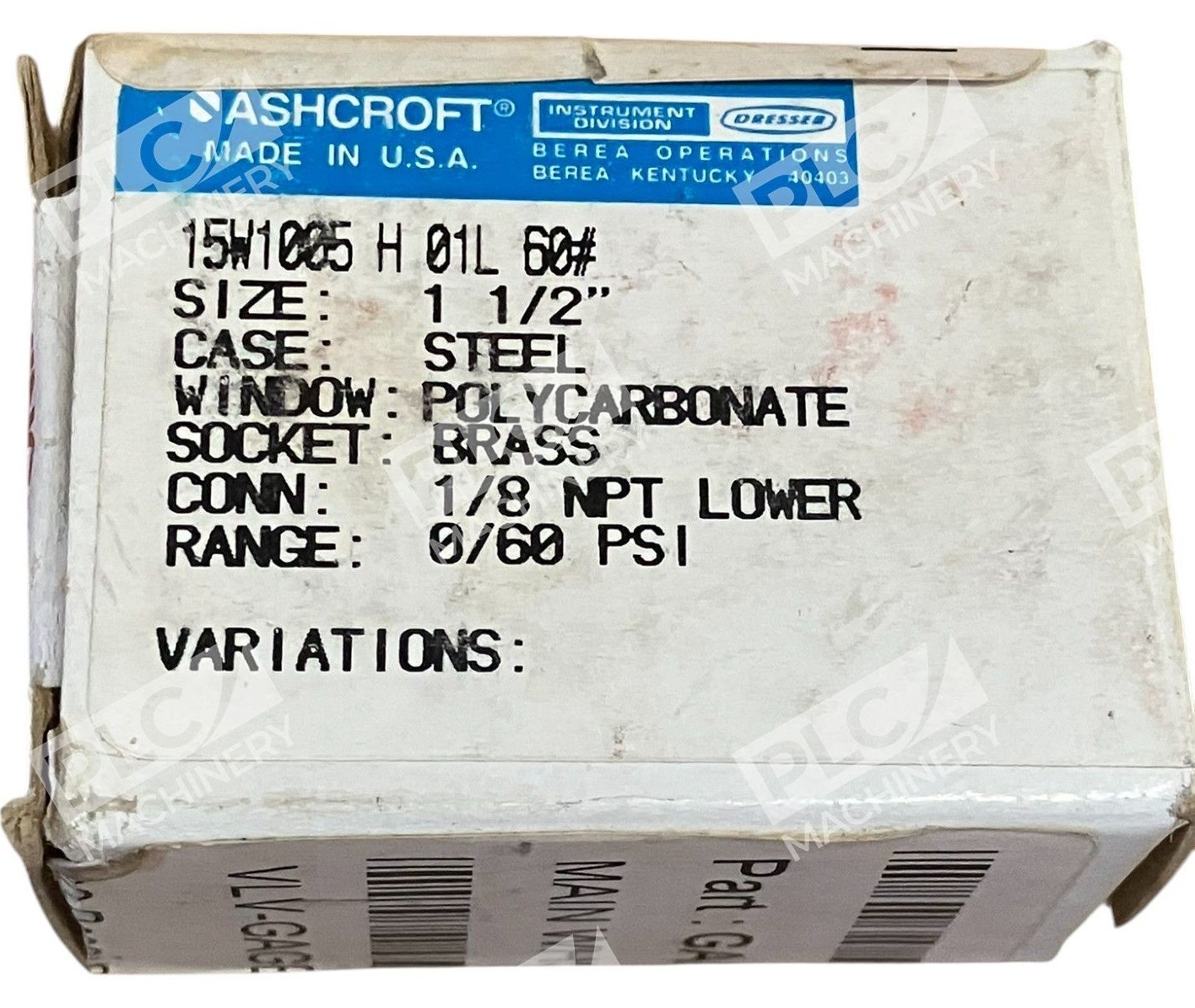

Technical Specifications
- Pressure Range: 0–60 PSI
- Connection Size: 1/8″ NPT
- Connection Type: Brass Socket
- Dial Diameter: 1-1/2″
- Case Type: Type 1005 Commercial
- Weight: 0.20 lbs
Typical Applications
The Ashcroft 15W-1005-H-01L-60 is well suited for:
- HVAC and refrigeration systems requiring low-pressure monitoring
- Compressed air and pneumatic control circuits
- Hydraulic fluid level and pressure monitoring
- Process instrumentation in manufacturing and industrial facilities
- OEM equipment integration and panel-mount installations
Compatibility & Replacements
Compatible With
- Standard 1/8″ NPT male threaded ports and fittings
- Brass socket adapters and tee connections
- Low-pressure industrial hydraulic and pneumatic systems
- Standard pressure gauge panels and control enclosures
Replaces / Drop-In Replacement For
- Other Ashcroft Type 1005 0-60 PSI gauges with 1/8″ NPT connection
- Verify model compatibility with your system documentation before ordering
Works With
- Pneumatic and hydraulic system manifolds
- Industrial control panels and enclosures
- Low-pressure process monitoring stations
- Ashcroft Type 1005/1005P/1005S series configurations
