Overview

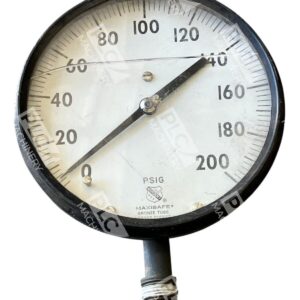

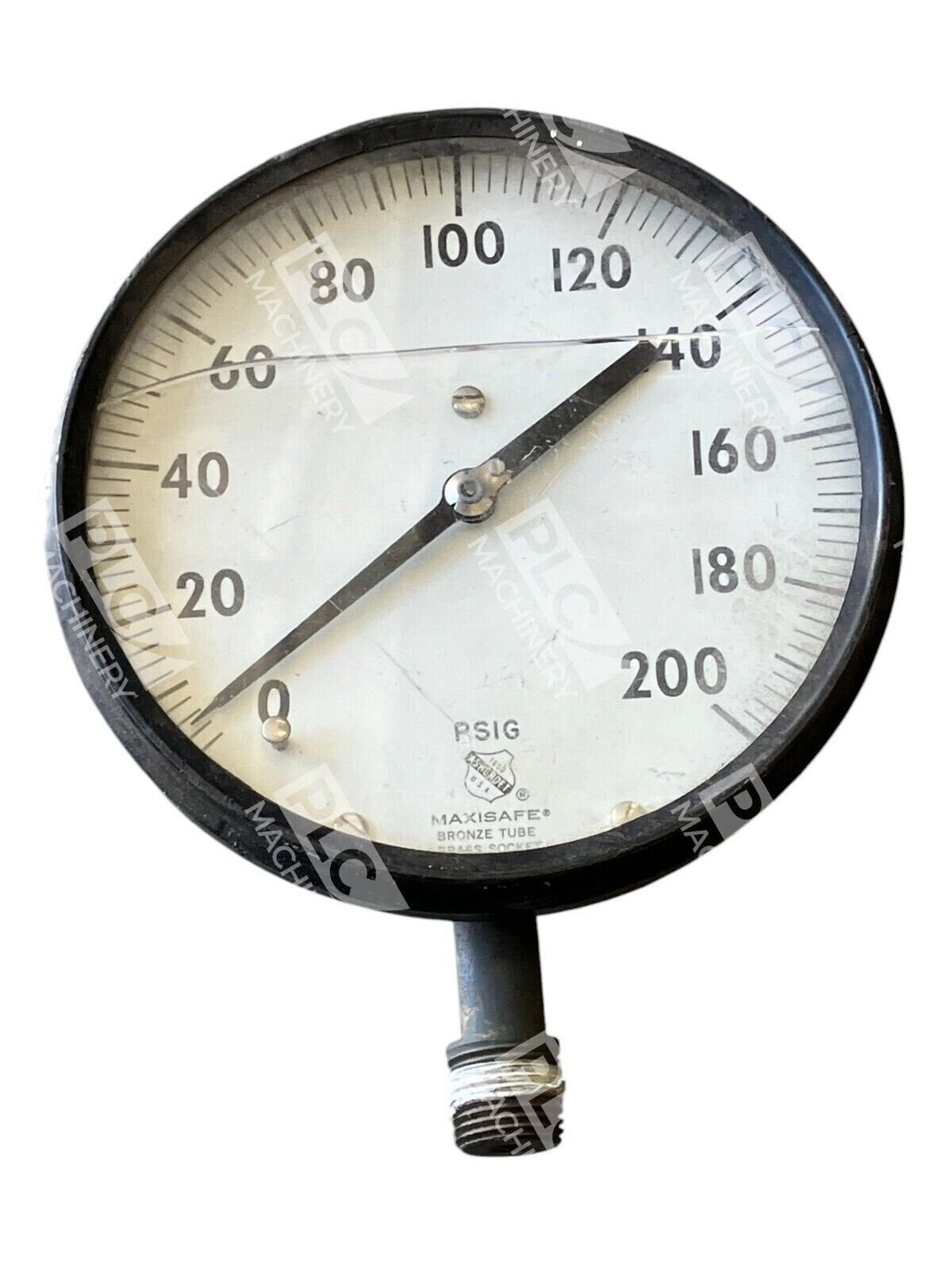

The Ashcroft 1-200PSIG Gauge Maxisafe is a heavy-duty analog pressure gauge engineered for reliable performance in demanding industrial environments. The Maxisafe series is built with robust construction and corrosion-resistant materials to withstand sustained operation in hydraulic systems, pneumatic lines, pump installations, and plumbing applications. Its clear, easy-to-read dial provides quick visual pressure confirmation for technicians and engineers during troubleshooting, maintenance, and system monitoring.
Key Features
- 0–200 PSIG pressure range for mid-range industrial applications
- Durable Maxisafe construction with corrosion-resistant design
- Bourdon tube mechanism for reliable, long-term accuracy
- Easy-to-read analog dial for quick pressure verification
- Compatible with hydraulic, pneumatic, and compressed air systems
- Used condition – fully functional and tested for reliability
Technical Specifications
| Pressure Range | 0–200 PSIG |
| Model Series | Ashcroft Maxisafe |
| Display Type | Analog dial gauge |
| Case Material | Corrosion-resistant (typically steel or stainless options available) |
| Mechanism | Bourdon tube |
| Connection Type | Bottom or back entry (standard NPT threads) |
| Operating Temperature | –20°C to +60°C (–4°F to 140°F) typical dry gauge |
| Accuracy | ±1.6% of full span (standard ASME B40.100 Grade 2) |
| Mounting | U-clamp or flange mount options |
| Condition | Used – inspected and functional |
Typical Applications
- Hydraulic Systems: Monitor pump discharge and circuit pressures in industrial machinery and presses
- Pneumatic Lines: Verify compressed air pressure in manufacturing, assembly lines, and tool operations
- Pump Testing: Quick-check gauge for pump commissioning, maintenance, and troubleshooting
- Plumbing & Water Systems: Track water system pressure in building services and industrial plants
- Maintenance & Field Service: Portable pressure verification for preventive and corrective maintenance programs
Compatibility & Replacements
Compatible With
- Hydraulic power units and circuit applications
- Pneumatic compressor and air distribution systems
- Pump discharge and suction monitoring
- Water, mineral oil, and synthetic fluid systems (consult media compatibility for your fluid)
- Standard NPT port connections on industrial equipment
Replaces / Drop-In Replacement For
The Ashcroft Maxisafe 1-200PSIG replaces equivalent 0–200 PSI pressure gauges from other manufacturers in the same mounting and port configuration. Verify exact connection type (bottom or back) and thread size (typically 1/4″ or 1/2″ NPT) before installation. Confirm pressure rating and case size (typically 2.5″, 3.5″, or 4.5″ dial) match your application requirements.
Works With
- Standard industrial Bourdon tube gauges and test gauge configurations
- Hydraulic and pneumatic system maintenance tools
- Portable pressure test kits and measurement packages
- U-clamp and flange mounting brackets (Ashcroft and universal types)
