Overview
The Ashcroft 15W1005PH 01L 160# is a commercial-grade pressure gauge designed for reliable measurement and monitoring in industrial systems. This unit combines a durable ABS plastic case with brass wetted components to deliver consistent performance in demanding environments. The 1-1/2″ dial and 0–160 PSI range make it suitable for pneumatic, hydraulic, and process monitoring applications.
Key Features
- 1-1/2″ glycerin-filled or dry dial with easy-to-read markings
- ABS plastic case provides cost-effective durability and lightweight construction
- Brass socket and connection for corrosion resistance
- 1/8″ NPT lower connection mount for quick, standard installation
- 0–160 PSI measuring range suitable for general industrial use
- Compact, space-saving design for equipment integration

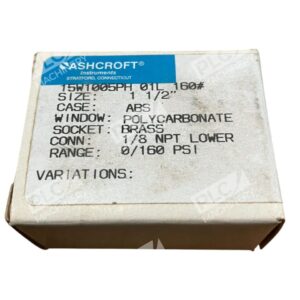

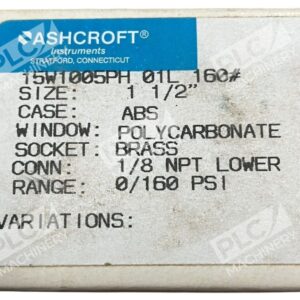

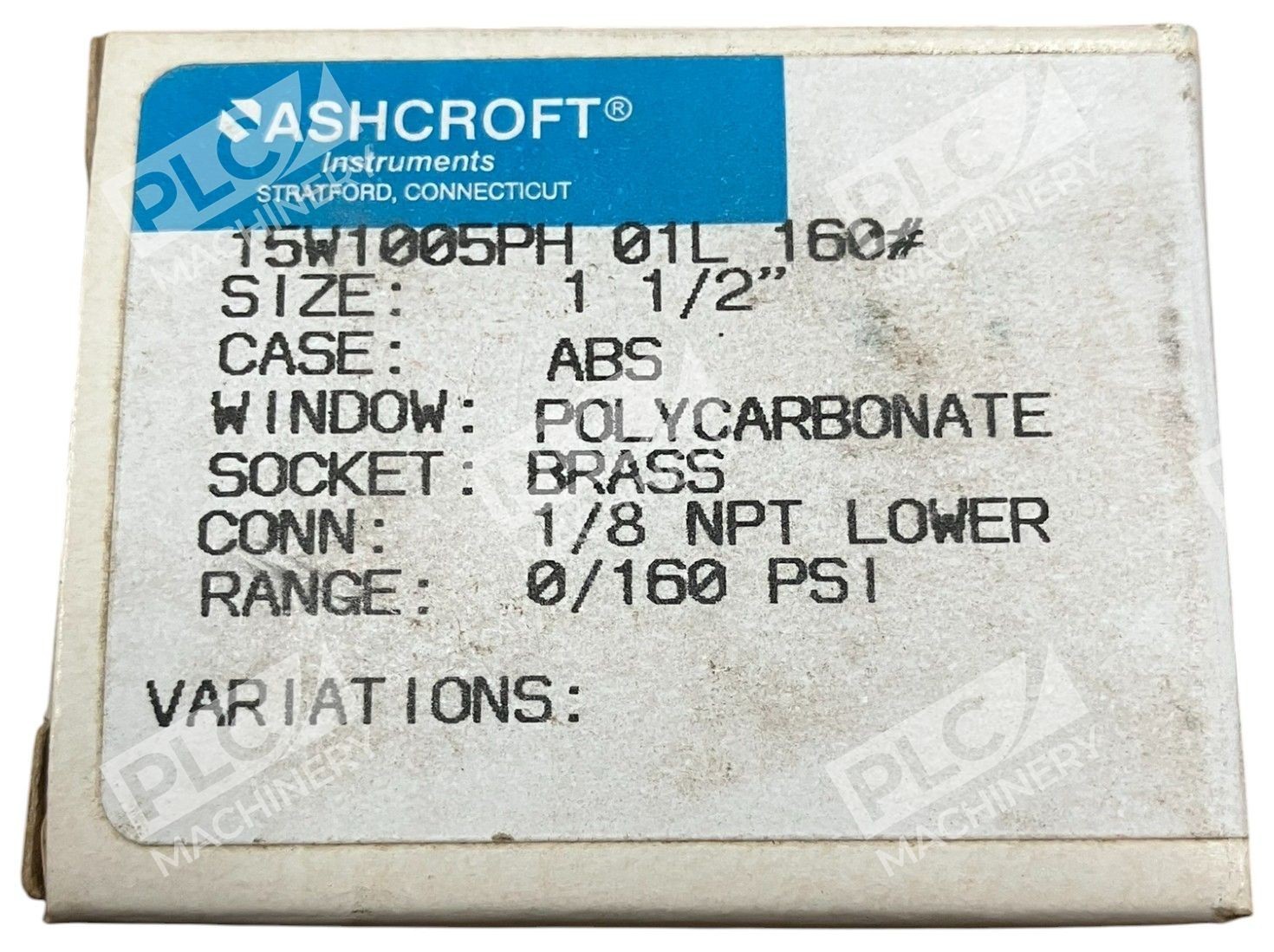

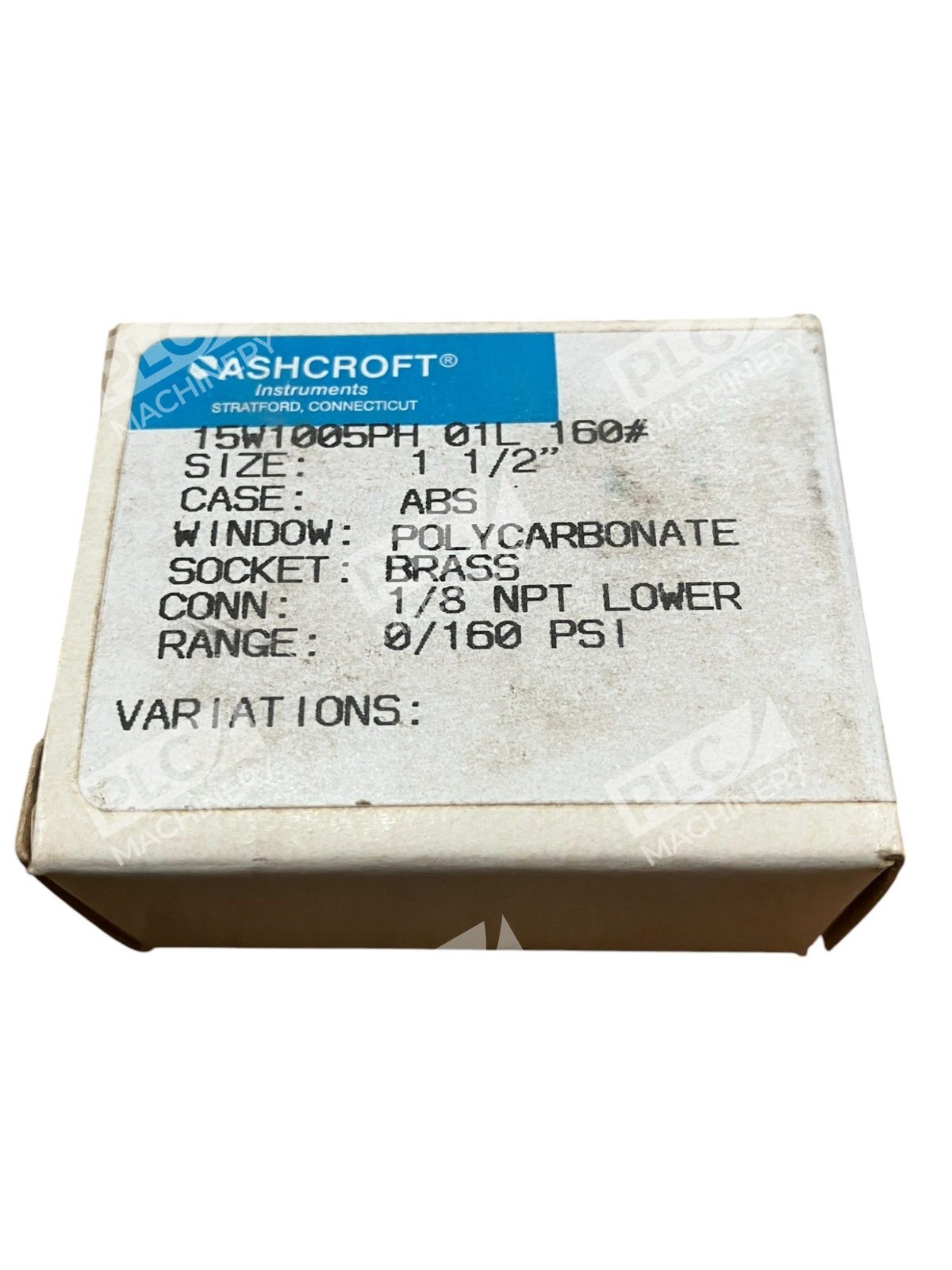

Technical Specifications
- Dial Diameter: 1-1/2 inch
- Case Material: ABS plastic
- Socket Material: Brass
- Window Material: Polycarbonate
- Pressure Range: 0–160 PSI
- Connection Type: 1/8″ NPT
- Connection Location: Lower (center back)
- Series: 1005
- Weight: Approximately 0.27 lbs
Typical Applications
The Ashcroft 15W1005PH 01L 160# is commonly deployed in:
- Air compressor systems and tank pressure monitoring
- Filter and regulator assemblies
- Water pumps and centrifugal applications
- Beverage-dispensing equipment
- Paint sprayers and pneumatic tools
- General pneumatic/hydraulic system pressure indication
Compatibility & Replacements
Compatible With
- Pneumatic and hydraulic systems operating 0–160 PSI
- Standard 1/8″ NPT port connections
- Ashcroft 1005 series gauge configurations
- Compressors, pumps, filters, and pressure control equipment
Replaces / Drop-In Replacement For
- Ashcroft 15W1005PH 01L 160# — exact model
- Other 1005 series 160 PSI gauges with 1/8″ NPT lower connection
- Verify compatibility with your system integrator before ordering.
Works With
- Standard 1/8″ NPT pneumatic and hydraulic port configurations
- Pressure transmitters and monitoring systems
- Industrial control panels and dashboard installations
