Overview

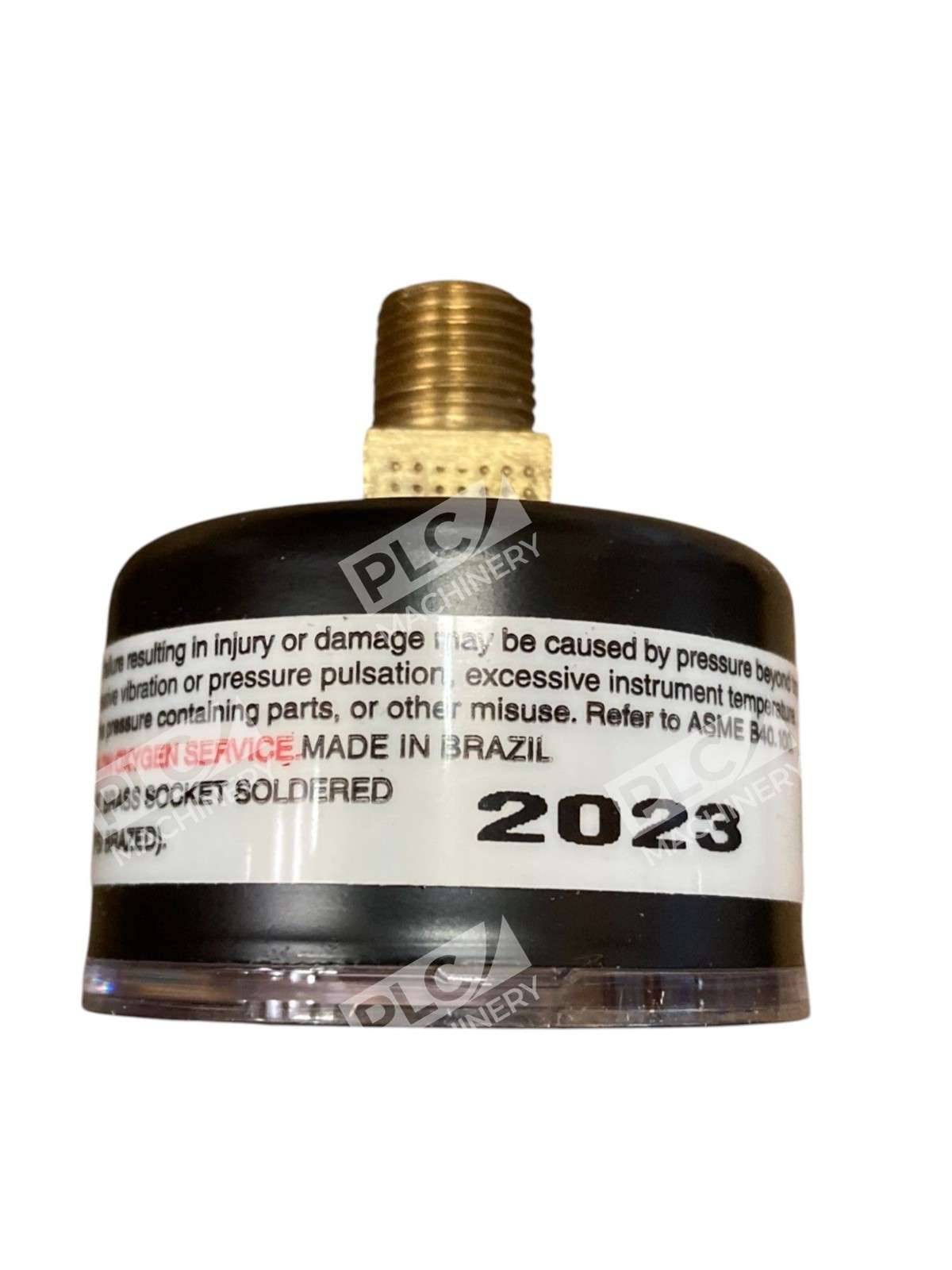

The Ashcroft 15W1005-H-01B-160 is a Type 1005 commercial-duty pressure gauge engineered for general industrial use. With a 160 PSI pressure maximum, 1.5″ dial size, 1/8″ NPT center back mount connection, brass wetted material, and steel case material, this gauge combines durability with straightforward operation. These gauges are commonly used on compressors, filter regulators, water pumps, beverage-dispensing equipment, paint sprayers, and a variety of other applications.
Key Features
- Type 1005 commercial-grade construction for industrial reliability
- Full-scale range: 0–160 PSI (0–11.0 bar)
- Brass wetted materials and steel case resist corrosion in wet and oily environments

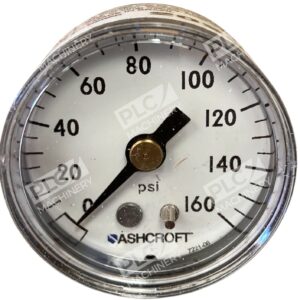

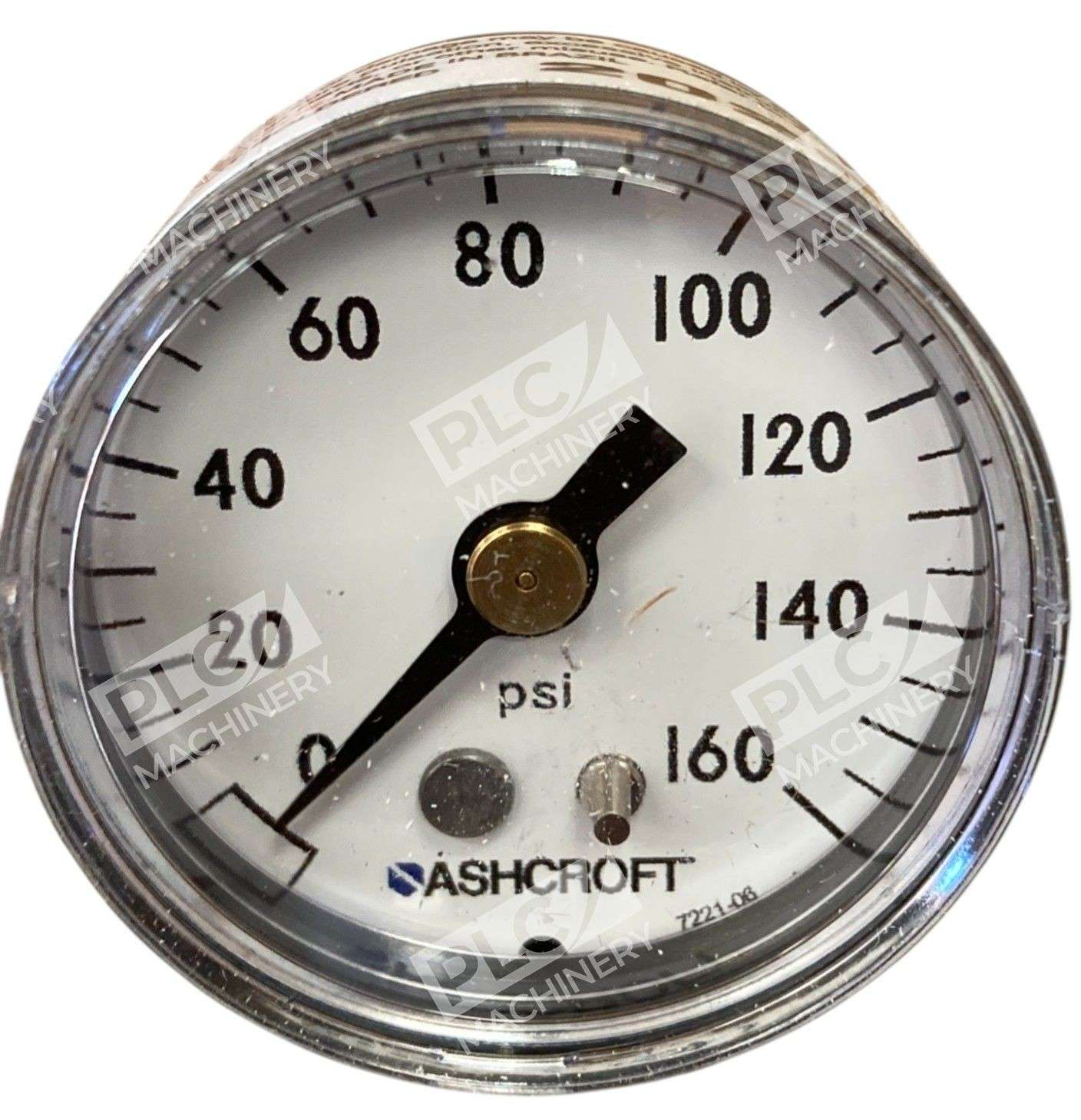

- 1.5″ dial provides clear, easy-to-read pressure indication
- Center back mount 1/8″ NPT connection for standard pneumatic and hydraulic lines
- Lightweight and compact for flexible installation
Technical Specifications
- Pressure Range: 0–160 PSI
- Dial Size: 1.5 inches

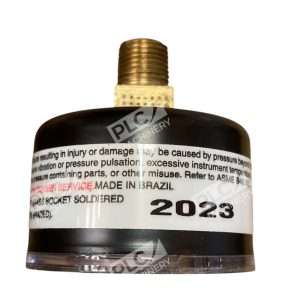

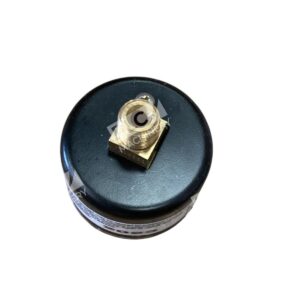

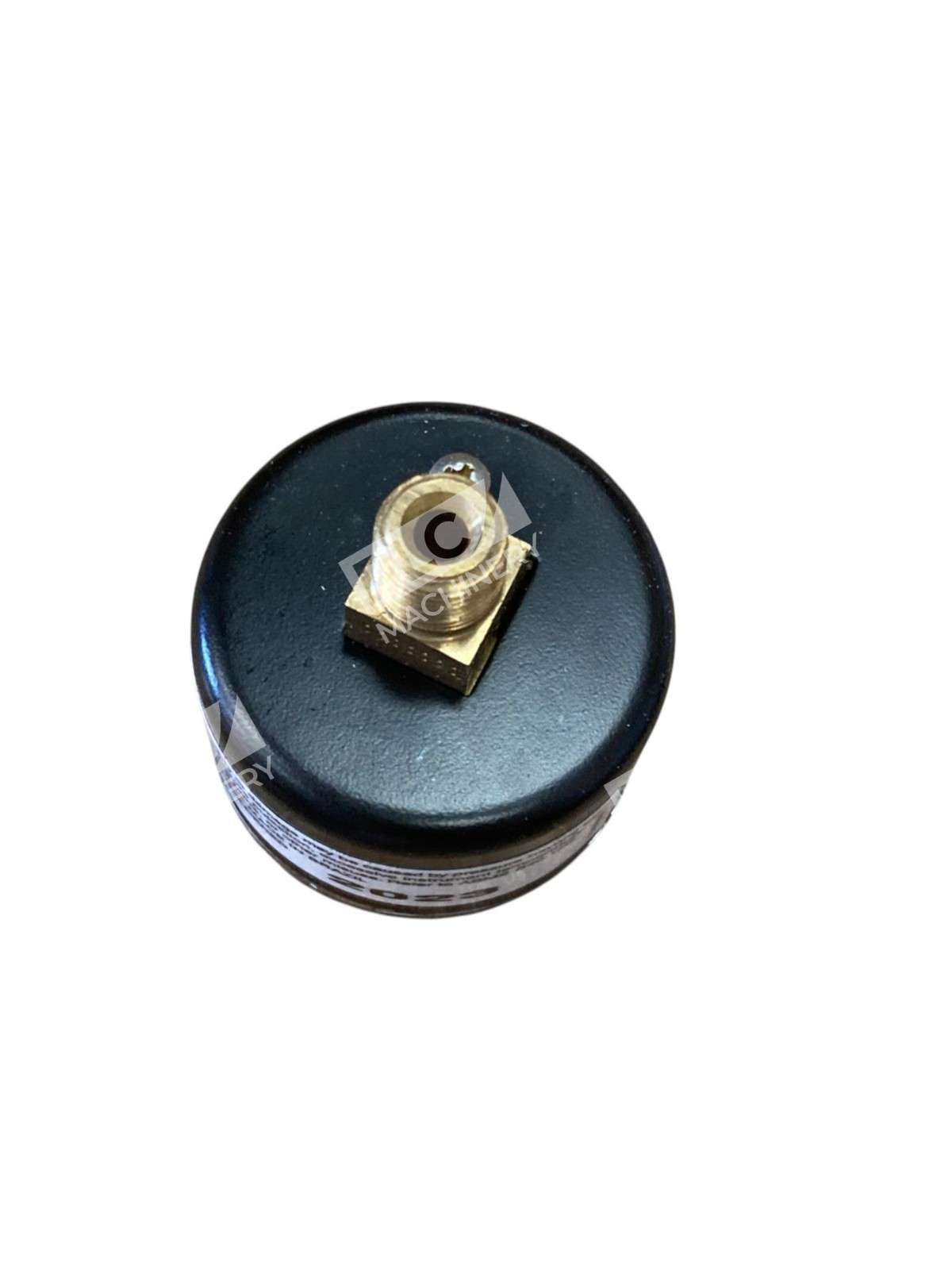

- Connection: 1/8″ NPT, center back mount
- Wetted Materials: Brass
- Case Material: Steel
- Series: Ashcroft Type 1005
Typical Applications
The Ashcroft 15W1005-H-01B-160 suits a broad range of industrial and commercial uses:
- Air and gas compressor systems
- Pneumatic filter-regulators and pressure switches
- Water pump and circulation systems
- Beverage and food processing equipment
- Paint spray systems and air tools
- General plant pneumatics and hydraulic monitoring
Compatibility & Replacements
Compatible With
- Standard 1/8″ NPT pneumatic and hydraulic line connections
- Compressor outlet ports and filter-regulator assemblies
- Pressure monitoring applications up to 160 PSI
- Ashcroft Type 1005 series gauge kits and manifolds
Replaces / Drop-In Replacement For
Verify compatibility with your system integrator before ordering. This part number (15W1005-H-01B-160) corresponds to a specific Ashcroft configuration; confirm that any legacy or competing gauge has matching 1.5″ dial, 1/8″ NPT connection, and 160 PSI range before substitution.
Works With
- 1/8″ NPT male port fittings and adapters
- Standard compressed air and inert gas systems
- Ashcroft Type 1005 pressure gauge line
- Industrial control and monitoring panels
