Overview

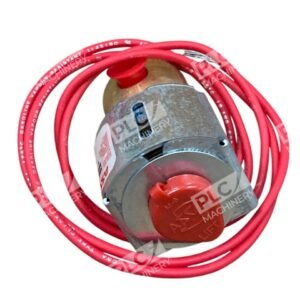

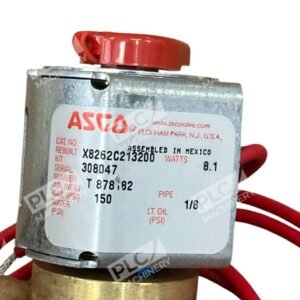

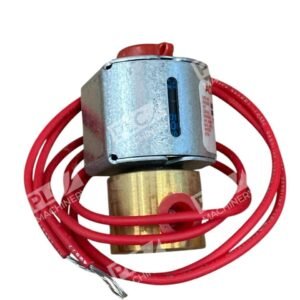

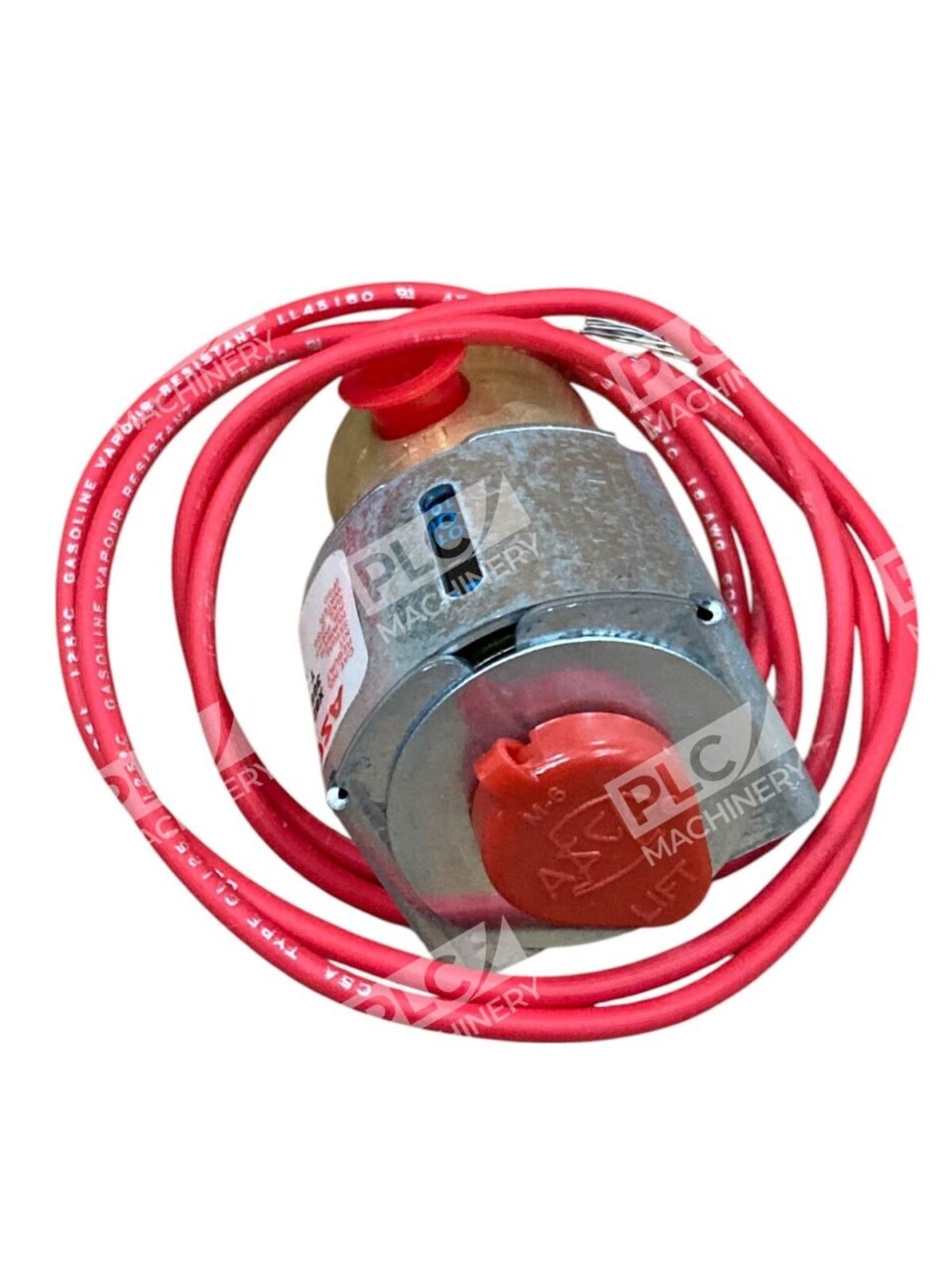

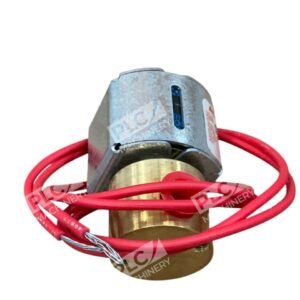

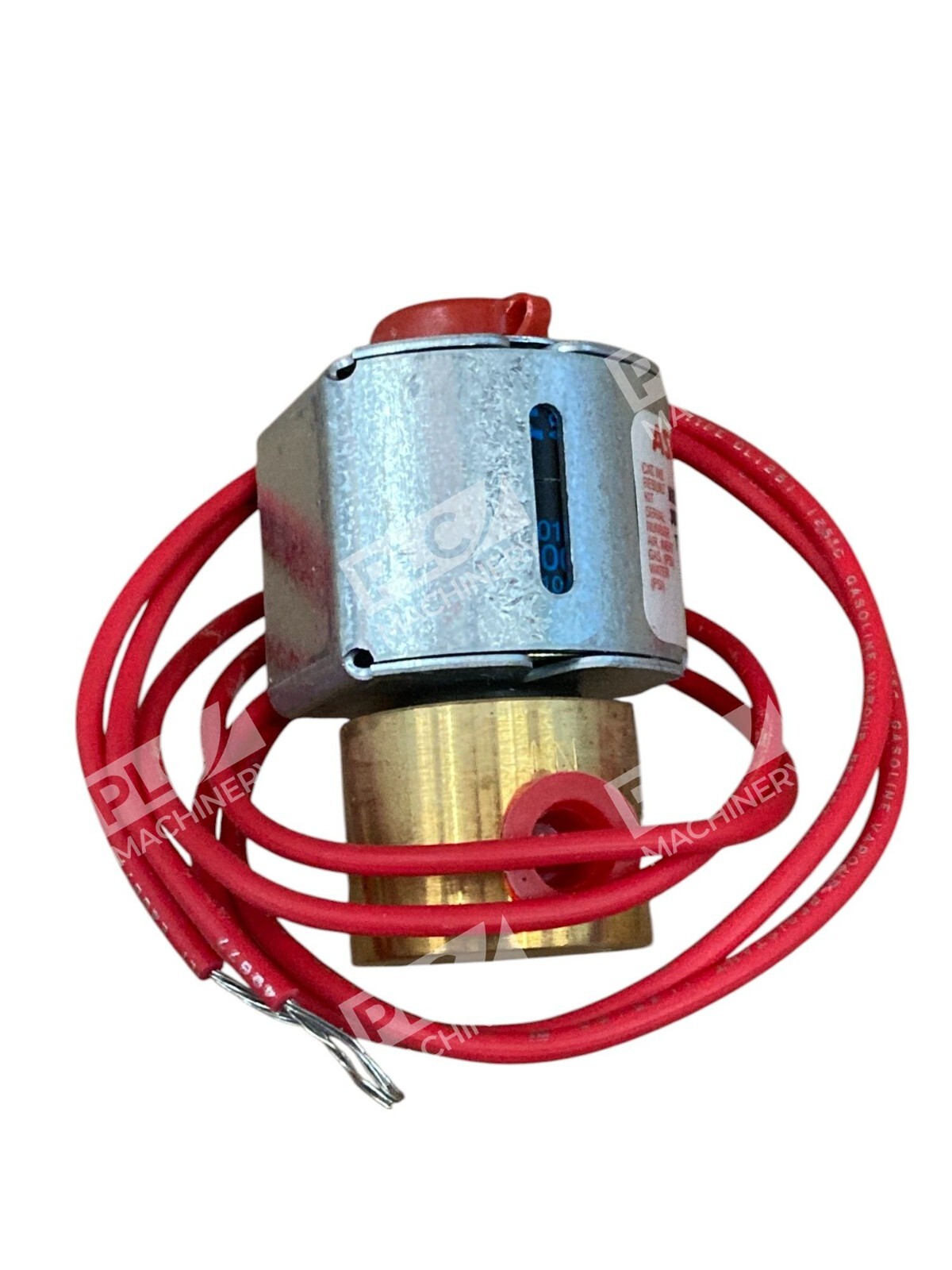

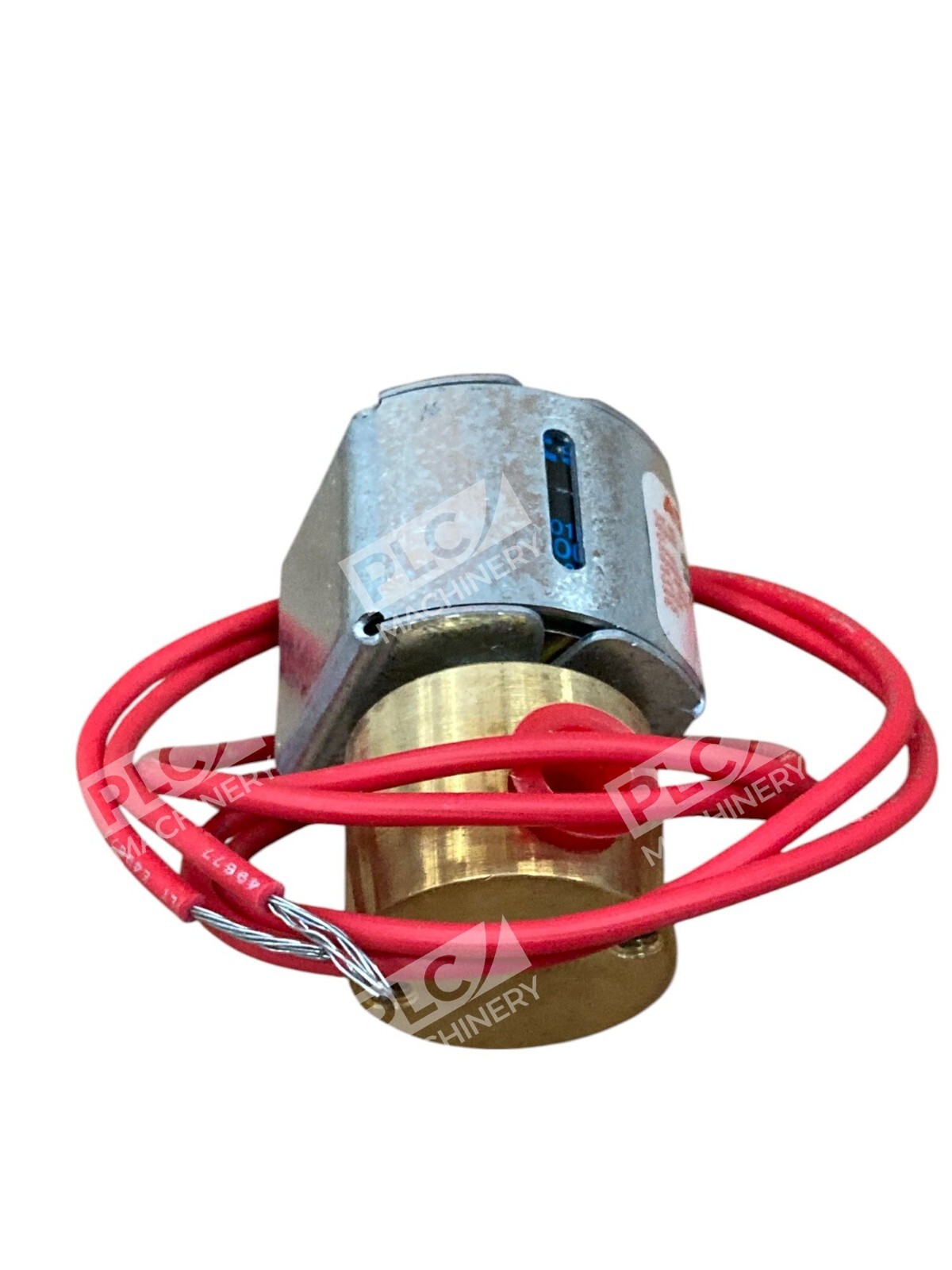

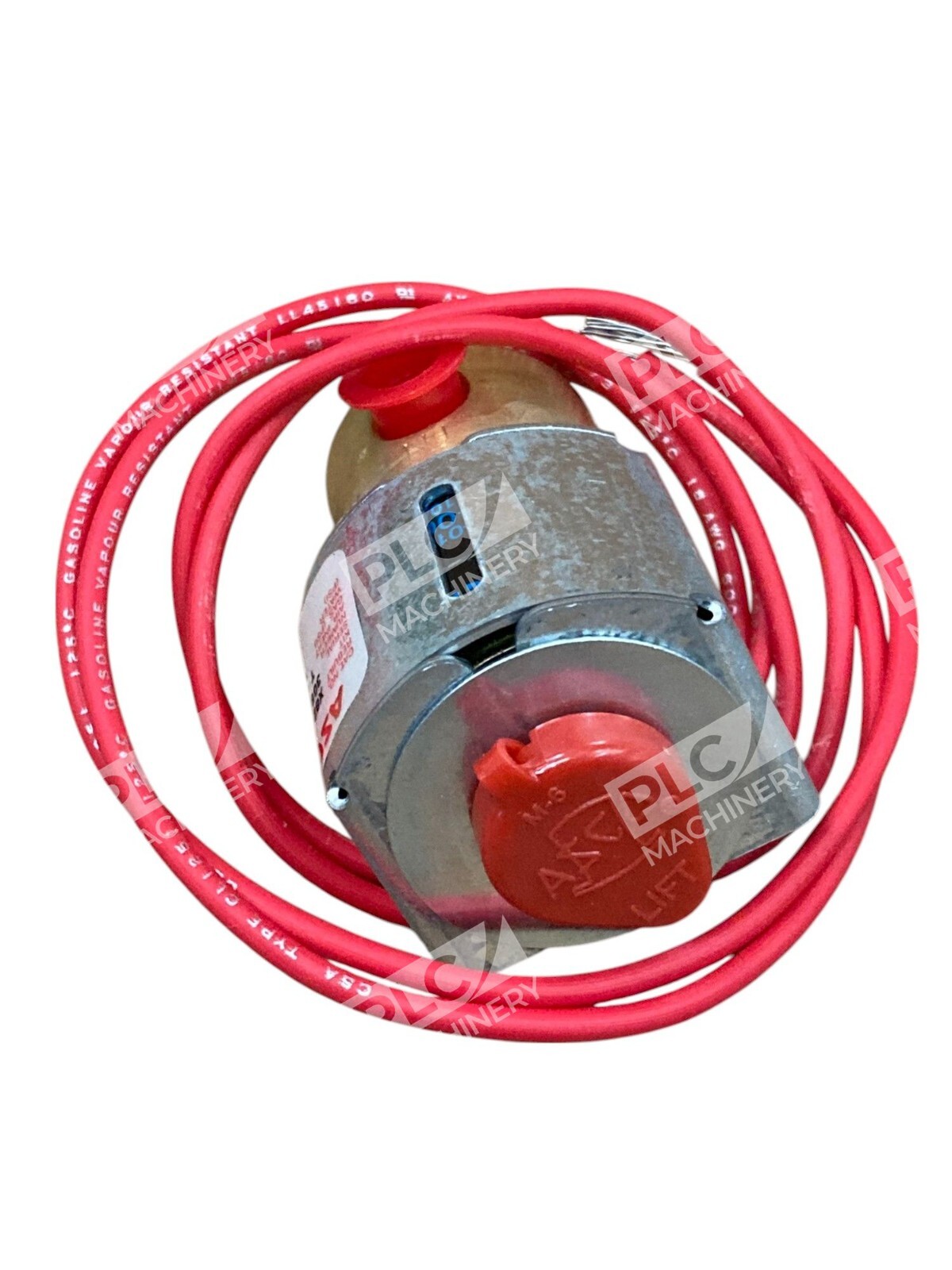

The ASCO X8262C213200 is a direct-acting, normally closed 2-way solenoid valve from ASCO’s proven RedHat line. This 1/8″ NPT valve delivers dependable fluid control in pneumatic, hydraulic, and general service applications. With a 150PSI operating rating and 120V 60Hz solenoid, the X8262C213200 provides compact, modular performance for equipment builders and system integrators requiring responsive on-off flow control.
Key Features
- Direct-acting design requires no minimum operating pressure
- Normally closed (energize to open) configuration
- Compact 1/8″ NPT connection size for tight installations
- RedHat series reliability—over 130 years of ASCO fluid control heritage
- Brass body with stainless steel core components for corrosion resistance
- Mountable in any position with high flow capacity
Technical Specifications
- Valve Type: Direct-acting, 2-way, normally closed poppet
- Port Size: 1/8″ NPT (inlet and outlet)
- Max Operating Pressure: 150PSI (air/water); 140PSI (light oil)

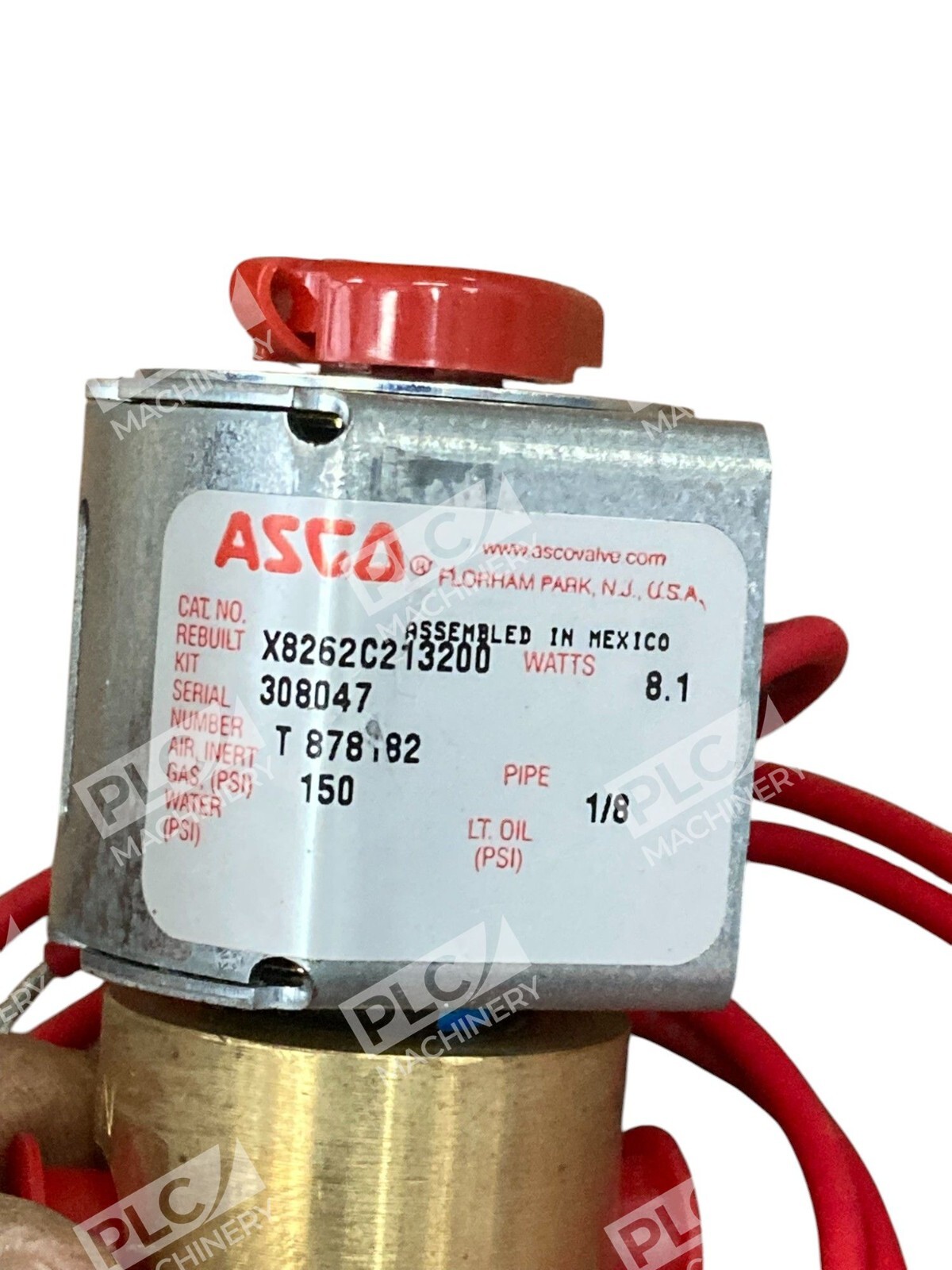

- Solenoid Power: 8.1W, 120V AC, 60Hz
- Operating Temperature: –13°F to +131°F (fluid); 180°F max fluid temperature
- Body Material: Brass with stainless steel core
- Seal Material: NBR (standard)
- Enclosure Type: IP67 watertight, impact-resistant plastic
- Response Time: Approximately 20–40 milliseconds
- Minimum Cracking Pressure: None (direct-acting requires zero minimum pressure)
Typical Applications
The ASCO X8262C213200 is ideal for:
- Pneumatic actuator control (cylinders, air tools)
- Water and compressed air systems
- Light hydraulic and oil applications
- Dust collection and vacuum systems
- Air brake and fluid sampling systems
- General industrial automation requiring fail-safe solenoid switching
Compatibility & Replacements
Compatible With
- 24V DC, 110V AC, 120V AC, 240V AC solenoid coils (coil swap available)
- Standard pneumatic and hydraulic manifold blocks with 1/8″ NPT ports
- Dust collection systems, air compressors, and process controls
- Industrial automation PLCs and control relays
Replaces / Drop-In Replacement For
- ASCO 8262 series valves with identical 1/8″ NPT normally closed configuration
- Other RedHat miniature 2-way direct-acting solenoid valves in legacy systems
- Verify exact coil voltage and connector type with your system documentation before ordering.
Works With
- Standard 1/8″ NPT threaded ports (tapered pipe thread)
- Pneumatic and hydraulic system standards (ISO 4401, NG10, NG16 manifolds)
- ASCO electrical connectors and coil replacements
- Industrial PLC control systems and relay circuits
