Overview

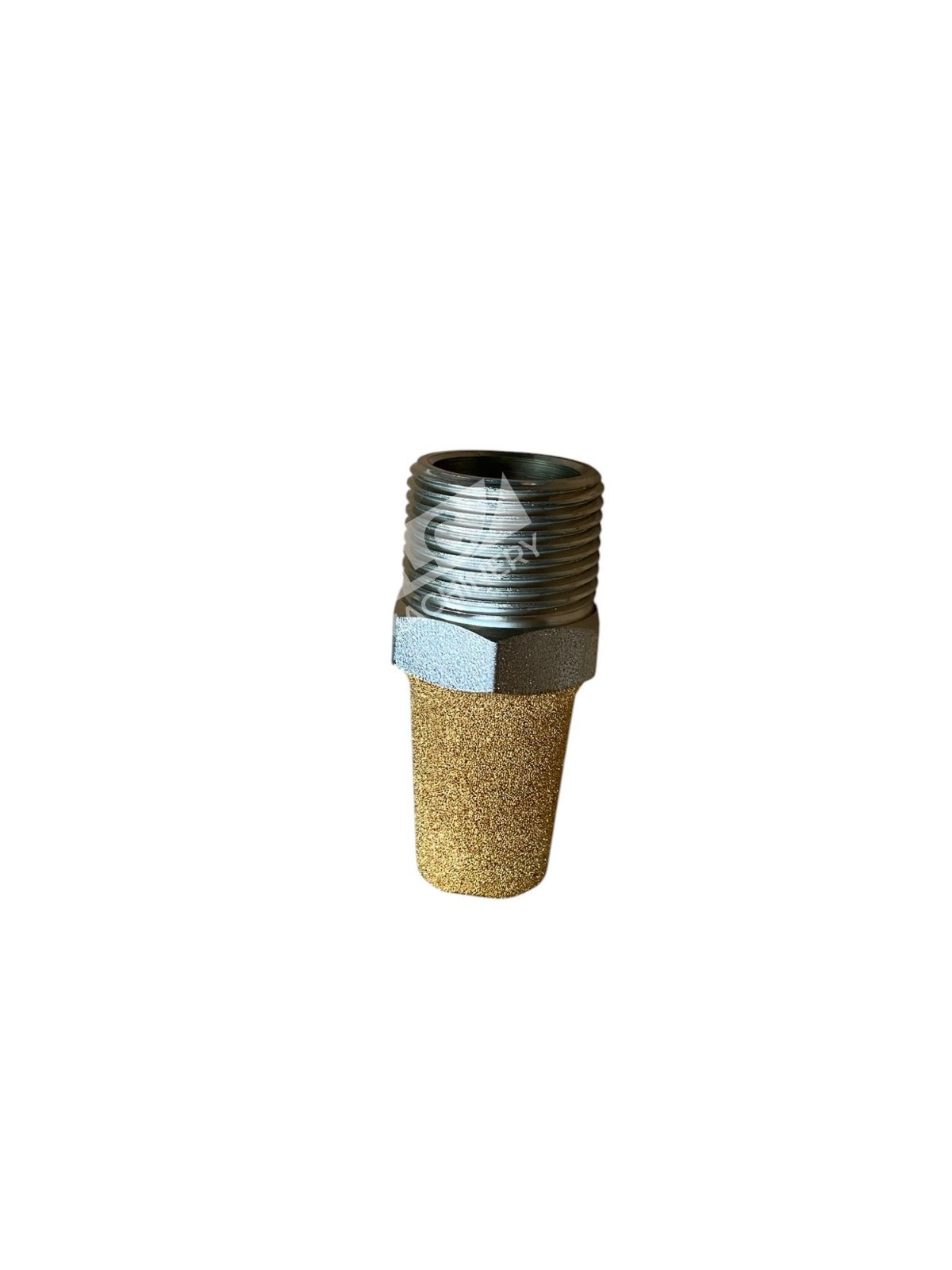

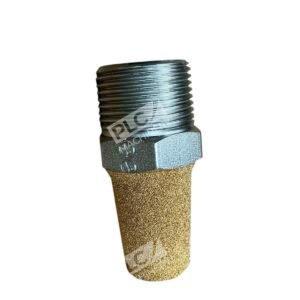

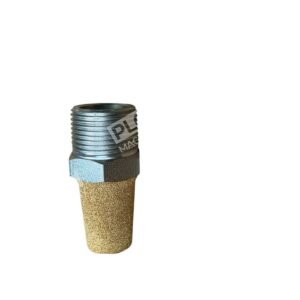

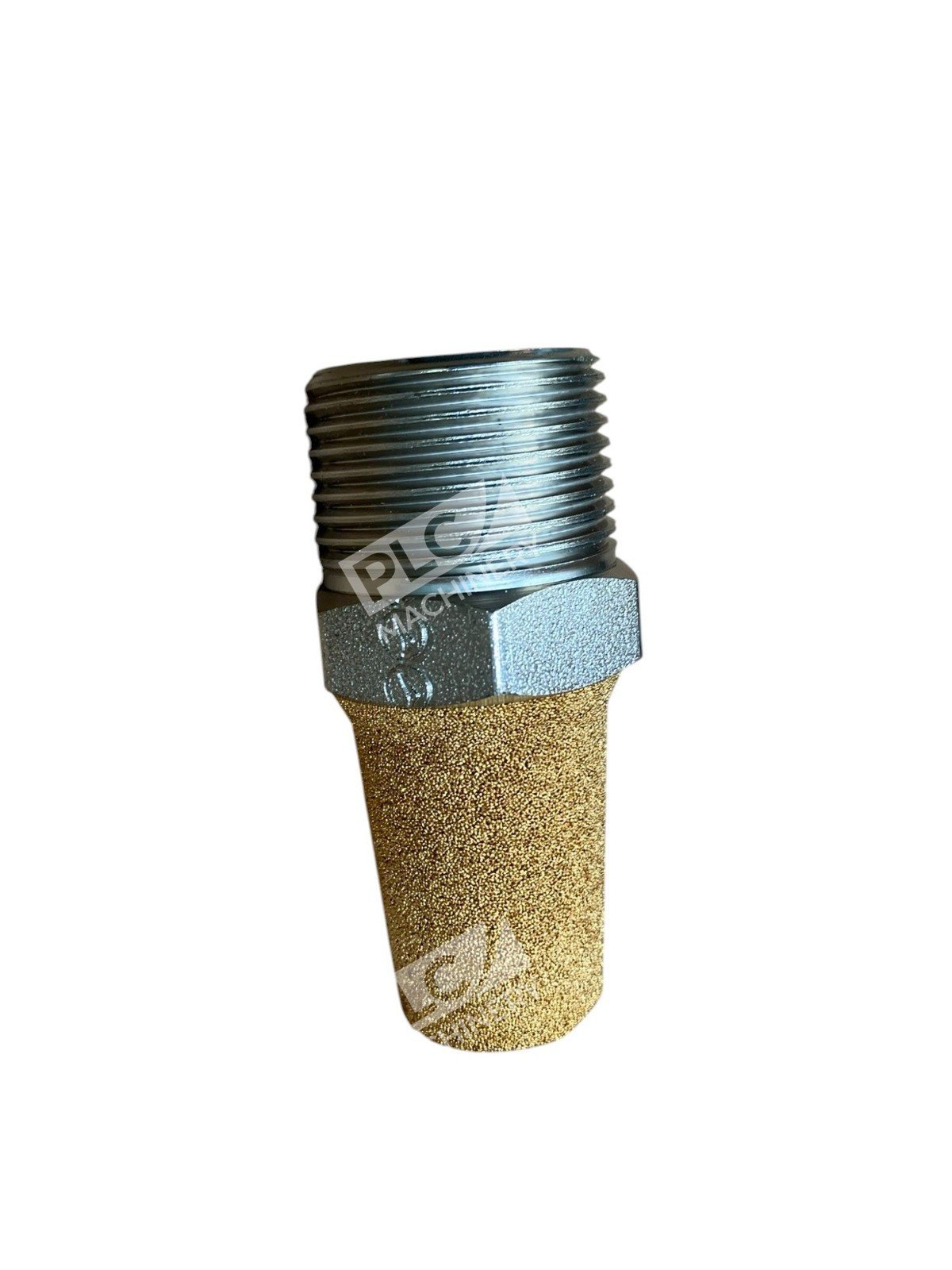

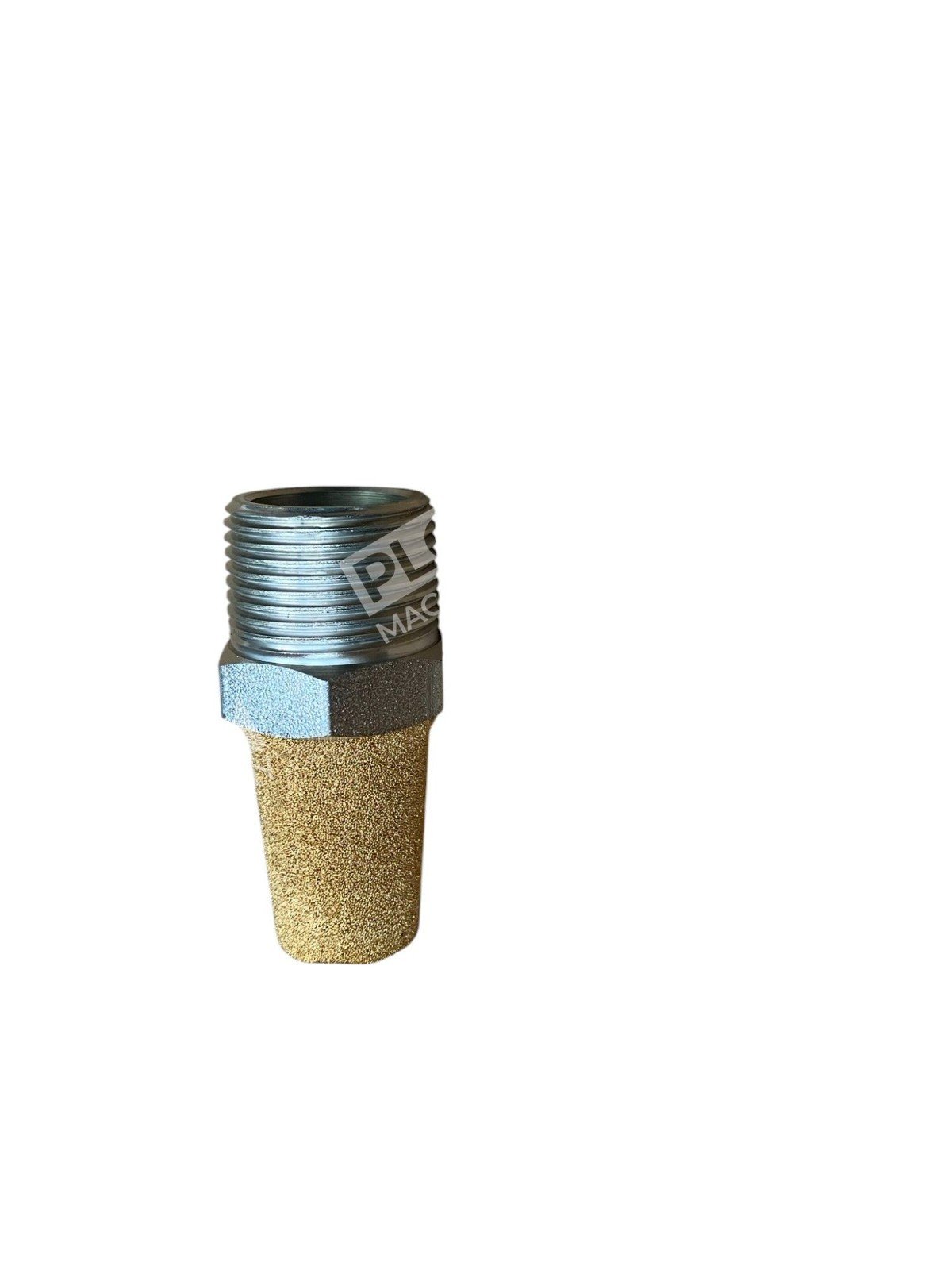

The Arrow Pneumatics ASP-8 muffler filter is a compact 1″ NPT exhaust silencer that combines noise reduction with particulate filtration for compressed air systems. Built with a sintered bronze element rated at 40 microns, this unit effectively muffles exhaust noise while filtering gasoline, oil, and airborne contaminants. Arrow’s controlled-porosity sintered bronze technology diffuses escaping air to meet OSHA noise requirements while protecting downstream equipment and improving operator comfort.
Key Features
- Sintered bronze 40 micron filter element for reliable contaminant removal
- Porous bronze construction directly bonded to nickel-plated steel pipe threads
- Reduces exhaust noise to OSHA-compliant levels
- Compact 1″ NPT threaded body design fits tight mounting spaces
- Handles multiple fluid types: compressed air, oil, and gasoline
- 300 PSI maximum operating pressure rating
Technical Specifications
- Connection Size: 1″ NPT inlet and outlet
- Filter Element Material: Sintered bronze
- Filter Rating: 40 micron
- Body Material: Bronze
- Fitting Material: Nickel-plated steel
- Maximum Operating Pressure: 300 PSI
- Operating Temperature Range: 35–300°F
- Maximum Flow Rate: 154 SCFM
- Air Outlet Size: 1″ NPT
- Outside Diameter: 1 5/16″
- Designed For: Exhaust air, compressed air systems
Typical Applications
The Arrow Pneumatics ASP-8 is ideal for mounting on exhaust ports of pneumatic cylinders, valves, and air tools to suppress noise while filtering particulates. Common uses include:
- Manufacturing and assembly line pneumatic equipment
- Pneumatic tool exhaust silencing
- Hydraulic and pneumatic system protection
- Industrial maintenance and facility air compression systems
- Environments with strict OSHA noise compliance requirements
Compatibility & Replacements
Compatible With
- Standard pneumatic cylinder exhaust ports (1″ NPT)
- Pneumatic valve outlets and directional control valves
- Air tool exhaust ports (impact wrenches, grinders, sanders)
- Compressed air systems operating at 300 PSI or below
Replaces / Drop-In Replacement For

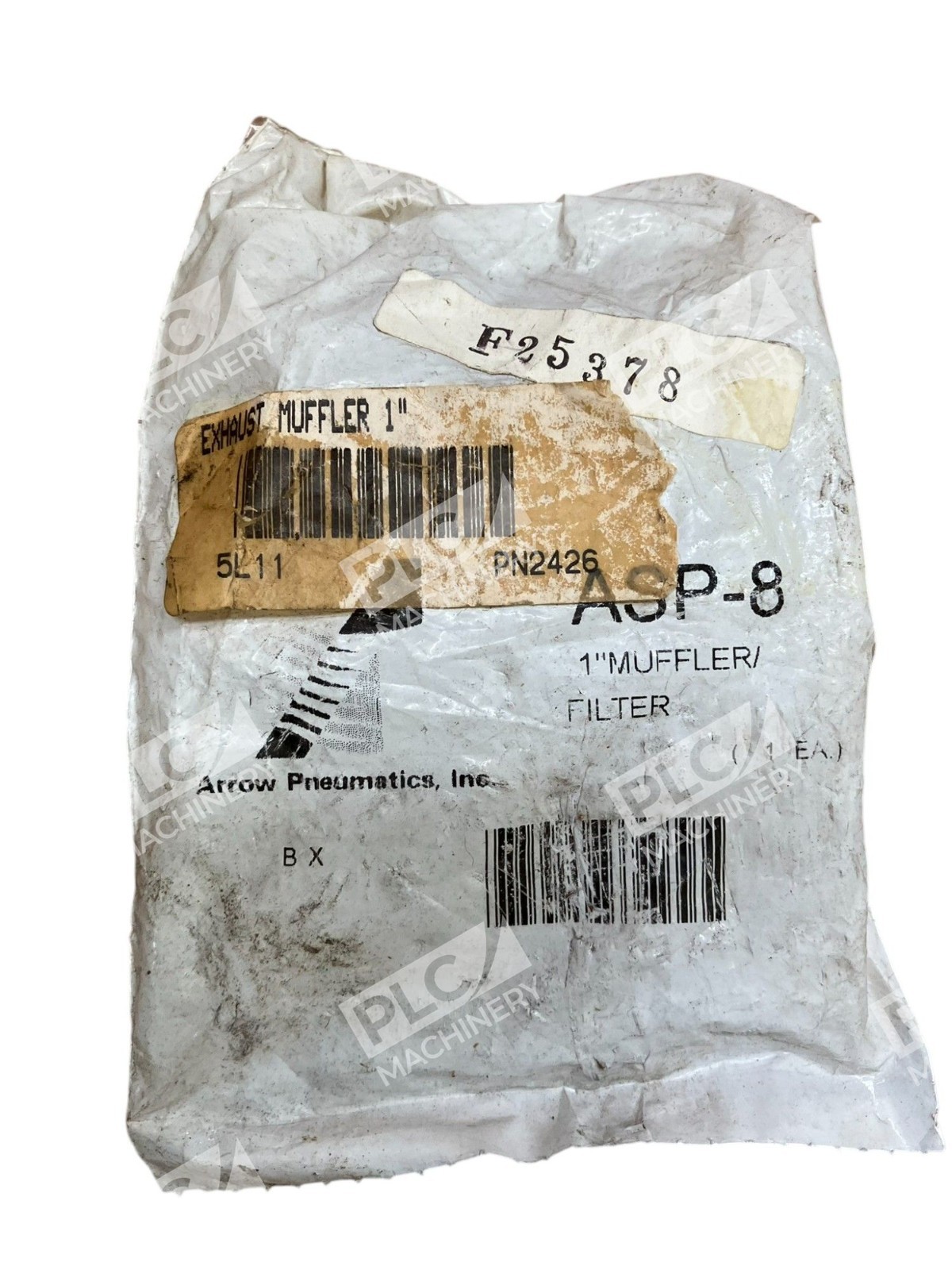

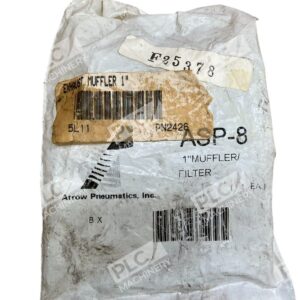

The Arrow Pneumatics PN2426 ASP-8 is the direct factory part number for this 1″ muffler filter model. Verify compatibility with your system integrator before ordering.
Works With
- Pneumatic actuators and cylinders with 1″ NPT ports
- Directional control valves (solenoid and manual)
- Pneumatic tool systems and handheld air tools
- Industrial compressed air preparation equipment (filter regulators, dryers)
