Overview

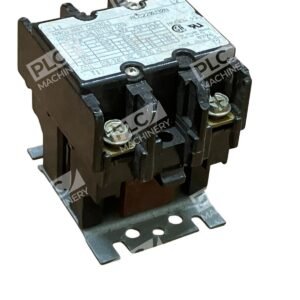

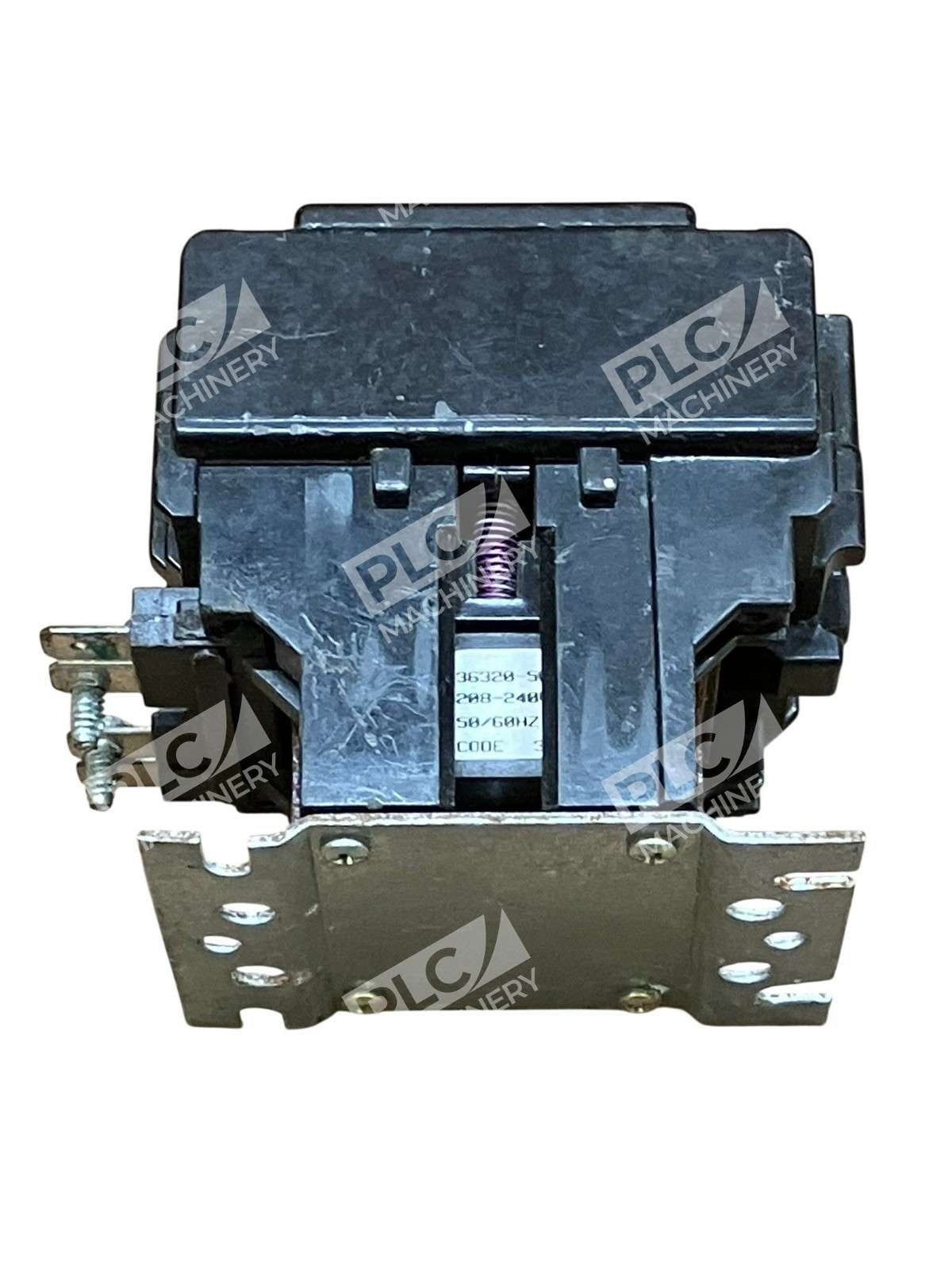

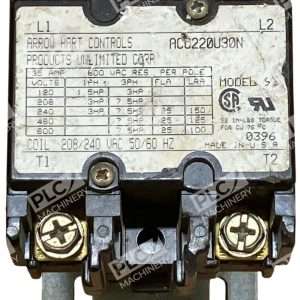

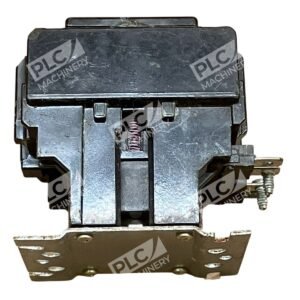

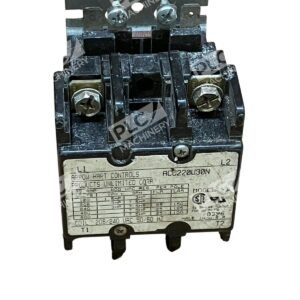

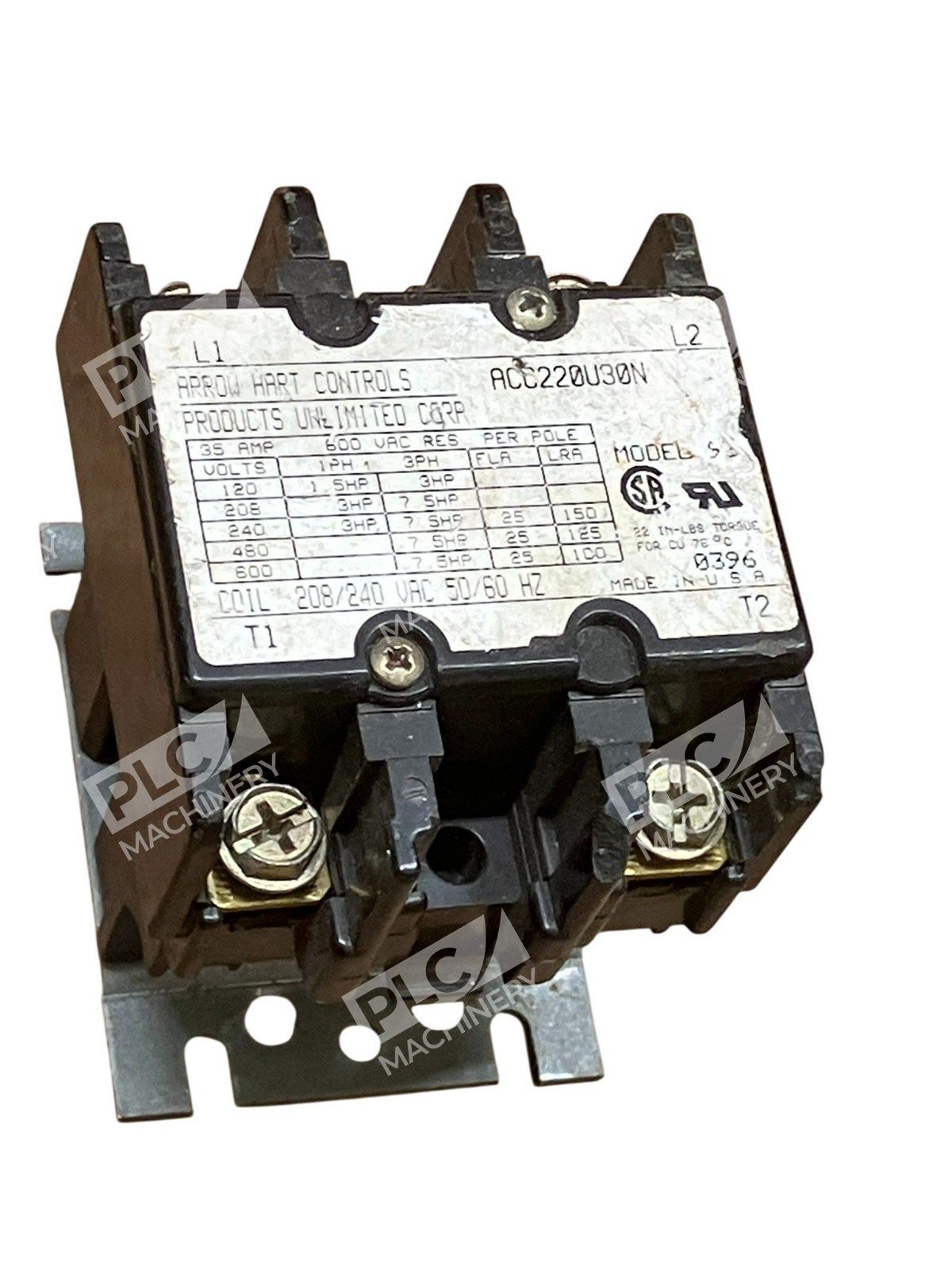

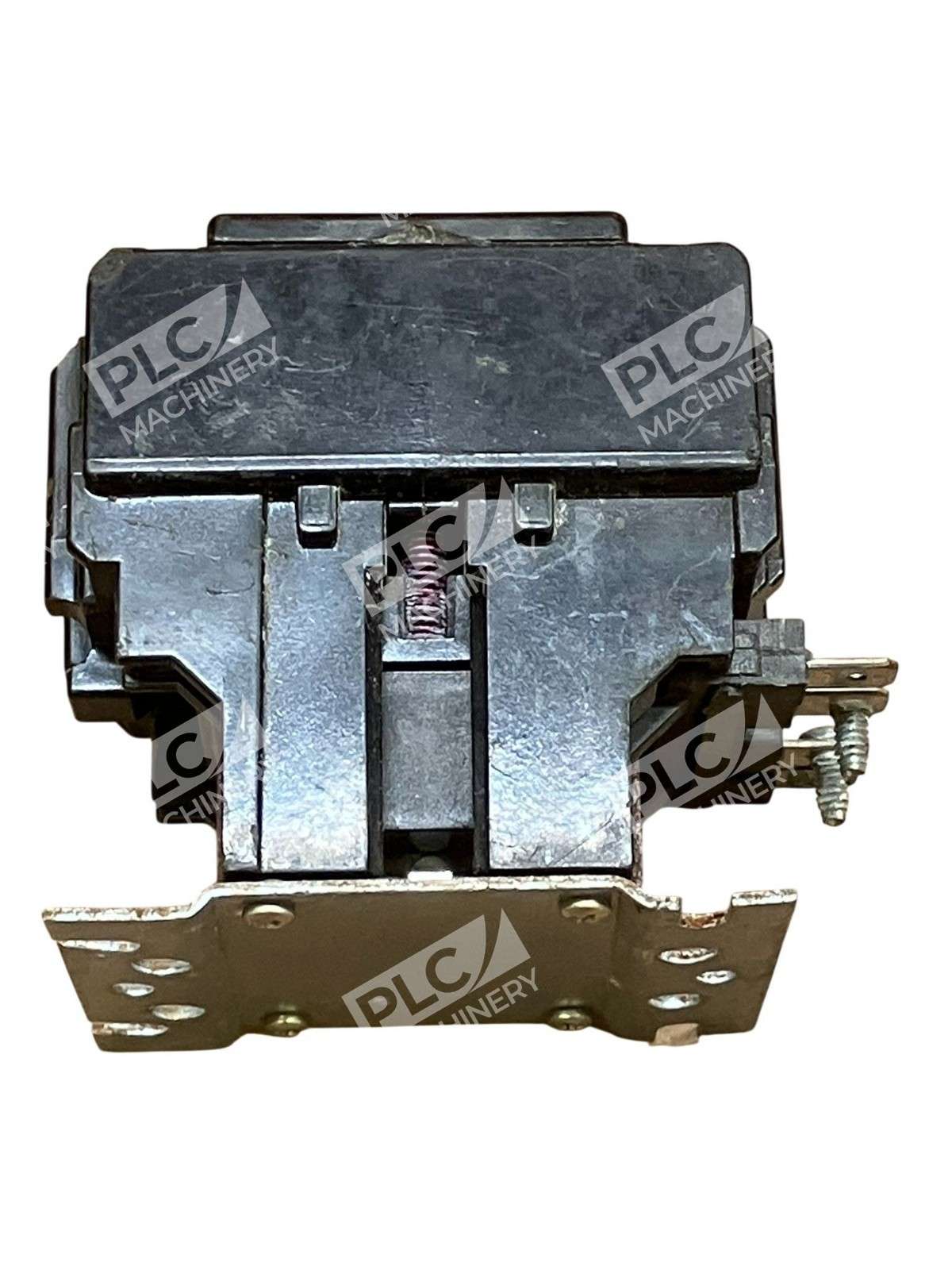

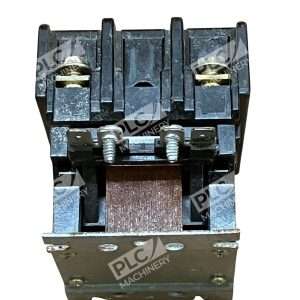

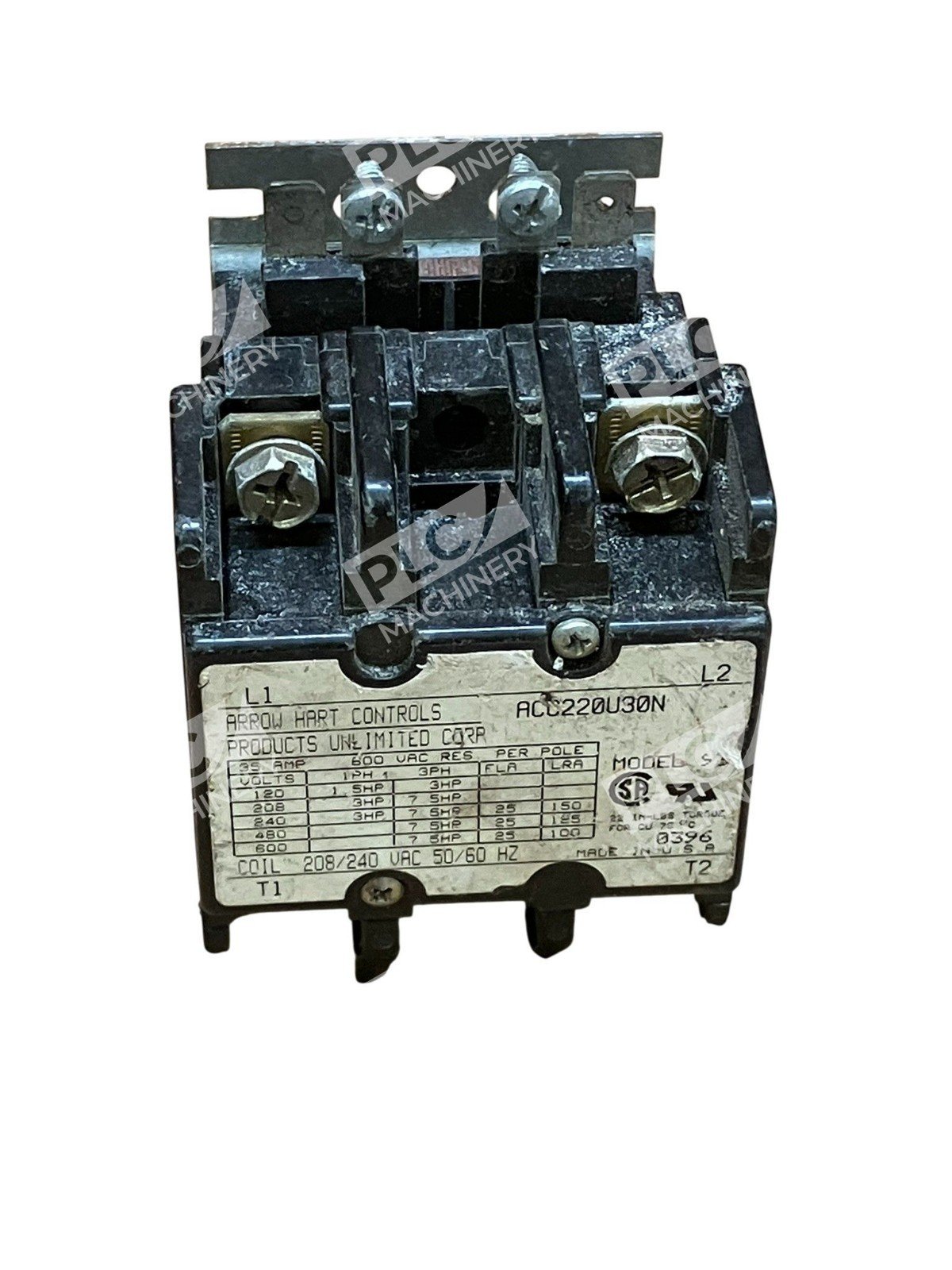

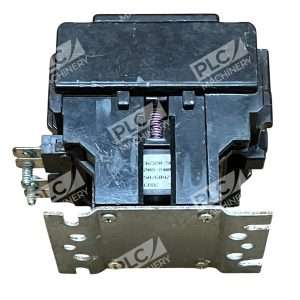

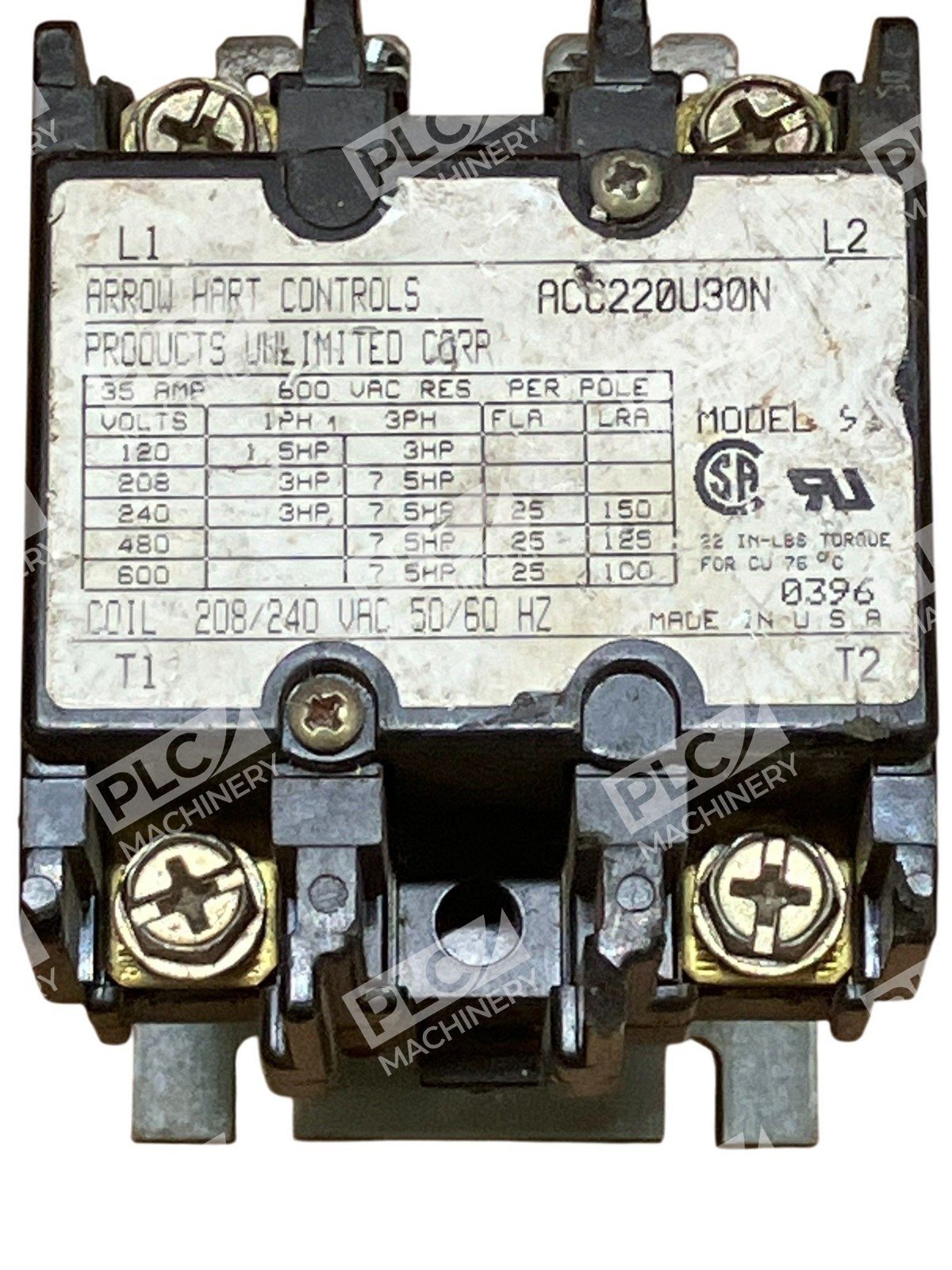

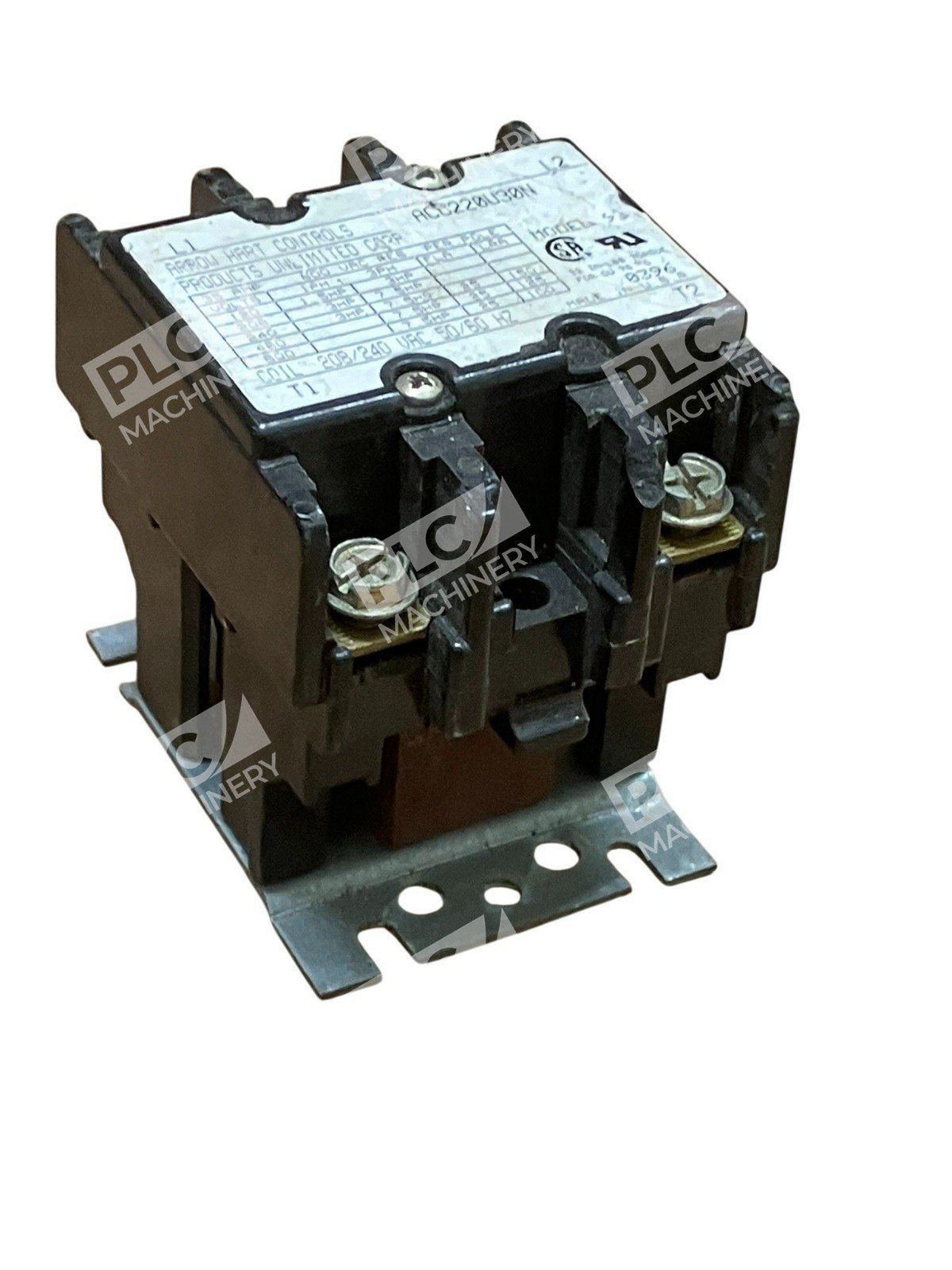

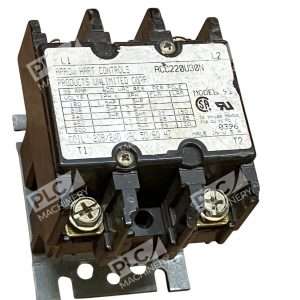

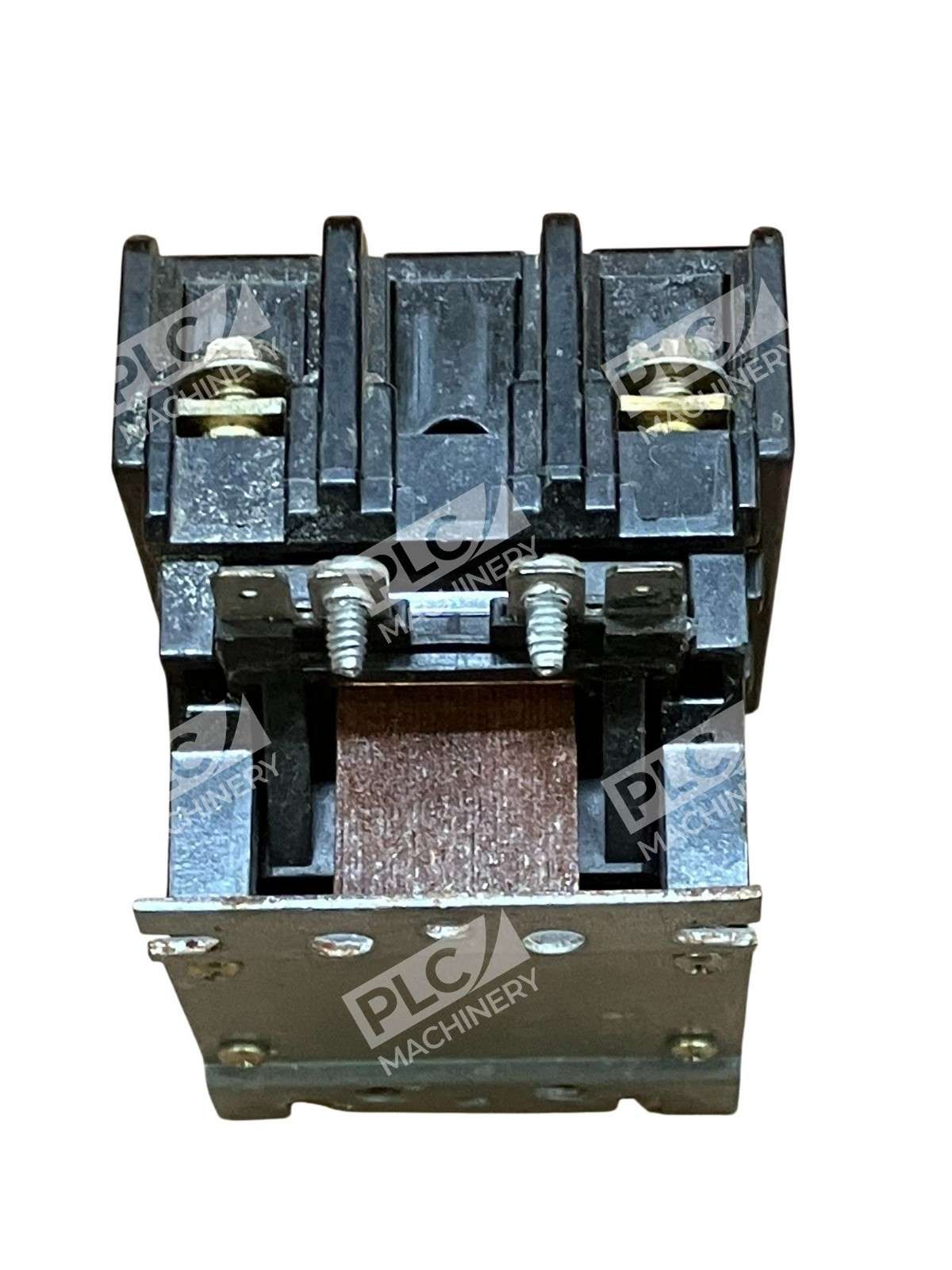

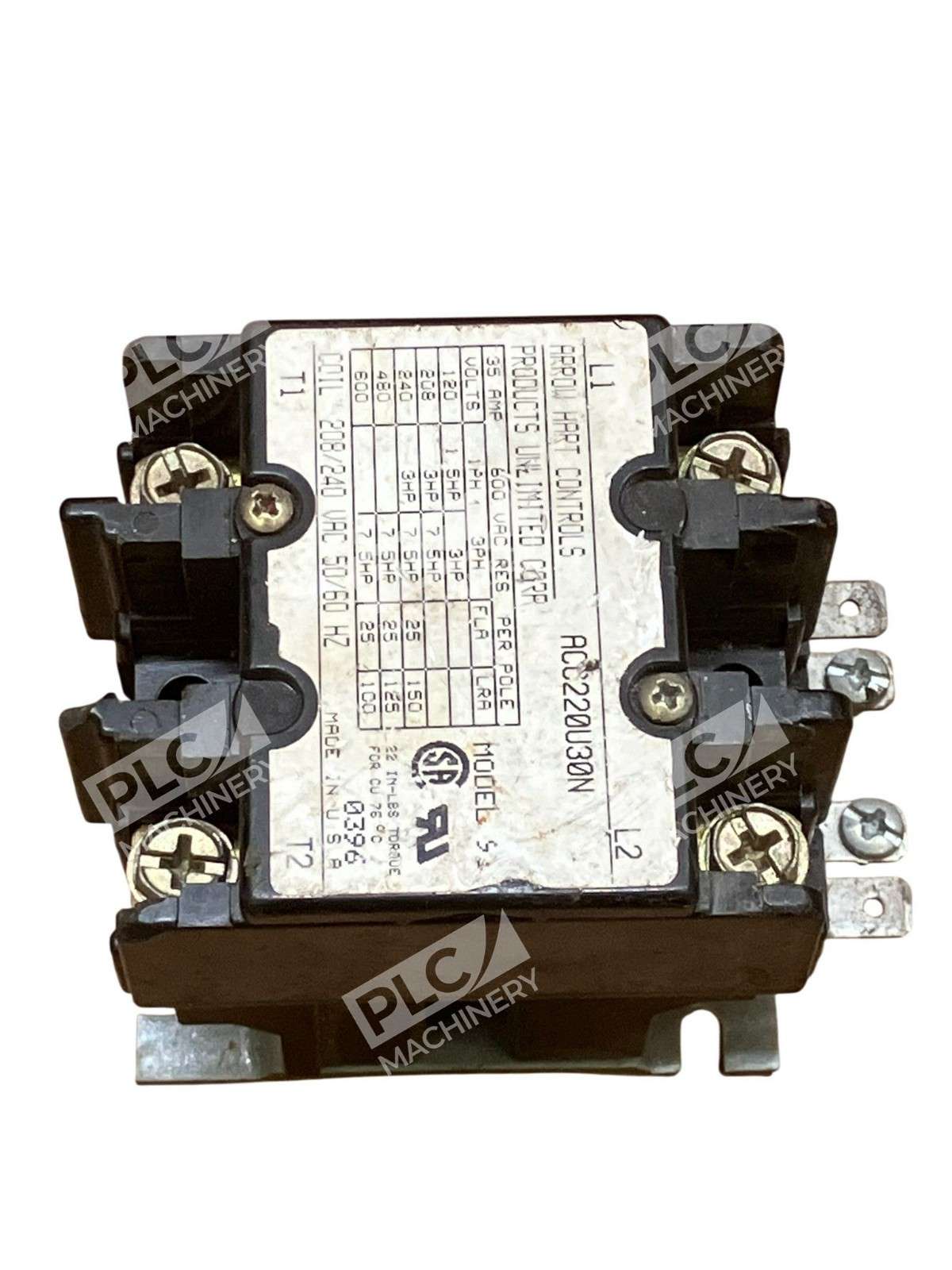

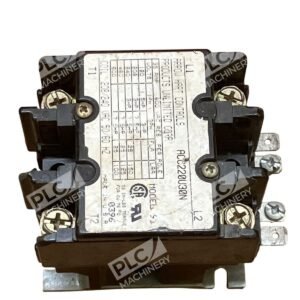

The Arrow Hart ACC220U30N is a definite-purpose contactor designed for industrial automation and control systems. Part of Arrow Hart’s proven ACC series, this contactor delivers reliable electrical switching across HVAC, refrigeration, and general industrial applications. The unit is built to IEC and NEMA standards with approvals including UL 508 and CSA certification.
Key Features
- Definite-purpose design for reliable, repetitive switching operations
- Two-pole configuration for flexible motor and load control
- Compact size minimizes panel footprint with standard baseplate compatibility
- Factory-tested and discontinued by manufacturer, now available as surplus stock
- Quick-connect and screw terminal options for flexible installation
- Coil voltage and amperage rated for industrial duty cycles
Technical Specifications
The Arrow Hart ACC220U30N conforms to industry standards for electrical safety and performance. Specifications include standard mounting configurations compatible with most industrial control panels. Operating temperature range supports typical industrial environments. Unit weight and dimensions align with standard Arrow Hart ACC series mounting provisions.
Typical Applications
- HVAC and air conditioning equipment control
- Refrigeration compressor and motor switching
- Industrial heating and ventilation systems
- General-purpose motor starters and load control
- Automated machinery and equipment switching
Compatibility & Replacements
Compatible With
- Standard industrial control panels and baseplates
- IEC 947-4-1 and NEMA control systems
- Two-pole motor control circuits
- 48 VDC through 480 VAC coil voltage systems
Replaces / Drop-In Replacement For
The Arrow Hart ACC220U30N is part of the ACC series family. Related models in the series include ACC230U30, ACC220U20, and other two-pole variants. Due to the discontinued nature of this part, verify exact compatibility with your system integrator before ordering as coil voltage and contact rating must match your application requirements.
Works With
- Standard industrial motor starters and soft starters
- Control relay circuits and programmable logic controllers
- Manual and automatic control stations
- Auxiliary switch configurations for interlocking
- Pressure plates with quick-connect terminals
