Overview

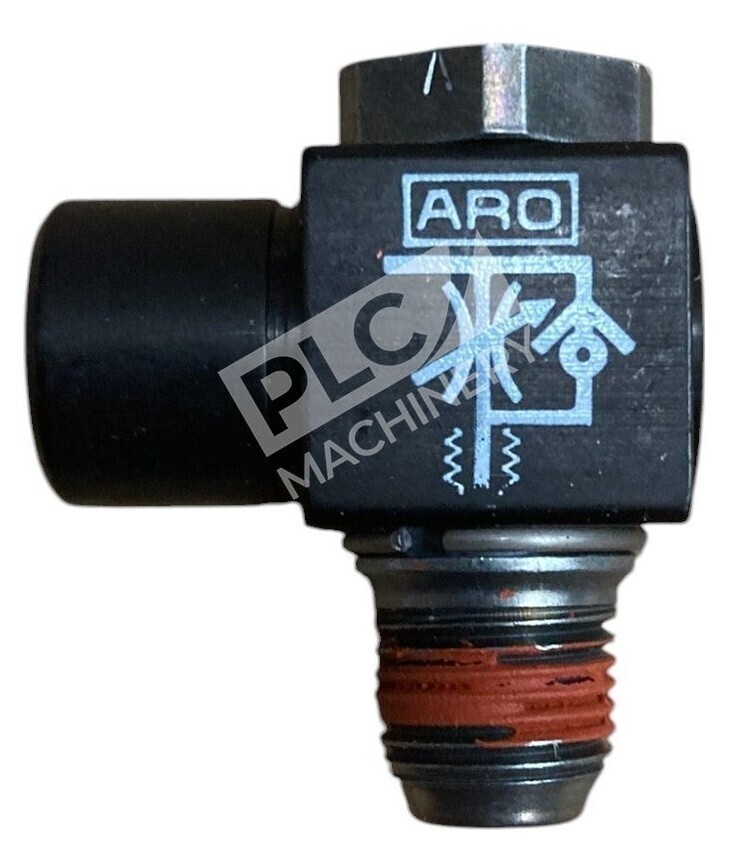

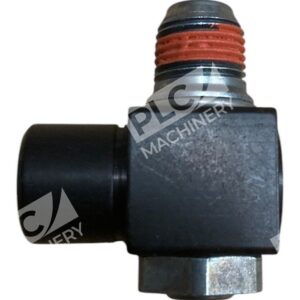

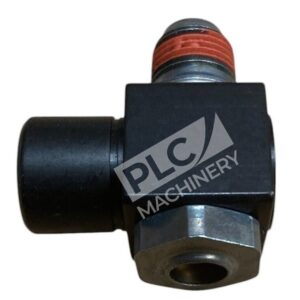

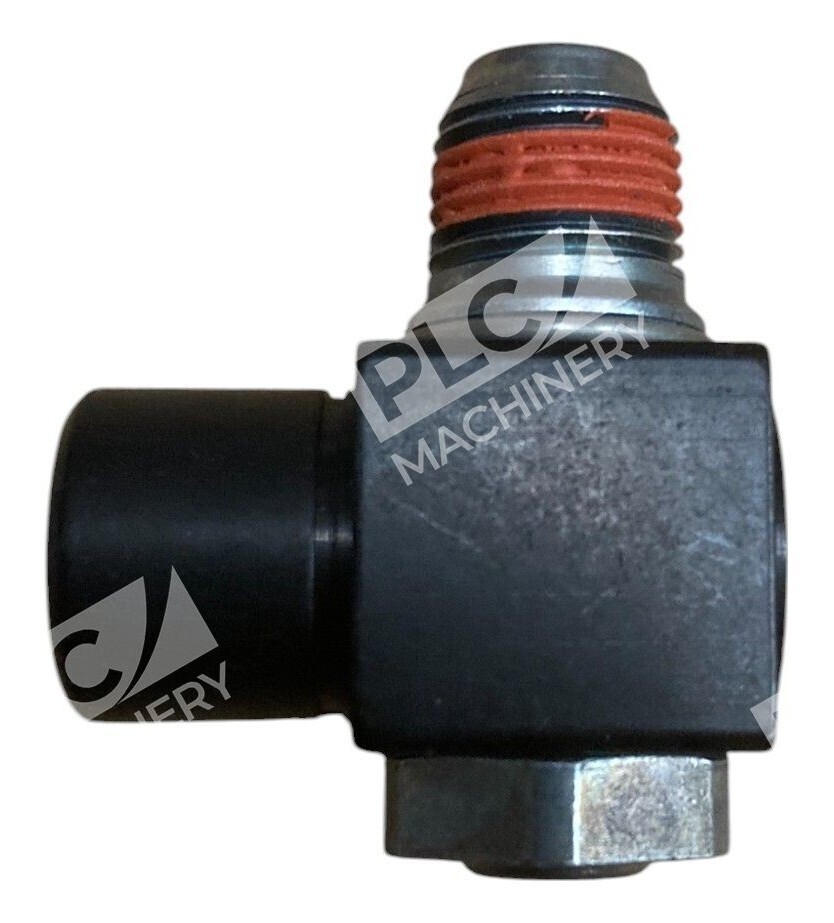

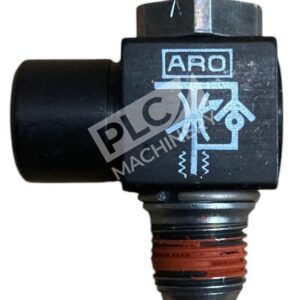

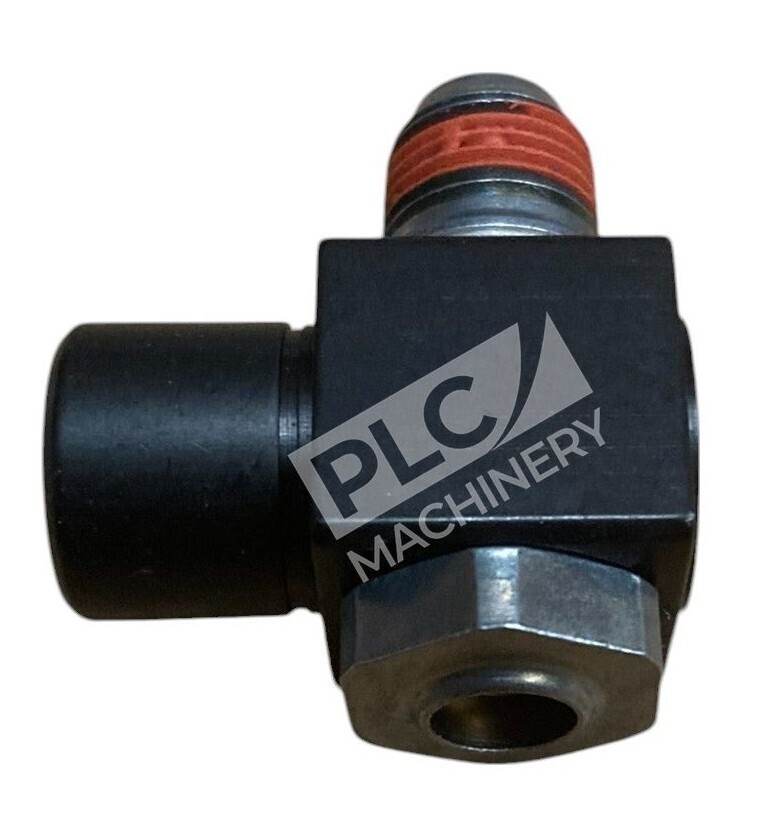

The ARO 119307-103 is a precision flow control valve designed for pneumatic and low-pressure hydraulic applications. With 10-32 UNF threaded ports and a maximum pressure rating of 150 PSI, this valve provides reliable flow regulation in compact spaces. Its nickel-plated brass construction ensures durability and corrosion resistance across demanding industrial environments.
Key Features
- Compact Design: Measures 53/64″ length × 53/64″ height × 7/16″ width for tight installation spaces
- 360-Degree Swivel: Anodized aluminum swivel connection for flexible tube alignment
- Screwdriver Adjustment: Slotted adjustment knob for simple, tool-free flow rate tuning
- Stainless Steel Spring: Corrosion-resistant spring mechanism for consistent performance
- High Flow Capacity: Rated for up to 3 CFM at maximum operating pressure
- Temperature Range: Operates reliably from 0°F to 158°F
Technical Specifications
The ARO 119307-103 meets standard industrial valve requirements with the following verified specifications:
Typical Applications
- Pneumatic tool speed control and air motor regulation
- Precision air circuit flow metering
- Low-pressure hydraulic system damping
- Laboratory and test equipment air supplies
- Automated machinery breath control and sequencing
Compatibility & Replacements
Compatible With
- Standard pneumatic tubing with 10-32 UNF compression fittings
- Minature pneumatic circuits and manifolds
- Low-pressure air and nitrogen systems
- Industrial compressed air networks (ISO 1210 standard)
- Miniature instrumentation air systems
Replaces / Drop-In Replacement For
- Other ARO 10-32 UNF needle valves in compact cartridge sizes
- Verify your current valve thread size (10-32 UNF) before ordering to ensure compatibility
Works With
- Standard 10-32 UNF compression fittings and push-to-connect adapters
- Flexible nylon and polyurethane tubing (1/4″ O.D. typical)
- Miniature brass and aluminum manifold blocks
- ARO pneumatic component ecosystems
